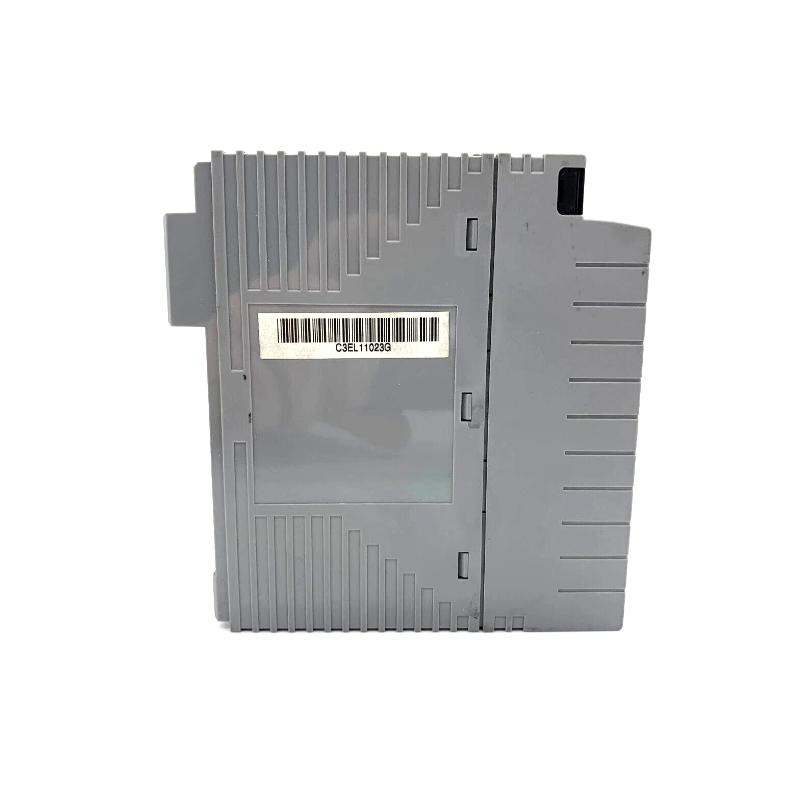

ADV859-P00 1 ADV859-P00 4 ADV859-P00 2 ADV859-P00 3

The Yokogawa ADV859-P00 I/O Module is an advanced, high-performance input/output module designed to provide seamless integration in industrial automation systems. This module is a crucial component for efficient data acquisition and control, offering a wide range of analog and digital inputs and outputs for diverse applications. Engineered for reliability, flexibility, and high accuracy, the ADV859-P00 supports critical systems where real-time data processing is essential.

The module is ideal for use in industries such as process automation, manufacturing, energy management, and building automation, where the continuous flow of accurate data between sensors, actuators, and control systems is critical to maintaining optimal performance.

Technical Specifications

Model: Yokogawa ADV859-P00
Module Type: I/O Module
Input Types:
- Analog: 4-20 mA, 0-10 V
- Digital: Discrete inputs
Output Types:
- Analog: 4-20 mA, 0-10 V
- Digital: Discrete outputs
I/O Capacity:
- 16 inputs (8 analog, 8 digital)
- 16 outputs (8 analog, 8 digital)
Power Supply: 24 V DC
Communication Protocols:
- Ethernet/IP, Modbus TCP
Dimensions: 7.2 x 5.5 x 3.9 inches (183 x 140 x 100 mm)
Weight: 1.8 kg (3.97 lbs)
Operating Temperature: -10°C to 60°C
Storage Temperature: -20°C to 70°C
Humidity: 5% to 95% RH (non-condensing)
Certifications: UL Listed, CE, RoHS Compliant

Recommended Related Models

Yokogawa ADV850 – Analog Input Module
Yokogawa ADV860 – Digital I/O Module
Yokogawa ADV550 – Digital Input Module
Yokogawa ADV840 – Communication Interface Module
Yokogawa ADV881 – Signal Conditioning Module

These related models offer enhanced I/O capabilities, signal conditioning, and communication features to work seamlessly with the ADV859-P00, enabling you to build a comprehensive automation and control system.

Popular Yokogawa Models

The ADV859-P00 is part of Yokogawa's comprehensive control and monitoring systems. It integrates smoothly with a range of popular models to enhance overall functionality:

Yokogawa Centum VP – Distributed Control System (DCS)
Yokogawa STARDOM – Remote Automation System for decentralized control
Yokogawa ProSafe-RS – Safety Instrumented System (SIS)
Yokogawa FAM – Field Asset Management for real-time diagnostics and asset monitoring

These models provide flexibility and scalability when combined with the ADV859-P00, ensuring effective system control, monitoring, and data management in complex industrial environments.

Applications

The Yokogawa ADV859-P00 I/O Module is suitable for a wide range of industries and applications where precise data acquisition and control are critical:

Process Automation: Used extensively in chemical, petrochemical, and pharmaceutical industries, where precise control of processes is essential for maintaining safety and efficiency.
Energy & Utilities: Ideal for power plants, renewable energy, and energy distribution systems, ensuring smooth integration with grid management and real-time data processing.
Manufacturing Automation: Facilitates control in automotive, electronics, and food processing industries, ensuring optimal performance and real-time decision-making.
Building Automation: Helps automate building systems like HVAC, lighting, and security, improving energy efficiency and operational control.

Advantages

High I/O Density: The ADV859-P00 offers 32 I/O points (16 inputs and 16 outputs) in a single module, making it perfect for systems with high data collection needs.
Flexible I/O Options: It supports both analog (4-20 mA, 0-10 V) and digital I/O, providing versatility for a wide range of sensors and devices.
Reliable Communication: The module supports Ethernet/IP and Modbus TCP, two robust communication protocols that enable fast, secure, and reliable data transmission between devices and control systems.
Compact and Efficient: With a compact size (183 x 140 x 100 mm), the ADV859-P00 is space-efficient and ideal for installations where space is at a premium.
Wide Operating Temperature Range: The module operates effectively in a temperature range of -10°C to 60°C, making it adaptable to varying industrial environments.
Ease of Integration: The ADV859-P00 is designed for easy integration with Yokogawa's Centum VP and STARDOM systems, ensuring hassle-free setup and operation.

Technical FAQs

What types of inputs and outputs are supported by the ADV859-P00?
The ADV859-P00 supports both analog (4-20 mA, 0-10 V) and digital inputs and outputs, providing flexibility for a variety of industrial applications.
How many I/O points can the ADV859-P00 handle?
The ADV859-P00 can handle 32 I/O points—16 inputs (8 analog, 8 digital) and 16 outputs (8 analog, 8 digital).
What communication protocols does the ADV859-P00 support?
The module supports Ethernet/IP and Modbus TCP, two common and reliable industrial communication protocols.
What is the power supply requirement for the ADV859-P00?
The ADV859-P00 requires a 24 V DC power supply, which is standard for industrial automation systems.
What is the operating temperature range of the ADV859-P00?
The module operates in temperatures ranging from -10°C to 60°C, ensuring it performs well in most industrial environments.
Can the ADV859-P00 be used in hazardous environments?
While the ADV859-P00 is built for industrial use, please consult additional certifications (e.g., ATEX or IECEx) if you require use in hazardous locations.
What is the weight of the ADV859-P00?
The ADV859-P00 weighs 1.8 kg (3.97 lbs), making it manageable for installation while still providing high functionality.
Is the ADV859-P00 compatible with other Yokogawa systems?
Yes, the ADV859-P00 integrates seamlessly with other Yokogawa systems like Centum VP and STARDOM for streamlined control and communication.
What certifications does the ADV859-P00 hold?
The ADV859-P00 is UL Listed, CE certified, and RoHS Compliant, ensuring it meets key global safety and environmental standards.
Can I connect the ADV859-P00 to other devices and networks easily?
Yes, with support for Ethernet/IP and Modbus TCP, the ADV859-P00 can easily connect to a wide range of devices and networks, ensuring smooth communication across systems.
