Siemens 6AG1221-1BF32-2XB0 Digital Input Module

Applications

The 6AG1221-1BF32-2XB0 is suitable for applications requiring additional 24 V DC discrete input channels within a compatible S7-1200-based automation system.

• Machine automation – Monitors push buttons, limit switches, proximity sensors, and other digital devices.
• Production equipment – Collects machine-status and position signals for PLC logic.
• Conveyor systems – Detects equipment position, product presence, and operating states.
• Packaging machinery – Provides discrete feedback from sensors and switching devices.
• Material-handling systems – Monitors actuators, safety-related auxiliary signals, and equipment states where applicable.
• OEM control panels – Adds compact digital input capacity to custom machine designs.
• Industrial retrofit projects – Provides additional input channels for compatible Siemens PLC installations.
• Environmentally demanding applications – The SIPLUS design is suitable for applications requiring enhanced environmental characteristics.

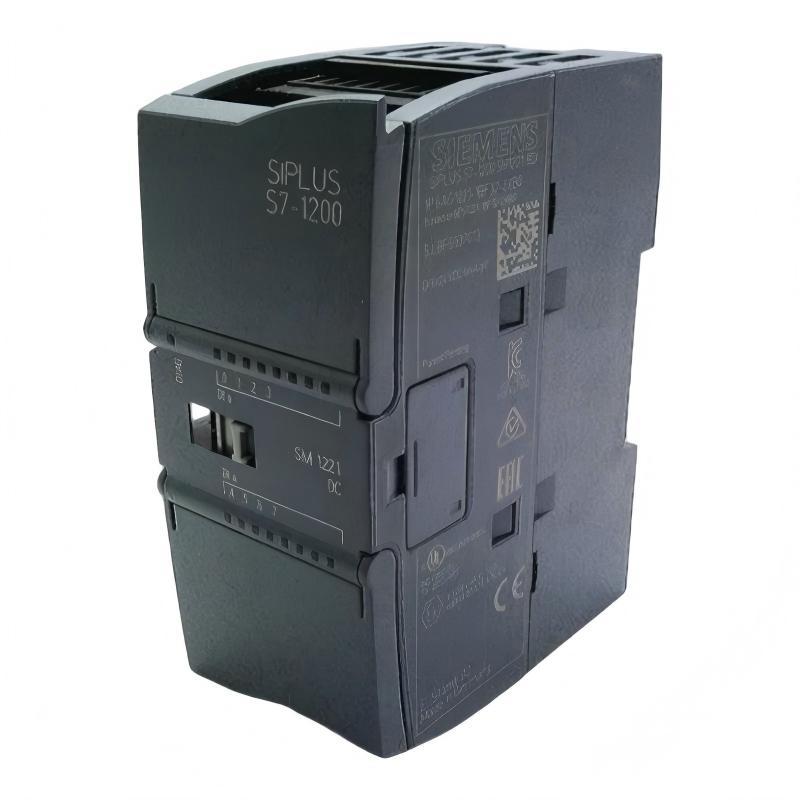

Siemens 6AG1221-1BF32-2XB0 Digital Input Module

The Siemens 6AG1221-1BF32-2XB0 is a SIPLUS S7-1200 Digital Input Module designed to expand the discrete input capacity of compatible Siemens PLC systems. It provides a practical interface for bringing 24 V DC field signals into the controller, making it suitable for machines and automation systems that rely on reliable detection of switches, sensors, limit devices, and other digital signals.

As a SIPLUS variant, the module is intended for industrial applications where enhanced environmental suitability is an important part of hardware selection. Its compact design also makes it attractive for control cabinets where I/O density and efficient use of panel space matter.

With dimensions of 45 × 100 × 75 mm and a weight of 0.16 kg (0.35 lb), the 6AG1221-1BF32-2XB0 is a compact way to add digital input capability without unnecessarily increasing cabinet size.

Applications

The 6AG1221-1BF32-2XB0 is suitable for applications requiring additional 24 V DC discrete input channels within a compatible S7-1200-based automation system.

• Machine automation – Monitors push buttons, limit switches, proximity sensors, and other digital devices.
• Production equipment – Collects machine-status and position signals for PLC logic.
• Conveyor systems – Detects equipment position, product presence, and operating states.
• Packaging machinery – Provides discrete feedback from sensors and switching devices.
• Material-handling systems – Monitors actuators, safety-related auxiliary signals, and equipment states where applicable.
• OEM control panels – Adds compact digital input capacity to custom machine designs.
• Industrial retrofit projects – Provides additional input channels for compatible Siemens PLC installations.
• Environmentally demanding applications – The SIPLUS design is suitable for applications requiring enhanced environmental characteristics.

A Compact I/O Expansion Solution

Digital input expansion
The module provides additional discrete input capability for compatible Siemens S7-1200 systems, allowing engineers to connect more field signals without changing the primary controller.

24 V DC field interface
The module is designed around the common industrial 24 V DC control standard, making it suitable for many switches and digital sensors used in machine automation.

Compact footprint
At 45 × 100 × 75 mm, the module occupies relatively little cabinet space. This is especially valuable when a control panel already contains numerous I/O, communication, and power components.

SIPLUS industrial design
The SIPLUS version is intended for applications with more demanding environmental conditions. Engineers can therefore consider it when standard automation hardware does not provide the required environmental suitability.

Straightforward signal acquisition
Digital inputs provide a clear ON/OFF representation of field conditions, allowing the PLC program to make decisions based on equipment status, sensor signals, and operator commands.

Easy system expansion
Adding an input module can be more economical and less disruptive than replacing an existing CPU simply because additional discrete signals are needed.

Maintenance-friendly diagnostics
Input-status indication provides technicians with a useful visual reference during commissioning and fault diagnosis, helping them determine whether an expected field signal is reaching the PLC.

Suitable for machine builders
The compact form factor and integration with the S7-1200 architecture make the module a practical choice for OEMs developing repeatable machine-control platforms.

Technical FAQs

1. What is the Siemens 6AG1221-1BF32-2XB0?
It is a SIPLUS S7-1200 Digital Input Module used to acquire discrete field signals in compatible Siemens PLC systems.

2. What type of field signals does a digital input module process?
Digital inputs process discrete ON/OFF signals, such as those generated by switches, proximity sensors, push buttons, limit switches, and similar field devices.

3. What supply voltage is normally associated with the input signals?
The module is designed for 24 V DC digital input applications, which is a common control voltage in industrial automation.

4. What is the difference between a digital input and an analog input?
A digital input interprets discrete states such as ON and OFF, whereas an analog input processes continuously varying signals such as voltage or current measurements.

5. What should be checked if an input remains OFF when a sensor is active?
Check the sensor's power supply, output signal, wiring, polarity, common/reference connection, input status LED, and PLC input address. If the electrical signal reaches the terminal but the PLC does not recognize it, the module or configuration should be investigated.

6. Can mechanical switches be connected to the digital inputs?
Compatible mechanical switches can generally be used to provide discrete input signals, provided the voltage, current, wiring, and input characteristics remain within the module's specified electrical requirements.

7. What can cause false or unstable digital input signals?
Possible causes include electrical noise, poor grounding, long or improperly routed cables, unstable sensor power, loose terminals, contact bounce from mechanical switches, or incorrect wiring.

8. Why is input filtering important in PLC applications?
Input filtering can prevent very short electrical disturbances or unwanted transitions from being interpreted as valid machine events. The appropriate filtering behavior depends on the application and the signal characteristics.

9. Can the module be added to an existing S7-1200 system?
It can be used as an I/O expansion component when the controller, firmware, hardware configuration, and overall system architecture support the module.

10. What should be verified after installing the input module?
Check the module's physical installation, field wiring, 24 V DC supply, input-status indicators, hardware configuration, PLC input addresses, and actual sensor response before returning the equipment to automatic operation.
