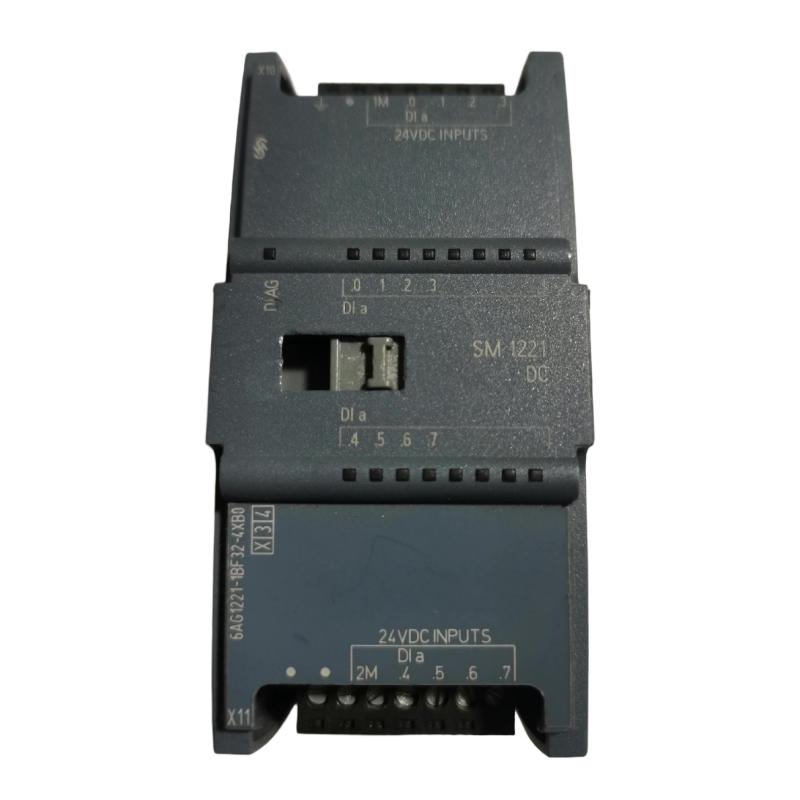

Siemens 6AG1221-1BF32-4XB0 Digital Input Module

Applications

The 6AG1221-1BF32-4XB0 is suitable for industrial systems that require additional digital input channels and reliable acquisition of discrete field signals.

• Machine control – Monitors limit switches, push buttons, proximity sensors, and machine-status signals.
• Production lines – Collects discrete feedback from automated equipment and production stations.
• Conveyor systems – Detects product presence, position, operating states, and equipment conditions.
• Packaging machinery – Interfaces with sensors and switching devices used in automated packaging sequences.
• Material-handling equipment – Acquires discrete signals from handling and positioning mechanisms.
• OEM control panels – Adds digital input capacity without requiring a larger primary controller.
• PLC retrofit projects – Provides additional input capability for compatible Siemens automation systems.
• Industrial environments – SIPLUS construction makes the module suitable for applications where environmental requirements exceed those of conventional hardware.

Key Benefits for Industrial I/O Expansion

Efficient digital signal acquisition
The module provides a dedicated interface for discrete field signals, allowing the PLC to monitor equipment status and respond to changes in machine conditions.

Compact installation footprint
With dimensions of 45 × 100 × 75 mm, the module occupies limited control-panel space. This is useful for machines where I/O density is high and cabinet dimensions need to remain under control.

24 V DC automation interface
The module is designed for industrial digital input applications using the widely adopted 24 V DC control standard, making it suitable for many conventional field sensors and switches.

SIPLUS platform advantage
The SIPLUS version is intended for applications requiring enhanced environmental suitability. This makes environmental specifications an important part of the selection process.

Straightforward PLC integration
As part of the S7-1200 ecosystem, the module can be incorporated into a compatible Siemens PLC architecture and configured as part of the overall hardware setup.

Useful for system expansion
When the existing CPU does not provide enough digital inputs for a machine upgrade, an expansion module can add required signal capacity without replacing the entire controller.

Practical maintenance
The modular design allows technicians to isolate I/O-related problems more efficiently by checking field devices, wiring, input indicators, and PLC diagnostics individually.

Good fit for OEM engineering
Its compact size and modular architecture make it practical for standardized machine designs where additional digital inputs may be required across different equipment configurations.

Technical FAQs

1. What is the Siemens 6AG1221-1BF32-4XB0 used for?
The 6AG1221-1BF32-4XB0 is a SIPLUS S7-1200 Digital Input Module used to acquire discrete signals from compatible industrial field devices.

2. What types of devices can provide digital input signals?
Typical sources include proximity sensors, limit switches, selector switches, push buttons, relay contacts, and other compatible devices that provide discrete ON/OFF signals.

3. What is the role of a digital input module in a PLC system?
It converts electrical field signals into input states that the PLC CPU can process within the user program. This allows the controller to make decisions based on real machine conditions.

4. What should be checked when connecting a sensor to the module?
Verify the sensor's output type, operating voltage, polarity, wiring, common/reference connection, and electrical compatibility with the input circuit before connecting it.

5. Why might a connected sensor fail to appear as ON in the PLC?
Possible causes include incorrect wiring, missing sensor power, incorrect polarity, an incompatible sensor output, a faulty field device, an incorrect PLC input address, or a module/configuration issue.

6. Can electrical noise cause unstable digital inputs?
Yes. Electromagnetic interference, poor cable routing, inadequate grounding, long signal cables, and unstable field power can contribute to unwanted input transitions or intermittent signals.

7. How can an engineer troubleshoot a suspected input-channel problem?
Check the field device first, then measure the signal at the module terminals and observe the corresponding input indication. If the correct electrical signal reaches the module but the PLC state remains incorrect, investigate configuration and hardware.

8. Why is input filtering relevant to digital signals?
Filtering can prevent very short electrical disturbances or unwanted transitions from being interpreted as legitimate machine events. The appropriate filter setting depends on the field device and application.

9. Can the 6AG1221-1BF32-4XB0 be used as an output module?
No. It is a Digital Input Module. It is intended to receive field signals rather than directly drive output loads.

10. What should be checked after adding the module to an S7-1200 system?
Verify the physical installation, field wiring, power conditions, hardware configuration, input addressing, diagnostic status, and actual response of each connected field device before commissioning the machine.
