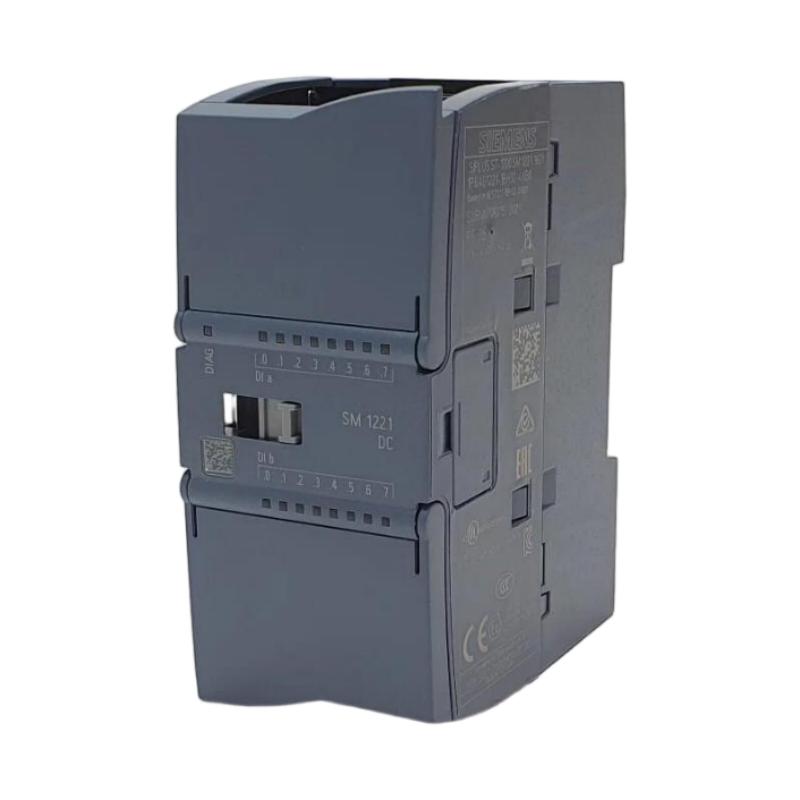

Siemens 6AG1221-1BH32-4XB0 Digital Input/Output Module

Applications

The 6AG1221-1BH32-4XB0 is suitable for automation equipment that requires both digital signal monitoring and discrete output control.

• Machine automation – Handles sensor feedback and discrete control commands within the same PLC architecture.
• Production equipment – Connects machine-status signals while controlling compatible field devices.
• Conveyor systems – Monitors position sensors and controls auxiliary actuators or signaling devices.
• Packaging machinery – Supports sensor detection and discrete output functions used during automated sequences.
• Material-handling equipment – Provides mixed I/O capability for position monitoring and equipment control.
• OEM machine panels – Helps machine builders reduce the number of separate I/O components required.
• Industrial retrofit projects – Adds combined digital I/O capability to compatible Siemens PLC installations.
• Space-constrained control cabinets – Useful where cabinet size and I/O density are important design considerations.

A Flexible Approach to Mixed Digital I/O

Combined input and output functionality
The module brings digital input and output capabilities together, making it useful for machines where field sensing and discrete control are closely related.

Efficient cabinet utilization
A combined I/O module can reduce the amount of physical hardware required for certain applications. Its 45 × 100 × 75 mm footprint is well suited to compact control-panel layouts.

24 V DC industrial signal environment
The module is designed for digital automation applications based around the commonly used 24 V DC control environment, making it suitable for many industrial sensors and compatible discrete field devices.

SIPLUS platform
The SIPLUS version is intended for applications requiring enhanced environmental suitability. This gives engineers an additional option when conventional PLC hardware may not be appropriate for the installation conditions.

Simplified machine architecture
When input and output points are required in the same section of a machine, a mixed I/O module can help create a cleaner and more logical hardware arrangement.

Scalable PLC expansion
The module allows engineers to expand the I/O resources of a compatible S7-1200 system without replacing the main CPU solely because additional digital points are needed.

Maintenance-friendly signal diagnosis
During commissioning and troubleshooting, technicians can independently check incoming sensor signals and outgoing control states, helping isolate field wiring, logic, and hardware issues.

Strong fit for OEM designs
For machine manufacturers, compact mixed I/O hardware can help standardize control panels while leaving room for future modifications.

Technical FAQs

1. What is the Siemens 6AG1221-1BH32-4XB0?
It is a SIPLUS S7-1200 Digital Input/Output Module designed to provide combined digital signal acquisition and discrete output functionality in compatible PLC systems.

2. What is the advantage of combining digital inputs and outputs in one module?
It can reduce the amount of separate I/O hardware needed when an application requires both signal monitoring and output control. This can improve cabinet organization and make system expansion more efficient.

3. What types of devices can be connected to the digital inputs?
Typical applications include compatible proximity sensors, limit switches, push buttons, selector switches, relay contacts, and other discrete field devices.

4. What types of devices can be controlled through the digital outputs?
Depending on the applicable output specifications, compatible devices may include indicator circuits, relays, contactors through suitable interfaces, solenoids, and other discrete loads. The actual load must remain within the specified electrical limits.

5. What should be checked if an input signal is not detected?
Check the field device, 24 V DC supply, wiring, polarity, common/reference connection, input indicator, and PLC input address. Measuring the signal directly at the module terminals can help determine whether the fault is in the field circuit or the PLC hardware.

6. What could cause an output not to activate?
Possible causes include incorrect PLC logic, an incorrect output address, missing field power, wiring faults, output protection, excessive load, or a hardware problem. PLC diagnostics and the output status should be checked before replacing the module.

7. Can electrical noise affect both inputs and outputs?
Yes. Poor cable routing, electromagnetic interference, inadequate grounding, and unsuitable power arrangements can affect digital signal integrity and output behavior. Proper industrial wiring practices are important.

8. Is input/output configuration required in the PLC engineering software?
Yes. The module must be correctly represented in the PLC hardware configuration, with the appropriate addresses assigned to its input and output channels.

9. Can the output channels directly drive high-power equipment?
The outputs should only be connected to loads that comply with the applicable output voltage, current, switching, and protection specifications. High-power equipment normally requires an appropriate external switching or interface device.

10. What should be tested after commissioning the module?
Verify every input channel with its corresponding field device and test each output with its intended load under controlled conditions. Also check PLC diagnostics, signal addressing, and overall machine sequence before returning the system to production.
