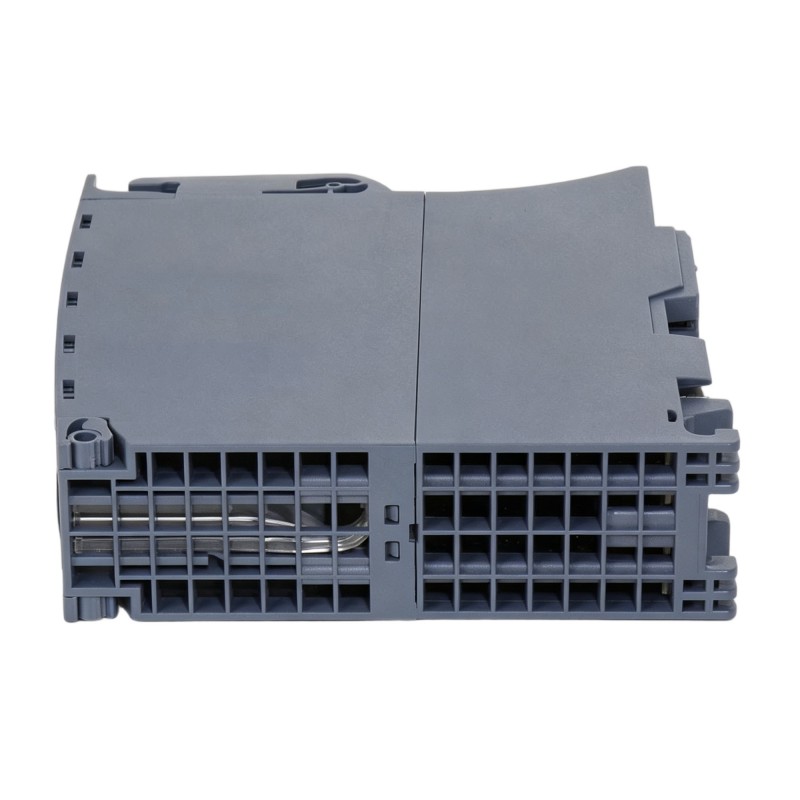

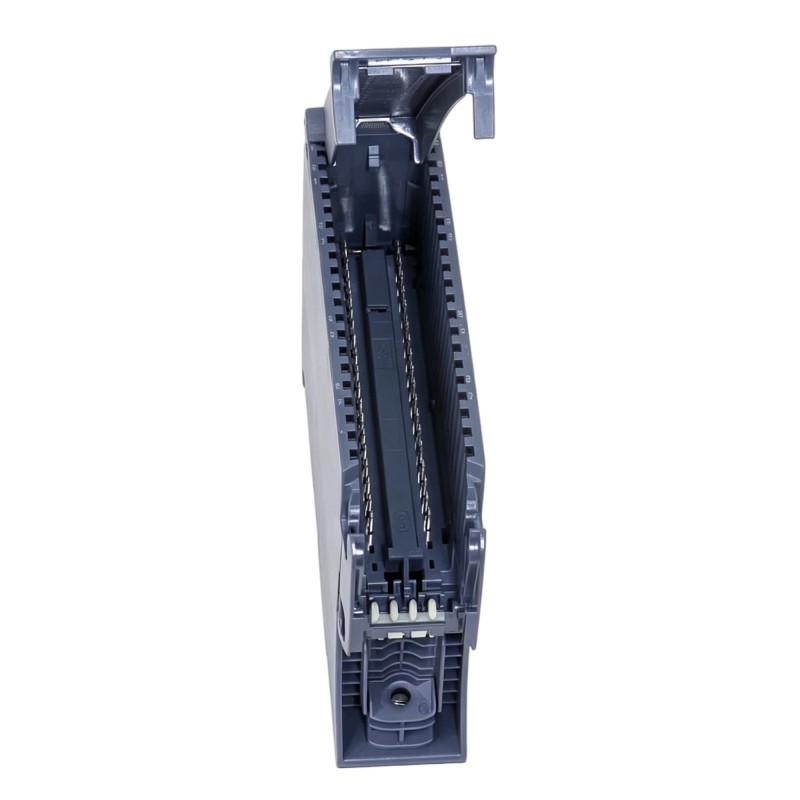

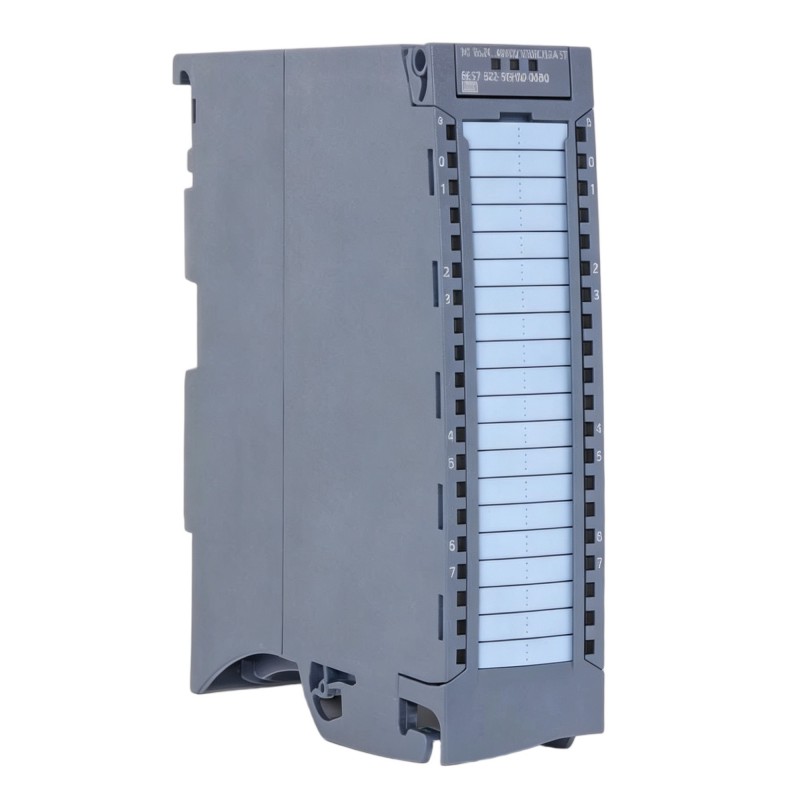

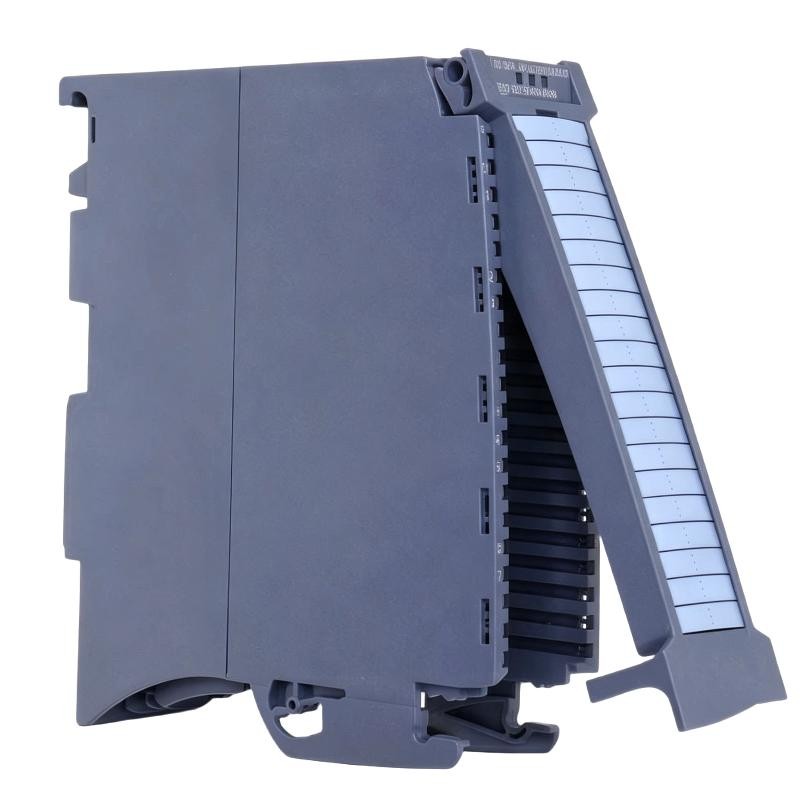

Siemens 6AG1522-5EH00-7AB0 Digital Output Module

Applications

The 6AG1522-5EH00-7AB0 is suited to compatible S7-1500 automation systems that require additional digital output capability.

• Machine automation – Controls compatible discrete actuators and machine functions.
• Production lines – Provides PLC output commands for automated production equipment.
• Packaging systems – Supports switching functions used in machine sequencing and process control.
• Material-handling equipment – Controls suitable valves, relays, signaling devices, and auxiliary equipment.
• Process automation – Provides discrete commands for compatible field devices.
• OEM machinery – Expands output capacity in standardized Siemens-based control architectures.
• Industrial retrofit projects – Can be considered when additional digital output capacity is required in compatible S7-1500 systems.
• Harsh industrial installations – SIPLUS construction is appropriate for applications where enhanced environmental characteristics are required.

Engineered for Precise and Reliable Output Control

High-performance S7-1500 integration
The module belongs to the S7-1500 family, making it suitable for modern PLC architectures where modular I/O expansion and structured engineering are important.

Reliable digital switching
Digital outputs allow the PLC to execute discrete control commands for compatible field loads, supporting automated sequences and machine-state control.

Flexible load control
The module can be incorporated into control circuits for appropriate actuators, relays, valves, and signaling devices when their electrical characteristics comply with the specified output limits.

SIPLUS environmental suitability
The SIPLUS platform provides an option for industrial applications with more demanding environmental conditions, allowing engineers to consider environmental performance alongside standard electrical requirements.

Efficient cabinet integration
With a width of only 35 mm, the module makes efficient use of control-panel space while retaining the modular format of the S7-1500 system.

Scalable automation architecture
Additional digital output modules can be incorporated as machine requirements expand, helping system designers avoid unnecessary changes to the core controller.

Maintenance-oriented design
Clear module organization and PLC diagnostics can help maintenance teams distinguish between control logic, I/O hardware, field wiring, and load-related problems.

Suitable for professional OEM projects
The combination of Siemens engineering, SIPLUS environmental characteristics, and modular S7-1500 architecture makes this module a practical choice for machine builders and system integrators looking for dependable output expansion.

Technical FAQs

1. What is the Siemens 6AG1522-5EH00-7AB0?
It is a SIPLUS S7-1500 Digital Output Module designed to provide additional digital output functionality in compatible Siemens PLC systems.

2. What does a digital output module do in an automation system?
It converts output commands generated by the PLC program into electrical switching signals that can operate compatible external devices.

3. What types of field devices can be controlled?
Depending on the electrical characteristics of the specific output channels, typical applications include relays, solenoids, valves, indicator circuits, and other compatible discrete loads.

4. Can the output module drive a motor directly?
A PLC digital output should not normally be connected directly to a motor. Motors generally require an appropriate contactor, starter, variable-frequency drive, servo drive, or other properly rated interface.

5. What should be checked when an output does not switch?
Check the PLC program and output address first, then verify module diagnostics, field power, wiring, load compatibility, and the actual output state.

6. What can cause repeated output faults?
Potential causes include an overloaded output, short circuit, unsuitable load, incorrect wiring, unstable power, excessive switching demand, or a problem in the connected field circuit.

7. Why is the load type important when selecting a digital output module?
Resistive and inductive loads behave differently during switching. Inductive loads can generate voltage transients, so the output circuit and any required suppression must be appropriately engineered.

8. How can technicians distinguish between a PLC logic problem and a field wiring problem?
Compare the commanded PLC output state with the module's diagnostic/output indication and then verify the electrical signal at the relevant terminal. This helps determine whether the issue originates in the program, module, wiring, or load.

9. Can electrical noise affect digital output operation?
Yes. Motors, contactors, drives, and other switching equipment can generate electromagnetic interference. Correct grounding, cable separation, shielding where appropriate, and suppression of inductive loads can improve system stability.

10. What should be completed before placing the module into production service?
Verify the hardware configuration, output addressing, module diagnostics, field wiring, load ratings, power supply, and every output channel under controlled commissioning conditions.
