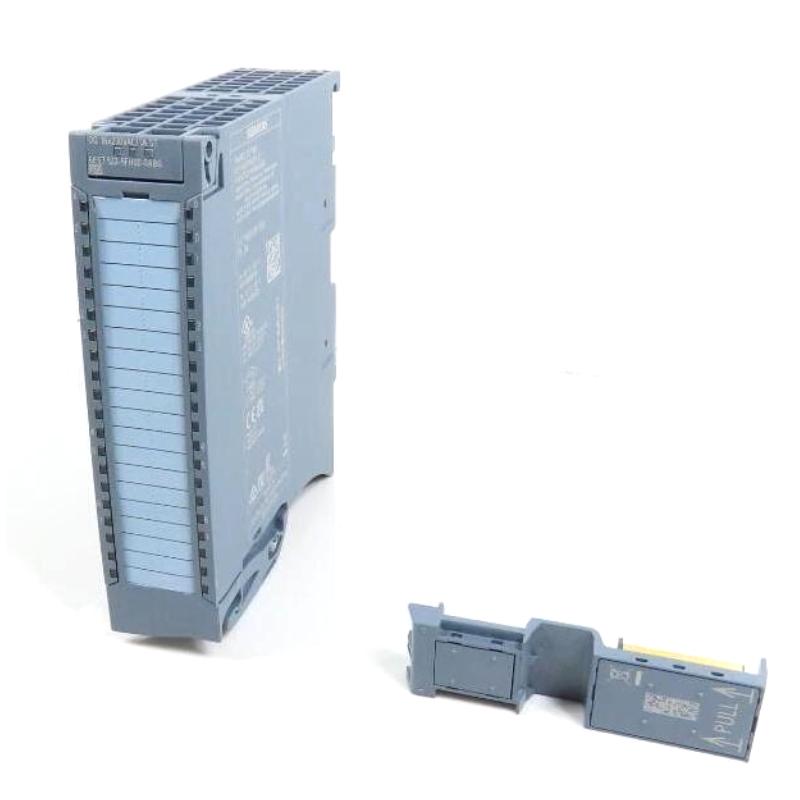

Siemens 6AG1522-5FH00-7AB0 Digital Output Module

Applications

The 6AG1522-5FH00-7AB0 can be used in compatible S7-1500-based automation systems for a variety of discrete control requirements.

• Machine automation – Executes PLC commands for compatible machine actuators and auxiliary circuits.
• Production lines – Provides discrete control signals for automated manufacturing equipment.
• Packaging machinery – Supports sequence control for compatible valves, relays, and signaling devices.
• Material handling – Controls suitable discrete field devices involved in conveying and positioning operations.
• Factory control systems – Expands the digital output resources of a modular PLC installation.
• OEM machine platforms – Provides a standardized output solution for Siemens-based equipment designs.
• Industrial retrofit projects – Adds output capacity to appropriately configured S7-1500 systems.
• Space-conscious control cabinets – The 35 mm module width supports dense and organized panel layouts.

Why This Module Fits Demanding Control Designs

S7-1500 modular architecture
The module follows the modular design philosophy of the S7-1500 platform, allowing digital output capacity to be expanded as machine requirements develop.

Dedicated digital output control
It provides discrete output signals from the PLC to suitable external circuits, supporting machine sequencing, signaling, interlocking, and actuator-interface functions.

Efficient panel utilization
The module is only 35 mm wide, making it easier to maintain a high I/O density without unnecessarily increasing control cabinet dimensions.

SIPLUS-oriented industrial design
The SIPLUS platform is intended for applications where environmental suitability is a significant consideration. Engineers can evaluate the module alongside the actual temperature, humidity, vibration, and other conditions at the installation site.

Flexible field interfacing
Digital outputs can be used with suitable relays, solenoids, valves, indicators, and other compatible discrete loads when the complete electrical circuit meets the applicable specifications.

Scalable system expansion
Adding an appropriate output module can provide additional I/O resources without requiring a complete redesign of the PLC control architecture.

Service-friendly troubleshooting
When an output fails to operate correctly, technicians can work through the PLC logic, module diagnostics, wiring, power supply, and connected load to identify the source of the problem.

A professional OEM solution
For standardized machine designs, Siemens modular I/O provides engineers with a repeatable hardware architecture that can be adapted to different equipment configurations.

Technical FAQs

1. What is the Siemens 6AG1522-5FH00-7AB0?
The 6AG1522-5FH00-7AB0 is a SIPLUS S7-1500 Digital Output Module intended to provide digital output functionality in compatible Siemens PLC systems.

2. What is the purpose of a digital output module?
It transfers commands generated by the PLC program into discrete electrical output signals that can control compatible field circuits.

3. What types of loads can be connected to the outputs?
Depending on the applicable output specifications, suitable applications may include relays, indicator circuits, solenoids, valves, and other compatible discrete loads.

4. Can a digital output directly supply power to a motor?
A digital output should not normally be used as a motor-power interface. Motors require appropriately rated power switching equipment or drives between the PLC output and the motor.

5. What should be investigated when an output remains OFF?
Check the PLC logic and output address, module diagnostics, field power, wiring, output status, and connected-load characteristics. A controlled electrical measurement can further narrow down the fault.

6. Why are inductive loads important when designing output circuits?
Inductive loads such as coils can generate voltage transients during switching. Appropriate suppression and correctly rated interface components can reduce stress on the output circuit.

7. What can cause an output to turn OFF unexpectedly?
Possible causes include an overloaded circuit, short circuit, unsuitable load, field-power interruption, incorrect wiring, PLC logic, or a fault in the connected equipment.

8. How can output wiring faults be distinguished from PLC programming faults?
First compare the programmed output state with the module's actual status. Then verify the electrical condition at the output and inspect the field wiring and load. This separates software, hardware, and field-side problems.

9. Can electromagnetic interference interfere with output operation?
Yes. High-power switching devices, motors, drives, and contactors can introduce electrical disturbances. Proper grounding, cable separation, shielding where appropriate, and suppression techniques can improve signal stability.

10. What should be checked before putting the module into service?
Verify hardware configuration, output addresses, field wiring, power conditions, load compatibility, module diagnostics, and the response of each output during controlled commissioning.
