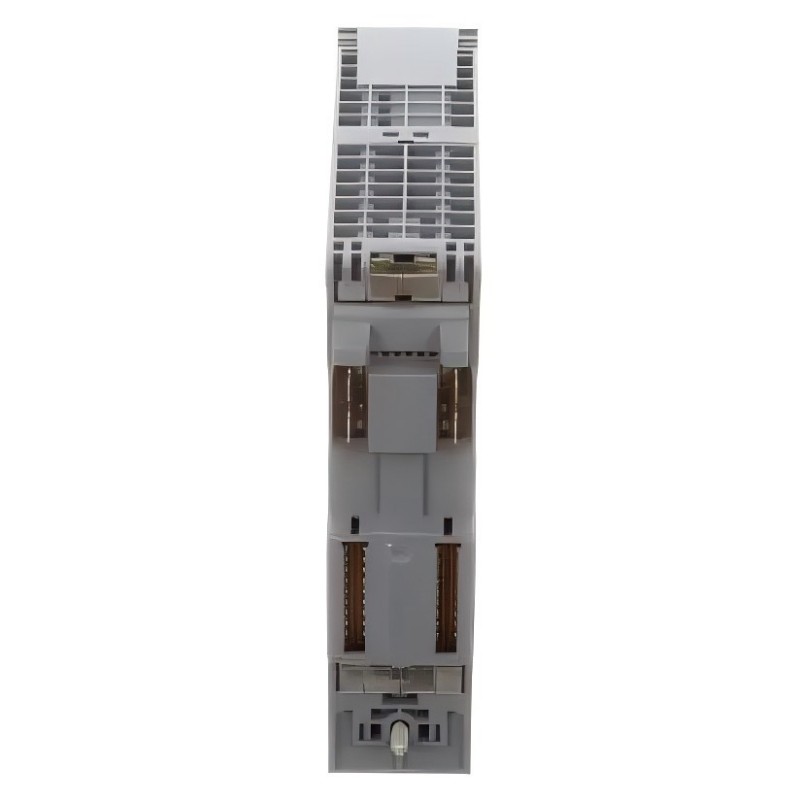

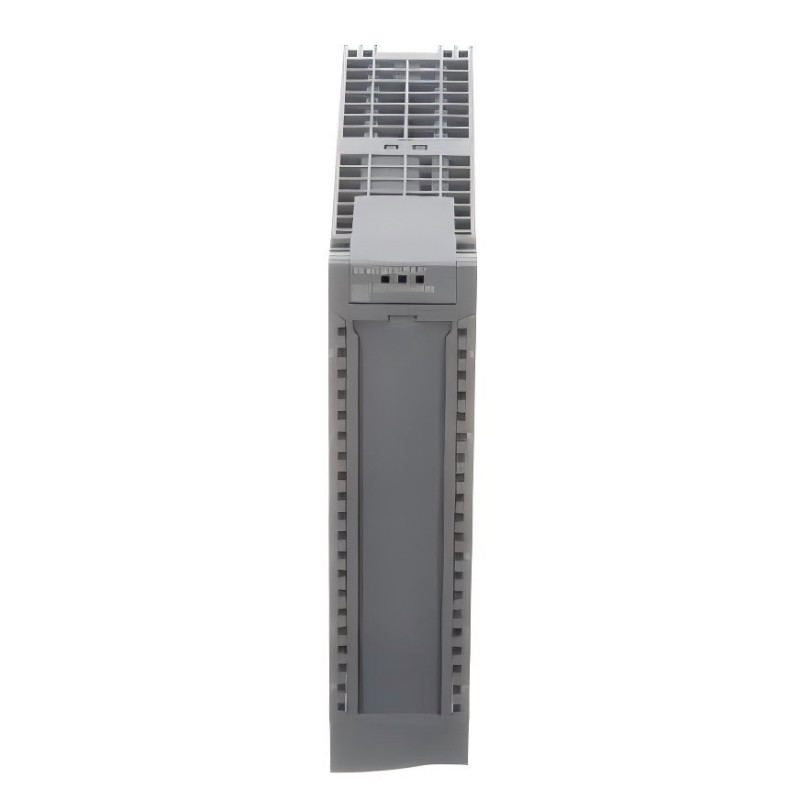

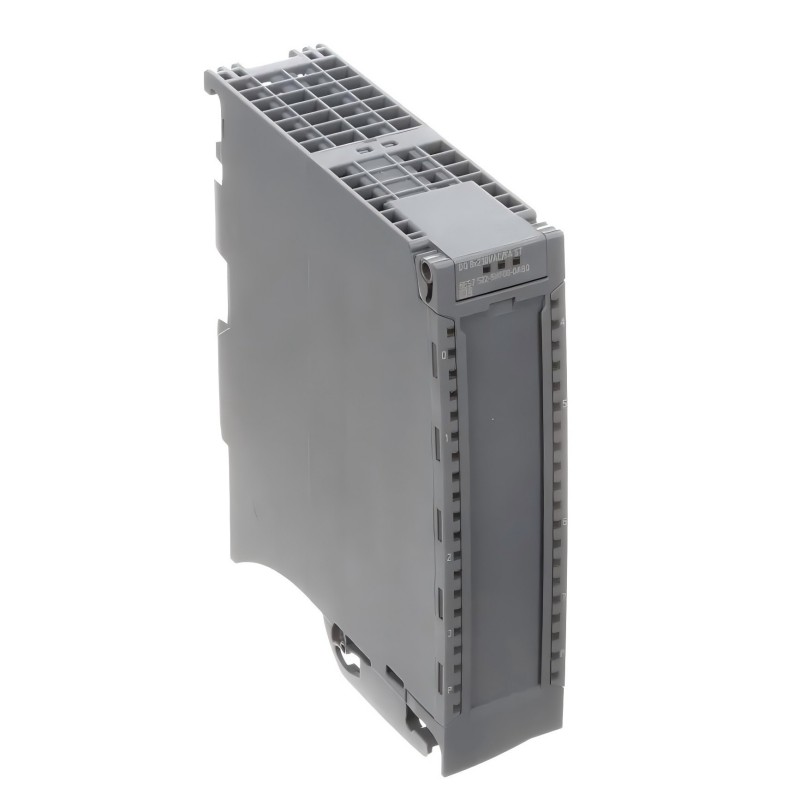

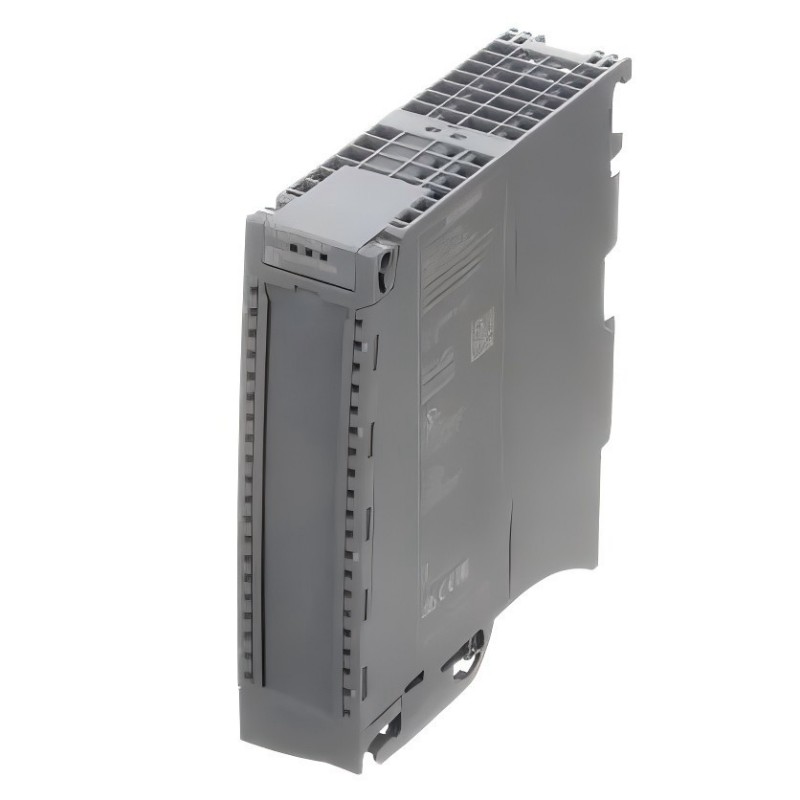

Siemens 6AG1522-5HF00-2AB0 Digital Output Module

Applications

The 6AG1522-5HF00-2AB0 is suitable for compatible Siemens S7-1500 automation architectures where additional digital output capability is required.

• Industrial machine control – Executes discrete commands generated by PLC logic.
• Automated production lines – Controls suitable auxiliary devices throughout production processes.
• Packaging equipment – Supports output functions associated with machine sequences and interlocks.
• Material handling – Provides discrete control signals for compatible actuators and auxiliary equipment.
• Factory automation – Expands output capacity within modular PLC installations.
• OEM machinery – Helps machine builders develop standardized Siemens-based control architectures.
• Control-system upgrades – Adds digital output resources when an existing compatible system requires additional I/O.
• Space-conscious cabinets – The 35 mm module width supports efficient control-panel layouts.

Where Compact Output Expansion Makes a Difference

Purpose-built digital output interface
The module is designed to transfer discrete commands from the PLC to compatible field circuits, providing a dedicated output layer between automation logic and physical machine functions.

S7-1500 system architecture
Its S7-1500 format makes it suitable for control systems built around modular Siemens PLC hardware, allowing I/O resources to be organized according to the actual requirements of the machine.

Efficient cabinet footprint
At 35 mm wide, the module helps maintain a relatively dense control-panel layout. This can be particularly valuable for OEM equipment where enclosure dimensions directly affect machine design.

SIPLUS industrial positioning
The SIPLUS platform is intended for applications where environmental suitability needs to be considered during hardware selection. Engineers should evaluate the actual site conditions against the applicable specifications.

Flexible discrete control
Suitable digital outputs can be used in control circuits for relays, signaling equipment, solenoids, valves, and other compatible loads, provided the complete electrical requirements are respected.

Scalable I/O strategy
The modular approach allows engineers to add output capacity as equipment functionality increases, helping avoid unnecessary changes to the CPU or wider control architecture.

Practical maintenance workflow
Output faults can be approached systematically by checking the PLC command, module diagnostics, field wiring, power supply, and connected load.

Well suited to professional machine building
For OEMs and system integrators, standardized Siemens I/O hardware can simplify engineering, panel construction, commissioning, and long-term maintenance across multiple machine variants.

Technical FAQs

1. What is the Siemens 6AG1522-5HF00-2AB0?
It is a SIPLUS S7-1500 Digital Output Module intended to provide digital output functionality in compatible Siemens industrial automation systems.

2. What does this type of module contribute to an S7-1500 system?
It adds dedicated digital output channels, allowing the PLC program to control suitable external circuits and field devices.

3. What are common applications for digital outputs?
Typical uses include controlling compatible relays, solenoid devices, valves, indicator circuits, and auxiliary machine functions.

4. Can a digital output be connected directly to a motor?
A digital output should not normally be used as a motor-power interface. Motors require appropriately rated contactors, starters, drives, or other power-control equipment.

5. What should be checked if a programmed output remains inactive?
Verify the PLC logic and output address, module status, field power, wiring, and load compatibility. Diagnostic information can also help identify hardware or configuration problems.

6. What can cause an output to shut down during operation?
Possible causes include overload, short circuit, an unsuitable load, unstable field power, wiring faults, or conditions detected by the output protection system.

7. Why should inductive loads receive special attention?
Inductive loads can generate voltage transients when switched. Appropriate suppression and correctly selected interface components can help protect the output circuit and improve switching performance.

8. How can an output hardware problem be separated from a programming problem?
First confirm that the PLC program is commanding the expected output. Then compare the software state with the module status and measure the field-side signal where appropriate.

9. Can electromagnetic interference affect output circuits?
Yes. Drives, motors, contactors, and other switching equipment can introduce electrical noise. Proper grounding, cable routing, separation, and suppression are important for stable operation.

10. What checks are recommended during commissioning?
Verify hardware configuration, output addressing, wiring, field power, load ratings, diagnostic status, and actual output behavior before allowing the equipment to operate under normal production conditions.
