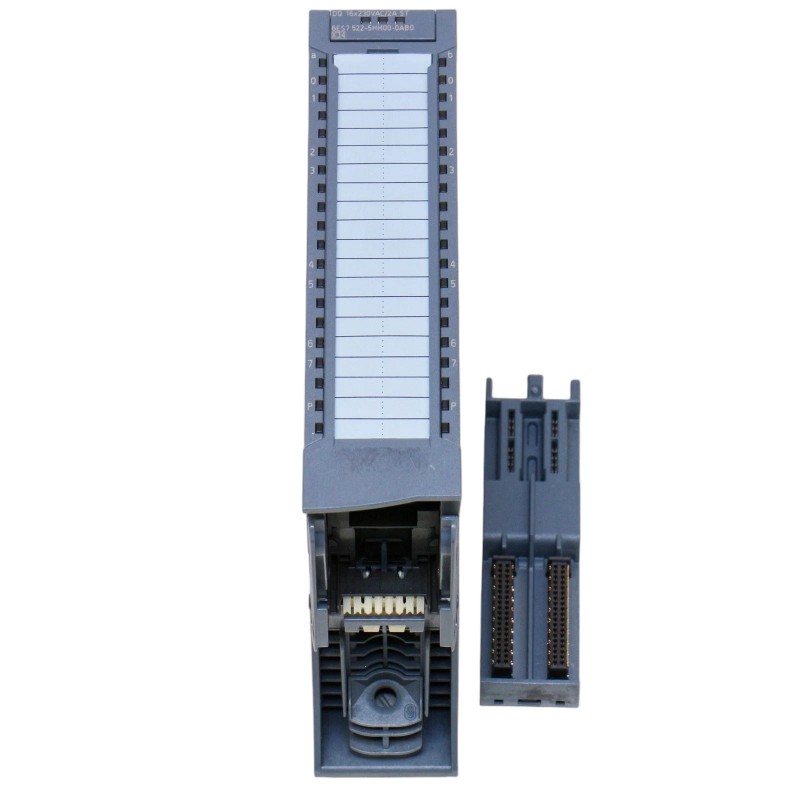

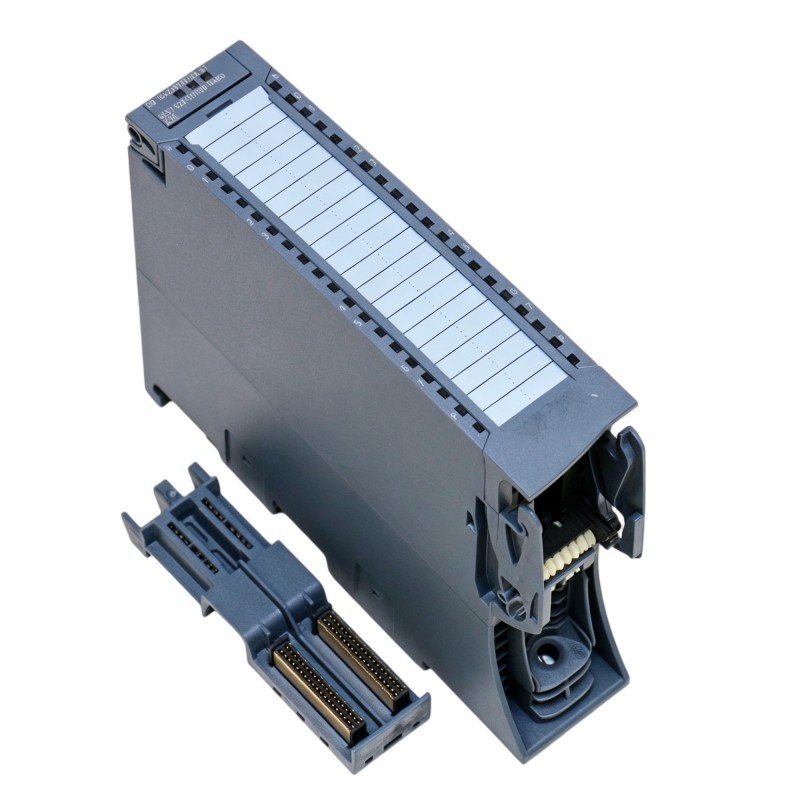

Siemens 6AG1522-5HH00-7AB0 Digital Output Module

Applications

The 6AG1522-5HH00-7AB0 is suitable for compatible Siemens S7-1500 automation systems requiring additional digital output functionality.

• Machine automation – Sends discrete commands to compatible machine equipment.
• Production systems – Controls suitable output devices used in automated manufacturing.
• Packaging machinery – Supports discrete commands within sequencing and interlocking functions.
• Conveyor systems – Controls compatible signaling devices and auxiliary actuators.
• Material handling – Provides PLC-controlled switching for appropriate field equipment.
• Factory automation – Expands digital output capacity in modular control systems.
• OEM machinery – Supports standardized Siemens-based control-panel designs.
• Industrial system upgrades – Provides additional output capability where the existing compatible architecture requires expansion.

Engineered for Efficient Digital Output Expansion

Modular S7-1500 integration
The module follows the S7-1500 modular design philosophy, allowing engineers to expand digital output resources without unnecessarily changing the core PLC architecture.

Dedicated output control
It provides discrete output signals that can be used for suitable relays, signaling circuits, solenoid devices, valves, and other compatible loads.

Space-efficient installation
With a 35 mm width, the module helps maintain a dense and organized cabinet layout. This is particularly valuable in OEM machines where electrical enclosure dimensions are tightly controlled.

SIPLUS platform advantage
The SIPLUS family is intended for applications where enhanced environmental suitability is an important part of automation hardware selection. Actual installation conditions should always be checked against the applicable product specifications.

Scalable machine architecture
As machine functions increase, modular output expansion allows engineers to add appropriate I/O capacity while preserving the overall structure of the automation system.

Practical field integration
Digital outputs can serve as control points for a wide range of compatible discrete devices, provided voltage, current, load type, and switching requirements are properly evaluated.

Maintenance-friendly diagnostics
When an output does not behave as expected, technicians can work systematically through PLC logic, module status, field wiring, power supply, and load conditions.

Professional OEM suitability
The module fits well into standardized Siemens control architectures, helping machine builders create repeatable designs that can be adapted across equipment variants.

Technical FAQs

1. What is the Siemens 6AG1522-5HH00-7AB0?
It is a SIPLUS S7-1500 Digital Output Module designed to provide digital output functionality for compatible Siemens industrial automation systems.

2. What is the purpose of a digital output module?
It transfers commands from the PLC control program to suitable external circuits, allowing the automation system to control compatible discrete field devices.

3. What devices can be connected to the digital outputs?
Depending on the applicable electrical specifications, typical applications include relays, indicator circuits, solenoids, valves, and other suitable discrete loads.

4. Can the module directly control a motor?
No. A digital output is not a motor-power device. Motors normally require an appropriately rated contactor, starter, variable-frequency drive, servo drive, or another suitable power interface.

5. What should be checked if an output remains OFF?
Check the PLC program, output address, module diagnostics, field power, wiring, and connected load. Comparing the commanded PLC state with the actual output status is a useful first step.

6. What can cause an output to shut down during operation?
Possible causes include overload, short circuit, unsuitable load characteristics, wiring problems, unstable field power, or a fault in the connected circuit.

7. Why do inductive loads require special consideration?
Inductive loads can generate voltage transients when switched. Proper suppression and suitable interface components can help reduce electrical stress and improve switching reliability.

8. How can a field wiring fault be distinguished from a PLC logic fault?
Confirm the PLC's commanded state first, then inspect the module status and measure the relevant output circuit where appropriate. Finally, verify the field wiring and connected device.

9. Can electromagnetic interference affect digital outputs?
Yes. Motors, drives, contactors, and other switching equipment can introduce electrical noise. Appropriate grounding, cable routing, separation, shielding where applicable, and suppression can help minimize interference.

10. What commissioning checks are recommended?
Verify the hardware configuration, output addressing, field wiring, power supply, load compatibility, diagnostic status, and actual switching behavior of every required output before normal production operation.
