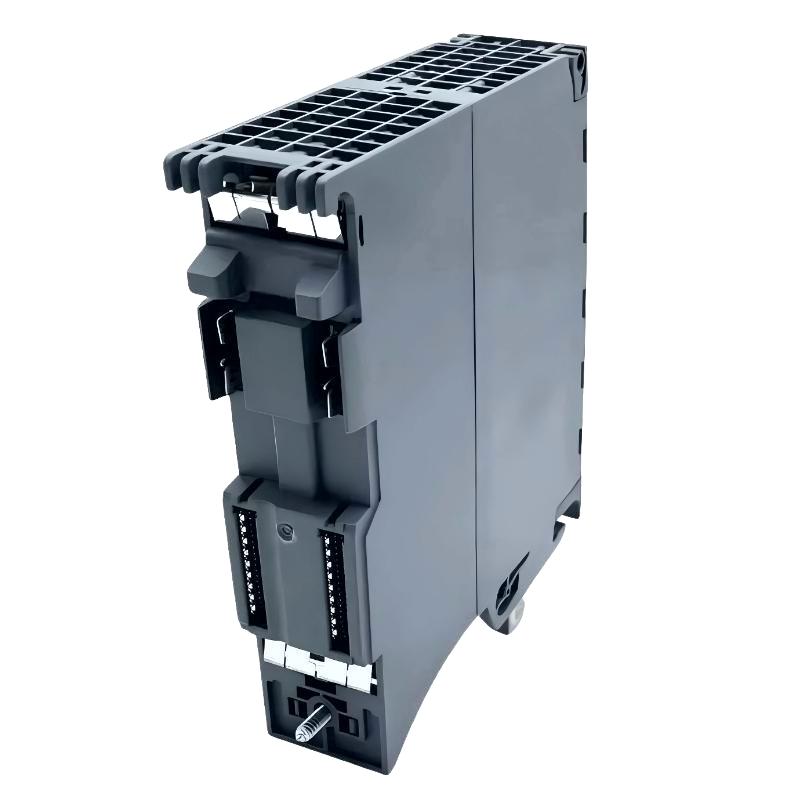

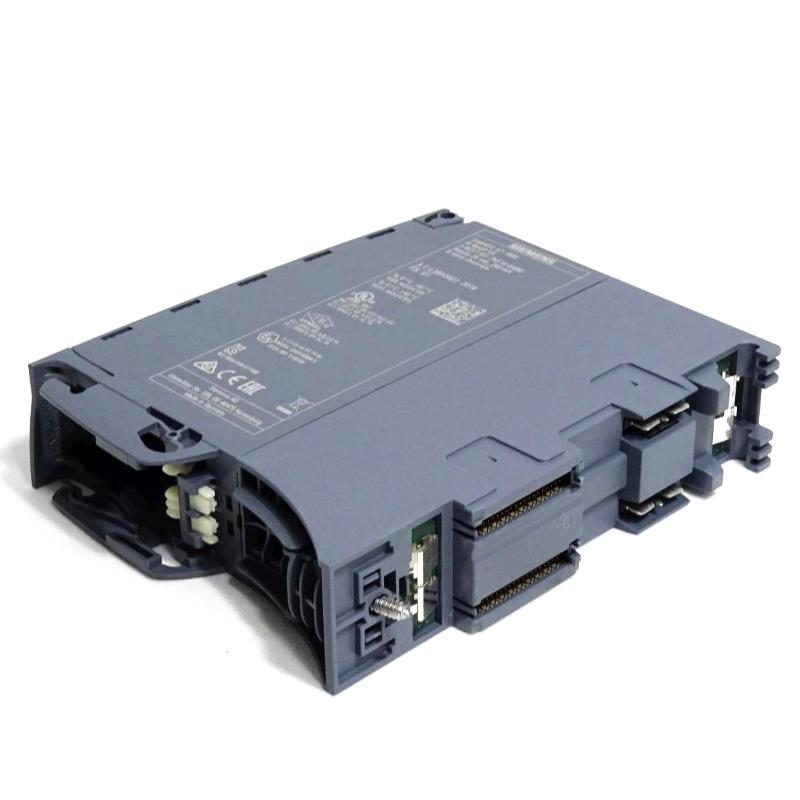

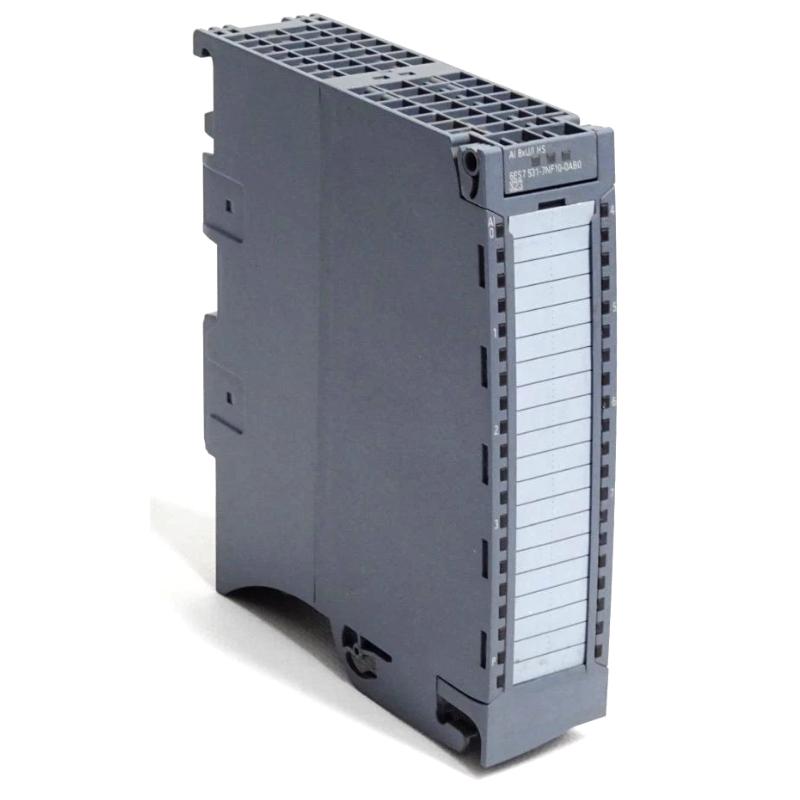

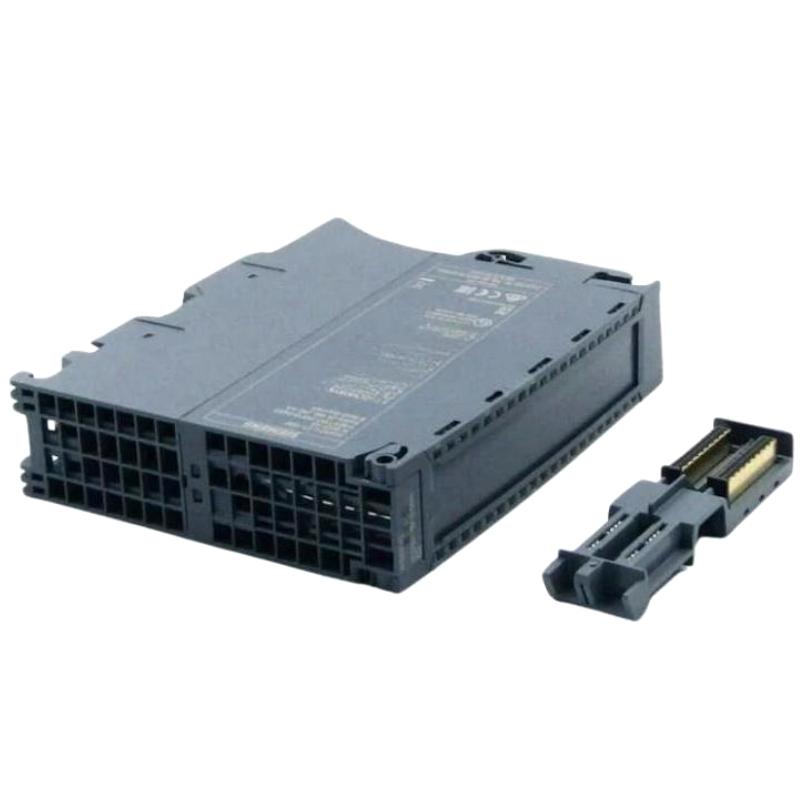

Siemens 6AG1531-7NF10-7AB0 Analog Input Module

Applications

The 6AG1531-7NF10-7AB0 can be considered for compatible industrial applications where variable process signals need to be acquired by an S7-1500 PLC.

• Process monitoring – Acquires changing measurement values for PLC-based monitoring and control.
• Machine automation – Brings analog feedback into machine control sequences.
• Temperature monitoring – Supports compatible analog measurement devices used for thermal processes.
• Pressure and flow systems – Provides analog process information for suitable instrumentation.
• Level monitoring – Enables continuous level-related measurements to be processed by the PLC.
• Industrial equipment – Adds analog signal acquisition to appropriately configured control architectures.
• OEM machinery – Provides a modular solution for integrating measurement signals into Siemens PLC systems.
• System modernization – Expands an existing compatible S7-1500 architecture when additional analog inputs are required.

Why Choose This Analog Input Solution?

Continuous process information
Analog inputs allow a PLC to work with changing measured values rather than simply detecting an ON/OFF condition. This makes them valuable for applications that require more detailed process information.

S7-1500 system integration
The module follows the modular approach of the S7-1500 family, allowing engineers to organize analog and digital I/O around the actual requirements of the automation project.

SIPLUS industrial positioning
The SIPLUS platform is designed for applications where environmental conditions are an important consideration when selecting automation hardware. Actual operating conditions should be evaluated against the applicable specifications.

Suitable for measurement-based control
Analog feedback can be used for monitoring, alarming, process regulation, limit calculations, and other PLC functions where a continuously varying signal provides more information than a simple digital state.

Efficient cabinet utilization
With a 35 mm width, the module can help maintain a compact and organized control-panel arrangement, particularly where several I/O modules are installed together.

Scalable automation architecture
Modular analog I/O expansion allows system designers to add measurement capability as machine or process requirements develop without unnecessarily replacing the complete PLC system.

Better visibility into the process
Accurate analog data can give operators and control algorithms a clearer picture of process conditions, supporting more informed automation decisions.

Strong OEM value
For machine builders, a modular analog-input strategy can simplify the integration of sensors and instrumentation across different equipment configurations.

Technical FAQs

1. What is the Siemens 6AG1531-7NF10-7AB0?
It is a SIPLUS S7-1500 Analog Input Module designed to acquire compatible analog process signals for use within a Siemens PLC automation system.

2. What is the difference between an analog input and a digital input?
A digital input normally represents discrete states, while an analog input is used to acquire a continuously varying electrical signal representing a measured process value.

3. What types of measurements can an analog input system handle?
Depending on the supported signal configuration, analog measurement applications can include variables such as temperature, pressure, flow, level, position, and other process values.

4. Why is signal type compatibility important?
The sensor or transmitter must provide a signal compatible with the input module's supported electrical characteristics. Incorrect signal types can result in inaccurate readings or improper operation.

5. What should be checked when the PLC displays an incorrect analog value?
Check sensor configuration, signal wiring, field power, grounding, scaling parameters, channel configuration, and the raw value received by the PLC.

6. Why does analog signal scaling matter?
The electrical signal received by the module must be interpreted as the corresponding engineering value. Correct scaling ensures that the PLC's process value represents the actual physical measurement appropriately.

7. Can electrical interference affect analog measurements?
Yes. Analog signals can be sensitive to electromagnetic interference. Proper cable routing, grounding, shielding where applicable, and separation from high-power circuits can improve signal quality.

8. What can cause an analog value to fluctuate unexpectedly?
Potential causes include electrical noise, unstable instrumentation, poor wiring, grounding problems, signal interference, an unsuitable transmitter configuration, or incorrect software processing.

9. How can an instrumentation fault be distinguished from an input-channel problem?
Verify the transmitter output with suitable test equipment and compare the measured signal with the value recognized by the PLC. This helps isolate the field instrument, wiring, input module, or configuration.

10. What should be verified during analog-input commissioning?
Confirm the sensor or transmitter type, wiring polarity, field power, channel configuration, engineering-unit scaling, diagnostic status, and actual measured values across the expected operating range.
