Brand:Siemens Item No.:6AG1532-5HF00-7AB0 Product Origin:Germany Product Dimensions:35 × 147 × 129 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Modern industrial machines often require more than simple switching commands. A control system may need to adjust a valve gradually, provide a variable reference to a compatible drive, or continuously influence a process parameter. Analog output modules make this type of control possible by allowing the PLC to generate variable electrical signals.
The Siemens 6AG1532-5HF00-7AB0 is a SIPLUS S7-1500 Analog Output Module intended to provide this interface between PLC-based control logic and compatible analog-controlled field equipment.
A typical control sequence begins with information collected from sensors and other input devices. The PLC processes this information, performs calculations, and determines an appropriate control value. The analog output module then provides the corresponding signal to a compatible external device. This creates a complete control path from process measurement to automated action.
This approach is particularly useful for proportional applications. Instead of commanding a device simply to switch on or off, the automation system can work with a variable control value. Depending on the application, this can improve process flexibility and give engineers greater control over machine behavior.
Analog signal quality should always be considered at the system level. The module is only one part of the complete signal path. Field-device characteristics, wiring, grounding, shielding, electrical interference, PLC configuration, and software scaling can all influence the final result. Proper engineering and commissioning therefore remain essential.
The SIPLUS platform is relevant when environmental conditions form part of the equipment-selection process. Industrial installations can involve temperature variation, humidity, vibration, contamination, or other environmental factors. The actual operating environment should be evaluated against the applicable product requirements before installation.
Measuring 35 × 147 × 129 mm and weighing 0.2 kg (0.44 lb), the module provides a compact solution for control cabinets where installation space matters. Its 35 mm width is particularly useful in densely populated modular PLC systems.
For OEMs, integrators, and industrial automation professionals, the 6AG1532-5HF00-7AB0 combines variable analog control, modular S7-1500 integration, compact cabinet installation, and SIPLUS platform benefits. It can be a strong choice for automation architectures that depend on controlled, continuously adjustable field-device commands.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6AG1532-5HF00-7AB0
Product Family
SIPLUS S7-1500
Product Type
Analog Output Module
Module Function
Analog Signal Output
Signal Type
Analog
Application
Industrial Automation
PLC Platform
S7-1500
Product Platform
SIPLUS
Installation
Modular PLC System
Dimensions
35 × 147 × 129 mm
Weight
0.2 kg (0.44 lb)
Recommended Related Models
Model
Product Type
Typical Role
Siemens 6AG1532-5HD00-7AB0
SIPLUS S7-1500 Analog Output Module
Analog output control
Siemens 6AG1531-7NF10-7AB0
SIPLUS S7-1500 Analog Input Module
Analog signal acquisition
Siemens 6AG1531-7PF00-4AB0
SIPLUS S7-1500 Analog Input Module
Analog measurement
Siemens 6AG1531-7NF00-7AB0
SIPLUS S7-1500 Analog Input Module
Analog input expansion
Siemens 6AG1522-5HH00-7AB0
SIPLUS S7-1500 Digital Output Module
Digital output control
Siemens 6AG1523-1BL00-7AB0
SIPLUS Digital Input/Output Module
Combined digital I/O
Popular Related Models
Model
Product Type
Siemens 6AG1532-5HF00-7AB0
SIPLUS S7-1500 Analog Output Module
Siemens 6AG1532-5HD00-7AB0
SIPLUS S7-1500 Analog Output Module
Siemens 6AG1531-7NF10-7AB0
SIPLUS S7-1500 Analog Input Module
Siemens 6AG1531-7PF00-4AB0
SIPLUS S7-1500 Analog Input Module
Siemens 6AG1531-7NF00-7AB0
SIPLUS S7-1500 Analog Input Module
Siemens 6AG1522-5HH00-7AB0
SIPLUS S7-1500 Digital Output Module
Siemens 6AG1522-5HF00-2AB0
SIPLUS S7-1500 Digital Output Module
Siemens 6AG1526-2BF00-2AB0
SIPLUS S7-1500 Digital Output Module
Siemens 6AG1523-1BL00-7AB0
SIPLUS Digital Input/Output Module
Applications
The 6AG1532-5HF00-7AB0 can be used in compatible Siemens automation systems where variable analog control signals are required.
Process control – Provides adjustable output commands for compatible process equipment.
Drive control – Can be used for compatible analog reference applications.
Machine automation – Provides variable control signals for automated machinery.
Temperature systems – Interfaces with compatible analog-controlled heating or cooling equipment.
Pressure and flow applications – Supports variable control of suitable process equipment.
OEM machinery – Adds analog output functionality to Siemens-based machine architectures.
Industrial equipment – Expands the output capabilities of modular PLC systems.
Instrumentation – Provides suitable analog signals to compatible external devices.
Key Strengths for Precision-Oriented Control
Variable output control The module enables the PLC to generate continuously varying control signals, making it useful for applications where proportional adjustment is required.
S7-1500 modular integration Its design complements the modular S7-1500 concept, allowing engineers to configure I/O resources according to the needs of the individual machine or process.
SIPLUS platform The SIPLUS family is intended for applications where environmental conditions are an important consideration during hardware selection. Actual operating conditions should be checked against the applicable specifications.
Efficient panel design With a width of only 35 mm, the module helps conserve control-cabinet space and can be arranged alongside other modular automation components.
Suitable for proportional applications Variable output signals are useful when connected equipment needs something more sophisticated than a basic ON/OFF command.
Scalable automation The modular architecture allows additional signal functions to be incorporated as equipment requirements increase, helping maintain a consistent control-system design.
Direct connection between PLC logic and field control Values calculated within the PLC can be translated into suitable analog output commands for compatible field equipment.
OEM-friendly hardware strategy For machine builders and system integrators, modular analog outputs can simplify the integration of variable-control devices across different machine configurations.

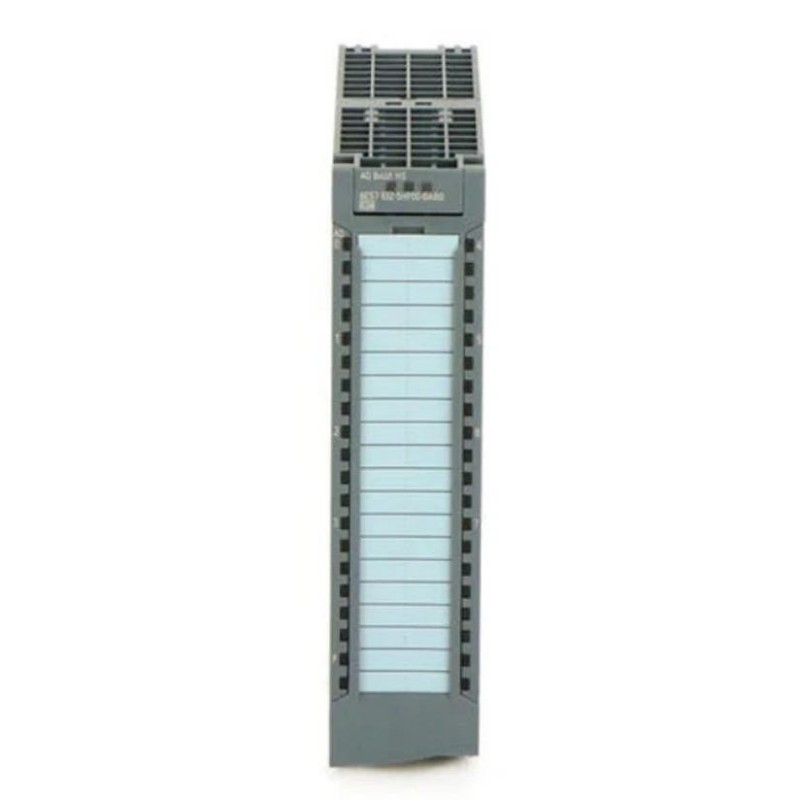

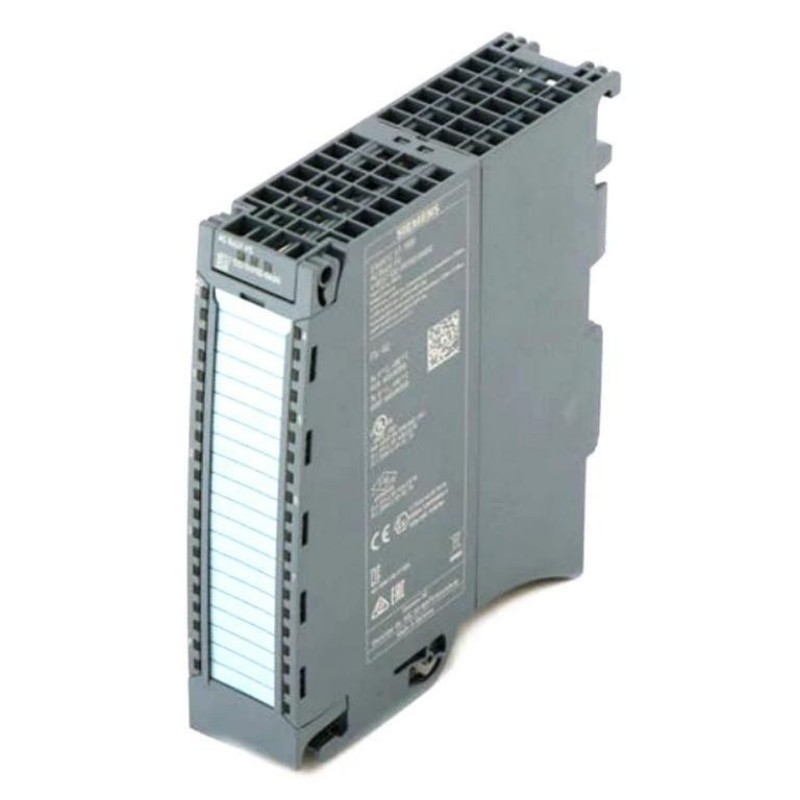

Siemens 6AG1532-5HF00-7AB0 Analog Output Module
The Siemens 6AG1532-5HF00-7AB0 is a SIPLUS S7-1500 Analog Output Module designed to provide variable control signals from a PLC to compatible field devices. It is intended for automation applications where a continuously adjustable output is required instead of a simple switching command.
In practical control systems, analog outputs can be used to influence compatible valves, actuators, drive references, process instruments, and other equipment that responds to a variable electrical signal. The module fits into the modular S7-1500 architecture, making it suitable for control panels where analog output capability needs to be added in a structured and scalable way.
The module has compact dimensions of 35 × 147 × 129 mm and a supplied weight of 0.2 kg (0.44 lb). Its narrow profile helps engineers make efficient use of cabinet space while maintaining a professional modular PLC layout.
Applications
The 6AG1532-5HF00-7AB0 can be used in compatible Siemens automation systems where variable analog control signals are required.
Process control – Provides adjustable output commands for compatible process equipment.
Drive control – Can be used for compatible analog reference applications.
Machine automation – Provides variable control signals for automated machinery.
Temperature systems – Interfaces with compatible analog-controlled heating or cooling equipment.
Pressure and flow applications – Supports variable control of suitable process equipment.
OEM machinery – Adds analog output functionality to Siemens-based machine architectures.
Industrial equipment – Expands the output capabilities of modular PLC systems.
Instrumentation – Provides suitable analog signals to compatible external devices.
Key Strengths for Precision-Oriented Control
Variable output control The module enables the PLC to generate continuously varying control signals, making it useful for applications where proportional adjustment is required.
S7-1500 modular integration Its design complements the modular S7-1500 concept, allowing engineers to configure I/O resources according to the needs of the individual machine or process.
SIPLUS platform The SIPLUS family is intended for applications where environmental conditions are an important consideration during hardware selection. Actual operating conditions should be checked against the applicable specifications.
Efficient panel design With a width of only 35 mm, the module helps conserve control-cabinet space and can be arranged alongside other modular automation components.
Suitable for proportional applications Variable output signals are useful when connected equipment needs something more sophisticated than a basic ON/OFF command.
Scalable automation The modular architecture allows additional signal functions to be incorporated as equipment requirements increase, helping maintain a consistent control-system design.
Direct connection between PLC logic and field control Values calculated within the PLC can be translated into suitable analog output commands for compatible field equipment.
OEM-friendly hardware strategy For machine builders and system integrators, modular analog outputs can simplify the integration of variable-control devices across different machine configurations.
Technical FAQs
1. What is the Siemens 6AG1532-5HF00-7AB0? It is a SIPLUS S7-1500 Analog Output Module designed to provide compatible analog control signals from the PLC to external field devices.
2. Why use an analog output instead of a digital output? An analog output is appropriate when the receiving device needs a variable command rather than simply an ON or OFF state.
3. What types of equipment can receive an analog output? Depending on the electrical characteristics supported by the application, compatible devices may include proportional valves, actuators, drive interfaces, and process instruments.
4. Why must the receiving device be compatible with the output channel? The output and receiving device must have compatible electrical characteristics. Incorrect matching can result in inaccurate control or improper operation.
5. What should be checked if an actuator does not respond to the PLC command? Check the PLC output value, channel configuration, field wiring, power supply, receiving-device settings, and the actual electrical signal at the module output.
6. What is analog output scaling? Scaling establishes the relationship between the numerical value used by the PLC program and the physical analog signal generated by the output channel.
7. What can cause an analog output to fluctuate? Possible causes include unstable PLC calculations, electrical interference, grounding issues, loose connections, incorrect configuration, or instability in the connected field device.
8. Can motor drives affect analog output signals? Yes. Drives and motor circuits can create electromagnetic interference. Appropriate cable routing, grounding, shielding where applicable, and physical separation can help reduce interference.
9. How can an engineer determine whether an output problem originates from the module or the field device? Measure the actual output signal using suitable test equipment and compare it with the command generated by the PLC. This helps separate module-side issues from wiring or receiving-device problems.
10. What should be verified during commissioning? Confirm the channel configuration, output scaling, field wiring, power requirements, receiving-device compatibility, diagnostic information, and output behavior across the intended operating range.
