Brand:Siemens Item No.:6AG1541-1AD00-7AB0 Product Origin:Germany Product Dimensions:35 × 147 × 127 mm Product Weight:0.264 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Industrial automation depends on communication as much as it depends on sensing, processing, and actuation. A modern machine may contain several PLCs, distributed I/O stations, drives, operator interfaces, and supervisory devices. These components need to exchange information continuously if the overall system is expected to operate as a coordinated unit.

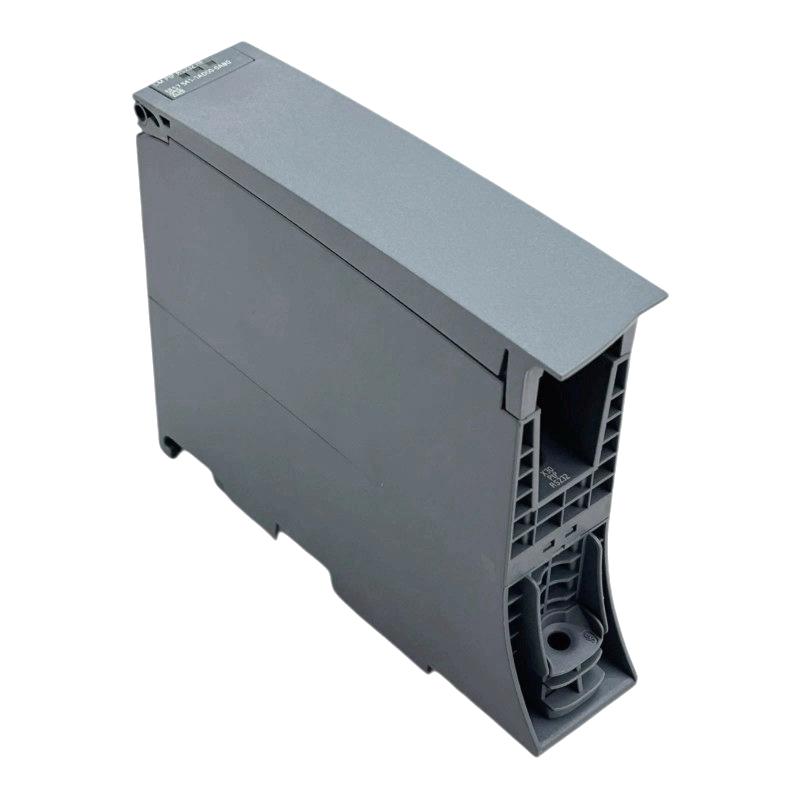

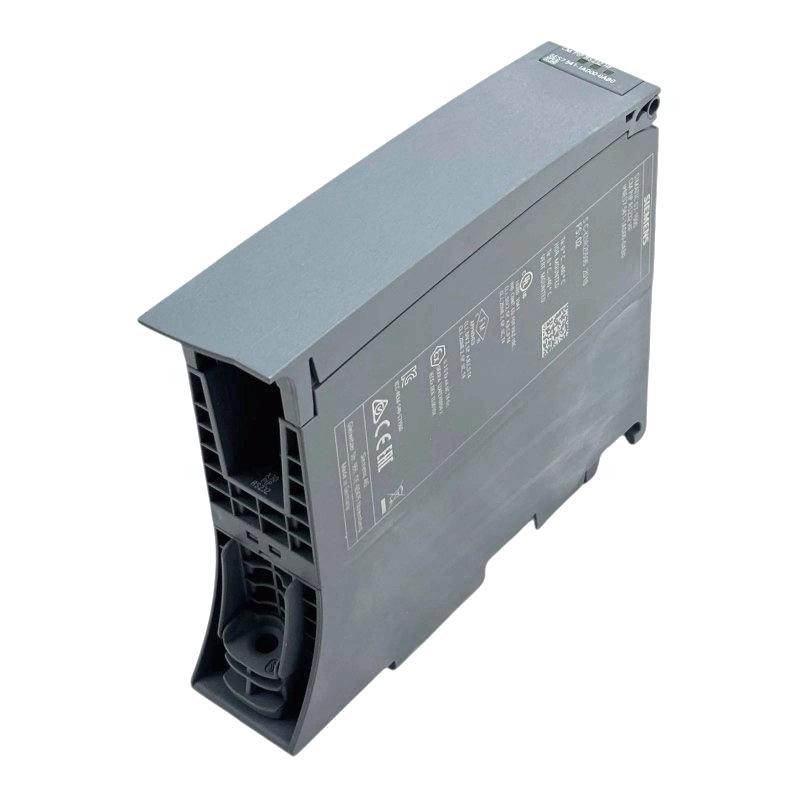

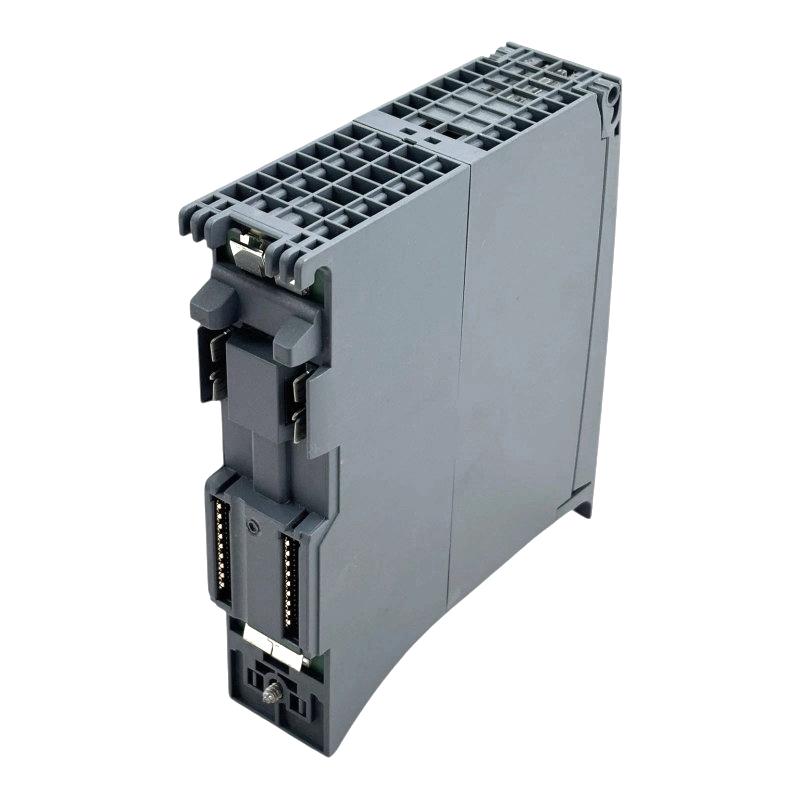

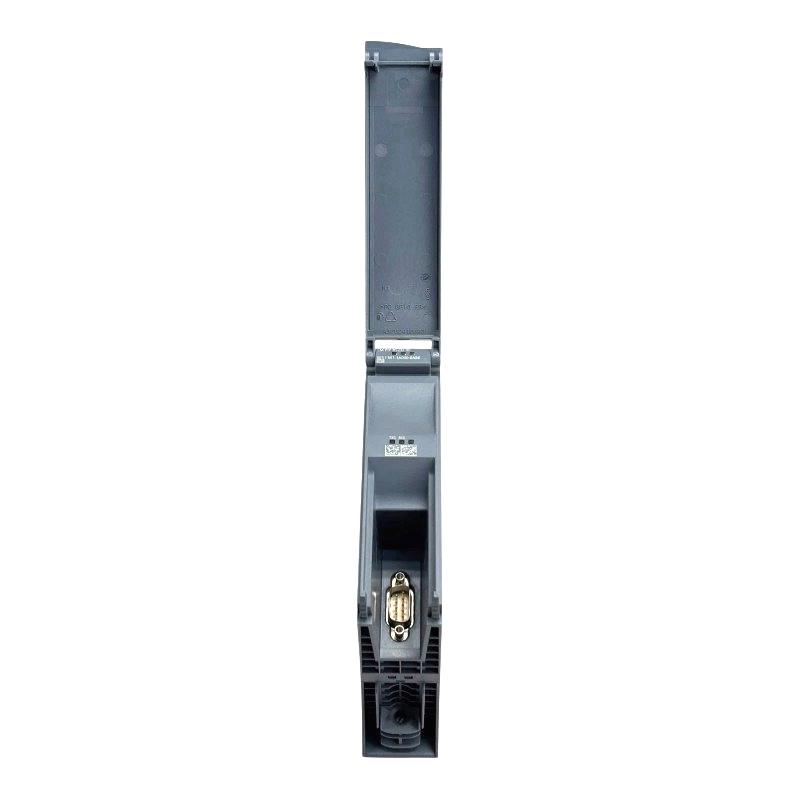

The Siemens 6AG1541-1AD00-7AB0 is a SIPLUS S7-1500 Communication Module intended to provide communication functionality within compatible Siemens automation architectures. Its modular design allows communication resources to be incorporated into an organized PLC system without abandoning the structured approach of the S7-1500 platform.
In an actual application, communication can be used for a wide range of automation tasks. Controllers may exchange machine states, commands, process values, diagnostic information, or coordination signals. This becomes increasingly important as a machine grows from a single control station into a distributed production system.
For OEMs, this modular approach also provides engineering flexibility. A common control architecture can be adapted for different machine sizes or configurations while maintaining consistent principles for panel layout, commissioning, and maintenance.
Reliable communication requires attention to the complete system. The module itself is only one part of the communication path. Network configuration, cabling, connectors, addressing, power quality, grounding, electromagnetic conditions, and the configuration of connected devices all influence communication performance.
The SIPLUS designation is also relevant when environmental conditions are part of the hardware-selection process. Industrial installations can experience temperature variation, humidity, vibration, contamination, or other site-specific conditions. The actual application should be checked against the applicable product requirements before installation.
With dimensions of 35 × 147 × 127 mm and a weight of 0.264 kg (0.58 lb), the module maintains a compact profile for control-cabinet installation. Its 35 mm width is useful when multiple PLC, I/O, and communication modules must be installed within a limited panel area.
For automation engineers and system integrators, the 6AG1541-1AD00-7AB0 represents a practical communication expansion option. Its combination of SIPLUS positioning, modular S7-1500 integration, compact physical design, and communication functionality makes it well suited to appropriately engineered industrial control architectures.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6AG1541-1AD00-7AB0
Product Family
SIPLUS S7-1500
Product Type
Communication Module
Module Function
Industrial Communication
Application
Industrial Automation
PLC Platform
S7-1500
Product Platform
SIPLUS
Installation
Modular PLC System
Dimensions
35 × 147 × 127 mm
Weight
0.264 kg (0.58 lb)
Recommended Related Models
Model
Product Type
Typical Role
Siemens 6AG1541-1AB00-7AB0
SIPLUS S7-1500 Communication Module
Communication expansion
Siemens 6AG1540-1AD00-7AA0
SIPLUS S7-1500 Communication Module
Communication expansion
Siemens 6AG1540-1AB00-7AA0
SIPLUS S7-1500 Communication Module
Communication expansion
Siemens 6AG1443-5DX05-4XE0
Communication Processor
Industrial communication
Siemens 6AG1511-1AK02-2AB0
SIPLUS S7-1500 CPU Module
Central PLC processing
Siemens 6AG1216-4BS00-7AC2
Managed Industrial Ethernet Switch
Network infrastructure
Popular Related Models
Model
Product Type
Siemens 6AG1541-1AD00-7AB0
SIPLUS S7-1500 Communication Module
Siemens 6AG1541-1AB00-7AB0
SIPLUS S7-1500 Communication Module
Siemens 6AG1540-1AD00-7AA0
SIPLUS S7-1500 Communication Module
Siemens 6AG1540-1AB00-7AA0
SIPLUS S7-1500 Communication Module
Siemens 6AG1443-5DX05-4XE0
Communication Processor
Siemens 6AG1511-1AK02-2AB0
SIPLUS S7-1500 CPU Module
Siemens 6AG1216-4BS00-7AC2
Managed Industrial Ethernet Switch
Siemens 6AG1215-1HG40-4XB0
CPU / DC/DC / Relay
Siemens 6AG1215-1HG40-5XB0
CPU / DC/DC / Relay
Applications
The 6AG1541-1AD00-7AB0 is suitable for appropriately configured automation systems where additional communication capability is required.
PLC communication – Facilitates data exchange within compatible control architectures.
Distributed automation – Supports communication between control components located across a machine or plant.
Production machinery – Helps interconnected machine sections exchange operational information.
Industrial control systems – Adds communication resources to modular PLC installations.
OEM machine building – Supports repeatable communication architectures for customized equipment.
System integration – Provides a practical communication component for Siemens-based automation projects.
Production-line coordination – Helps different automation stations operate as part of a coordinated system.
Industrial modernization – Can contribute to communication expansion in compatible existing architectures.
Supervisory connectivity – Supports communication structures connecting control equipment with other automation levels where applicable.
Why Engineers Choose a Modular Communication Solution
Flexible communication expansion The module provides an additional communication resource, allowing system designers to expand connectivity without unnecessarily replacing the main PLC hardware.
S7-1500-oriented architecture Its modular format supports a structured approach to integrating communication functions alongside processing and I/O components.
SIPLUS platform design The SIPLUS product family is intended for applications where environmental conditions are an important factor in equipment selection. The actual installation environment should always be evaluated against the applicable specifications.
Better-connected automation Communication enables compatible devices to exchange operating states, process information, commands, and diagnostic information, creating a more coordinated control architecture.
Space-efficient installation The 35 mm width helps conserve cabinet space, which is particularly useful in densely populated control panels.
Scalable machine design A modular communication architecture makes it easier to add equipment or expand machine functions as project requirements develop.
Maintenance-oriented architecture A properly structured communication system makes it easier to separate physical-network issues from configuration and device-level problems during troubleshooting.
Strong fit for OEM projects For machine manufacturers and integrators, modular communication hardware can support standardized panel designs while retaining flexibility for different machine configurations.
Technical FAQs
1. What is the Siemens 6AG1541-1AD00-7AB0? It is a SIPLUS S7-1500 Communication Module intended for communication-related functions in compatible Siemens industrial automation systems.
2. What is the main purpose of a PLC communication module? Its purpose is to provide communication functionality that allows compatible automation devices or systems to exchange information within the designed architecture.
3. What equipment can typically participate in an industrial automation network? Depending on the communication architecture, this can include PLCs, distributed I/O, drives, HMIs, controllers, engineering stations, and supervisory systems.
4. Why does protocol compatibility matter? Devices need compatible communication methods, configuration parameters, and data structures to exchange information correctly. Incompatible communication technologies may prevent successful data transfer.
5. What should be checked when communication cannot be established? Start with module diagnostics and status information, then inspect physical connections, configuration, addressing, communication parameters, and the condition of the connected equipment.
6. What are common reasons for intermittent communication? Loose connectors, damaged cables, electromagnetic interference, unstable power, configuration errors, addressing conflicts, and faults in other network components can all contribute.
7. Can electrical interference affect industrial communication? Yes. High-power equipment, motor circuits, and drives can generate electromagnetic interference. Proper cable routing, grounding, shielding where applicable, and separation are important considerations.
8. How can a technician determine whether a communication fault is hardware-related? Check module diagnostics first and verify the physical connection. Comparing the expected communication behavior with the actual status of the connected equipment can help isolate the defective section.
9. Why is communication configuration documentation important? Documented network parameters, device relationships, and configuration details make commissioning, maintenance, replacement, and future system expansion much easier.
10. What should be verified before commissioning the module? Verify system compatibility, module configuration, communication parameters, physical connections, device addressing where applicable, diagnostic status, and successful communication with the intended devices.
