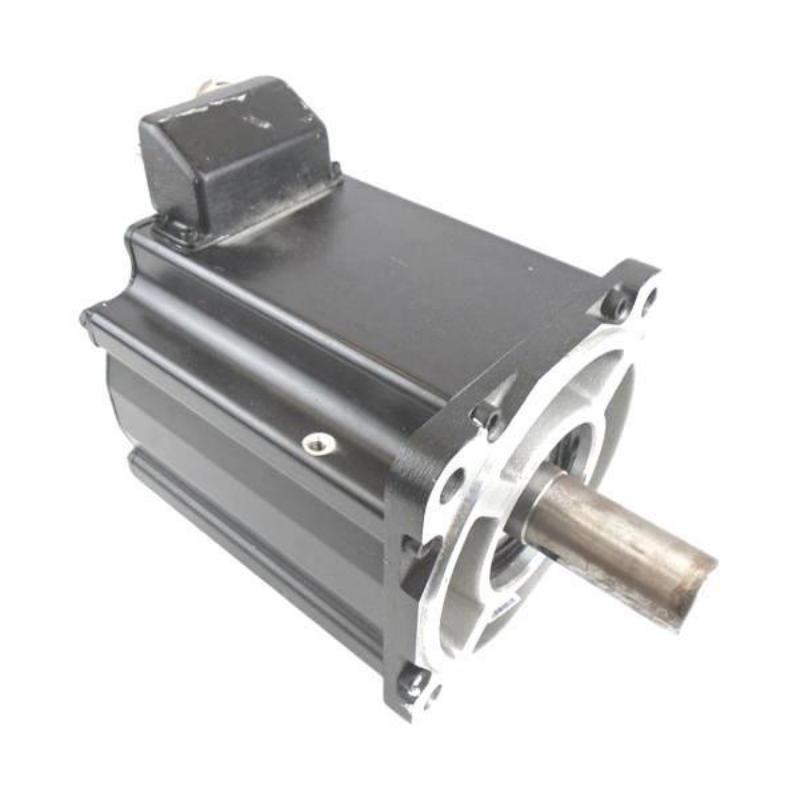

Allen Bradley MPL-B640F-SJ72AA Servo Motor

Applications and Industrial Use

The Allen Bradley MPL-B640F-SJ72AA Servo Motor is designed for demanding motion control applications where accurate positioning, responsive speed control, and repeatable performance are essential. As part of the Allen-Bradley MP-Series low-inertia servo motor family, the MPL platform is suited to industrial automation systems that require coordinated motion and reliable integration with compatible servo drives.

Typical application areas include:

• Packaging and Converting Machinery: Supports controlled acceleration, deceleration, and positioning in automated packaging lines.

• Material Handling Systems: Enables precise movement in automated transfer equipment, pick-and-place systems, and conveyor mechanisms.

• Machine Tools: Supports coordinated axis movement in automated machining and manufacturing equipment.

• Robotics and Automated Assembly: Provides servo-driven motion for repetitive positioning and synchronized mechanical operations.

• Printing and Processing Equipment: Helps maintain controlled movement in applications requiring consistent speed and positional accuracy.

• Special-Purpose Industrial Machinery: Offers a servo motor platform for OEM equipment requiring integrated motion control.

The motor should be selected according to the application's torque, speed, duty cycle, environmental conditions, and drive compatibility requirements.

Key Advantages of the MPL-B640F-SJ72AA

Responsive Motion Control

The MP-Series low-inertia design is intended for applications that benefit from dynamic acceleration and deceleration. When correctly matched with a compatible servo drive, the motor can support responsive motion profiles and precise control.

Designed for Automated Production

Servo motors are widely used where controlled movement must be repeated consistently. The MPL series provides a solution for machine builders and maintenance teams working with automated production equipment.

Integration with Allen-Bradley Motion Systems

The motor is intended for use within a compatible Allen-Bradley motion control architecture. Correct drive selection, feedback compatibility, cabling, and parameter configuration are essential for achieving dependable operation.

Suitable for Demanding Machine Cycles

In applications involving frequent starts, stops, and position changes, servo-based motion control can help improve cycle consistency and machine responsiveness when the complete motion system is properly engineered.

A Practical Option for Maintenance and Replacement

For facilities maintaining existing Allen-Bradley automation systems, the MPL-B640F-SJ72AA may be relevant when sourcing a replacement motor or maintaining installed MP-Series equipment. Confirm the full catalog number and mechanical and electrical interfaces before ordering.

Technical FAQs — Allen Bradley MPL-B640F-SJ72AA

1. What type of device is the MPL-B640F-SJ72AA?

It is an Allen-Bradley servo motor from the MP-Series family, intended for use in industrial motion control applications. Its operation depends on a compatible servo drive and feedback system.

2. Can this servo motor operate directly from a standard AC power supply?

No. A servo motor normally requires a suitable servo drive to regulate motor current and control torque, speed, and position. It should not be connected directly to a standard AC supply unless explicitly permitted by the manufacturer's technical documentation.

3. Which servo drive is compatible with the MPL-B640F-SJ72AA?

Compatibility depends on the motor's electrical ratings, feedback configuration, drive family, and connection requirements. Verify the complete catalog number against the applicable Allen-Bradley motor and drive documentation before selecting a replacement or new drive.

4. What is the role of the feedback device in a servo system?

The feedback device provides position and, depending on the configuration, speed information to the control system. The servo drive uses this information to regulate motion and correct deviations between commanded and actual movement.

5. Can the motor be used for precise positioning applications?

Yes, servo motors are commonly applied in positioning systems. Actual positioning performance depends on the motor and feedback configuration, servo tuning, mechanical transmission, load inertia, and the control architecture.

6. What should be checked before replacing an existing MPL servo motor?

Confirm the complete catalog number, motor electrical characteristics, feedback interface, connector arrangement, shaft and mounting configuration, brake requirements if applicable, and compatibility with the installed servo drive.

7. What can cause a servo motor to overheat during operation?

Potential causes include excessive mechanical loading, frequent high-current operation, incorrect drive parameters, poor cooling, mechanical binding, or unsuitable duty-cycle settings. Diagnose the complete motion system before replacing components.

8. Why might a servo axis experience vibration or unstable movement?

Possible causes include incorrect servo tuning, mechanical resonance, loose couplings, backlash, excessive load inertia, feedback problems, or damaged mechanical components. Troubleshooting should begin with drive diagnostics and a mechanical inspection.

9. Does the motor require special commissioning procedures?

Commissioning should follow the applicable Allen-Bradley documentation. Typical checks include confirming wiring, grounding, drive configuration, feedback recognition, motor parameters, rotation direction, and protective functions before controlled operation.

10. What maintenance practices help extend servo motor service life?

Inspect connectors, cables, mounting hardware, shaft coupling, operating temperature, and signs of contamination or abnormal noise. Follow the manufacturer's recommendations for lubrication where applicable, environmental protection, and periodic inspection.
