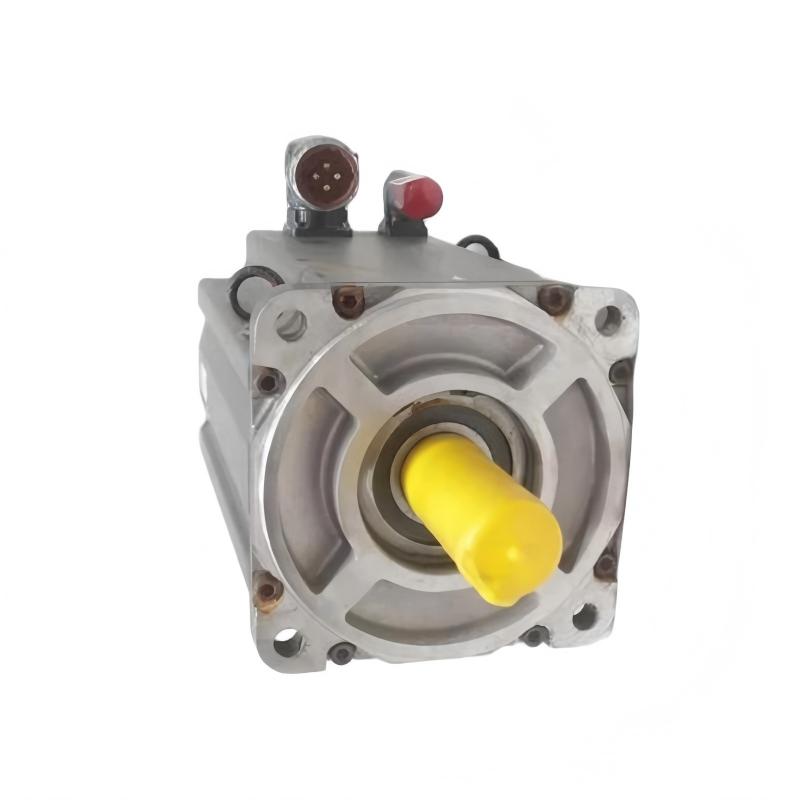

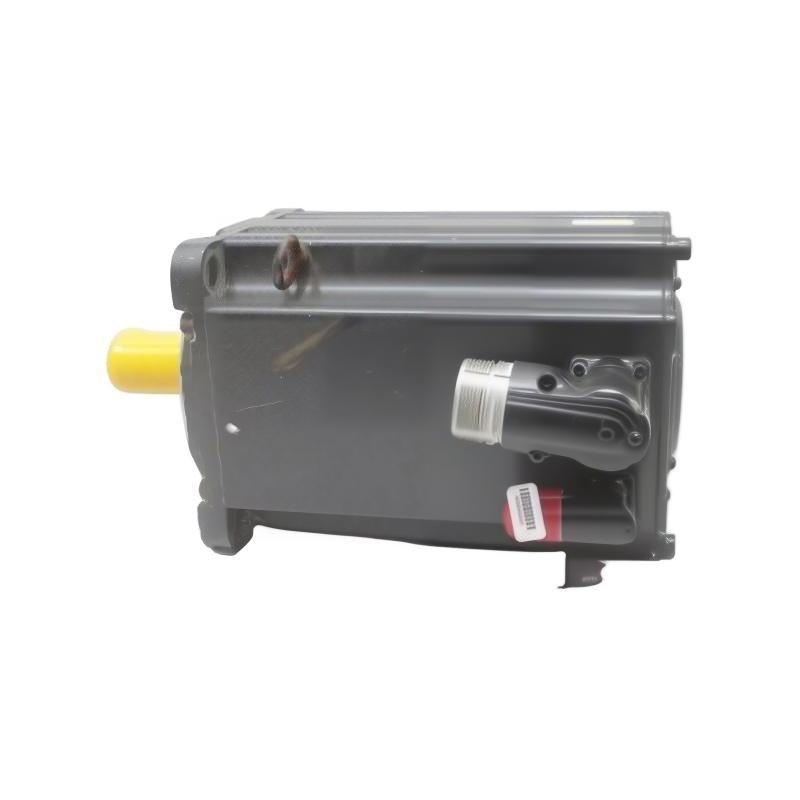

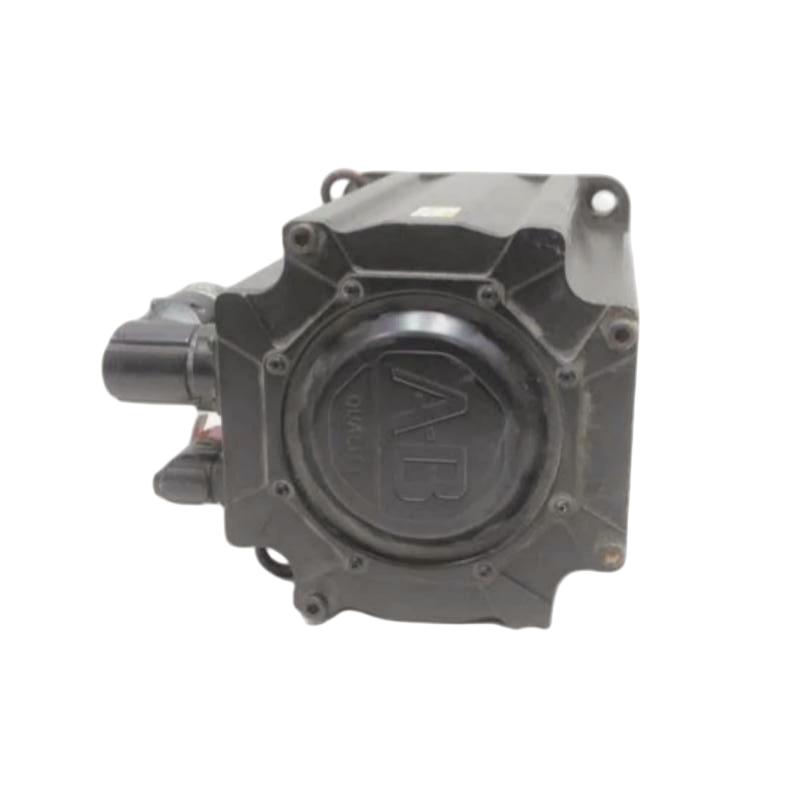

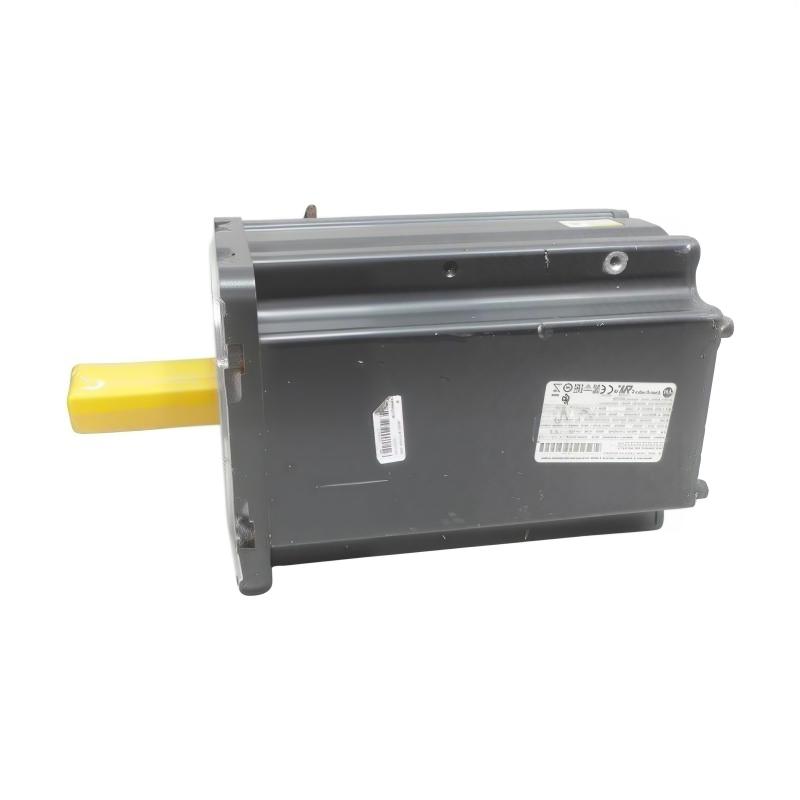

Allen Bradley MPL-B660F-MJ74AA Servo Motor

Applications and Industrial Automation

The Allen Bradley MPL-B660F-MJ74AA Servo Motor is intended for industrial motion control applications where precise movement, controlled acceleration, and consistent operating cycles are essential. As part of the Allen-Bradley MP-Series servo motor family, it can be considered for automated machinery that requires coordinated motion and integration with a compatible servo drive.

In production environments, the correct servo motor helps establish reliable communication between the motion controller, drive, and mechanical system. Selecting a motor that matches the application's load profile and operating requirements is therefore important for both machine performance and long-term maintenance.

Typical application areas include:

• Automated Packaging Equipment: Supports servo-driven mechanisms requiring controlled movement and repeatable operating sequences.

• Material Handling Systems: Can be considered for positioning units, automated transfer equipment, and coordinated conveyor mechanisms.

• Industrial Assembly Lines: Suitable for evaluating motion control requirements in repetitive assembly and component handling operations.

• Printing and Converting Machinery: Servo technology supports controlled speed and synchronized movement in processing equipment.

• Machine Building and OEM Applications: Offers a motor option for equipment designs that specify a compatible MP-Series configuration.

• Industrial Maintenance and Replacement: May be considered when replacing an installed motor, provided the catalog number and system compatibility are verified.

The final application decision should account for torque requirements, operating speed, acceleration, load inertia, duty cycle, and environmental conditions.

Advantages of the MPL-B660F-MJ74AA Servo Motor

Responsive Motion Performance

Servo motor systems are designed to respond to motion commands with controlled acceleration and deceleration. When properly matched with a compatible drive, they can support machine cycles that involve frequent speed changes and repeated positioning.

Integration with Allen-Bradley Control Systems

The MP-Series platform is intended for integration into compatible industrial motion control architectures. Correct drive selection, feedback configuration, and cable matching are essential to achieving reliable operation.

Consistent Automated Movement

A properly configured servo system can coordinate motor movement with machine sequences, helping maintain repeatability in automated production processes.

Practical for Maintenance and Replacement

For facilities maintaining existing Allen-Bradley equipment, exact catalog identification helps reduce the risk of ordering an unsuitable component. The MPL-B660F-MJ74AA should be evaluated against the original motor specification before purchase.

Application-Focused System Selection

The motor should be selected as part of a complete motion system rather than as an isolated component. Reviewing electrical characteristics, mechanical interfaces, feedback requirements, and drive support helps improve procurement accuracy and commissioning efficiency.

Technical FAQs — Allen Bradley MPL-B660F-MJ74AA

1. What is the MPL-B660F-MJ74AA Servo Motor designed for?

It is an Allen-Bradley MP-Series servo motor intended for industrial motion control. Its suitability depends on the required torque, speed, duty cycle, positioning performance, and compatible drive configuration.

2. Does this motor need a compatible servo drive?

Yes. A servo drive is normally required to regulate motor current and control torque, speed, and position. Confirm the supported motor configuration before connecting or commissioning the system.

3. How can I confirm drive compatibility?

Check the full motor catalog number against the drive manufacturer's supported motor documentation. Verify electrical ratings, feedback type, connector requirements, and application operating limits.

4. What does the feedback device do in a servo system?

The feedback device supplies motion information to the drive. Depending on the motor configuration, this information can include position and speed, allowing the controller to regulate movement against the commanded values.

5. Can the motor be used for closed-loop motion control?

Servo motors are commonly used in closed-loop systems. Successful operation requires compatible feedback hardware, a supported drive, correct parameter configuration, and suitable mechanical design.

6. What could cause a servo drive to report a feedback fault?

Possible causes include loose or damaged feedback cables, incorrect connections, incompatible feedback hardware, electrical interference, or incorrect drive configuration. Check the specific fault code and follow the manufacturer's troubleshooting procedure.

7. Why might the motor fail to reach the commanded position?

Possible causes include incorrect tuning, excessive load, mechanical backlash, coupling slippage, feedback problems, or unsuitable motion settings. Check both the mechanical transmission and the control system.

8. How should unexpected motor overheating be investigated?

Review load conditions, acceleration settings, duty cycle, ambient temperature, cooling, and drive diagnostics. Compare the measured operating conditions with the manufacturer's specifications before deciding on corrective action.

9. What should be considered when installing the motor?

Verify the mounting arrangement, shaft coupling, electrical connections, grounding, cable routing, and environmental protection requirements. Installation and commissioning should follow the applicable manufacturer's documentation and machine safety procedures.

10. What information is important when ordering a replacement?

Confirm the complete catalog number, nameplate information, installed servo drive, feedback configuration, mounting requirements, and any brake or connector options. This helps prevent compatibility problems during installation.
