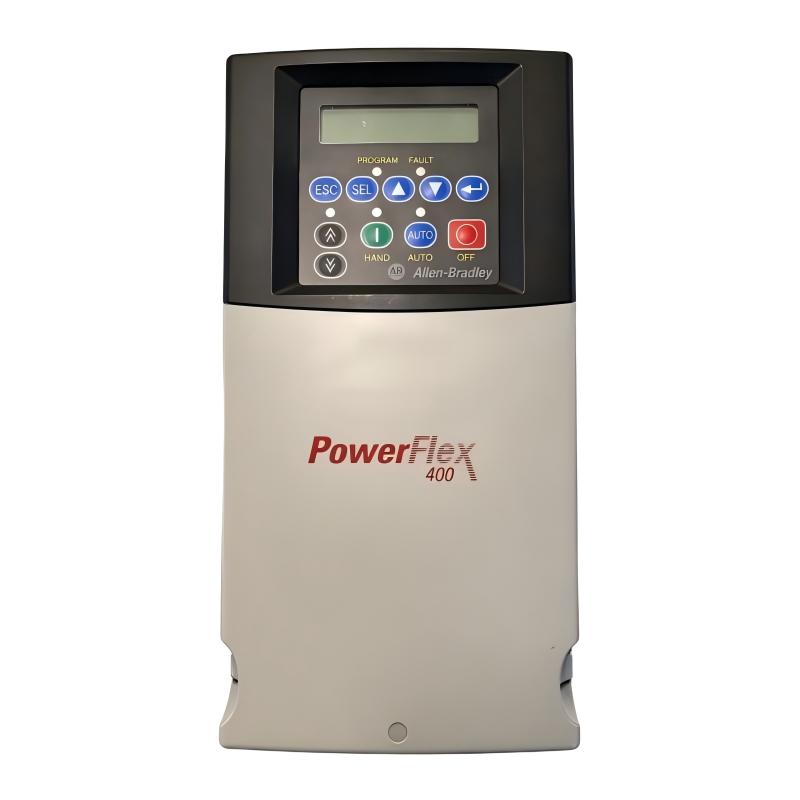

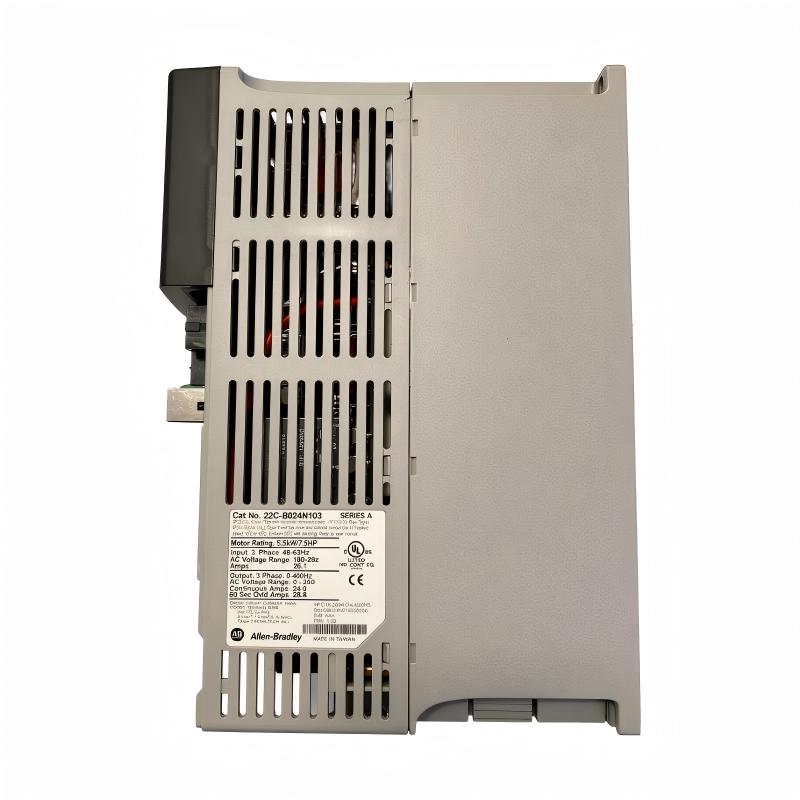

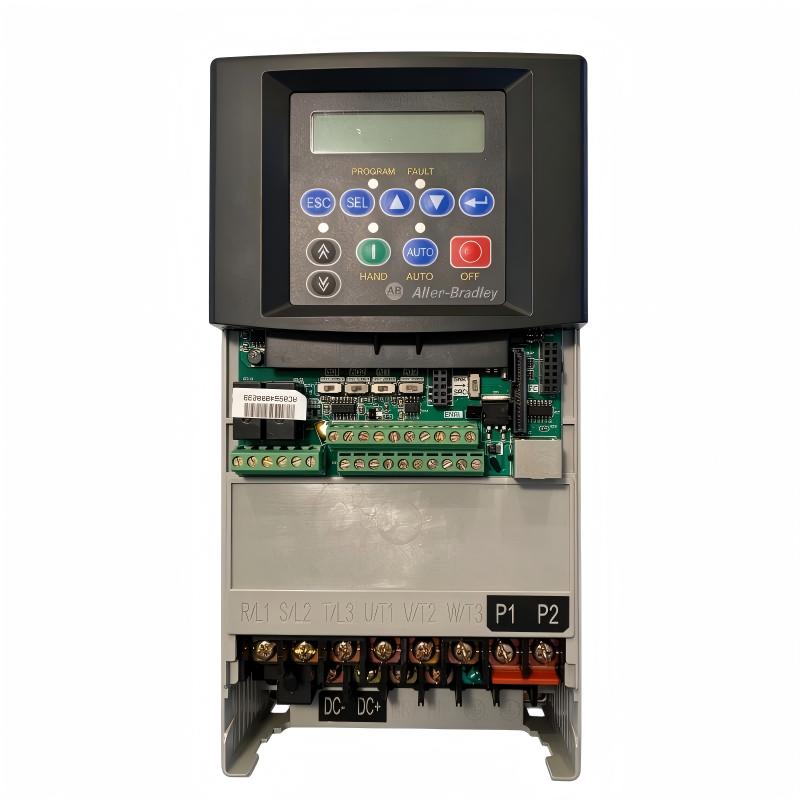

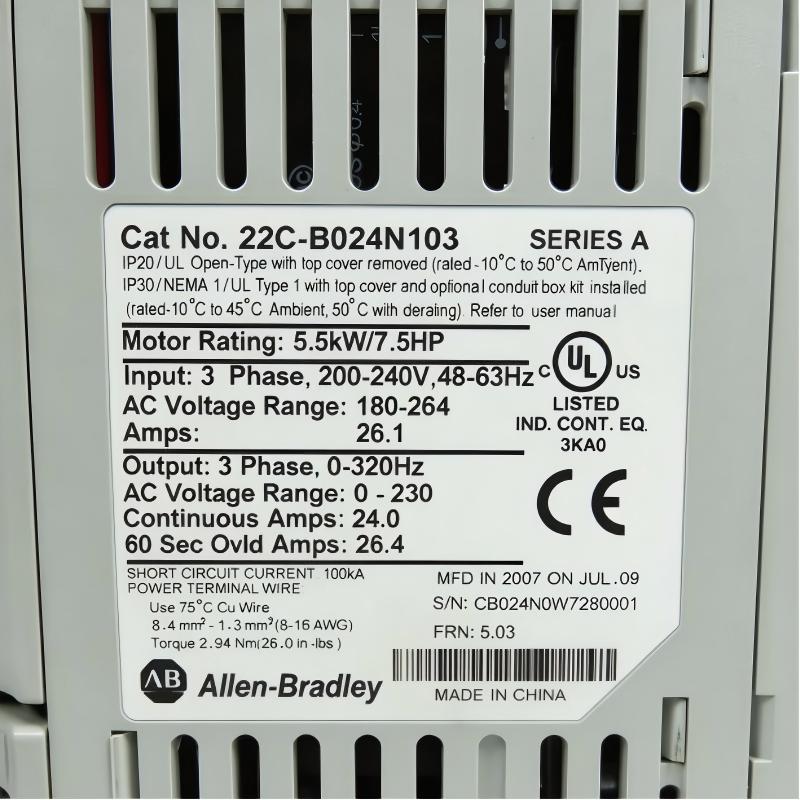

Allen Bradley 22C-B024N103 PowerFlex 400 AC Drive

Applications in Industrial Automation

The Allen Bradley 22C-B024N103 PowerFlex 400 AC Drive is part of the PowerFlex 400 drive family, developed for variable-speed control in applications such as fans, pumps, and other building or industrial utility systems. By adjusting motor speed to match operating demand, a variable-frequency drive can help improve process control and reduce unnecessary energy consumption in suitable applications.

Common application areas include:

• HVAC systems: Supporting variable-speed operation of air-handling fans and ventilation equipment.

• Water and fluid handling: Controlling compatible pump motors in circulation and fluid-transfer systems.

• Industrial ventilation: Adjusting fan speed in response to changing airflow requirements.

• Building services: Supporting motor-driven equipment used in commercial and industrial facilities.

• Equipment maintenance: Providing a potential replacement option for existing PowerFlex installations when the drive's electrical and configuration requirements match.

The drive should be selected according to the motor nameplate, supply voltage, required output current, load characteristics, and installation environment. Confirm the complete catalog number before purchasing a replacement unit.

Advantages of the PowerFlex 400 Drive

Variable-Speed Motor Control

The PowerFlex 400 family is intended for applications where motor speed needs to respond to changing system demand. This can help operators maintain suitable airflow or fluid flow without relying exclusively on mechanical throttling.

Potential Energy Savings

In appropriate fan and pump applications, reducing motor speed when full capacity is unnecessary can lower energy consumption. Actual savings depend on the system curve, operating schedule, motor characteristics, and control strategy.

Designed for Fan and Pump Applications

The PowerFlex 400 range focuses on variable-speed applications commonly found in HVAC and utility systems. Correct drive sizing is essential to reliable operation under the expected load.

Support for Automated Operation

When integrated with compatible control equipment, a variable-frequency drive can respond to operating commands and process requirements. The available control and communication features should be verified for the exact catalog variant.

Practical for Industrial Maintenance

Using the full catalog number when sourcing a replacement helps maintenance teams distinguish between drive variants and avoid mismatches in voltage, current rating, enclosure, or control options.

Technical FAQs

1. What is the Allen Bradley 22C-B024N103?

It is identified as an Allen-Bradley PowerFlex 400 AC drive. The PowerFlex 400 family is designed primarily for variable-speed applications such as fan and pump control.

2. What is the main purpose of an AC drive?

An AC drive regulates the frequency and voltage supplied to a compatible AC motor, allowing the motor's speed to be adjusted to suit the application.

3. Can this drive operate any AC motor?

No. The motor's voltage, current, power rating, operating frequency, and load requirements must be compatible with the drive. Motor type and application suitability should also be confirmed.

4. How should the drive be sized for a pump or fan?

Check the motor nameplate and select a drive with suitable voltage and continuous output-current ratings. Consider starting requirements, overload conditions, ambient temperature, and any applicable derating requirements.

5. Can the PowerFlex 400 be used in HVAC systems?

The PowerFlex 400 family is associated with fan and pump applications, including HVAC-related equipment. Confirm that the specific drive variant matches the system's electrical supply, motor, and control requirements.

6. What may cause an overcurrent fault?

Potential causes include excessive mechanical load, acceleration that is too rapid, motor or cable faults, incorrect motor parameters, or an unsuitable drive-to-motor combination. Check the fault code and follow the manufacturer's troubleshooting procedure.

7. Why might a connected motor fail to start?

Possible causes include missing input power, an active fault, an incorrect run command, control-terminal wiring issues, parameter settings, or an interlock in the control system. Diagnose the cause before attempting repeated restarts.

8. What should be checked if the motor speed is unstable?

Review the speed reference, control mode, motor data, wiring, load variation, and relevant drive parameters. If the drive is controlled by an external controller, also verify the reference signal and control logic.

9. Can this drive replace another PowerFlex model directly?

Not necessarily. Models within the same family can have different electrical ratings and configuration options. Compare the full catalog number, supply requirements, output current, enclosure, and control connections before replacement.

10. What precautions are necessary before servicing the drive?

Disconnect all power sources and follow the manufacturer's lockout/tagout and discharge procedures. The DC bus may retain hazardous voltage after input power is removed. Verify that the equipment is in a safe electrical state before handling terminals or wiring.
