Brand:Allen Bradley PLC Item No.:22C-B033N103 Product Origin:USA Product Dimensions:260 x 130 x 180 mm 4.33 kg Product Weight:4.33 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

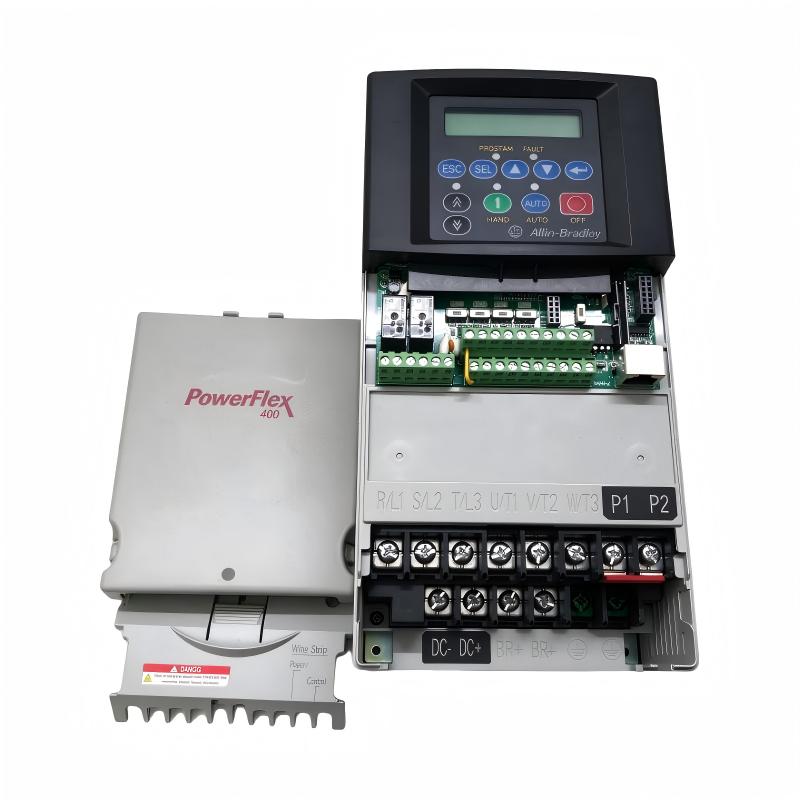

The Allen Bradley 22C-B033N103 PowerFlex 400 AC Drive is intended for variable-speed motor control in applications where operating speed needs to respond to changing system requirements. The PowerFlex 400 family is particularly associated with fan, pump, and building-service applications.
In ventilation and fluid-handling systems, motor-speed regulation can help maintain required operating conditions without relying entirely on mechanical flow-control methods. When correctly sized and configured, a variable-frequency drive can also contribute to more efficient equipment operation.
For industrial maintenance teams, OEMs, and system integrators, selecting the correct drive requires a detailed review of the complete application. Important factors include the motor's electrical ratings, the available power supply, the required control method, environmental conditions, and installation clearances.
The complete catalog number should be checked against the drive nameplate and applicable technical documentation before purchase or commissioning. This is particularly important when replacing an existing drive, as similar-looking models may not share the same electrical characteristics.
Whether used in a new control panel or an existing motor-control installation, proper selection, wiring, parameter configuration, and commissioning are essential to reliable operation.
Technical Specifications
Parameter
Specification
Brand
Allen-Bradley
Model
22C-B033N103
Product Type
AC Drive / Variable Frequency Drive
Product Family
PowerFlex 400
Dimensions
260 × 130 × 180 mm
Weight
4.33 kg / 9.55 lb
Primary Function
Variable-speed AC motor control
Typical Applications
Fans, pumps, ventilation, and compatible utility equipment
Input Voltage
Confirm from the product nameplate
Rated Output Current
Confirm from the exact catalog documentation
Motor Compatibility
Must match drive electrical ratings
Control Configuration
Verify the supported control method and interface
Installation
Follow manufacturer requirements for mounting, cooling, grounding, and wiring
Installation and selection notes: The dimensions and weight above are based on the supplied product information. Confirm the exact mechanical drawing, input supply requirements, rated output current, and control features before ordering or installation. Provide adequate ventilation and follow the manufacturer's wiring and grounding instructions.
Recommended Related Models
The following PowerFlex 400 catalog numbers may be useful for comparing drive options within the same product family. Verify their electrical ratings and configuration before selecting an alternative.
Model
Product Type
22C-B017N103
PowerFlex 400 AC Drive
22C-B024N103
PowerFlex 400 AC Drive
22C-B033N103
PowerFlex 400 AC Drive
22C-D017N103
PowerFlex 400 AC Drive
Popular Related Models
These models may be relevant to industrial drive sourcing, maintenance planning, and product comparisons.
Model
Product Type
22C-B033N103
PowerFlex 400 AC Drive
22C-B024N103
PowerFlex 400 AC Drive
22C-B017N103
PowerFlex 400 AC Drive
22C-D017N103
PowerFlex 400 AC Drive
22C-D024N103
PowerFlex 400 AC Drive
When comparing these models, do not rely on catalog-number similarity alone. Confirm the electrical supply, rated current, motor requirements, enclosure, control interface, and installation conditions to ensure the selected drive is suitable for the application.
Applications in Industrial Motor Control
The Allen Bradley 22C-B033N103 PowerFlex 400 AC Drive is part of the PowerFlex 400 family of variable-frequency drives designed primarily for fan and pump applications. By regulating the frequency supplied to a compatible AC motor, the drive enables variable-speed operation to match changing process demands.
In industrial facilities and commercial building systems, appropriate motor-speed control can help improve process stability, reduce unnecessary energy consumption, and support more flexible equipment operation.
Typical application areas include:
HVAC and ventilation systems: Adjusting fan speed to meet changing airflow requirements.
Water supply and circulation: Controlling compatible pump motors in fluid-handling systems.
Industrial exhaust systems: Regulating ventilation equipment according to operating conditions.
Building automation: Supporting motor-driven equipment within suitable building management and control systems.
Maintenance and equipment replacement: Serving as a potential replacement candidate where the original drive specifications and installation requirements match.
Before selecting this drive, verify the incoming power supply, motor nameplate ratings, required output current, enclosure requirements, and control interface. A matching product family alone does not establish direct interchangeability.
Key Advantages of the PowerFlex 400
Flexible Motor-Speed Regulation
The PowerFlex 400 family supports variable-speed operation for suitable AC motor applications. Adjusting speed according to demand can provide more precise control than operating a motor continuously at a fixed speed.
Potential Energy Efficiency Improvements
In suitable fan and pump systems, reducing motor speed can significantly reduce power consumption compared with running at full speed. Actual savings depend on the load profile, system design, operating hours, and control strategy.
Designed for Utility and Building Applications
The PowerFlex 400 range is associated with applications such as HVAC fans and pumps, making it relevant to building services, industrial ventilation, and fluid-handling equipment.
Integration into Automated Systems
A compatible drive can receive operating commands from local controls or a suitable automation system. The available control methods and communication options must be confirmed against the exact drive configuration.
Support for Industrial Maintenance
Using the complete catalog number helps technicians and procurement teams identify the intended drive variant, reducing the risk of ordering equipment with different electrical ratings or connection requirements.
Technical FAQs
1. What is the Allen Bradley 22C-B033N103 PowerFlex 400?
It is an Allen-Bradley AC drive belonging to the PowerFlex 400 product family, which is intended primarily for variable-speed fan and pump applications.
2. How does a variable-frequency drive control motor speed?
A variable-frequency drive adjusts the frequency and voltage supplied to a compatible AC motor. Changing the output frequency changes the motor's operating speed, subject to the motor design and load conditions.
3. Which applications are suitable for the PowerFlex 400 family?
Typical applications include HVAC fans, ventilation systems, pumps, and other compatible motor-driven equipment. Suitability for a specific machine depends on its load characteristics and electrical requirements.
4. How do I determine whether the drive is correctly sized?
Compare the motor's rated voltage and full-load current with the drive's input and output specifications. Also consider overload requirements, ambient temperature, installation altitude, and any manufacturer-specified derating.
5. Can this drive be connected to a PLC?
Integration may be possible through supported control signals or communication methods, depending on the drive configuration and PLC interface. Check the relevant manuals for terminal assignments, supported protocols, and control parameters.
6. Why might the drive trip during acceleration?
Possible causes include excessive load, an acceleration time that is too short, incorrect motor data, wiring problems, or an unsuitable drive rating. Check the displayed fault code and investigate the underlying cause before restarting.
7. What should I check if the motor does not run?
Verify the incoming supply, drive status, active fault conditions, run command, control-terminal wiring, and relevant parameters. Also check any external interlocks or safety circuits that may prevent operation.
8. What can cause unstable motor speed?
Potential causes include fluctuating reference signals, changing load conditions, incorrect parameter settings, electrical interference, or control-system issues. Check the speed reference and drive configuration systematically.
9. Is the 22C-B033N103 interchangeable with another PowerFlex 400 drive?
Not automatically. Different catalog numbers may have different ratings or configuration details. Confirm voltage, output current, enclosure, control connections, and the intended motor application before substituting another model.
10. What safety measures are necessary when servicing this drive?
Isolate all power sources, follow the site's lockout/tagout procedure, and observe the manufacturer's DC-bus discharge requirements. Verify that hazardous voltage has dissipated before touching electrical connections.
