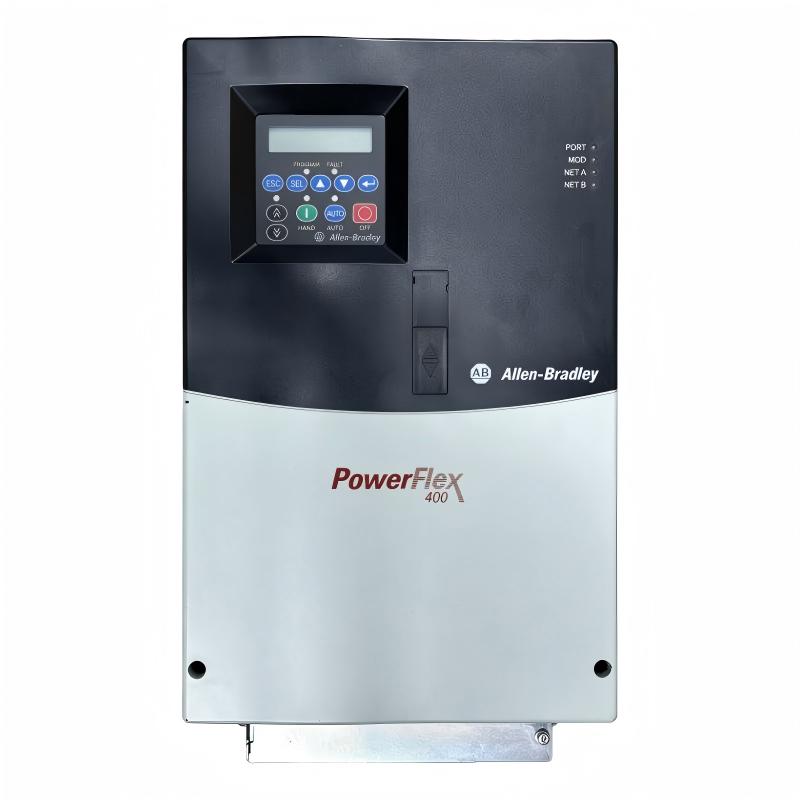

Allen Bradley 22C-B075A103 PowerFlex 400 AC Drive

Applications in Industrial Automation

The Allen Bradley 22C-B075A103 PowerFlex 400 AC Drive is an industrial variable-frequency drive intended for motor-speed control in compatible applications. The PowerFlex 400 family is primarily associated with fan and pump systems, including HVAC equipment, ventilation installations, and fluid-handling processes.

By adjusting the frequency supplied to a compatible AC motor, a variable-frequency drive can help regulate operating speed according to system demand. In suitable applications, this can improve process flexibility and reduce unnecessary energy consumption.

Typical application areas include:

• HVAC and air-handling systems: Regulating fan speed to meet changing ventilation requirements.

• Industrial ventilation: Controlling exhaust and supply fans in manufacturing facilities.

• Water circulation systems: Adjusting the operation of compatible pumps used for fluid transfer and circulation.

• Building services: Supporting motor-driven equipment in commercial and industrial facilities.

• Maintenance and replacement projects: Providing a potential replacement option when the original drive's electrical ratings and configuration match.

Before selecting the 22C-B075A103 for a specific installation, verify the input supply, motor nameplate data, drive output-current rating, control requirements, and environmental conditions.

Key Advantages of the PowerFlex 400 Drive

Flexible Motor-Speed Control

The PowerFlex 400 family supports variable-speed operation for suitable AC motor applications. This enables fan and pump systems to respond to changing operating requirements rather than relying solely on fixed-speed operation.

Potential Energy Efficiency Improvements

In appropriate fan and pump applications, reducing motor speed can lower energy consumption. The actual savings depend on the equipment, system design, load profile, and operating schedule.

Application-Oriented Drive Design

The PowerFlex 400 range is associated with HVAC, ventilation, and fluid-handling applications. This makes the family relevant to facilities that require controlled motor operation in building services and industrial utility systems.

Integration with Automation Systems

When supported by the particular configuration, the drive can work with external control equipment to receive run commands and speed references. Confirm the available terminals and communication options before designing the control interface.

Convenient Identification for Spare-Parts Sourcing

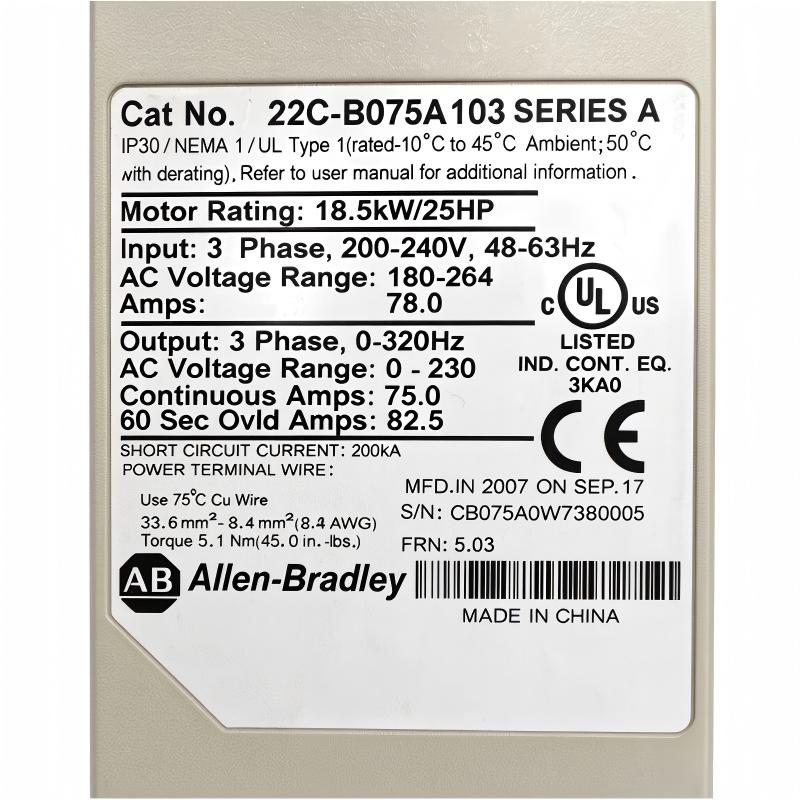

Using the complete catalog number helps maintenance teams and purchasing departments identify the intended drive variant. Verifying the nameplate before ordering reduces the risk of selecting a product with incompatible electrical characteristics.

Reliable Operation Through Correct Configuration

Proper drive sizing, wiring, grounding, cooling, and parameter configuration are essential to stable operation. Matching the drive to the motor and application helps prevent avoidable commissioning and operating problems.

Technical FAQs

1. What is the Allen Bradley 22C-B075A103?

It is identified as an Allen-Bradley PowerFlex 400 AC drive. The PowerFlex 400 family is designed primarily for variable-speed fan and pump applications.

2. What is the primary function of an AC drive?

An AC drive controls the electrical frequency and voltage supplied to a compatible motor, allowing its operating speed to be adjusted to suit the application.

3. Can the PowerFlex 400 be used for HVAC applications?

The PowerFlex 400 family is associated with HVAC-related fan and pump control. Confirm that the specific drive configuration matches the motor, supply, and operating requirements of the installation.

4. How should I select a compatible motor?

Compare the motor nameplate voltage, rated current, power, frequency, and operating requirements with the drive's documented ratings. Consider overload demand and environmental derating where applicable.

5. Can this drive be connected to a PLC?

Integration may be possible through supported control terminals or communication interfaces. Check the documentation for the exact drive variant to confirm its control methods, signal requirements, and available communication options.

6. What may cause an overcurrent fault?

Potential causes include excessive mechanical load, overly rapid acceleration, motor or cable faults, incorrect motor parameters, or an unsuitable drive-to-motor combination. Use the displayed fault code and manufacturer troubleshooting guidance to identify the cause.

7. Why might the motor fail to start?

Check the incoming power, active faults, run command, control wiring, parameter settings, and external interlocks. Also verify that the selected control source is configured correctly.

8. How can inconsistent motor speed be diagnosed?

Review the speed reference, control signals, motor data, wiring, load conditions, and drive parameters. If an external controller provides the speed command, verify the signal and control logic.

9. Can the 22C-B075A103 replace another PowerFlex drive?

Not without checking compatibility. Compare the complete catalog numbers, input voltage, output-current rating, motor requirements, mounting arrangement, and control configuration before selecting a replacement.

10. What precautions are required before servicing the drive?

Isolate the power supply and follow the site's lockout/tagout procedures. Observe the manufacturer's DC-bus discharge requirements and verify that hazardous voltage has dissipated before working on electrical connections.
