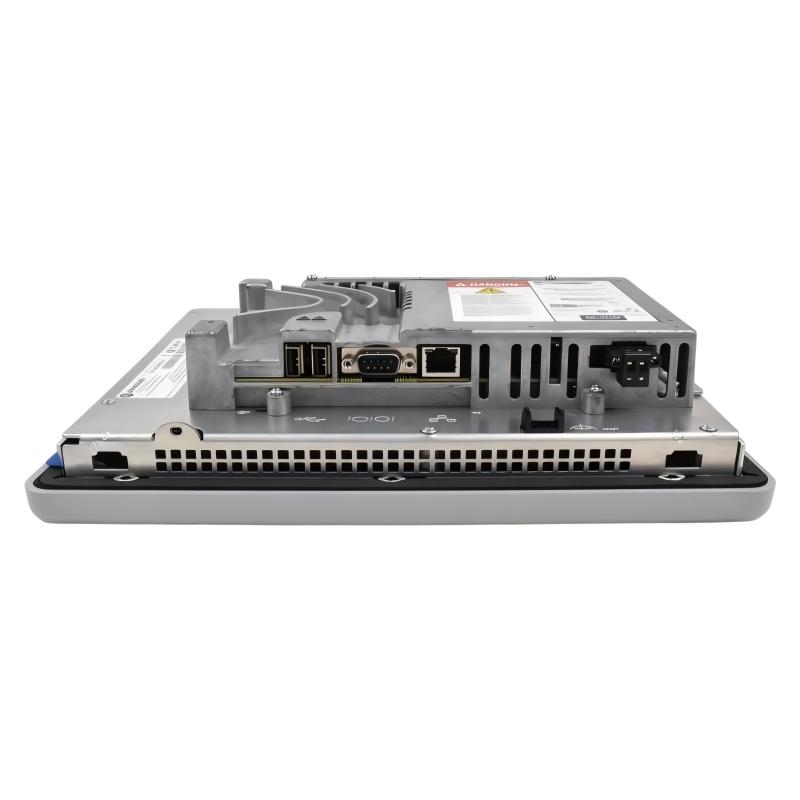

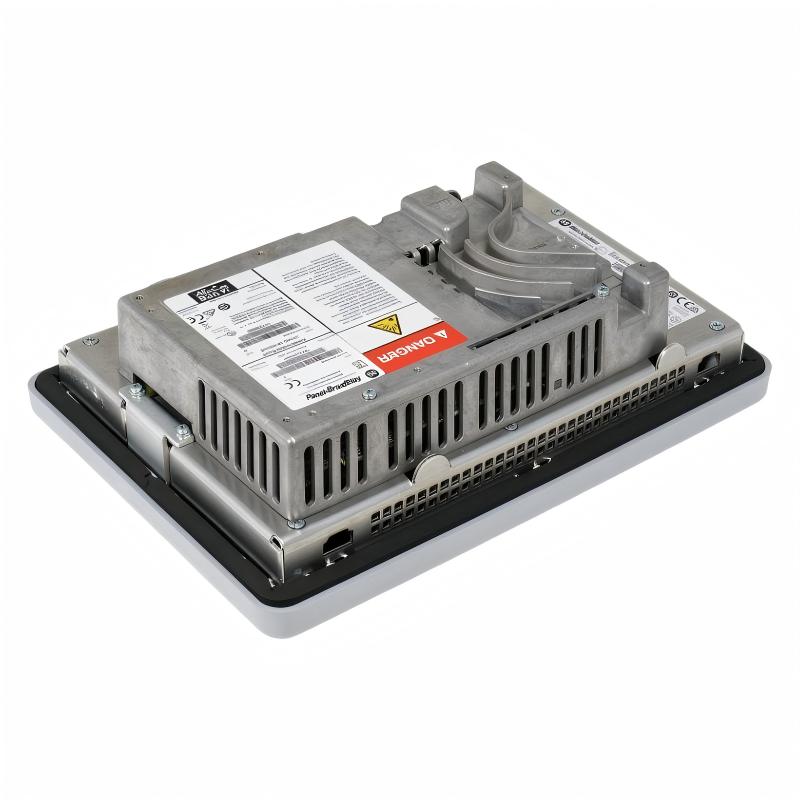

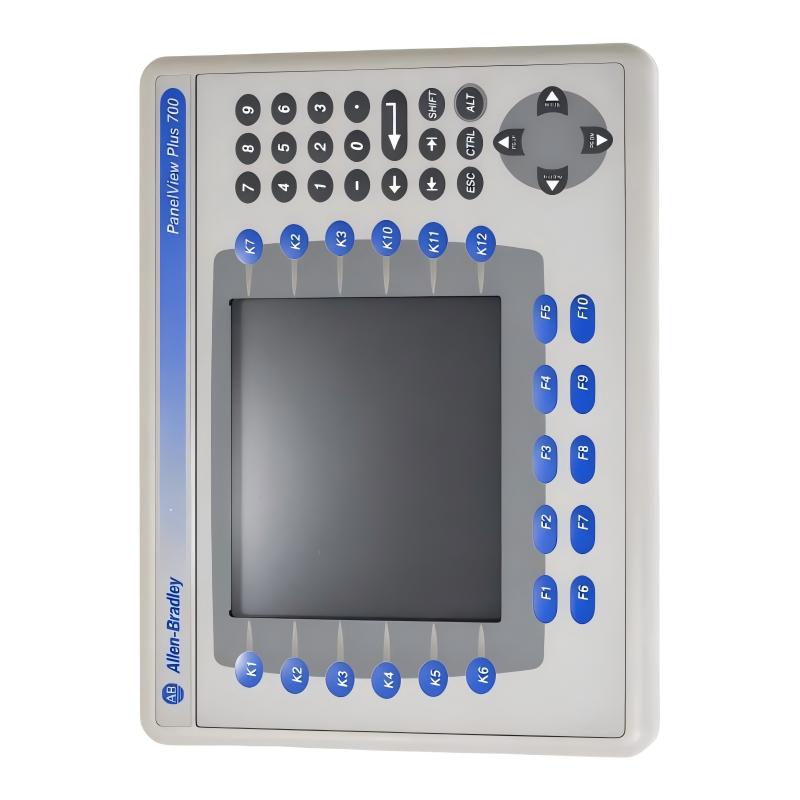

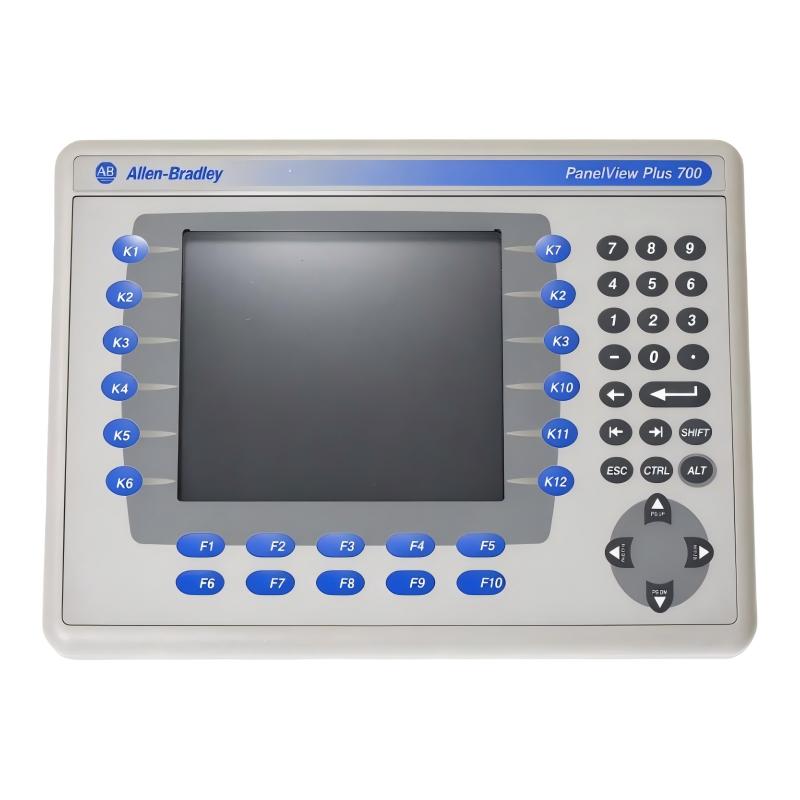

Allen Bradley 2711P-B7C4D8 PanelView Plus 6 700 Operator Interface

Applications in Industrial HMI Systems

The Allen Bradley 2711P-B7C4D8 PanelView Plus 6 700 Operator Interface is an industrial human-machine interface (HMI) designed to provide operators with access to machine information and configured control functions. As part of the PanelView Plus 6 family, it supports visual interaction between personnel and compatible automation systems.

An operator interface helps translate controller data into clear process displays, equipment status indicators, and alarm messages. When integrated with a suitable PLC and HMI application, it can make routine machine operation and troubleshooting more efficient.

Typical application areas include:

• Manufacturing equipment: Displaying machine status, operating values, and production information.

• Packaging machinery: Providing access to configured operating modes, process settings, and alarms.

• Industrial process monitoring: Presenting selected process variables and equipment conditions.

• Automated production lines: Enabling operators to interact with permitted machine functions.

• Maintenance and diagnostics: Displaying system messages and fault information to assist troubleshooting.

Before installation or replacement, verify the terminal's complete catalog number, communication interfaces, power requirements, and compatibility with the existing HMI project.

Key Advantages of the PanelView Plus 6 700

Practical Operator Visualization

The HMI provides a visual platform for presenting machine and process information. Well-designed screens help operators review equipment conditions and respond to alarms.

Centralized Machine Interaction

Configured screens can bring common operating functions together in one interface, helping simplify routine interactions with supported machinery.

Integration with Compatible Controllers

PanelView Plus 6 terminals are designed for use in industrial automation systems. Successful communication depends on the controller, supported interface, network configuration, and HMI application.

Alarm and Status Monitoring

An HMI application can display alarm messages, status indicators, and operating values to help personnel identify abnormal conditions and respond appropriately.

Support for Troubleshooting

Displaying controller data and diagnostic messages can help maintenance personnel investigate faults without relying solely on physical indicators.

Useful for Existing Equipment Support

For facilities maintaining established Allen-Bradley automation systems, identifying the correct PanelView model is important when sourcing replacement terminals or planning upgrades.

Technical FAQs

1. What is the Allen Bradley 2711P-B7C4D8?

It is identified as an Allen-Bradley PanelView Plus 6 700 operator interface. It is used as an HMI for visualizing automation information and providing configured operator controls.

2. What is the primary function of a PanelView operator interface?

Its main function is to provide a visual connection between operators and an automation system, displaying process values, machine status, alarms, and configured control options.

3. Does this terminal require an HMI application?

Yes. The terminal needs a compatible application developed for the relevant hardware and software environment. Confirm project compatibility before transferring or restoring an application.

4. Can the terminal communicate with a PLC?

PanelView Plus 6 systems can communicate with compatible controllers using supported interfaces. The correct connection method depends on the controller, terminal configuration, network, and application settings.

5. What should be checked before replacing an existing HMI?

Check the complete catalog number, display configuration, power requirements, mounting cutout, communication interfaces, and compatibility of the existing project.

6. Why might the HMI lose communication with a controller?

Possible causes include incorrect network settings, disconnected cables, controller faults, incorrect communication paths, or mismatched application configuration. Review diagnostic messages and check the connection systematically.

7. What can cause an HMI application to fail to start?

Possible causes include an incompatible project, application runtime problems, incorrect startup settings, or corrupted project files. Check the application version and follow the manufacturer's recovery procedures.

8. Can an existing HMI project be reused on a replacement terminal?

Potentially, if the project is compatible with the replacement hardware and software. Back up the original project and verify runtime compatibility before transferring it.

9. How should the operator interface be maintained?

Inspect the display, touch surface, mounting hardware, and cables. Keep the terminal within its specified environmental limits and maintain backups of the application and configuration.

10. What safety procedures should be followed during replacement?

Follow site lockout/tagout procedures and isolate the relevant power sources before disconnecting the terminal. Verify wiring and power requirements before restoring power and testing the application.
