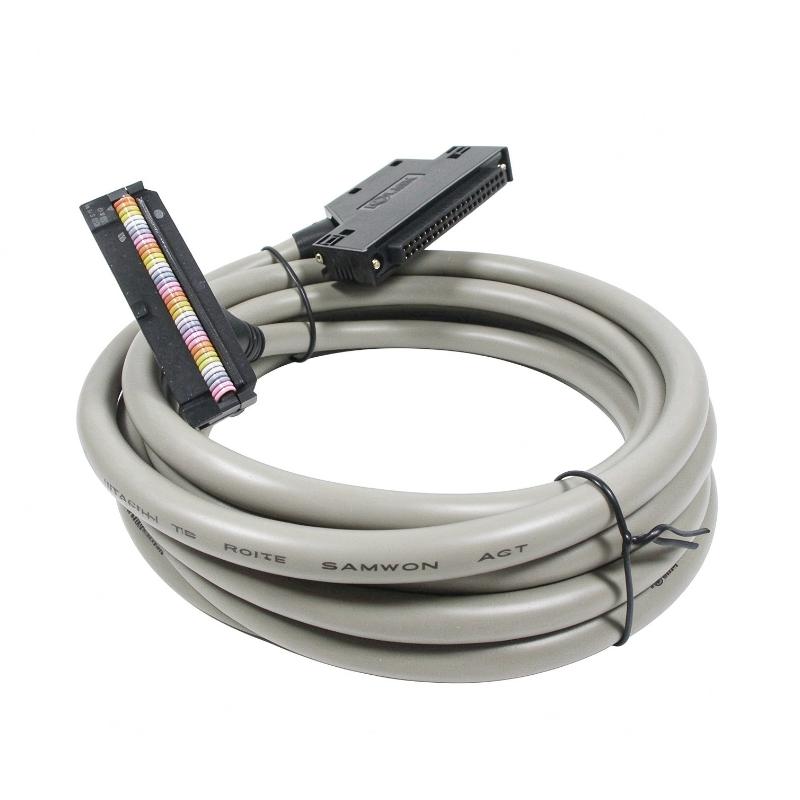

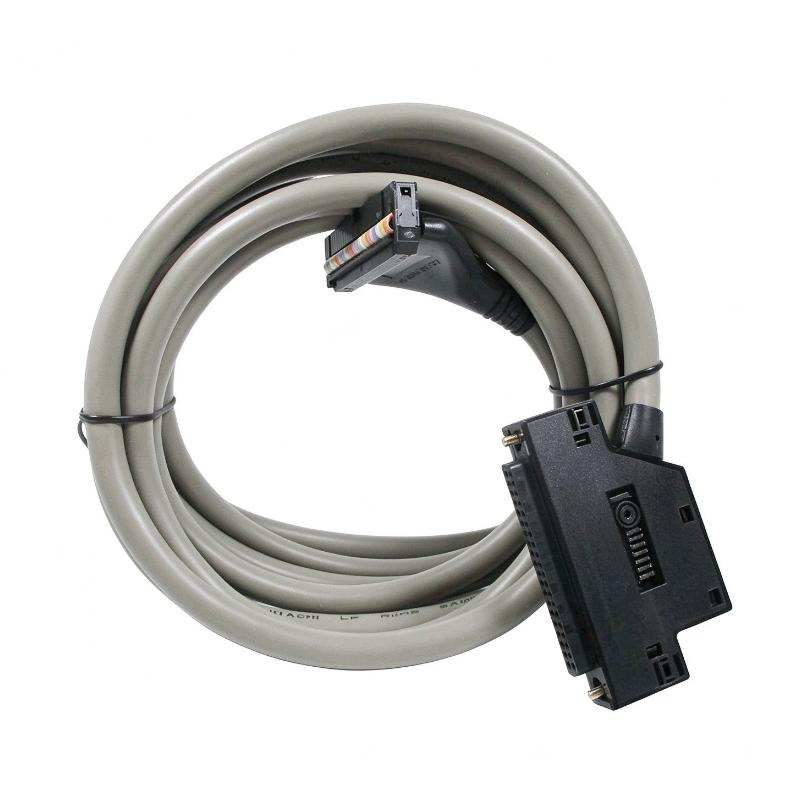

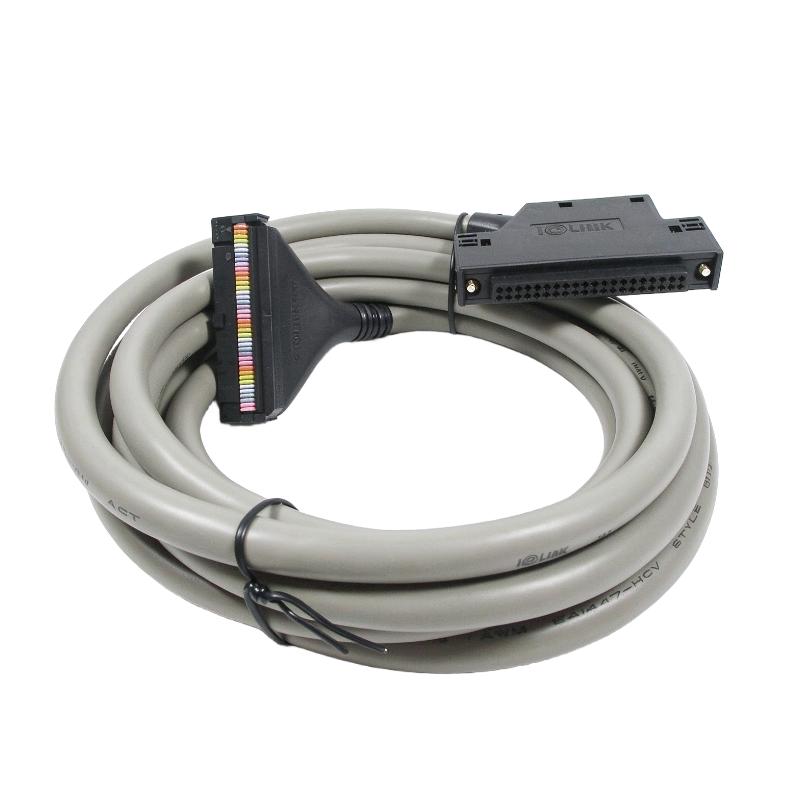

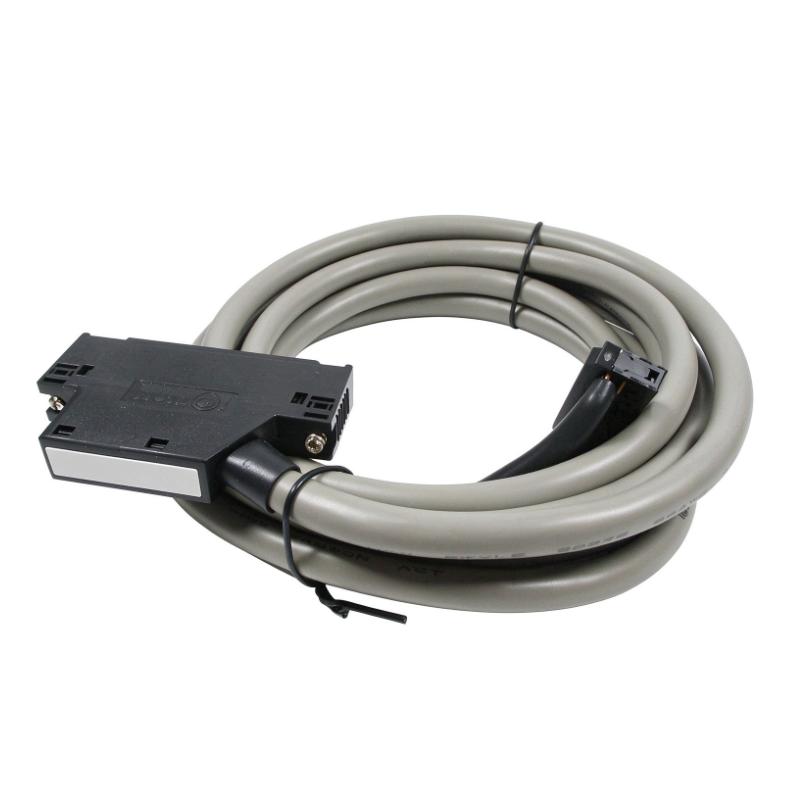

Honeywell C40HF-30PB-1 Connecting Cable

Applications

The Honeywell C40HF-30PB-1 Connecting Cable is an industrial automation accessory intended to provide a physical connection between compatible Honeywell devices. In control-system installations, selecting the correct cable is essential for maintaining reliable connections, preserving the intended hardware configuration, and simplifying equipment maintenance.

With a specified cable length of 3 meters, the C40HF-30PB-1 can be considered for installations that require additional routing distance between connected components compared with shorter cable options. Actual suitability depends on the equipment layout, connector arrangement, and the manufacturer's approved application.

Typical application scenarios include:

• Industrial equipment interconnection: Connecting supported devices in accordance with the system's hardware documentation.

• Control cabinet installation: Providing cable reach for compatible components positioned farther apart within an installation.

• Automation system maintenance: Replacing an existing cable when the original part number has been confirmed.

• Equipment commissioning: Supporting approved connection arrangements during setup and system verification.

• Spare-parts management: Maintaining the specified cable model for planned repairs and servicing.

Before installation, verify the connector types, pin assignment, electrical characteristics, and supported equipment. The cable's model designation and length alone are not sufficient to establish compatibility with a particular controller or communication interface.

Key Advantages of the Honeywell C40HF-30PB-1

Extended 3-meter cable length

The specified 3-meter length offers greater routing flexibility than a 1.5-meter cable where the installation requires additional reach. Engineers should still account for cable routing, bend radius, connector access, and the distance between connection points.

Model-specific identification

The complete part number, C40HF-30PB-1, helps distinguish this cable from other accessories with similar descriptions. Correct identification is particularly important when different cables use different pin assignments or interface designs.

Flexible installation planning

A suitable cable length can help technicians position equipment without placing unnecessary strain on the connectors. Proper routing also helps maintain an organized cabinet and reduces the risk of accidental disconnection.

Useful for maintenance and replacement

When an installed cable becomes damaged or requires replacement, matching the original model helps maintain the intended equipment configuration. The replacement should be checked against the original cable and relevant technical documentation.

Practical for industrial spare-parts sourcing

The C40HF-30PB-1 can be included in maintenance inventory when it is specified for the facility's equipment. Confirming the intended application before ordering helps reduce procurement errors and avoid unnecessary downtime.

Technical FAQs

1. What is the Honeywell C40HF-30PB-1 Connecting Cable used for?

It is identified as a connecting cable for compatible Honeywell equipment. Its precise function and supported devices should be verified using the manufacturer's documentation for this exact model.

2. What is the specified cable length?

The supplied product information specifies a cable length of 3 meters.

3. Which Honeywell devices are compatible with this cable?

Compatibility must be confirmed against the model numbers of the devices being connected. Do not assume that the C40HF-30PB-1 works with every Honeywell PLC, DCS, or industrial control component.

4. How does the C40HF-30PB-1 differ from the C40HF-15PB-1?

The supplied specifications identify the C40HF-30PB-1 as a 3-meter cable and the C40HF-15PB-1 as a 1.5-meter cable. Confirm that both models share the required connector configuration, electrical characteristics, and intended application before treating them as interchangeable apart from length.

5. What connector types are used on the C40HF-30PB-1?

The connector types have not been established from the supplied product information. Check the manufacturer's drawings or the original cable before ordering a replacement.

6. Can a generic connecting cable be used instead?

Only when the alternative is confirmed to match the required pin assignment, electrical characteristics, connectors, and application. Similar cable appearance does not guarantee functional compatibility.

7. What should be checked before installation?

Verify the complete model number, connector orientation, pinout, supported devices, and cable routing requirements. Follow the equipment manufacturer's connection procedures and relevant safety instructions.

8. What could cause communication or connection problems?

Possible causes include damaged conductors, loose connectors, incorrect pin assignments, an incompatible cable, or a fault in the connected device. Follow the relevant equipment troubleshooting procedure to identify the source.

9. How should the cable be routed in an industrial cabinet?

Route it according to the equipment manufacturer's guidelines. Avoid excessive bending, tension, abrasion, and interference with moving parts. Maintain suitable separation from electrical noise sources where required by the installation design.

10. What information should be provided when purchasing a replacement?

Provide the complete model number C40HF-30PB-1, the connected equipment model, and any available connector or product-label details. This allows the supplier to verify the intended cable configuration before shipment.
