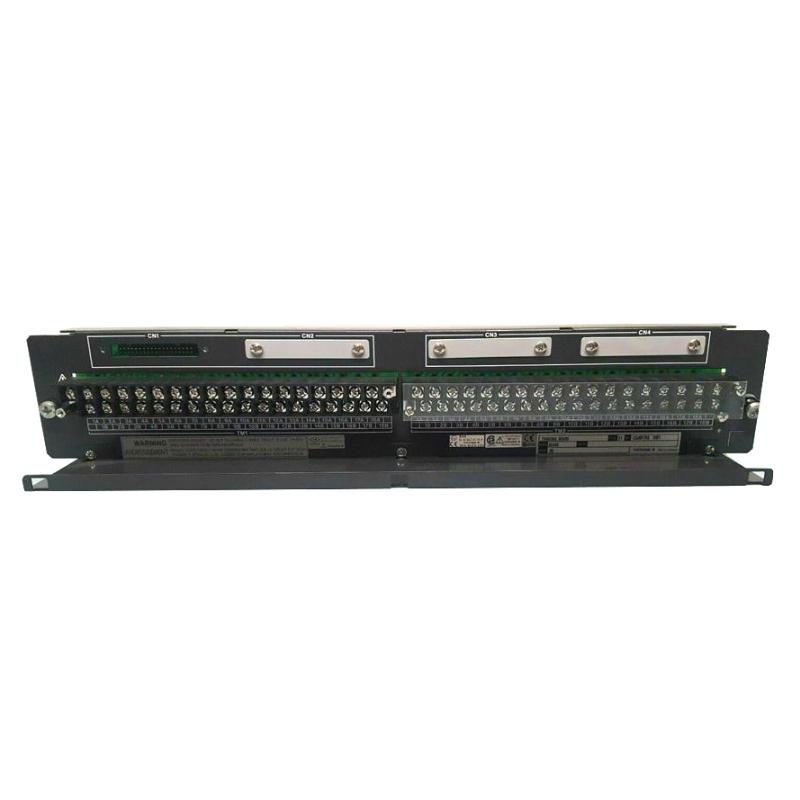

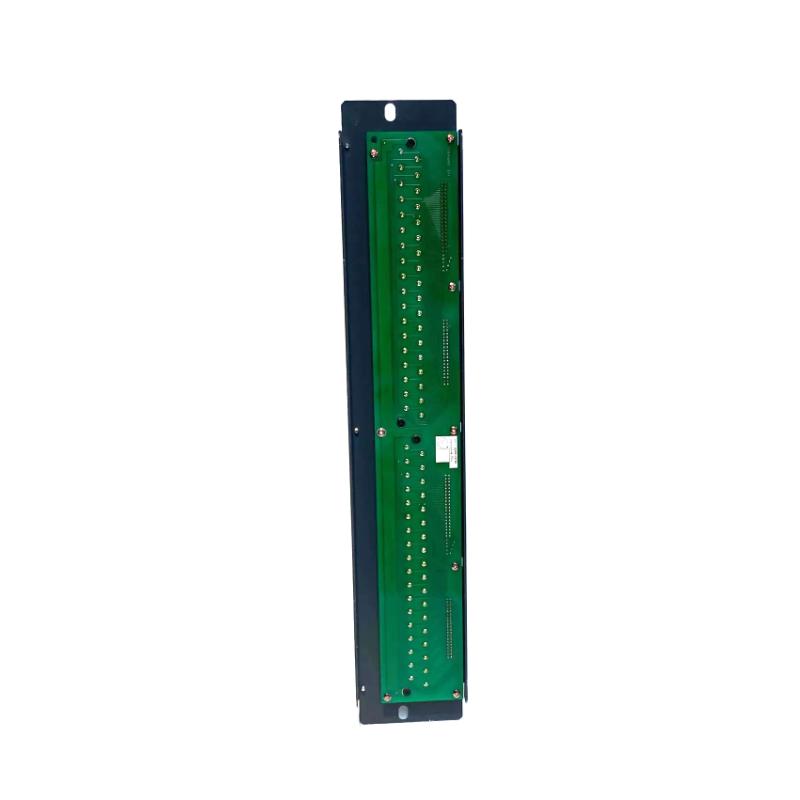

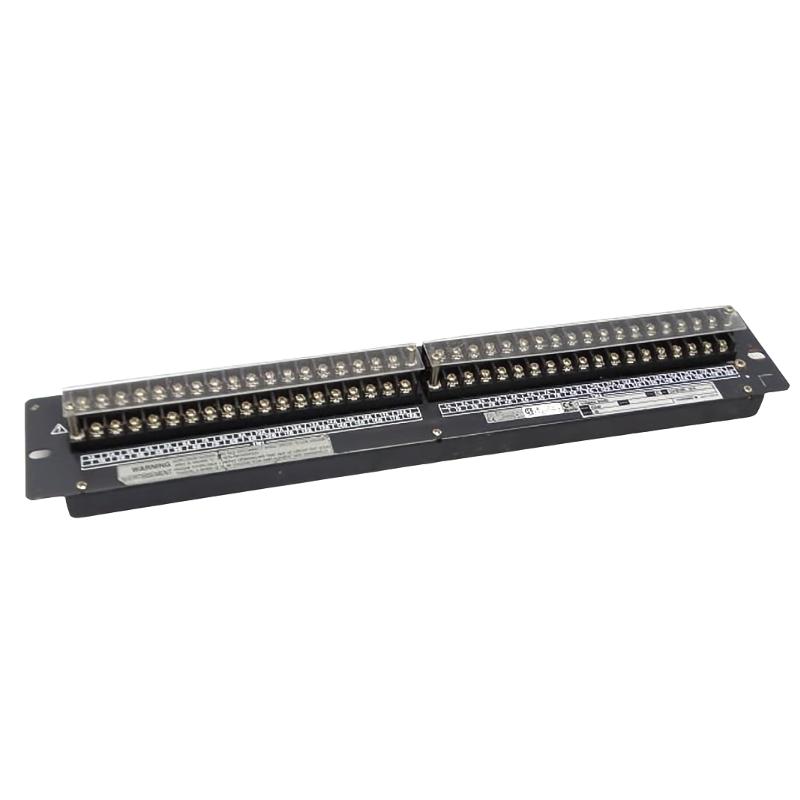

AEA4D-05 (4) AEA4D-05 (1) AEA4D-05 (3) AEA4D-05 (2)

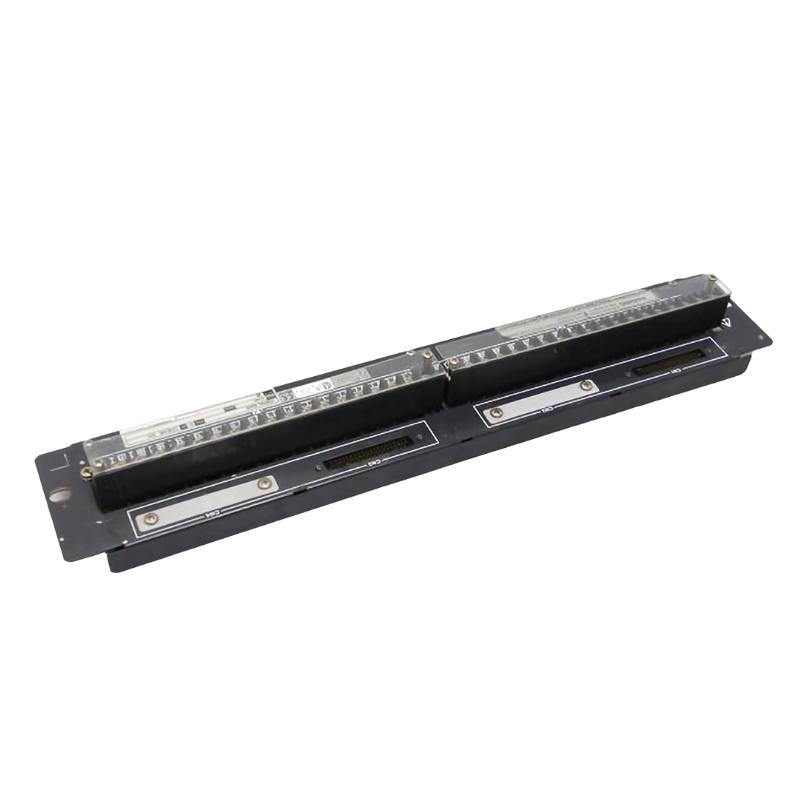

The Yokogawa AEA4D-05 I/O Module is a highly reliable and versatile input/output solution designed for use in industrial automation systems requiring precision control and real-time data processing. This module is specifically engineered to handle both analog and digital signals, making it ideal for a wide variety of industrial applications, including process control, energy management, and manufacturing automation.

With a robust design and the ability to integrate seamlessly with Yokogawa’s control systems, the AEA4D-05 is an excellent choice for industries that demand high-performance data acquisition and monitoring. Whether you are looking to optimize production lines, improve system reliability, or enhance real-time decision-making, the AEA4D-05 offers exceptional flexibility and precision.

Technical Specifications

Model: Yokogawa AEA4D-05
Module Type: I/O Module
Input Types:
- Analog: 4-20 mA, 0-10 V
- Digital: Discrete inputs (sourcing/sink)
Output Types:
- Analog: 4-20 mA, 0-10 V
- Digital: Discrete outputs
I/O Capacity:
- Inputs: 16 analog (4-20 mA, 0-10 V), 8 digital inputs
- Outputs: 16 analog (4-20 mA, 0-10 V), 8 digital outputs
Power Supply: 24 V DC
Communication Protocols:
- Ethernet/IP, Modbus TCP
Dimensions: 7.8 x 6.5 x 3.9 inches (198 x 165 x 100 mm)
Weight: 2.4 kg (5.29 lbs)
Operating Temperature: -10°C to 60°C
Storage Temperature: -20°C to 70°C
Humidity: 5% to 95% RH (non-condensing)
Certifications: UL Listed, CE, RoHS Compliant

Recommended Related Models

Yokogawa AEA4D-06 – Analog Input Module
Yokogawa AEA4D-08 – Digital I/O Module
Yokogawa AEA4D-07 – Signal Conditioning Module
Yokogawa AEA4D-10 – Communication Interface Module
Yokogawa AEA4D-04 – Analog Output Module

These related models offer complementary functions such as signal conditioning, additional I/O capabilities, and communication interfaces, enhancing the overall performance of your control systems.

Popular Yokogawa Models

The Yokogawa AEA4D-05 I/O Module works seamlessly with a variety of Yokogawa systems, including:

Yokogawa Centum VP – Distributed Control System (DCS)
Yokogawa STARDOM – Remote Automation System for decentralized control
Yokogawa ProSafe-RS – Safety Instrumented System (SIS)
Yokogawa FAM – Field Asset Management for condition-based monitoring

These models provide highly integrated solutions for industrial automation, ensuring smooth operation, scalability, and real-time control.

Applications

The Yokogawa AEA4D-05 I/O Module is versatile and ideal for a wide range of applications across various industries:

Process Automation: Perfect for industries such as oil & gas, chemical processing, and pharmaceuticals, where it helps with controlling and monitoring essential process variables like temperature, pressure, and flow.
Energy & Utilities: Enables real-time data acquisition for power plants, renewable energy systems, and utility networks, optimizing energy distribution, generation, and management.
Manufacturing Automation: In manufacturing sectors such as automotive, electronics, and food production, the AEA4D-05 improves operational efficiency, optimizes production lines, and ensures quality control.
Building Automation: Used for integrating and automating systems like HVAC, lighting, and security in smart buildings, improving energy efficiency and operational management.

Advantages

High I/O Density: With 32 I/O points (16 analog and 16 digital), the AEA4D-05 provides efficient data acquisition and control capabilities in a compact form factor, making it ideal for applications that require high-density I/O.
Versatile I/O Configuration: The AEA4D-05 supports both analog (4-20 mA, 0-10 V) and digital signals, allowing for seamless integration with a variety of field devices such as sensors, actuators, and other automation equipment.
Reliable Communication: With support for Ethernet/IP and Modbus TCP protocols, the module ensures reliable, high-speed data communication across industrial networks.
Compact Design: Despite its high I/O capacity, the module is designed to be compact (198 x 165 x 100 mm), making it easy to integrate into space-constrained environments such as control panels or equipment racks.
Wide Temperature Range: The AEA4D-05 can operate in a temperature range from -10°C to 60°C, ensuring reliable performance in various environmental conditions.
Easy Integration: The AEA4D-05 integrates seamlessly with Yokogawa’s other control systems, such as Centum VP and STARDOM, allowing for scalability and flexibility in building industrial automation solutions.

Technical FAQs

How many I/O points does the AEA4D-05 support?
The AEA4D-05 supports a total of 32 I/O points: 16 analog inputs (4-20 mA, 0-10 V), 8 digital inputs, and 16 analog outputs (4-20 mA, 0-10 V), 8 digital outputs.
What communication protocols are supported by the AEA4D-05?
The module supports Ethernet/IP and Modbus TCP, which are standard protocols for industrial automation systems, ensuring reliable data communication.
What power supply is required for the AEA4D-05?
The module operates with a 24 V DC power supply, which is common for most industrial I/O modules.
What is the operating temperature range for the AEA4D-05?
The AEA4D-05 operates within a temperature range of -10°C to 60°C, making it suitable for various industrial environments.
What are the dimensions of the AEA4D-05?
The module measures 7.8 x 6.5 x 3.9 inches (198 x 165 x 100 mm) and weighs 2.4 kg (5.29 lbs), allowing for easy integration into control panels or other industrial enclosures.
Can the AEA4D-05 be used in hazardous environments?
The AEA4D-05 is not specifically designed for hazardous areas. Additional certifications (e.g., ATEX or IECEx) may be required for use in hazardous environments.
Is the AEA4D-05 compatible with other Yokogawa systems?
Yes, the AEA4D-05 integrates seamlessly with systems like Centum VP, STARDOM, and ProSafe-RS, providing a scalable, flexible automation solution for complex industrial processes.
Is the AEA4D-05 easy to install?
Yes, the module is designed for quick installation and easy configuration, helping to minimize downtime and improve system setup efficiency.
What certifications does the AEA4D-05 have?
The module is UL Listed, CE Certified, and RoHS Compliant, ensuring it meets global standards for safety, performance, and environmental impact.
Can I use both analog and digital signals with the AEA4D-05?
Yes, the AEA4D-05 supports both analog (4-20 mA, 0-10 V) and digital signals, making it versatile for a variety of industrial applications.
