Introduction

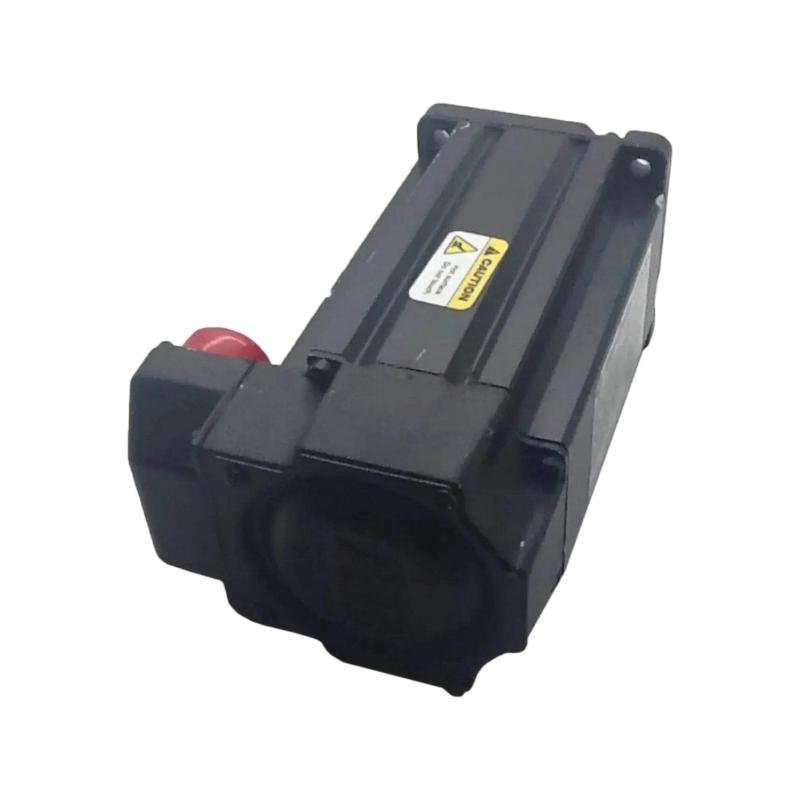

The Allen Bradley MPL-B980B-MJ72AA Servo Motor is an industrial motion-control component designed for applications that demand accurate feedback and responsive rotary movement. Its brushless motor construction and multi-turn absolute encoder make it suitable for appropriately configured automation systems.

With a rated speed of 1000 RPM and a 460 V AC voltage class, this model combines a keyed shaft, a rotatable right-angle connector, and a non-brake configuration. These characteristics are important when integrating the motor into new equipment or selecting a replacement for an existing machine axis.

For industrial maintenance teams, system integrators, and equipment buyers, correct motor selection helps minimize installation complications and commissioning delays. Evaluating the motor alongside its servo drive, cabling, mechanical load, and motion controller is essential to achieving reliable system performance.

Whether used in production machinery or specialized automation equipment, the MPL-B980B-MJ72AA offers a practical option for motion-control applications that match its electrical, mechanical, and feedback requirements.

Technical Specifications

Parameter	Specification
Brand	Allen Bradley
Model	MPL-B980B-MJ72AA
Product Series	MP-Series MPL
Product Type	AC Rotary Servo Motor
Motor Design	Brushless, Low-Inertia
Voltage Class	460 V AC
Rated Speed	1000 RPM
Frame Size	300 mm
Magnet Stack Length	203.2 mm
Feedback Type	Multi-Turn High-Resolution Absolute Encoder
Shaft Type	Keyed Shaft Extension
Connector	SpeedTEC DIN, Right-Angle, 180° Rotatable
Integrated Brake	No
Mounting Type	IEC Metric, Free Mounting Holes
Dimensions	Frame size: 300 mm; overall dimensions require confirmation against the mechanical drawing
Weight	94.50 kg (208.34 lb)

Installation Considerations: The frame size does not necessarily represent the motor's overall length or complete external dimensions. Confirm the mounting footprint, shaft dimensions, connector clearance, and total installation envelope before fitting the motor. The weight shown follows the supplied product information.

Recommended Related Models

The following MP-Series MPL models provide alternative configurations for comparing rated speed, encoder type, and brake requirements. Confirm each model's complete specifications before making a replacement decision.

Model	Key Configuration	Selection Consideration
MPL-B980B-MJ74AA	1000 RPM, multi-turn absolute encoder, with 24 V DC brake	For compatible systems requiring an integrated brake
MPL-B980C-MJ72AA	1500 RPM, multi-turn absolute encoder, no brake	For applications designed around a higher rated speed
MPL-B980D-MJ72AA	2000 RPM, multi-turn absolute encoder, no brake	For motion systems requiring a higher rated speed
MPL-B980E-MJ72AA	2250 RPM, multi-turn absolute encoder, no brake	For applications engineered for this speed configuration

Popular Related Models

These additional catalog numbers offer further comparison options within the MP-Series MPL motor family.

Model	Configuration	Potential Application
MPL-B980B-SJ72AA	1000 RPM, single-turn absolute encoder, no brake	Systems where single-turn feedback is suitable
MPL-B980C-MJ74AA	1500 RPM, multi-turn absolute encoder, with brake	Applications requiring a higher rated speed and an integrated brake
MPL-B980D-MJ74AA	2000 RPM, multi-turn absolute encoder, with brake	Motion systems requiring the corresponding speed and brake configuration
MPL-B960B-MJ72AA	1000 RPM, multi-turn absolute encoder, shorter magnet stack	Applications where the motor's torque and mechanical configuration meet system requirements

Model Selection Reminder: Related models are comparison candidates rather than guaranteed direct replacements. Verify rated torque, electrical compatibility, encoder support, connector arrangement, shaft configuration, brake requirements, and mounting dimensions before ordering.

Applications

The Allen Bradley MPL-B980B-MJ72AA Servo Motor is designed for industrial motion control systems that require precise positioning, controlled acceleration, and consistent operating performance. As part of the Allen Bradley MP-Series MPL family, it is intended for integration into automated machinery where responsive motion and accurate feedback are important.

Typical applications include:

Automated Manufacturing: Supports controlled movement in assembly equipment and production machinery.
Packaging Systems: Enables coordinated motion for feeding, positioning, and product handling.
Material Handling: Provides rotary motion for automated transfer and positioning mechanisms.
Machine Tools: Supports precision axis control when paired with a compatible servo drive.
Industrial Processing Equipment: Helps maintain repeatable motion in automated production processes.
Robotics and Motion Platforms: Can be integrated into suitable systems requiring controlled rotary movement.

Advantages

Responsive Low-Inertia Design

The MPL-Series brushless motor platform is designed for applications requiring responsive acceleration and deceleration. Its low-inertia characteristics can benefit machinery with frequent starts, stops, and position changes.

Absolute Position Feedback

The MPL-B980B-MJ72AA features a multi-turn, high-resolution absolute encoder. When paired with a compatible drive, this feedback system supports accurate position monitoring and closed-loop motion control.

Industrial Voltage Compatibility

Designed for the 460 V AC class, this servo motor is suitable for industrial motion systems configured with compatible power and drive equipment.

Flexible Cable Routing

The right-angle SpeedTEC DIN connector can be rotated through 180 degrees, helping simplify cable routing in machinery with limited installation space.

Reliable Mechanical Coupling

The keyed shaft extension provides a mechanical interface for compatible couplings and driven components, supporting effective torque transmission when properly installed.

Practical Machine Integration

The motor's mounting configuration supports integration into suitable industrial machinery. Because this model does not include an integrated holding brake, brake requirements should be assessed during the system design stage.

Technical FAQs

1. What type of motor is the MPL-B980B-MJ72AA?

It is a brushless AC rotary servo motor belonging to the Allen Bradley MP-Series MPL family. It is designed for closed-loop motion control using a compatible servo drive and feedback system.

2. What voltage class is this motor designed for?

This model belongs to the 460 V AC class. The actual electrical configuration must match the selected servo drive and the motor's applicable technical specifications.

3. What is the rated speed of the MPL-B980B-MJ72AA?

The model is specified at 1000 RPM. Actual operating speed depends on drive configuration, load conditions, and the permitted operating limits of the complete system.

4. What feedback system does this motor use?

It uses a multi-turn, high-resolution absolute encoder. This feedback arrangement allows a compatible drive to obtain motor position information across multiple revolutions.

5. Does this model include a holding brake?

No. The MPL-B980B-MJ72AA is a non-brake version. Applications requiring load retention must use an appropriately engineered external braking or support arrangement.

6. What shaft configuration does it have?

The motor features a keyed shaft extension. The selected coupling or driven component must match the shaft specifications and mechanical requirements of the application.

7. What connector arrangement is used?

It uses a right-angle SpeedTEC DIN connector that can be rotated through 180 degrees. Compatible power and feedback cables should be selected for the exact motor configuration.

8. Can the motor operate directly from a standard motor starter?

No. A standard motor starter does not provide the feedback processing and controlled current required for normal servo operation. A compatible servo drive is required.

9. What should be checked when replacing an existing servo motor?

Verify the complete catalog number, voltage class, rated speed, feedback type, shaft dimensions, mounting arrangement, connector configuration, brake requirements, and drive compatibility. Similar external dimensions alone do not guarantee interchangeability.

10. How can maintenance teams help extend motor service life?

Inspect electrical connections, feedback cables, mounting hardware, shaft couplings, and operating conditions regularly. Investigate abnormal vibration, excessive temperature, unusual noise, or position errors before returning the machine to full production.
