Introduction

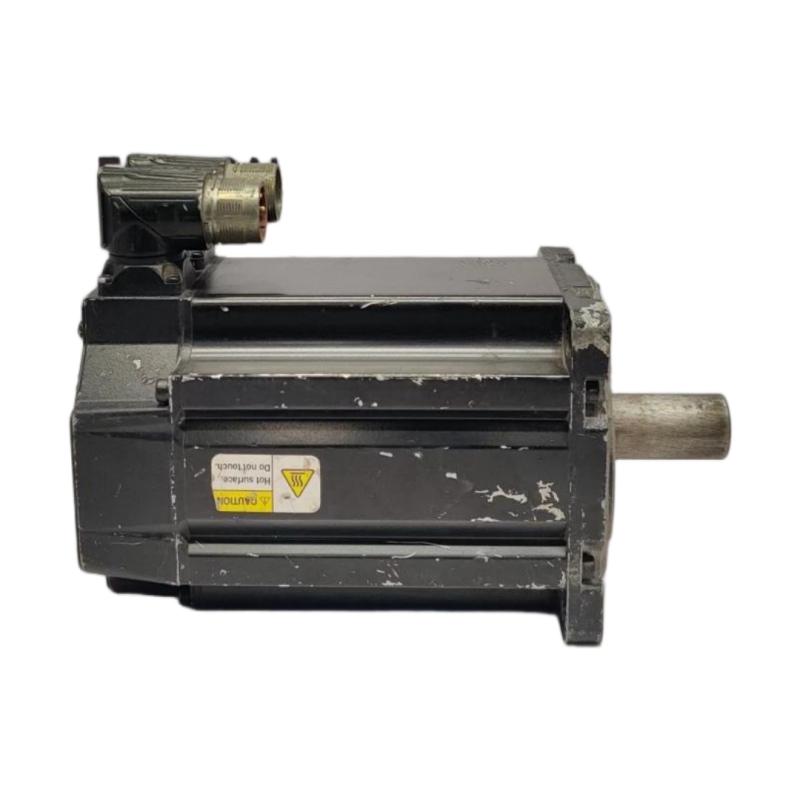

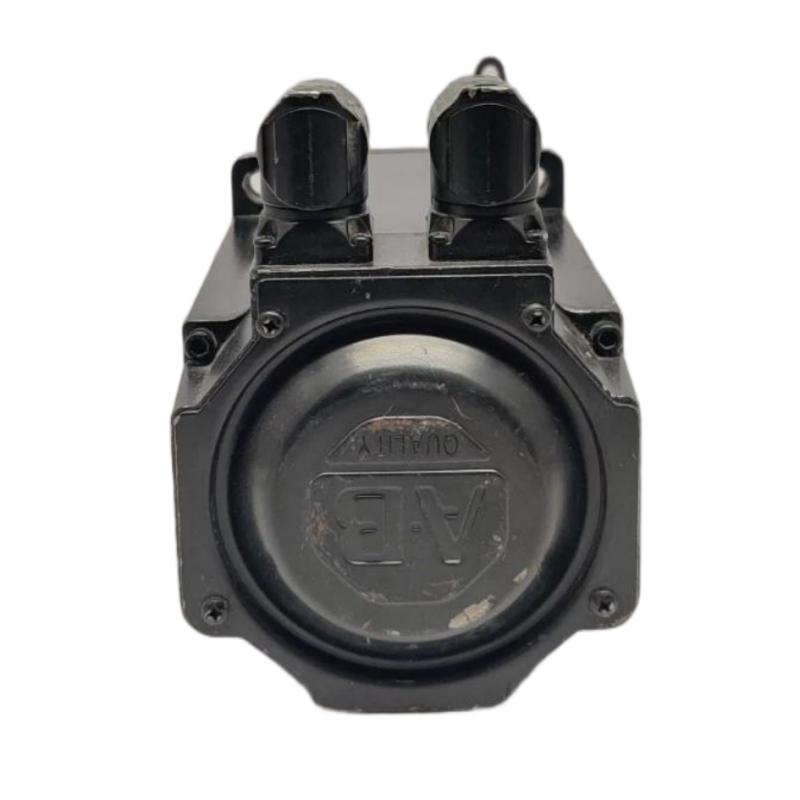

The Allen Bradley MPL-B980C-MJ72AA Servo Motor is an industrial motion-control component intended for machinery that requires responsive movement and dependable absolute position feedback. Its brushless, low-inertia design supports controlled acceleration and deceleration, while its multi-turn encoder provides position information for compatible servo control systems.

Configured for a nominal speed of 1500 RPM and the 460 V AC class, this model features a keyed shaft extension, a rotatable right-angle connector, and no integrated holding brake. These characteristics make it important to evaluate the motor in relation to the complete machine design rather than selecting it on rated speed alone.

For automation engineers, maintenance professionals, and industrial equipment buyers, choosing the appropriate servo motor helps support predictable machine behavior and efficient commissioning. The MPL-B980C-MJ72AA is worth considering when its electrical characteristics, feedback configuration, and mechanical interfaces match the requirements of the intended application.

Before installation, verify compatibility with the servo drive, controller, cabling, mechanical load, and motion profile. Proper system matching helps maximize the value of the motor while reducing avoidable integration issues.

Technical Specifications

Parameter	Specification
Brand	Allen Bradley
Model	MPL-B980C-MJ72AA
Product Series	MP-Series MPL
Product Type	AC Rotary Servo Motor
Motor Design	Brushless, Low-Inertia
Voltage Class	460 V AC
Rated Speed	1500 RPM
Frame Size	300 mm
Magnet Stack Length	203.2 mm
Feedback Type	Multi-Turn High-Resolution Absolute Encoder

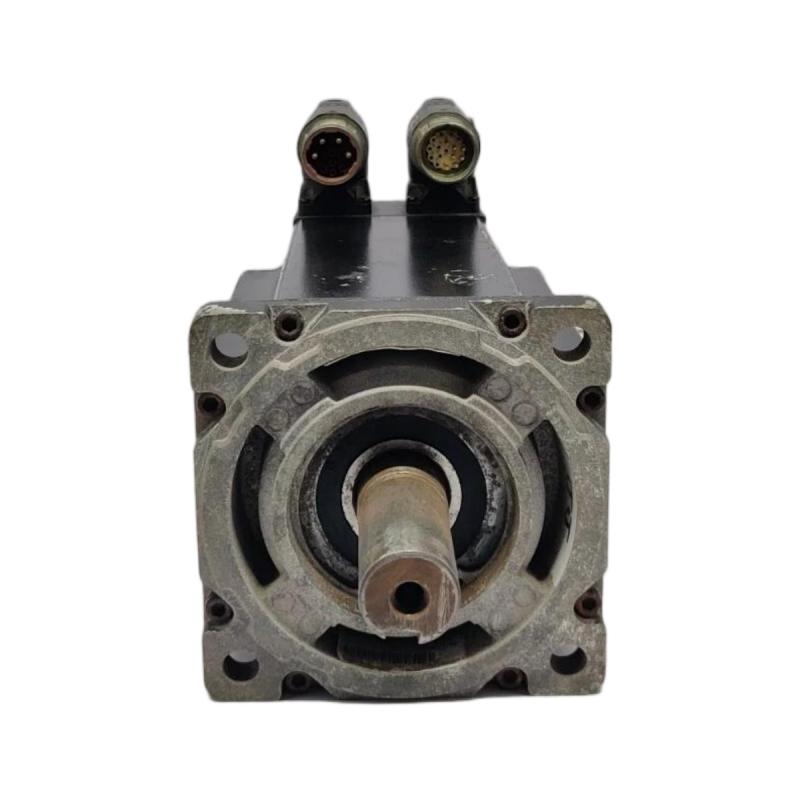

Shaft Configuration	Keyed Shaft Extension

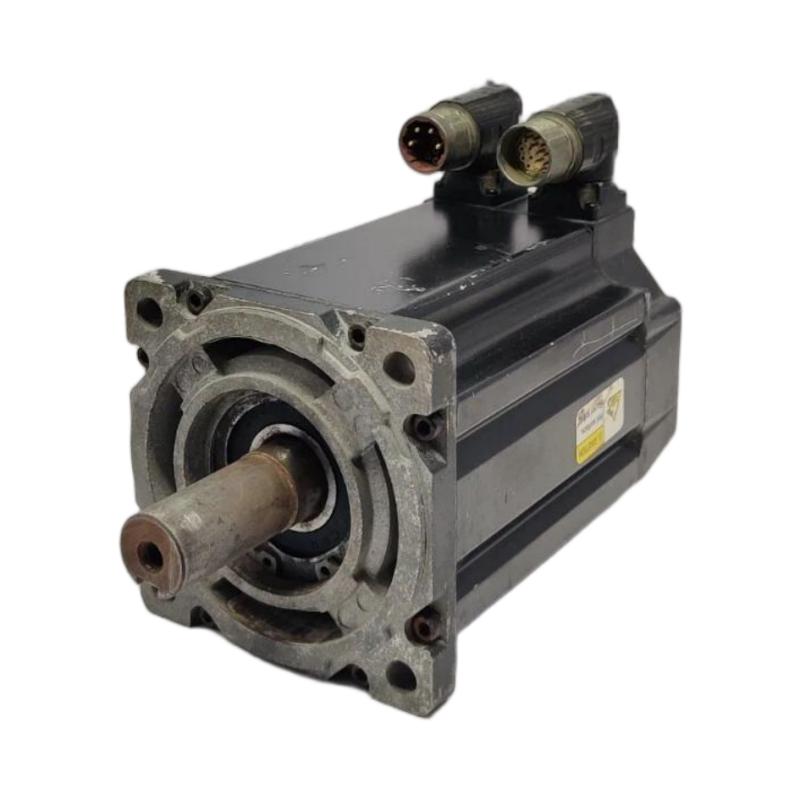

Connector Type	SpeedTEC DIN, Right-Angle, 180° Rotatable
Integrated Brake	No
Mounting	IEC Metric, Free Mounting Holes
Dimensions	Frame size: 300 mm; overall dimensions require confirmation against the applicable mechanical drawing
Weight	94.50 kg (208.34 lb)

Installation Considerations: The supplied frame size should not be treated as the complete external dimensions of the motor. Confirm the overall length, shaft dimensions, mounting-hole positions, and connector clearance using the applicable mechanical drawing. The listed weight is based on the supplied product information.

Recommended Related Models

The following MP-Series MPL catalog numbers provide alternative configurations for evaluating rated speed, feedback requirements, and brake functionality.

Model	Configuration	Selection Consideration
MPL-B980B-MJ72AA	1000 RPM, multi-turn absolute encoder, no brake	For systems designed around a lower rated speed
MPL-B980C-MJ74AA	1500 RPM, multi-turn absolute encoder, with brake	For compatible applications requiring an integrated brake
MPL-B980D-MJ72AA	2000 RPM, multi-turn absolute encoder, no brake	For systems requiring a higher rated speed
MPL-B980C-SJ72AA	1500 RPM, single-turn absolute encoder, no brake	For applications where single-turn feedback is appropriate

Popular Related Models

When evaluating replacement options or planning a motion-control upgrade, these additional catalog numbers provide a starting point for comparing configurations within the same motor family.

Model	Configuration	Potential Application
MPL-B980B-MJ74AA	1000 RPM, multi-turn absolute encoder, with brake	Systems requiring compatible brake functionality
MPL-B980C-MJ74AA	1500 RPM, multi-turn absolute encoder, with brake	Applications requiring the corresponding speed and brake configuration
MPL-B980D-MJ74AA	2000 RPM, multi-turn absolute encoder, with brake	Higher-speed systems designed for an integrated brake
MPL-B960C-MJ72AA	1500 RPM, multi-turn absolute encoder, shorter magnet stack	Applications where the motor's torque and mechanical configuration meet the requirements

Model Selection Reminder: Related models are comparison candidates, not guaranteed direct replacements. Before purchasing, verify rated torque, drive compatibility, feedback support, shaft dimensions, connector configuration, brake requirements, and mounting details against the exact catalog specifications.

Applications

The Allen Bradley MPL-B980C-MJ72AA Servo Motor is designed for industrial automation systems that demand controlled rotary motion, reliable position feedback, and consistent performance across repetitive operating cycles. As part of the Allen Bradley MP-Series MPL family, it is suited to machine designs that require a balance of motion responsiveness and dependable closed-loop control.

Automated Production Lines: Supports coordinated movement in assembly stations and automated manufacturing equipment.
Packaging and Filling Machinery: Helps control rotational movement during indexing, product transfer, and synchronized processing.
Material Handling Equipment: Provides controlled motion for positioning systems and automated transfer mechanisms.
Machine Tools: Supports servo-controlled axes where accurate movement and repeatable operation are essential.
Printing and Converting Systems: Can be integrated into suitable equipment requiring synchronized mechanical movement.
Custom Industrial Machinery: Offers a motion-control option for OEMs designing equipment around compatible servo drives and feedback systems.

Advantages

Responsive Motion Performance

The MP-Series MPL platform uses a low-inertia brushless motor design intended for applications involving frequent acceleration and deceleration. This characteristic can help improve motion responsiveness in machinery with repetitive positioning requirements.

Multi-Turn Absolute Feedback

The MPL-B980C-MJ72AA features a multi-turn, high-resolution absolute encoder. When paired with a compatible servo drive, this feedback configuration supports position monitoring across multiple revolutions and helps maintain coordinated axis control.

Higher-Speed Configuration

The model designation corresponds to a 1500 RPM configuration, providing an alternative to lower-speed variants when the application requires a higher rated speed. Actual operating limits must be verified against the applicable motor specifications.

Flexible Connector Orientation

Its right-angle SpeedTEC DIN connector can be rotated through 180 degrees, helping accommodate different cable-routing requirements in industrial cabinets and compact machinery.

Secure Shaft Coupling

The keyed shaft extension provides a mechanical interface for compatible couplings and driven components. Correct alignment and suitable coupling selection help reduce vibration and unnecessary bearing loads.

Practical Integration for Industrial Systems

The motor is designed for integration into compatible industrial servo systems. Its non-brake configuration should be considered during machine design, particularly where vertical axes or stationary load retention are involved.

Technical FAQs

1. What type of motor is the MPL-B980C-MJ72AA?

It is a brushless AC rotary servo motor in the Allen Bradley MP-Series MPL family. It is intended for closed-loop motion control using a compatible servo drive.

2. What is the rated speed of this model?

The MPL-B980C-MJ72AA corresponds to a 1500 RPM configuration. Actual operating speed depends on drive setup, load conditions, and the applicable motor operating limits.

3. What feedback technology does this motor use?

It uses a multi-turn, high-resolution absolute encoder. This allows a compatible drive to monitor position across multiple revolutions, subject to the feedback system's operating specifications.

4. What voltage class is associated with this servo motor?

This model belongs to the 460 V AC class. Confirm the electrical requirements of the motor and the selected servo drive before installation.

5. Does the MPL-B980C-MJ72AA include a holding brake?

No. This model is specified without an integrated holding brake. If the machine requires load retention, an appropriate external braking or mechanical support solution must be evaluated.

6. What shaft configuration does the motor use?

It features a keyed shaft extension. The selected coupling or driven component must match the shaft dimensions and the application's mechanical and torque requirements.

7. Which connector arrangement is provided?

The motor uses a right-angle SpeedTEC DIN connector with 180-degree rotational adjustment. Verify the required compatible power and feedback cables before commissioning.

8. Can this motor replace a 1000 RPM MPL motor?

Not automatically. Although the motors may share a product family, their rated speeds and potentially their performance characteristics differ. Confirm torque requirements, drive configuration, mechanical compatibility, and control-system parameters before replacement.

9. What factors determine servo drive compatibility?

Important factors include the motor's voltage class, rated and peak current requirements, speed and torque requirements, encoder interface, feedback support, and the drive's approved motor configuration.

10. What maintenance practices support dependable operation?

Inspect cable connections, feedback wiring, mounting hardware, shaft alignment, and operating temperature. Investigate unusual vibration, excessive noise, or position deviations promptly, following the applicable maintenance procedures.
