Introduction

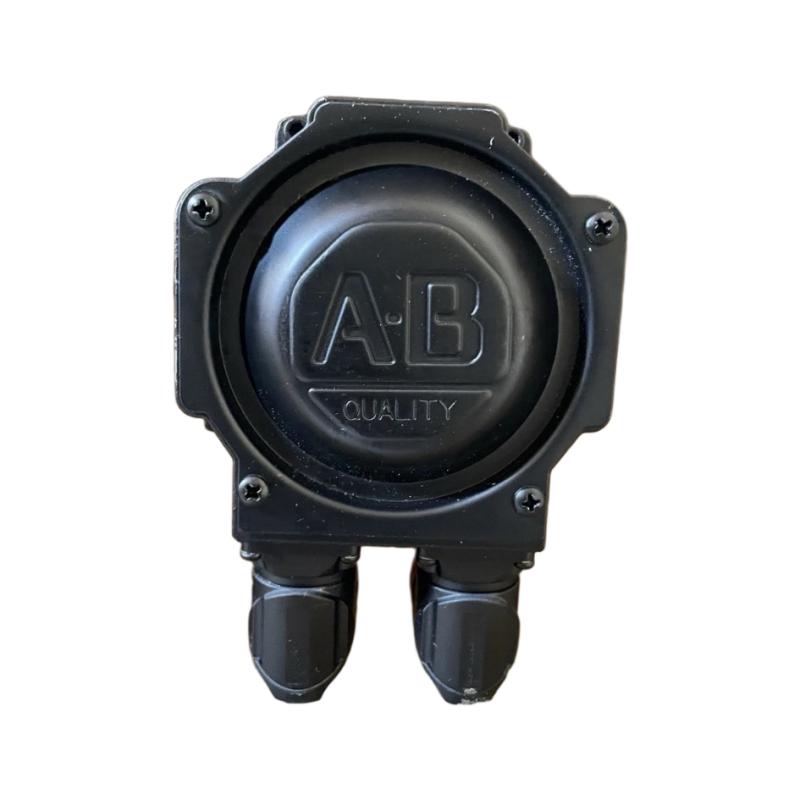

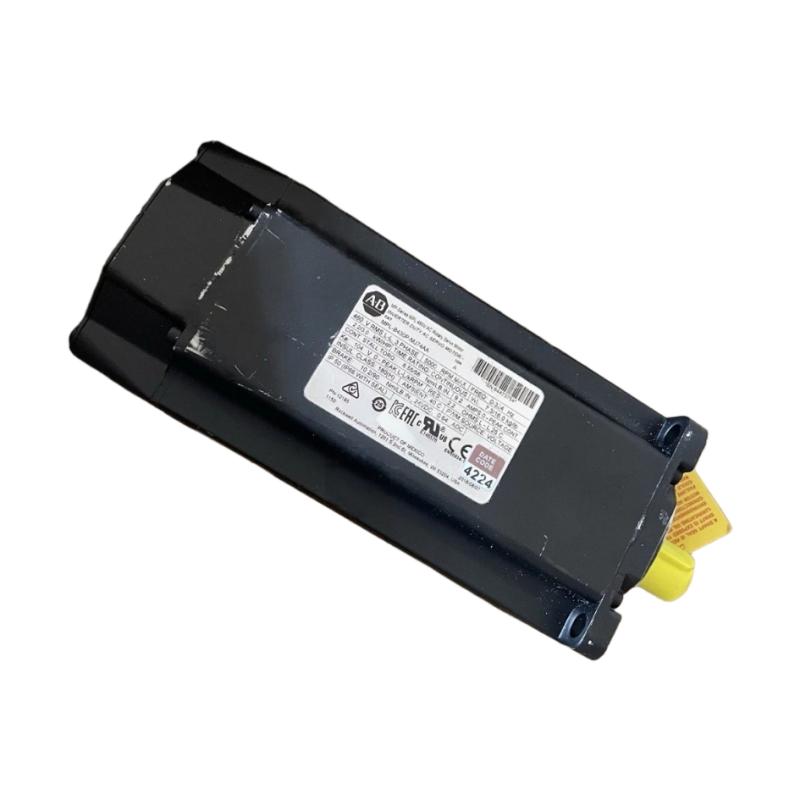

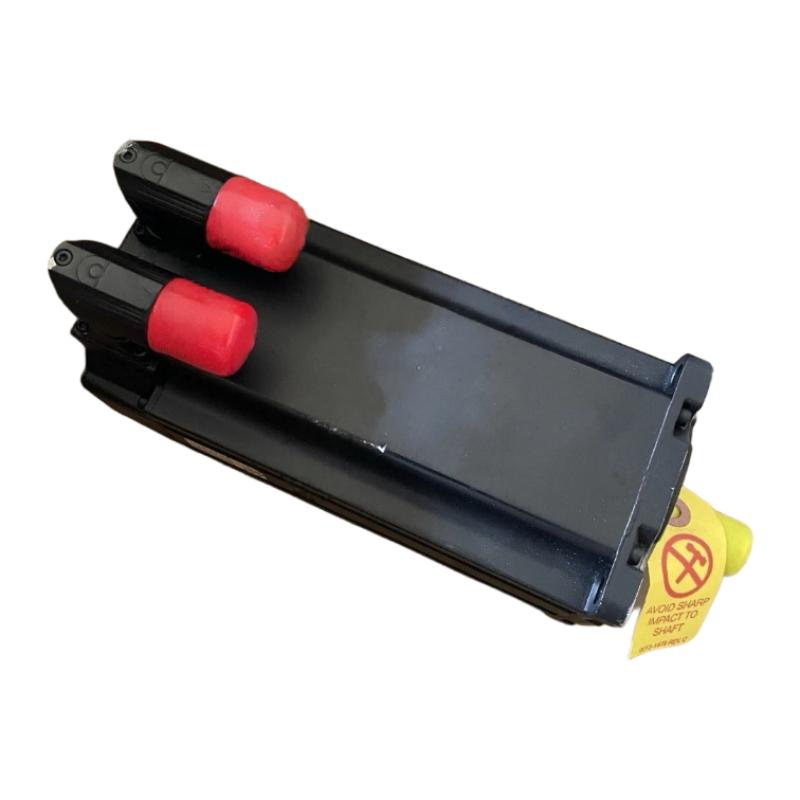

The Allen Bradley MPL-B980C-MJ74AA Servo Motor combines brushless servo technology, multi-turn absolute position feedback, and an integrated holding brake for industrial motion-control applications. Its configuration is intended for systems that require controlled rotary movement and a means of holding the shaft when the motor is stopped.

With a nominal rated speed of 1500 RPM and a 460 V AC voltage class, this model is designed for integration with a compatible servo drive and motion controller. The multi-turn encoder supports position monitoring, while the 24 V DC brake provides an additional mechanical holding function when correctly controlled.

For machine builders, maintenance engineers, and industrial automation buyers, selecting a brake-equipped motor can simplify certain machine designs where shaft holding is required. However, the brake must be evaluated according to its rated capacity and intended duty rather than treated as a substitute for machine safety provisions.

Before purchasing, verify the motor's complete catalog number, drive compatibility, feedback support, brake wiring, mounting interface, and mechanical load requirements. Careful selection helps reduce integration issues and supports dependable operation throughout the machine's service life.

Technical Specifications

Parameter	Specification
Brand	Allen Bradley
Model	MPL-B980C-MJ74AA
Product Series	MP-Series MPL
Product Type	AC Rotary Servo Motor
Motor Design	Brushless, Low-Inertia
Voltage Class	460 V AC
Rated Speed	1500 RPM
Frame Size	300 mm
Magnet Stack Length	203.2 mm
Feedback Type	Multi-Turn High-Resolution Absolute Encoder

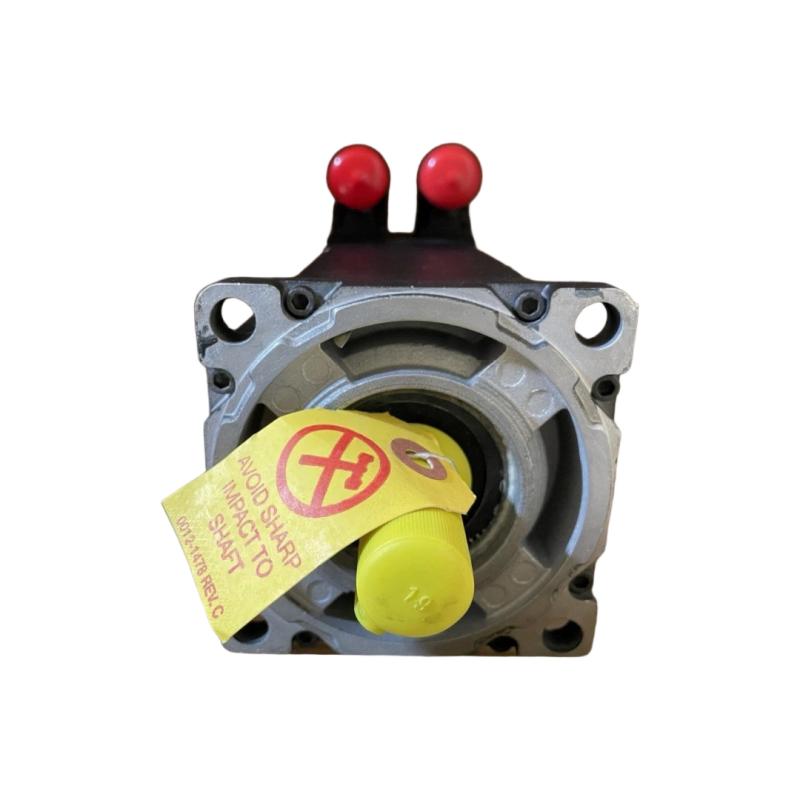

Shaft Configuration	Keyed Shaft Extension
Connector Type	SpeedTEC DIN, Right-Angle, 180° Rotatable
Integrated Brake	Yes
Brake Voltage	24 V DC
Mounting Type	IEC Metric, Free Mounting Holes
Dimensions	Frame size: 300 mm; overall dimensions require confirmation against the applicable mechanical drawing
Weight	94.50 kg (208.34 lb)

Installation Considerations: The stated frame size does not necessarily represent the motor's overall external dimensions. Check the applicable mechanical drawing for total length, mounting-hole positions, shaft dimensions, and connector clearance. Confirm whether the stated weight includes the integrated brake and any additional accessories before planning lifting or installation.

Recommended Related Models

The following models provide comparison options within the Allen Bradley MP-Series MPL family. Verify their complete catalog specifications before selecting a replacement or alternative.

Model	Configuration	Selection Consideration
MPL-B980C-MJ72AA	1500 RPM, multi-turn absolute encoder, no brake	For systems that do not require an integrated holding brake
MPL-B980B-MJ74AA	1000 RPM, multi-turn absolute encoder, with brake	For applications designed around a lower rated speed
MPL-B980D-MJ74AA	2000 RPM, multi-turn absolute encoder, with brake	For compatible applications requiring a higher rated speed
MPL-B980E-MJ74AA	2250 RPM, multi-turn absolute encoder, with brake	For systems engineered for the corresponding higher-speed configuration

Popular Related Models

When evaluating servo motor replacements or planning an automation upgrade, the following catalog numbers provide additional configurations to consider.

Model	Configuration	Potential Application
MPL-B980C-SJ74AA	1500 RPM, single-turn absolute encoder, with brake	Applications where single-turn feedback meets control requirements
MPL-B980B-MJ74AA	1000 RPM, multi-turn absolute encoder, with brake	Systems requiring multi-turn feedback at a lower rated speed
MPL-B980D-MJ74AA	2000 RPM, multi-turn absolute encoder, with brake	Higher-speed motion applications designed for this configuration
MPL-B980C-MJ72AA	1500 RPM, multi-turn absolute encoder, no brake	Systems where a holding brake is not required

Model Selection Reminder: Related catalog numbers should not be considered guaranteed drop-in replacements. Confirm rated torque, drive compatibility, encoder support, brake requirements, mechanical dimensions, connector configuration, and shaft specifications before ordering.

Applications

The Allen Bradley MPL-B980C-MJ74AA Servo Motor is designed for industrial automation systems that demand accurate motion control, reliable feedback, and controlled stopping performance. As part of the MP-Series MPL low-inertia servo motor family, it is suited to machinery requiring repeatable positioning and coordinated movement across production cycles.

Automated Production Lines: Supports controlled movement in assembly machinery and synchronized production equipment.
Packaging and Filling Systems: Helps maintain consistent positioning during product feeding, indexing, and handling.
Material Handling Equipment: Provides rotary motion for transfer mechanisms and automated positioning systems.
Machine Tools: Supports servo-controlled axes where speed regulation and positioning accuracy are important.
Robotic Automation: Can be integrated into suitable motion systems requiring coordinated motor movement.
Industrial Processing Machinery: Provides a motion-control option for equipment designed around compatible servo drives and feedback systems.

Advantages

Responsive Motion Performance

The MPL-Series low-inertia design supports rapid acceleration and deceleration, making it suitable for machinery with frequent motion changes and repetitive positioning cycles.

Multi-Turn Absolute Feedback

The MPL-B980C-MJ74AA uses a multi-turn absolute encoder configuration. When paired with a compatible servo drive, this feedback arrangement provides position information across multiple revolutions, supporting accurate axis control.

Integrated Holding Brake

Unlike non-brake versions, this model incorporates a 24 V DC holding brake. The brake can help maintain the motor shaft position when the motor is not actively producing torque, subject to the brake's rated holding capacity and application requirements.

Industrial Power Compatibility

Designed for the 460 V AC class, the motor can be integrated into appropriately configured industrial servo systems. Selecting a compatible drive is essential for achieving the required speed and torque performance.

Flexible Connector Orientation

The right-angle SpeedTEC DIN connector can be rotated through 180 degrees, offering flexibility when routing cables through compact machinery or crowded control installations.

Secure Shaft Coupling

The keyed shaft extension supports positive mechanical engagement with compatible couplings and driven components. Correct alignment and installation help reduce vibration and mechanical loading.

Technical FAQs

1. What type of servo motor is the MPL-B980C-MJ74AA?

It is a brushless AC rotary servo motor from the Allen Bradley MP-Series MPL family, intended for closed-loop motion control with a compatible servo drive.

2. What is the rated speed of this model?

The model designation corresponds to a 1500 RPM configuration. Actual operating performance depends on the drive settings, mechanical load, and applicable motor operating limits.

3. What feedback system does this motor use?

It uses a multi-turn, high-resolution absolute encoder. This feedback configuration allows a compatible drive to monitor position across multiple shaft revolutions.

4. What is the purpose of the integrated holding brake?

The brake helps hold the motor shaft when the motor is stopped and the brake is engaged. It is not intended to replace a properly engineered safety system or a mechanical device required to support a suspended load.

5. What voltage is required for the brake?

The integrated brake is specified for 24 V DC. The brake supply and control circuit must meet the motor's applicable electrical requirements.

6. Which servo drive should be used with this motor?

The drive must support the motor's voltage class, current and torque requirements, speed rating, and multi-turn encoder interface. Confirm compatibility with the exact drive catalog number before installation.

7. What shaft configuration does this motor have?

It uses a keyed shaft extension. Couplings, pulleys, and other driven components must match the shaft geometry and mechanical load requirements.

8. What connector arrangement is provided?

The motor uses a right-angle SpeedTEC DIN connector with 180-degree rotational adjustment. Compatible motor power and feedback cables must be selected for the exact configuration.

9. Can this motor replace an otherwise similar model without a brake?

Not without checking the machine design. The integrated brake changes the motor's wiring and control requirements, and the replacement must also match the drive, feedback system, shaft, mounting, and performance specifications.

10. What should be checked during troubleshooting?

Inspect motor power connections, feedback wiring, brake supply and control signals, mechanical coupling, and drive fault information. Unexpected movement, positioning errors, or failure of the brake to engage should be investigated before returning the equipment to service.
