Introduction

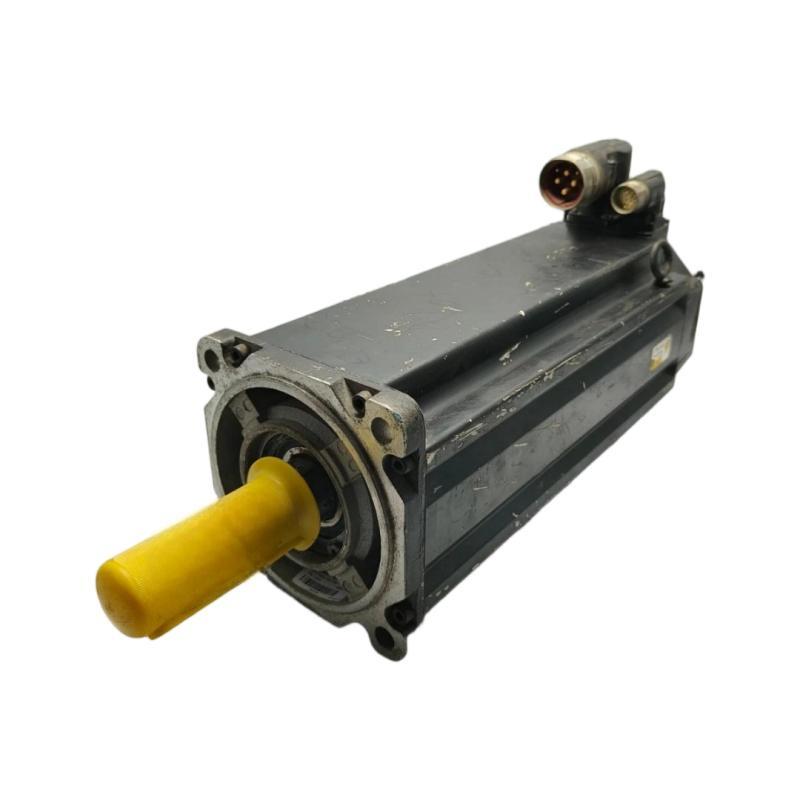

The Allen Bradley MPL-B980D-MJ72AA Servo Motor is an industrial motion-control component intended for machinery requiring accurate feedback and responsive rotary movement at a nominal rated speed of 2000 RPM. Its brushless, low-inertia design supports dynamic motion applications where controlled acceleration, deceleration, and repeatable positioning are important.

The motor combines multi-turn absolute feedback with a keyed shaft extension and a rotatable right-angle connector. Designed for the 460 V AC class, it is intended to operate as part of a compatible servo system rather than as a standalone motor.

For OEMs, maintenance engineers, and industrial automation buyers, selecting the correct motor configuration helps reduce integration risks and avoid unnecessary commissioning work. The MPL-B980D-MJ72AA is worth evaluating when an application requires its particular speed rating, feedback type, and mechanical arrangement.

Before placing an order, confirm the motor's full catalog number against the existing drive, feedback interface, power cables, shaft coupling, and mounting requirements. A properly matched servo motor can help maintain dependable machine operation and support consistent production performance.

Technical Specifications

Parameter	Specification
Brand	Allen Bradley
Model	MPL-B980D-MJ72AA
Product Series	MP-Series MPL
Product Type	AC Rotary Servo Motor
Motor Design	Brushless, Low-Inertia
Voltage Class	460 V AC
Rated Speed	2000 RPM
Frame Size	300 mm
Magnet Stack Length	203.2 mm
Feedback Type	Multi-Turn High-Resolution Absolute Encoder
Shaft Configuration	Keyed Shaft Extension
Connector Type	SpeedTEC DIN, Right-Angle, 180° Rotatable
Integrated Brake	No
Mounting	IEC Metric, Free Mounting Holes
Dimensions	Frame size: 300 mm; overall dimensions require confirmation against the applicable mechanical drawing
Weight	94.50 kg (208.34 lb)

Installation Considerations: The frame size should not be treated as the motor's complete external dimensions. Verify overall length, shaft dimensions, mounting-hole locations, and connector clearance against the applicable mechanical drawing before installation. The weight is based on the supplied product data.

Recommended Related Models

The following catalog numbers offer comparison options within the Allen Bradley MP-Series MPL motor family. Verify the complete technical specifications before selecting a replacement.

Model	Configuration	Selection Consideration
MPL-B980B-MJ72AA	1000 RPM, multi-turn absolute encoder, no brake	For applications requiring a lower rated speed
MPL-B980C-MJ72AA	1500 RPM, multi-turn absolute encoder, no brake	For systems designed around a mid-range speed configuration
MPL-B980D-MJ74AA	2000 RPM, multi-turn absolute encoder, with brake	For compatible applications requiring an integrated brake
MPL-B980E-MJ72AA	2250 RPM, multi-turn absolute encoder, no brake	For systems engineered for the corresponding higher-speed configuration

Popular Related Models

These additional MP-Series MPL models can help buyers compare speed ratings, feedback configurations, and braking options when planning system maintenance or upgrades.

Model	Configuration	Potential Application
MPL-B980D-SJ72AA	2000 RPM, single-turn absolute encoder, no brake	Systems where single-turn feedback meets control requirements
MPL-B980C-MJ74AA	1500 RPM, multi-turn absolute encoder, with brake	Applications requiring multi-turn feedback and a brake
MPL-B980B-MJ74AA	1000 RPM, multi-turn absolute encoder, with brake	Motion systems designed for a lower rated speed with brake functionality
MPL-B960D-MJ72AA	2000 RPM, multi-turn absolute encoder, no brake	An alternative motor configuration to evaluate against torque and mechanical requirements

Model Selection Reminder: Related models are comparison candidates, not guaranteed drop-in replacements. Confirm rated torque, drive compatibility, feedback support, electrical requirements, shaft dimensions, mounting arrangement, and braking needs before ordering.

Applications

The Allen Bradley MPL-B980D-MJ72AA Servo Motor is designed for industrial automation systems that demand controlled rotary motion, responsive speed changes, and reliable position feedback. As part of the MP-Series MPL low-inertia motor family, it is suitable for machinery where consistent motion performance and precise coordination contribute directly to production quality.

High-Speed Packaging Equipment: Supports controlled movement in packaging lines that require repeatable indexing and synchronized operation.
Automated Assembly Systems: Provides rotary motion for positioning mechanisms and coordinated production tasks.
Material Handling Machinery: Drives suitable transfer and positioning mechanisms in automated manufacturing environments.
Printing and Converting Equipment: Supports controlled motion in applications where speed consistency and coordinated movement are important.
Industrial Processing Machines: Integrates into motion-control systems requiring repeatable operation across production cycles.
Special-Purpose Automation: Offers a servo motor option for OEM equipment designed around its rated speed, feedback interface, and mechanical configuration.

Advantages

Responsive Low-Inertia Performance

The MP-Series MPL motor platform is designed to support dynamic motion control. Its low-inertia characteristics can help improve acceleration and deceleration response when the motor is correctly matched to the load and servo drive.

Multi-Turn Absolute Feedback

The MPL-B980D-MJ72AA uses a multi-turn, high-resolution absolute encoder. This provides position information across multiple revolutions, helping a compatible drive manage position feedback without relying exclusively on incremental position tracking.

Higher-Speed Motion Capability

This model is associated with a 2000 RPM rated-speed configuration. It can be considered for applications requiring a higher nominal speed than lower-speed alternatives, subject to torque, load, and drive limitations.

Flexible Connector Positioning

The right-angle SpeedTEC DIN connector can be rotated through 180 degrees. This helps accommodate different cable-routing requirements and can simplify installation in restricted machine spaces.

Secure Shaft Coupling

The keyed shaft extension provides a positive mechanical interface for compatible couplings and driven components. Correct alignment and suitable coupling selection are essential to minimize vibration and mechanical wear.

Industrial Integration Flexibility

The motor's mounting configuration supports integration into compatible industrial machinery. Its non-brake design also allows engineers to assess braking requirements separately according to the machine's load-holding and safety needs.

Technical FAQs

1. What type of motor is the MPL-B980D-MJ72AA?

It is a brushless AC rotary servo motor in the Allen Bradley MP-Series MPL family. It is designed for closed-loop motion control when used with a compatible servo drive and feedback interface.

2. What is the rated speed of this model?

The model corresponds to a 2000 RPM speed configuration. Actual operation depends on the drive setup, applied load, torque demand, and permitted operating limits.

3. What feedback system does the MPL-B980D-MJ72AA use?

It uses a multi-turn, high-resolution absolute encoder. The feedback system provides position information across multiple revolutions for supported servo-control applications.

4. What voltage class is associated with this servo motor?

This model is associated with the 460 V AC class. The selected servo drive and power arrangement must match the motor's electrical requirements.

5. Does this model include an integrated holding brake?

No. The MPL-B980D-MJ72AA is a non-brake configuration. If a machine requires load retention when the motor is stationary, an appropriate external braking or load-support solution must be evaluated.

6. What shaft configuration does this motor use?

It features a keyed shaft extension. The coupling or driven component must match the shaft geometry and satisfy the application's torque and alignment requirements.

7. How does the connector arrangement benefit installation?

The right-angle SpeedTEC DIN connector supports 180-degree rotational adjustment, giving installers additional flexibility when routing cables around machine structures and enclosures.

8. Can the motor be operated with a general-purpose variable-frequency drive?

A general-purpose variable-frequency drive should not be assumed compatible. This servo motor requires a suitable drive capable of supporting its electrical characteristics and absolute feedback interface.

9. What should engineers evaluate before replacing an existing motor with this model?

Check rated torque, speed requirements, voltage class, feedback compatibility, shaft dimensions, mounting arrangement, connector configuration, brake requirements, and drive support. A similar frame or product family does not guarantee direct interchangeability.

10. Which maintenance practices are recommended for reliable operation?

Inspect cable connections, feedback wiring, shaft couplings, mounting hardware, and operating conditions regularly. Investigate unexpected vibration, unusual noise, overheating, or position-control faults and follow the applicable maintenance procedures.
