Introduction

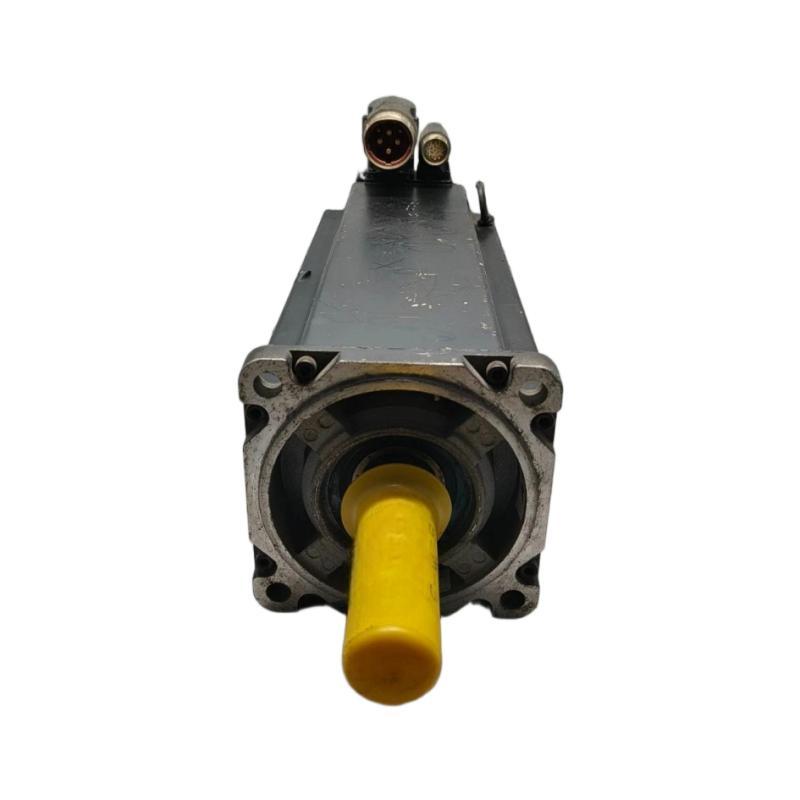

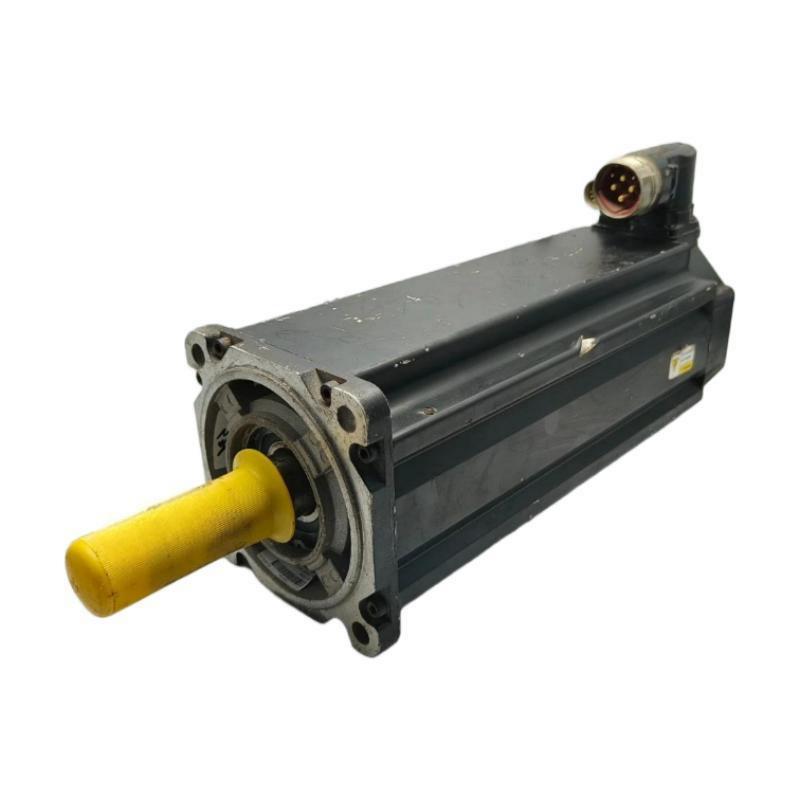

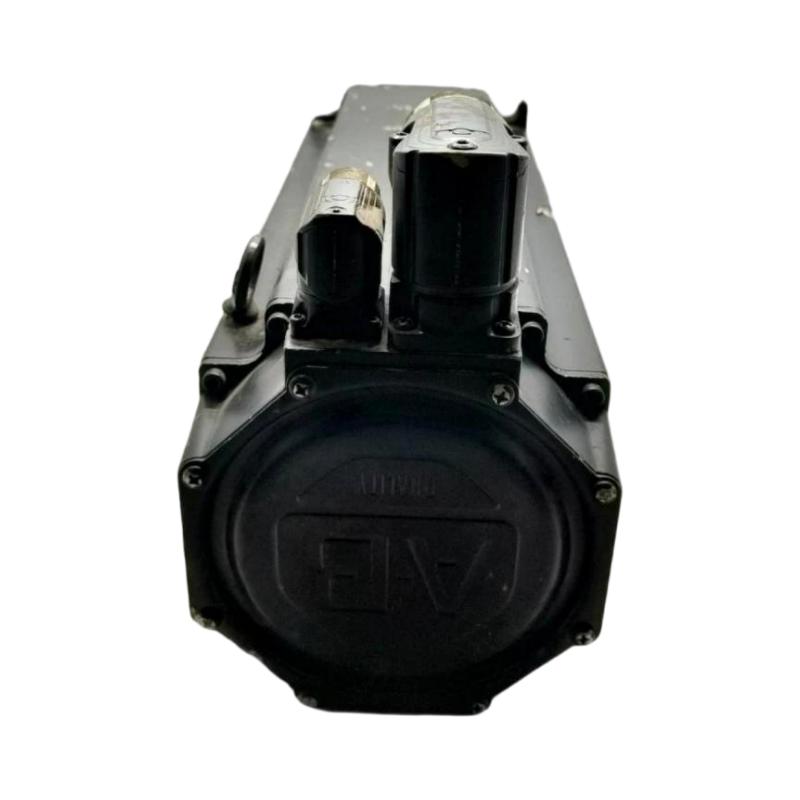

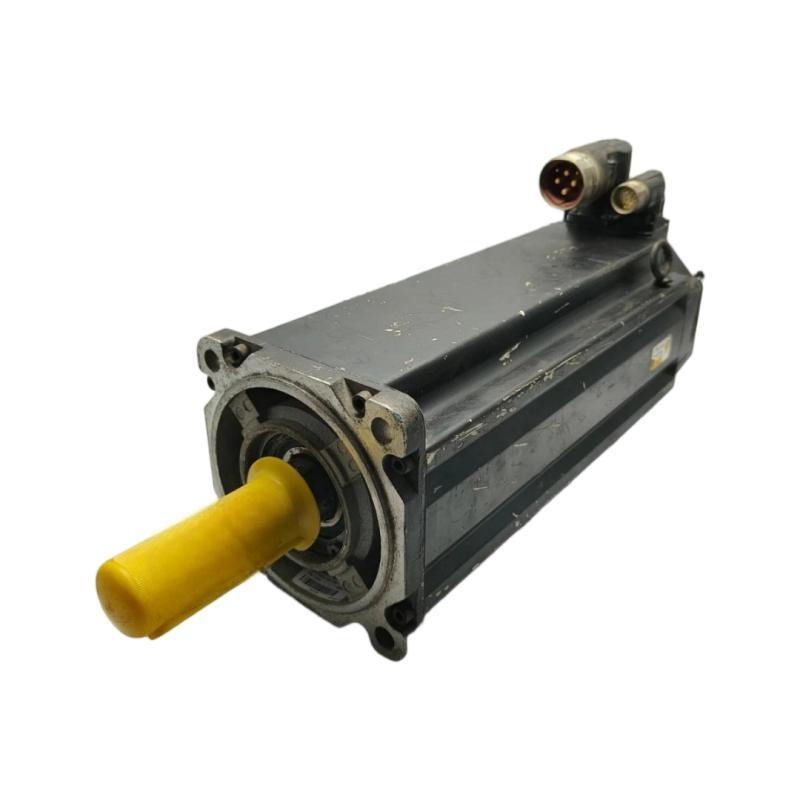

The Allen Bradley MPL-B980D-MJ74AA Servo Motor is an industrial motion-control component designed for machinery requiring responsive operation, multi-turn absolute position feedback, and a higher rated speed. As part of the MP-Series MPL family, it is intended for integration into servo systems where the motor, drive, feedback interface, and mechanical load are properly matched.

The 2000 RPM configuration makes this model suitable for evaluation in applications requiring faster rotary movement, while the multi-turn absolute encoder supports position monitoring across multiple revolutions. Its integrated 24 V DC holding brake adds an important option for applications where a stationary axis must be held under specified conditions.

For OEMs, maintenance engineers, and industrial automation specialists, selecting the correct servo motor can help reduce integration issues and improve maintenance planning. Before purchasing, verify the full catalog number, torque requirements, drive compatibility, encoder support, brake-control arrangement, and mechanical mounting details.

When these requirements align with the application, the MPL-B980D-MJ74AA provides a practical option for upgrading or maintaining compatible industrial motion-control equipment.

Technical Specifications

Parameter	Specification
Brand	Allen Bradley
Model	MPL-B980D-MJ74AA
Product Series	MP-Series MPL
Product Type	AC Rotary Servo Motor
Motor Design	Brushless, Low-Inertia
Voltage Class	460 V AC
Rated Speed	2000 RPM
Frame Size	300 mm
Magnet Stack Length	203.2 mm
Feedback Type	Multi-Turn Absolute Encoder
Shaft Configuration	Keyed Shaft Extension
Connector	SpeedTEC DIN, Right-Angle, 180° Rotatable
Integrated Brake	Yes
Brake Voltage	24 V DC
Mounting Type	IEC Metric, Free Mounting Holes
Dimensions	Frame size: 300 mm; overall dimensions require confirmation against the applicable mechanical drawing
Weight	94.50 kg (208.34 lb)

Installation Considerations: Frame size should not be treated as the complete external dimensions of the motor. Confirm the mounting footprint, shaft geometry, overall length, connector clearance, and brake wiring requirements against the applicable technical documentation before installation. The weight is based on the supplied product data.

Recommended Related Models

The following catalog numbers represent alternative configurations within the MP-Series MPL family. Review the full specifications before choosing a replacement or alternative.

Model	Configuration	Selection Consideration
MPL-B980D-MJ72AA	2000 RPM, multi-turn absolute encoder, no brake	For applications that do not require an integrated holding brake
MPL-B980C-MJ74AA	1500 RPM, multi-turn absolute encoder, with brake	For systems requiring a lower rated speed
MPL-B980E-MJ74AA	2250 RPM, multi-turn absolute encoder, with brake	For applications engineered for the corresponding higher-speed configuration
MPL-B980B-MJ74AA	1000 RPM, multi-turn absolute encoder, with brake	For compatible applications with a lower rated speed

Popular Related Models

These additional MP-Series MPL motors provide useful comparison points when evaluating speed, encoder configuration, and braking requirements.

Model	Configuration	Potential Application
MPL-B980D-SJ74AA	2000 RPM, single-turn absolute encoder, with brake	Applications where single-turn feedback is suitable
MPL-B980C-MJ72AA	1500 RPM, multi-turn absolute encoder, no brake	Motion systems that do not require an integrated brake
MPL-B980B-MJ74AA	1000 RPM, multi-turn absolute encoder, with brake	Lower-speed applications requiring brake functionality
MPL-B980E-MJ72AA	2250 RPM, multi-turn absolute encoder, no brake	Applications designed for a higher rated speed without an integrated brake

Model Selection Reminder: Related models are comparison candidates, not guaranteed direct replacements. Verify the rated torque, electrical characteristics, encoder interface, drive compatibility, brake requirements, shaft configuration, and mounting dimensions before ordering.

Applications

The Allen Bradley MPL-B980D-MJ74AA Servo Motor is designed for industrial automation systems that demand controlled rotary motion, reliable feedback, and consistent performance under changing load conditions. Its MP-Series MPL platform combines brushless motor technology with absolute position feedback, making it suitable for motion-intensive machinery engineered around compatible servo drives.

Automated Production Lines: Supports coordinated movement across machine axes where repeatable positioning is essential.
Packaging and Processing Machinery: Helps maintain controlled acceleration and rotational movement during repetitive production cycles.
Material Handling Equipment: Provides servo-controlled motion for positioning, transferring, and handling mechanisms.
Industrial Machine Tools: Supports accurate axis control in systems requiring synchronized motion.
Robotic Automation: Can be integrated into compatible rotary axes and automated positioning equipment.
Special-Purpose Machinery: Offers a configurable motion-control solution for applications with demanding speed and positioning requirements.

Advantages

High-Speed Motion Capability

The MPL-B980D-MJ74AA belongs to the 2000 RPM configuration of the MPL motor family. This makes it worth evaluating for applications that require a higher rated speed than lower-speed variants, provided the machine's torque and load requirements are satisfied.

Multi-Turn Absolute Feedback

Its multi-turn absolute encoder provides position information across multiple revolutions. When supported by the selected servo drive and control architecture, this feedback capability helps simplify position management in automated equipment.

Integrated Holding Brake

The MJ74AA configuration identifies a motor variant equipped with a 24 V DC holding brake. This can be useful in applications requiring a means of holding a stationary axis, subject to correct brake control and mechanical design.

Responsive Brushless Design

The MP-Series MPL platform uses a low-inertia brushless motor design intended for responsive motion control. This supports applications involving repeated acceleration, deceleration, and controlled positioning.

Flexible Connector Orientation

The right-angle SpeedTEC DIN connector can be rotated through 180 degrees, providing installation flexibility when cable routing space is limited.

Reliable Mechanical Integration

The keyed shaft and industrial mounting arrangement support integration into compatible machine assemblies. Correct alignment, coupling selection, and mounting practices remain important for reducing vibration and unnecessary mechanical stress.

Technical FAQs

1. What type of servo motor is the MPL-B980D-MJ74AA?

It is a brushless AC rotary servo motor from the Allen Bradley MP-Series MPL family. It is designed to operate as part of a compatible closed-loop motion-control system.

2. What is the rated speed of this model?

The model corresponds to a 2000 RPM configuration. Actual operation depends on the selected drive, load, control settings, and the motor's specified operating limits.

3. What feedback system does the motor use?

It uses a multi-turn absolute encoder. This provides position information across multiple revolutions when used with a compatible servo drive and feedback interface.

4. Does the MPL-B980D-MJ74AA have a holding brake?

Yes. The MJ74AA suffix identifies a brake-equipped configuration with a 24 V DC holding brake. The brake must be controlled according to the applicable electrical and mechanical requirements.

5. Is the holding brake intended to control motor speed?

No. A holding brake is intended primarily to hold a stationary load. It should not be used as a routine dynamic stopping device unless the manufacturer explicitly permits that application.

6. Which voltage class is associated with this motor?

This motor family configuration is associated with the 460 V AC class. Confirm the exact electrical ratings and compatible drive requirements before installation.

7. What shaft configuration does this model use?

It uses a keyed shaft extension. Couplings and driven components must match the shaft dimensions and be suitable for the torque, speed, and mechanical loads involved.

8. Can this motor replace a 1000 RPM MPL motor?

Not automatically. The higher rated speed, torque characteristics, brake configuration, and feedback requirements must be assessed against the machine design and drive configuration.

9. What should be checked when connecting the brake?

Verify the brake's specified voltage and current, compatible drive or external brake-control circuitry, wiring requirements, and permitted engagement sequence. The brake must not be energized or released outside its specified operating conditions.

10. What can cause servo positioning errors during operation?

Possible causes include incorrect drive tuning, feedback wiring problems, mechanical backlash, coupling misalignment, excessive load, or incorrect motion parameters. A systematic check of the feedback system, mechanical assembly, and drive diagnostics can help isolate the problem.
