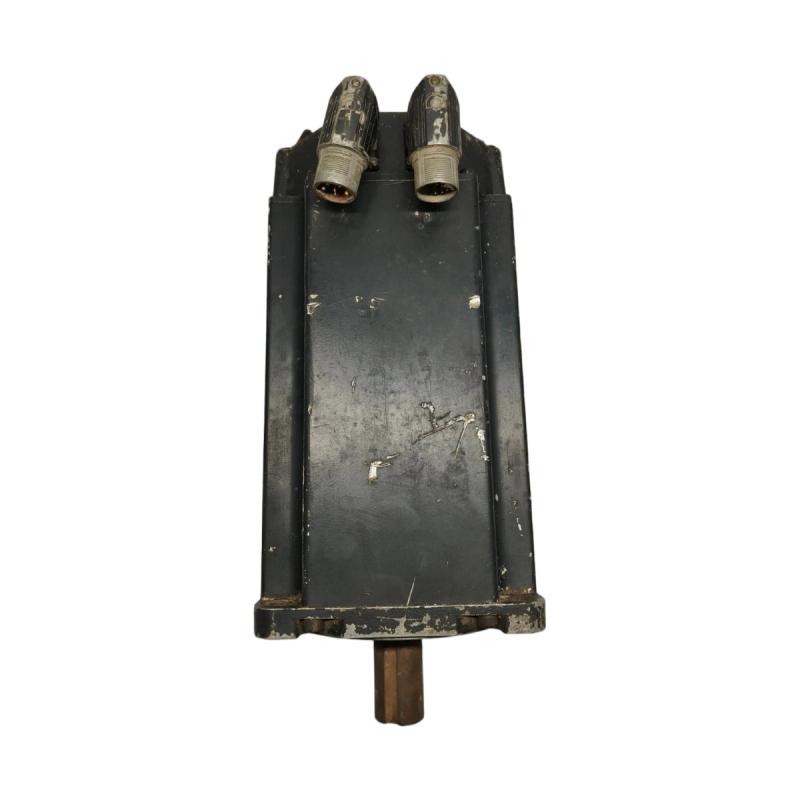

Allen Bradley MPL-B980E-MJ74AA Servo Motor

Applications

The Allen Bradley MPL-B980E-MJ74AA Servo Motor is intended for industrial automation systems that require controlled rotary motion, repeatable positioning, and coordinated machine operation. As part of the MP-Series MPL motor family, it combines brushless servo technology with absolute position feedback for integration into compatible motion-control systems.

• High-Speed Packaging Lines: Supports controlled movement in packaging equipment where acceleration, synchronization, and repeatability are important.

• Automated Production Equipment: Provides rotary motion for machinery requiring coordinated axis control.

• Material Handling Systems: Can drive positioning mechanisms and automated transfer equipment when its torque and speed characteristics meet application needs.

• Industrial Processing Machinery: Supports repeatable movement in production systems operating under defined motion profiles.

• Machine Building and OEM Projects: Offers a servo motor option for equipment designed around compatible Allen Bradley motion-control hardware.

• Automated Assembly Systems: Helps maintain controlled axis movement during repetitive manufacturing operations.

Advantages

High-Speed Motion Capability

The MPL-B980E-MJ74AA belongs to the 2250 RPM configuration of the MPL-B980E motor family. This speed rating can be useful in applications designed for faster rotary movement, provided the load, drive, and operating profile remain within their permitted limits.

Multi-Turn Absolute Feedback

The multi-turn absolute encoder provides position information across multiple revolutions. With a compatible servo drive, this feedback supports position monitoring and coordinated motion without relying exclusively on incremental position tracking.

Integrated Brake Functionality

The MJ74AA configuration is associated with a 24 V DC holding brake. This can help retain a stationary load when the brake is correctly controlled and the application is designed for its rated holding capability. The brake is not a substitute for a safety-rated braking system unless the complete design meets the applicable safety requirements.

Industrial Servo Architecture

The brushless motor design supports closed-loop speed and position control. When properly matched with a compatible drive, it can help maintain consistent machine performance across repetitive production cycles.

Flexible Connector Positioning

The right-angle SpeedTEC DIN connector arrangement supports cable routing flexibility. Correct connector orientation and cable clearance should be considered when planning installation inside machine enclosures.

Designed for System Integration

The MPL-Series platform provides a practical option for OEMs and maintenance teams working with compatible industrial motion systems. Matching the motor to the drive, feedback interface, mechanical load, and control strategy is essential to obtaining the intended performance.
