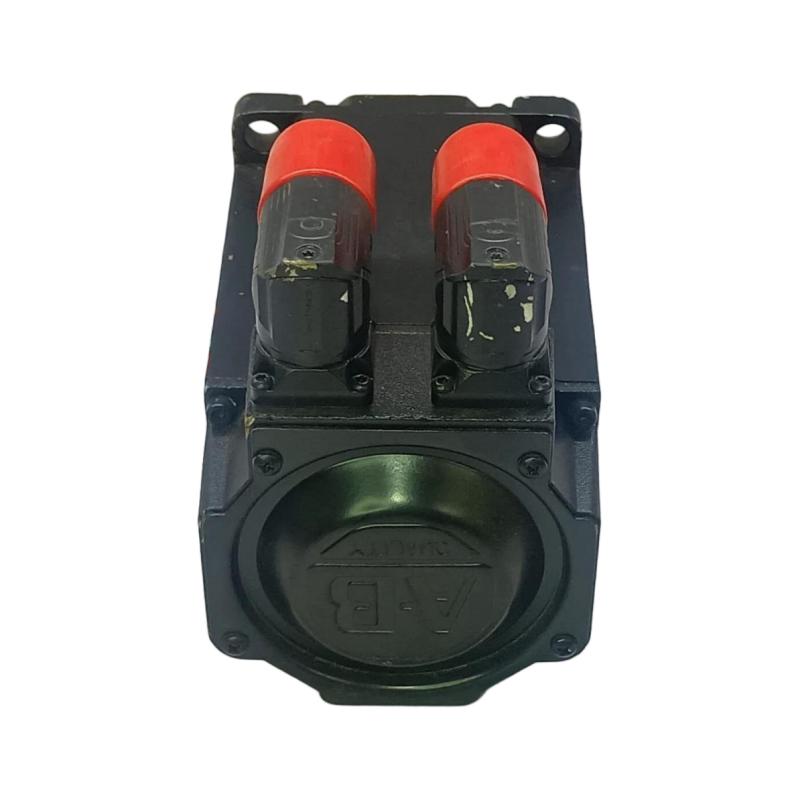

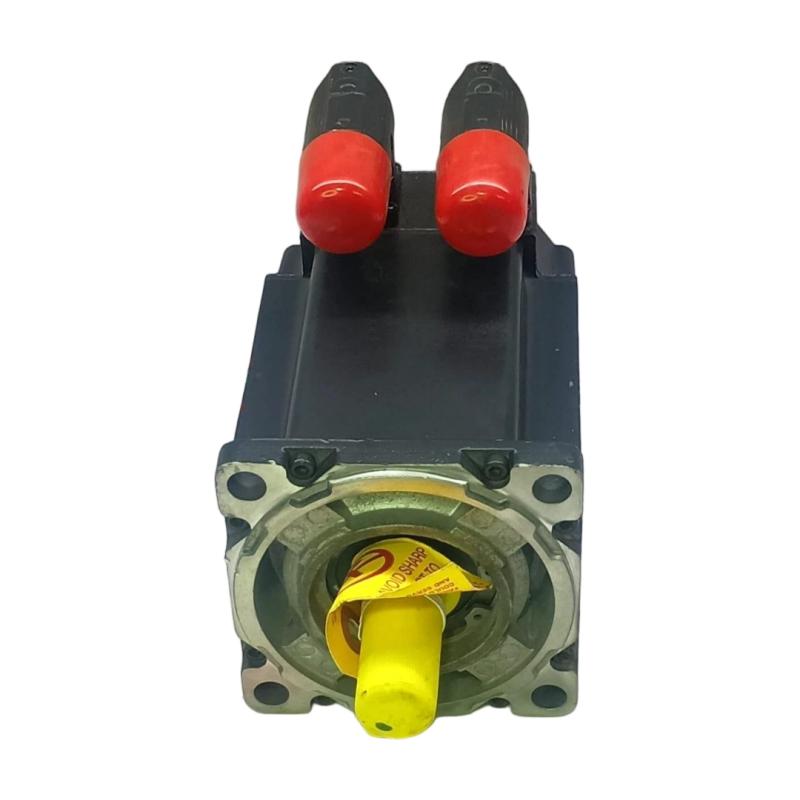

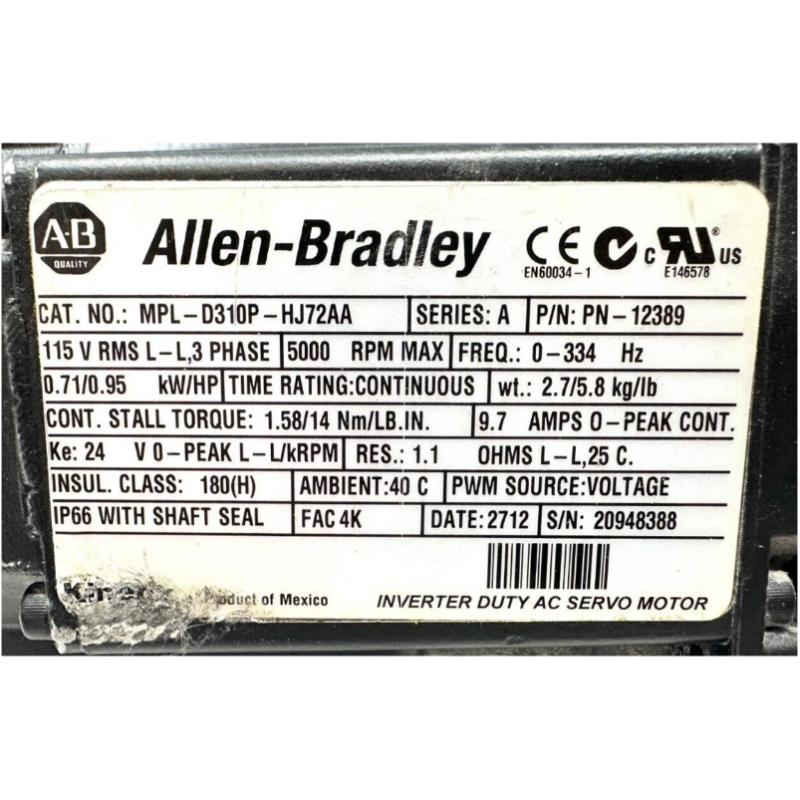

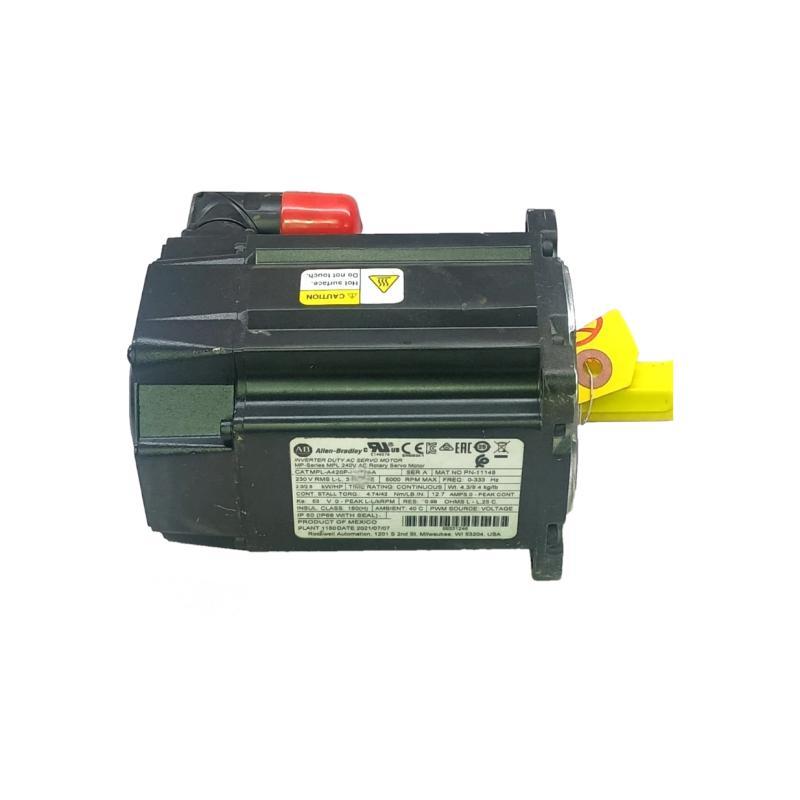

Allen Bradley MPL-D310P-HJ72AA Servo Motor

Applications

The Allen Bradley MPL-D310P-HJ72AA Servo Motor is designed for industrial automation systems that demand precise rotary motion, fast response, and dependable feedback. As part of the MP-Series MPL servo motor family, it is intended for integration with compatible Allen Bradley motion-control equipment in applications where positioning accuracy and repeatable performance are essential.

• Automated Assembly Equipment: Supports controlled movement of machine axes during repetitive assembly operations.

• Packaging and Labeling Machinery: Helps coordinate product positioning, feeding, and indexing processes.

• Material Handling Systems: Provides controlled rotary motion for transfer mechanisms and automated positioning equipment.

• Industrial Printing Equipment: Supports synchronized movement in machinery requiring consistent speed and positioning.

• Precision Manufacturing: Can be integrated into automated equipment where accurate feedback and controlled acceleration are required.

• OEM Machinery: Offers a compact servo motor option for equipment designed around compatible drive and feedback systems.

Advantages

Responsive Motion Control

The MPL-Series low-inertia design supports rapid acceleration and deceleration, making it suitable for machinery with frequent positioning changes and repetitive operating cycles.

Absolute Feedback for Position Accuracy

The motor's feedback configuration supports position monitoring when used with a compatible servo drive. Accurate feedback helps the controller coordinate motor movement and respond to changes in operating conditions.

Compact Mechanical Integration

The 130 mm frame size provides a defined mechanical classification for equipment design. Engineers should verify the complete mounting dimensions and shaft configuration before integrating the motor into an existing machine.

Flexible Installation Planning

The connector arrangement and mounting configuration should be considered during machine layout to maintain suitable cable clearance, accessibility, and serviceability.

Industrial Automation Compatibility

As part of the Allen Bradley MP-Series family, the motor can be evaluated for use in compatible industrial motion systems. Correct selection of the drive, feedback interface, and cabling is essential for dependable operation.

Reduced Integration Uncertainty

Using the complete catalog number during procurement helps distinguish between motor configurations that may differ in speed, feedback, connector arrangement, or braking capability. This is particularly important when sourcing replacement components for existing machinery.

Technical FAQs

1. What type of motor is the MPL-D310P-HJ72AA?

It is an Allen Bradley MP-Series MPL rotary servo motor intended for industrial motion-control applications. It requires a compatible servo drive for controlled operation.

2. What is the difference between a servo motor and a standard AC induction motor?

A servo motor operates as part of a feedback-based control system, allowing a compatible drive to regulate position, speed, and torque. A standard induction motor installation does not inherently provide the same level of integrated closed-loop motion control.

3. How does feedback improve motor performance?

Feedback provides position or motion information to the drive. The control system uses this information to compare actual movement with the commanded motion and adjust motor operation accordingly.

4. Which servo drive is compatible with this motor?

Compatibility must be established from the complete motor catalog number and the applicable Allen Bradley drive documentation. Voltage class, current requirements, feedback interface, and control-system support should all be checked before installation.

5. Can the motor be used in a high-speed positioning application?

Potentially, provided its rated speed, torque characteristics, inertia, and duty cycle satisfy the application requirements. The exact permissible speed must be verified against the motor's technical specifications.

6. Does this motor require a dedicated feedback cable?

The feedback interface must be connected using the appropriate compatible cable or cable assembly. Confirm the connector type and wiring arrangement for this specific catalog number before commissioning.

7. What causes servo motor following errors?

Following errors can result from excessive load, unsuitable tuning, mechanical binding, incorrect feedback configuration, acceleration settings that exceed system capability, or electrical connection problems. Diagnosis should include both the mechanical system and the drive configuration.

8. What should be considered when selecting a replacement motor?

Compare the complete catalog number, rated torque, rated speed, voltage requirements, feedback type, shaft configuration, mounting dimensions, connector arrangement, and brake requirements. Matching the frame size alone is insufficient.

9. How can vibration be reduced in a servo-driven machine?

Check mechanical alignment, coupling condition, mounting rigidity, load inertia, and drive tuning. Incorrect control parameters or mechanical resonance may contribute to vibration and should be evaluated systematically.

10. What routine maintenance is appropriate for this servo motor?

Inspect cable connections, mounting hardware, mechanical couplings, ventilation clearances, and operating conditions. Investigate abnormal noise, vibration, temperature increases, and recurring drive faults in accordance with the equipment maintenance procedure.
