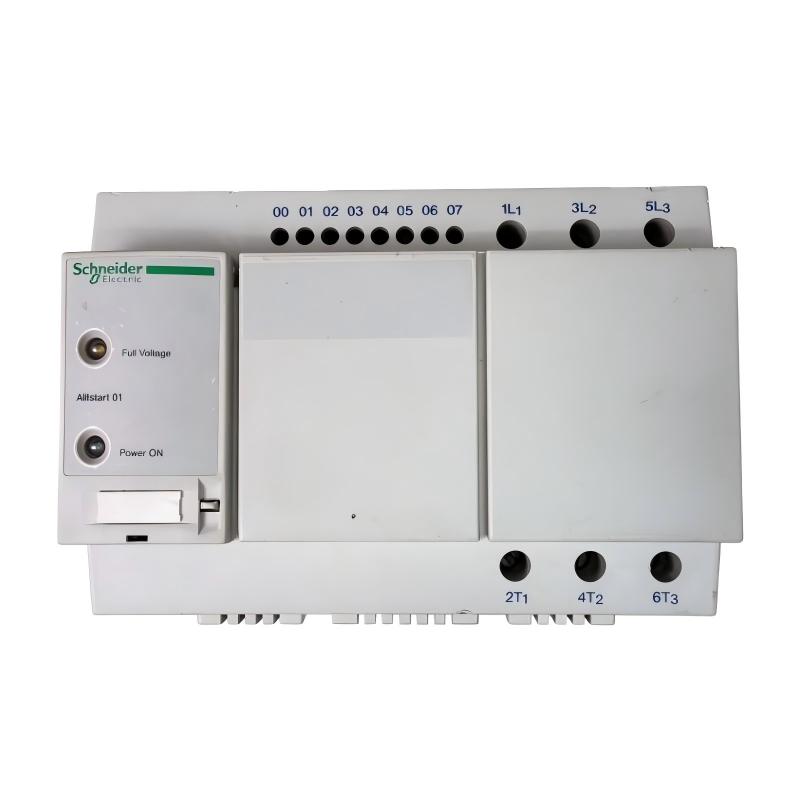

Schneider ATS01N244Q Soft Starter

Applications

The Schneider ATS01N244Q Soft Starter is designed to provide controlled starting for three-phase asynchronous motors in compact industrial and commercial installations. As part of the Schneider Electric Altistart 01 series, it helps reduce the mechanical shock associated with direct-on-line starting, making it a practical choice for equipment that benefits from smoother acceleration.

• Small Pumping Systems: Helps reduce abrupt startup effects in compatible water circulation and transfer pumps.

• Ventilation Equipment: Supports controlled motor starting in small fans and ventilation units.

• Conveyor Systems: Provides a smoother startup for light-duty conveyor applications with suitable motor ratings.

• Small Industrial Machinery: Can be integrated into equipment requiring straightforward motor starting control.

• Commercial Equipment: Suitable for compatible motor-driven equipment where a compact soft starter is preferred.

• OEM Control Panels: Offers a space-conscious solution for machine builders incorporating basic motor starting functions into electrical cabinets.

Advantages

Reduced Mechanical Stress

The ATS01N244Q gradually increases the motor voltage during startup, helping limit sudden mechanical forces on couplings, belts, and driven equipment. The actual reduction in mechanical stress depends on the motor and load characteristics.

Compact Installation Format

Its compact housing makes it suitable for control panels where available mounting space is limited. Proper clearance and ventilation should still be maintained according to the installation requirements.

Straightforward Starting Control

The Altistart 01 range is intended for simple motor starting applications. Its operating approach is useful where controlled acceleration is required without the additional complexity of a full variable frequency drive.

Support for Routine Industrial Operations

The starter can help reduce startup-related wear in compatible equipment, potentially supporting maintenance objectives when correctly sized and installed.

Practical Motor Integration

The ATS01N244Q is designed for integration into an appropriately rated motor circuit. Correct selection of upstream protection, contactors, wiring, and motor ratings remains essential for safe operation.

Cost-Conscious Motor Starting

For applications that do not require continuous speed regulation, a soft starter can offer a practical alternative to more feature-rich motor control equipment.

Technical FAQs

1. What is the primary purpose of the ATS01N244Q?

It controls motor startup by gradually increasing the applied voltage, helping reduce abrupt acceleration and the mechanical stress associated with direct-on-line starting.

2. Does this soft starter provide continuous speed control?

No. A soft starter controls the starting process rather than continuously regulating motor speed. A variable frequency drive is generally more suitable when adjustable operating speed is required.

3. Which motor types are suitable for this starter?

It is intended for compatible three-phase asynchronous motors. The motor's rated voltage, current, power, and starting characteristics must match the starter's specifications.

4. How does soft starting affect starting current?

By controlling the voltage ramp, the starter can limit startup current compared with direct-on-line starting under suitable conditions. The achievable reduction depends on the load's starting torque requirements and the configured settings.

5. Can the ATS01N244Q be used with a heavily loaded conveyor?

Suitability depends on the conveyor's breakaway torque, load inertia, motor current, and required acceleration time. Heavy starting loads may require a different starter rating or a more advanced motor control solution.

6. Does the starter provide motor overload protection?

The ATS01N244Q should not be assumed to provide a complete motor protection scheme on its own. Appropriate overload protection and short-circuit protection must be selected according to the motor circuit design and applicable electrical requirements.

7. Can the starter be used with a reversing motor circuit?

Reversing operation requires an appropriately designed external reversing arrangement and suitable interlocking. The starter's own functionality and wiring limitations must be considered before implementing this configuration.

8. What should be checked if the motor fails to accelerate?

Check the supply voltage, motor wiring, overload protection, starting settings, mechanical load, and motor condition. Excessive load torque or an unsuitable starter rating can prevent successful acceleration.

9. Is a soft starter suitable for frequent motor starts?

The permitted starting frequency depends on the starter's thermal limits, motor characteristics, ambient conditions, and load profile. Verify the allowable duty cycle before using it in high-frequency applications.

10. What should be considered when replacing an ATS01N244Q?

Verify the motor supply voltage, rated current, power requirements, control circuit, mounting arrangement, protection coordination, and starting duty. Similar dimensions or a related model designation do not guarantee electrical compatibility.
