Brand:Schneider PLC Item No.:ATS48C14Y Product Origin:France Product Dimensions:340 x 200 x 265 mm Product Weight:12.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

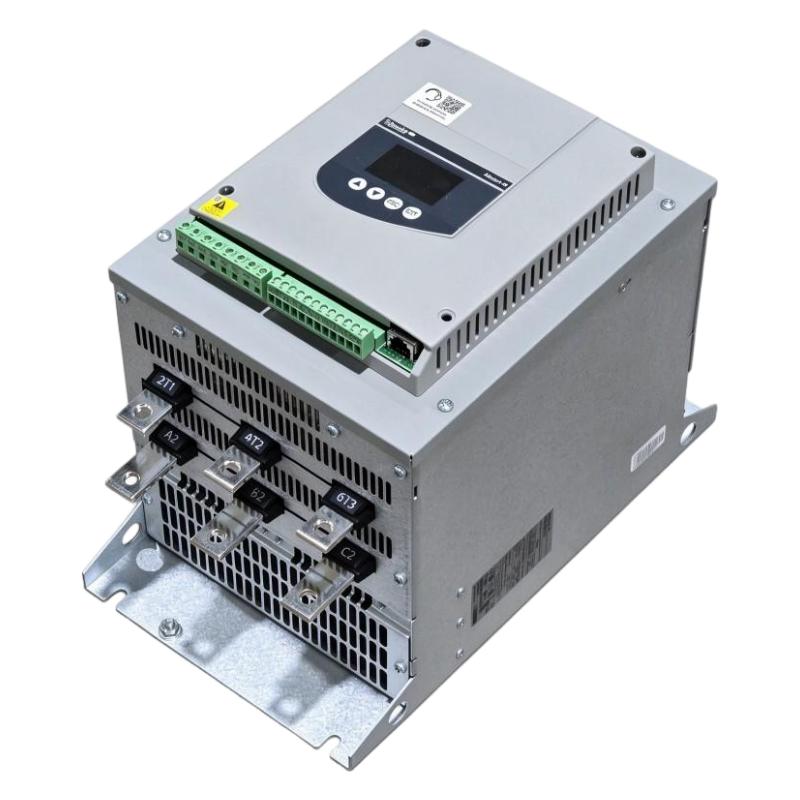

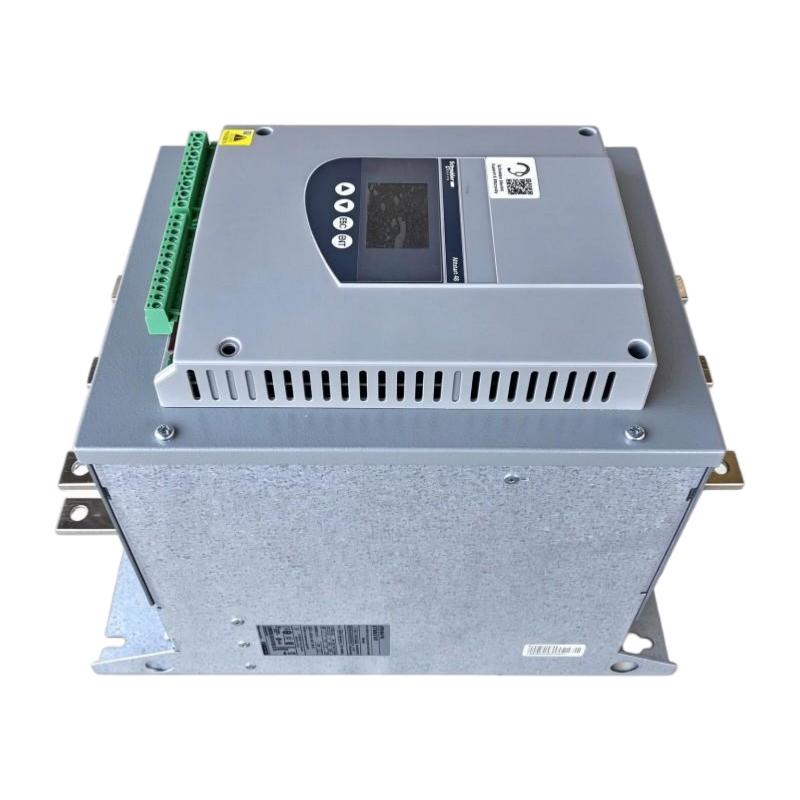

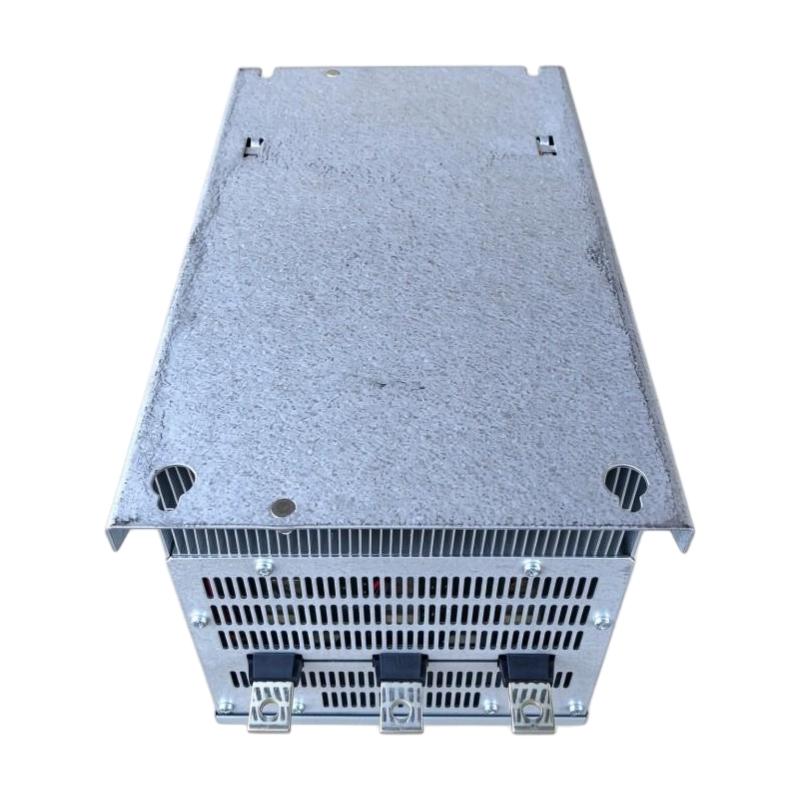

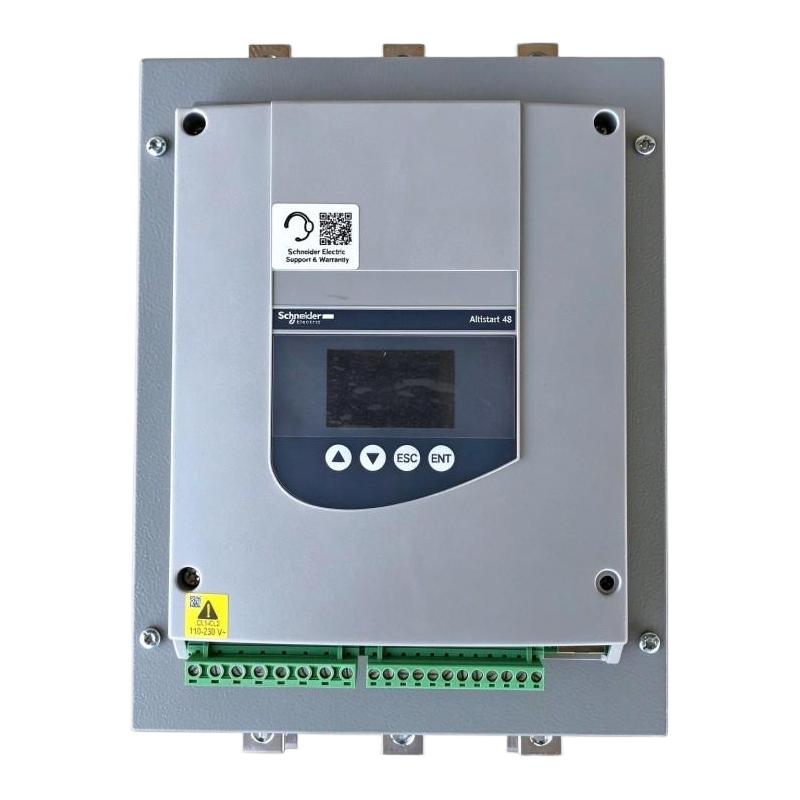

The Schneider Electric ATS48C14Y Soft Starter belongs to the Altistart 48 product family, developed for controlled starting and stopping of industrial motors. It is intended for motor-driven equipment where reducing startup stress and managing acceleration are important to equipment operation.
In applications such as pumping, ventilation, conveying, and industrial processing, a soft starter can help limit the abrupt mechanical forces associated with conventional direct-on-line starting. Appropriate selection and configuration are essential to achieving reliable operation and protecting connected equipment.
When sourcing the ATS48C14Y for maintenance, equipment refurbishment, or replacement projects, buyers should verify the complete model designation and electrical specifications. Motor current, supply conditions, starting duty, and application requirements should all be checked before installation.
Confirm using the manufacturer's technical documentation
Electrical Ratings
Refer to the exact model datasheet
Installation
Industrial motor control panel; follow manufacturer requirements
Recommended Related Models
The following Schneider Electric Altistart 48 models are related products to consider when comparing soft starter requirements. They should not be assumed to be direct replacements without verifying the electrical ratings and application requirements.
Model
Product Type
ATS48C11Y
Altistart 48 Soft Starter
ATS48C14Y
Altistart 48 Soft Starter
ATS48C17Y
Altistart 48 Soft Starter
ATS48C21Y
Altistart 48 Soft Starter
Confirm the availability and exact specifications of each model in the applicable Schneider Electric documentation before ordering.
Popular Related Models
Model
Product Type
ATS48D17Q
Altistart 48 Soft Starter
ATS48D22Q
Altistart 48 Soft Starter
ATS48D32Q
Altistart 48 Soft Starter
ATS48D38Q
Altistart 48 Soft Starter
These are related Altistart 48 product models for catalog comparison. Select a replacement only after confirming supply voltage, rated motor current, application duty, and control requirements.
Applications
The Schneider Electric ATS48C14Y Soft Starter is part of the Altistart 48 range, designed to manage motor starting and stopping in industrial applications. Soft starters help reduce the electrical and mechanical stresses associated with direct-on-line starting by controlling motor voltage during acceleration and deceleration.
Typical application areas include:
Pumps: Helps reduce starting stress and can support smoother stopping in suitable pumping systems.
Fans and Blowers: Provides controlled acceleration for ventilation and industrial air-handling equipment.
Compressors: Supports controlled motor starting in compatible compressor applications.
Conveyors: Helps reduce sudden mechanical loading during motor startup.
Industrial Processing Equipment: Suitable for machinery requiring controlled starting and stopping of three-phase motors.
The correct application depends on motor ratings, load characteristics, starting frequency, and installation conditions.
Advantages
Reduced Starting Stress: Controls the motor-starting process to help limit mechanical shock to connected equipment.
Controlled Acceleration and Deceleration: Supports smoother motor transitions when configured for the application.
Motor Protection Functions: The Altistart 48 family includes protection and monitoring functions intended to help manage motor operating conditions.
Industrial System Integration: Can be incorporated into suitable motor control panels and industrial automation systems.
Improved Equipment Operation: Controlled starting can help reduce stress on couplings, belts, gearboxes, and other mechanical components.
Maintenance-Friendly Identification: The full model number helps technicians and purchasing teams identify the required component for service or replacement.
Technical FAQs
Q1: What is the Schneider ATS48C14Y used for?
It is a soft starter intended to control the starting and stopping of compatible electric motors in industrial applications.
Q2: How does a soft starter differ from a variable frequency drive?
A soft starter primarily controls motor voltage during starting and stopping. A variable frequency drive controls both voltage and frequency, allowing broader motor-speed regulation during operation.
Q3: Can the ATS48C14Y be used with a three-phase motor?
The Altistart 48 family is designed for three-phase motor applications. Confirm the exact model's electrical ratings and wiring arrangement before installation.
Q4: Does a soft starter reduce motor starting current?
Yes. By controlling voltage during startup, a correctly selected soft starter can reduce starting current compared with direct-on-line starting. The actual reduction depends on the motor and load.
Q5: Can this soft starter be used for pump applications?
It may be suitable for compatible pumps where controlled starting and stopping are required. The pump type, motor rating, hydraulic characteristics, and stopping requirements must be considered.
Q6: Does the ATS48C14Y provide motor protection?
The Altistart 48 range includes motor monitoring and protection functions. The protection settings must be configured correctly, and any required external short-circuit protection must still be provided.
Q7: Can the soft starter control motor speed continuously?
A conventional soft starter is not intended for continuous variable-speed control. If an application requires ongoing speed adjustment, a suitable variable frequency drive may be more appropriate.
Q8: What should be checked before replacing an existing ATS48 unit?
Check the complete model number, motor power and current, supply voltage, wiring configuration, control connections, protection settings, and cabinet requirements.
Q9: What can cause a soft starter to trip?
Possible causes include motor overload, excessive starting time, phase-related faults, incorrect settings, inadequate supply conditions, or overheating. The displayed fault indication and manufacturer's troubleshooting documentation should be consulted.
Q10: Can the ATS48C14Y be installed in any control cabinet?
No. The cabinet must meet the manufacturer's requirements for clearances, ventilation, ambient temperature, electrical protection, and heat dissipation.
