Introduction

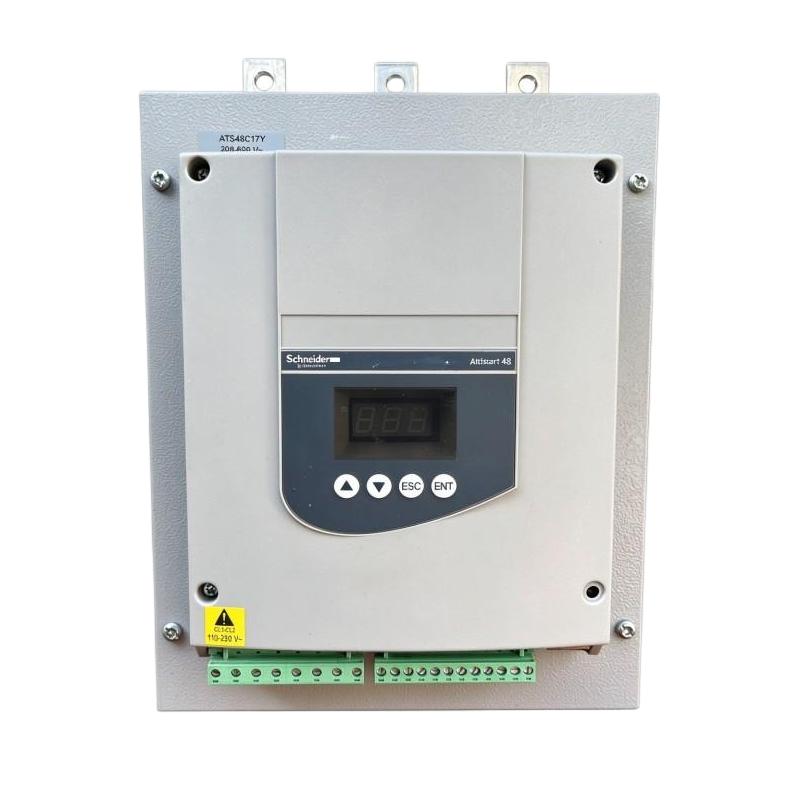

The Schneider Electric ATS48C17Y Soft Starter is part of the Altistart 48 range, developed for industrial motor control applications that require managed starting and stopping. It is designed to help reduce the electrical and mechanical stresses associated with motor startup, supporting smoother operation of connected machinery.

In applications such as pumping, ventilation, conveying, and industrial processing, controlled acceleration can help reduce stress on motors, couplings, gearboxes, and other mechanical components. The soft starter's performance depends on correct sizing, parameter configuration, and installation in accordance with the manufacturer's requirements.

For maintenance teams, system integrators, and industrial spare-parts buyers, the ATS48C17Y can be considered when servicing or specifying compatible motor control equipment. Before ordering, verify the complete model number and confirm the electrical ratings against the motor and application requirements.

Technical Specifications

Parameter	Specification
Brand	Schneider Electric
Model	ATS48C17Y
Product Type	Soft Starter
Product Family	Altistart 48
Dimensions (W × H × D)	340 × 200 × 265 mm
Dimensions (W × H × D)	13.39 × 7.87 × 10.43 in
Weight	12.4 kg (27.34 lb)
Main Function	Controlled motor starting and stopping
Typical Applications	Pumps, fans, compressors, conveyors, industrial machinery
Motor Type	Compatible three-phase asynchronous motors; confirm against product documentation
Electrical Ratings	Refer to the manufacturer's datasheet for the exact model
Installation	Industrial motor control panel, following manufacturer requirements

Recommended Related Models

The following Altistart 48 models are potential comparison options within the same product family. Confirm their exact specifications and suitability before selecting a replacement.

Model	Product Type
ATS48C11Y	Altistart 48 Soft Starter
ATS48C14Y	Altistart 48 Soft Starter
ATS48C17Y	Altistart 48 Soft Starter
ATS48C21Y	Altistart 48 Soft Starter

Popular Related Models

Model	Product Type
ATS48D17Q	Altistart 48 Soft Starter
ATS48D22Q	Altistart 48 Soft Starter
ATS48D32Q	Altistart 48 Soft Starter
ATS48D38Q	Altistart 48 Soft Starter

These related models provide additional options for product research and motor control system planning. They are not necessarily direct replacements for the ATS48C17Y. Always confirm voltage, rated current, motor compatibility, and application requirements before purchasing.

Applications

The Schneider Electric ATS48C17Y Soft Starter belongs to the Altistart 48 product family, designed to provide controlled starting and stopping for compatible three-phase asynchronous motors. By controlling the motor-starting process, a soft starter can help reduce mechanical shock and limit starting current compared with direct-on-line starting.

Typical applications include:

Pumping Systems: Supports controlled motor startup and stopping in industrial water circulation and process pumping applications.
Fans and Blowers: Helps reduce sudden mechanical loading during acceleration.
Air Compressors: Provides controlled starting for compatible motor-driven compressor equipment.
Conveyor Systems: Helps minimize abrupt startup forces on belts, couplings, and driven mechanisms.
Industrial Processing Machinery: Suitable for motor-driven equipment requiring managed acceleration and deceleration.

The final selection should account for motor current, supply voltage, starting frequency, load characteristics, and operating conditions.

Advantages

Controlled Motor Starting: Gradually manages the starting process to help reduce mechanical stress on connected equipment.
Reduced Startup Impact: Can limit the sudden current and torque demands associated with direct-on-line starting.
Smooth Stopping Capability: Supports controlled deceleration where the application and configuration require it.
Motor Monitoring and Protection: The Altistart 48 family offers motor-related monitoring and protection functions, subject to correct configuration.
Industrial Integration: Can be installed in suitable motor control panels as part of an industrial automation system.
Maintenance Support: A clearly identified model number helps simplify sourcing and replacement planning.

Technical FAQs

Q1: What is the Schneider ATS48C17Y used for?

The ATS48C17Y is an Altistart 48 soft starter intended to control the starting and stopping of compatible industrial motors.

Q2: What type of motor is suitable for this soft starter?

The Altistart 48 family is designed for three-phase asynchronous motors. Verify the exact motor requirements and electrical ratings for the ATS48C17Y before installation.

Q3: Does a soft starter reduce starting current?

A soft starter can reduce starting current compared with direct-on-line starting by controlling the voltage applied during acceleration. The result depends on the motor, load, and configured starting parameters.

Q4: Can the ATS48C17Y be used for pump control?

It may be suitable for compatible pumping applications. The motor rating, pump characteristics, and required starting and stopping performance must be evaluated first.

Q5: Can it provide continuous variable-speed control?

No. A conventional soft starter is primarily designed for starting and stopping, rather than continuous speed regulation. Applications requiring adjustable running speed generally need a suitable variable frequency drive.

Q6: Does the ATS48C17Y include motor protection functions?

The Altistart 48 family includes motor monitoring and protection features. Settings must be matched to the connected motor, and appropriate external electrical protection is still necessary.

Q7: What information is needed when replacing an existing soft starter?

Confirm the full model number, motor rated current, supply voltage, wiring arrangement, control connections, starting duty, and protection settings.

Q8: What might cause a soft starter to trip?

Possible causes include overload, excessive starting time, phase-related faults, supply problems, overheating, or incorrect parameter settings. Use the indicated fault information and the applicable product manual for diagnosis.

Q9: Does installation require cabinet ventilation?

Yes. The installation must meet the manufacturer's requirements for ventilation, ambient temperature, mounting clearances, and heat dissipation.

Q10: Is the ATS48C17Y interchangeable with the ATS48C14Y?

Not automatically. Models in the same product family can have different electrical ratings. Confirm rated current, motor requirements, supply conditions, and application duty before substituting one model for another.
