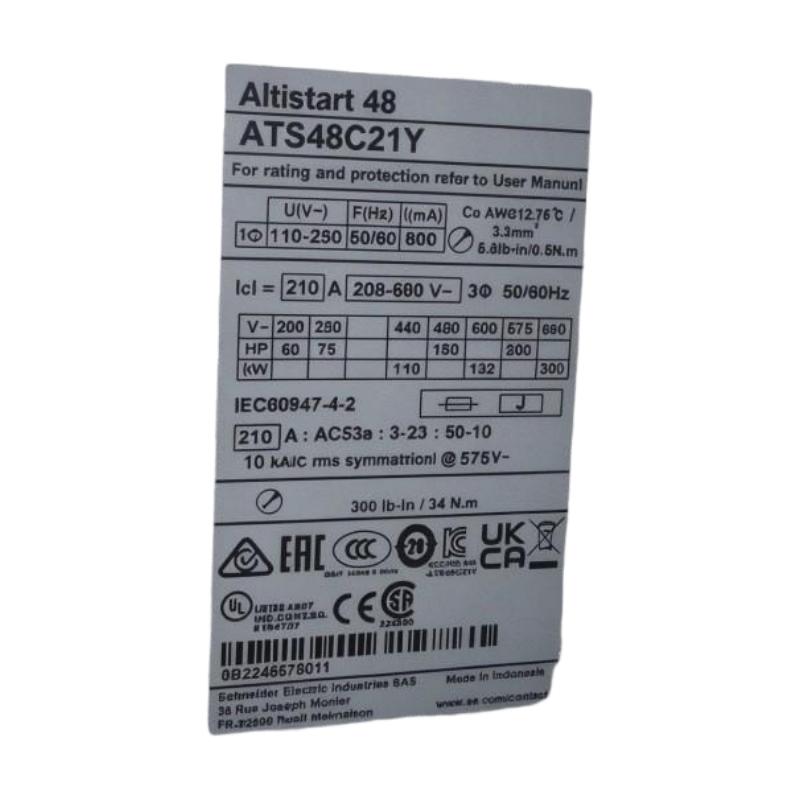

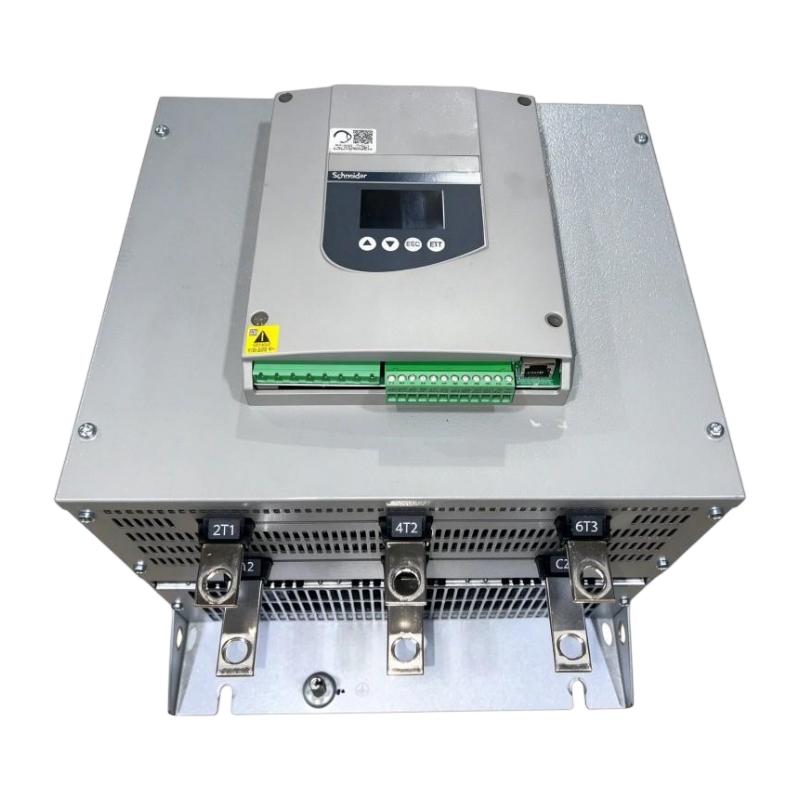

Schneider ATS48C21Y Schneider

Applications

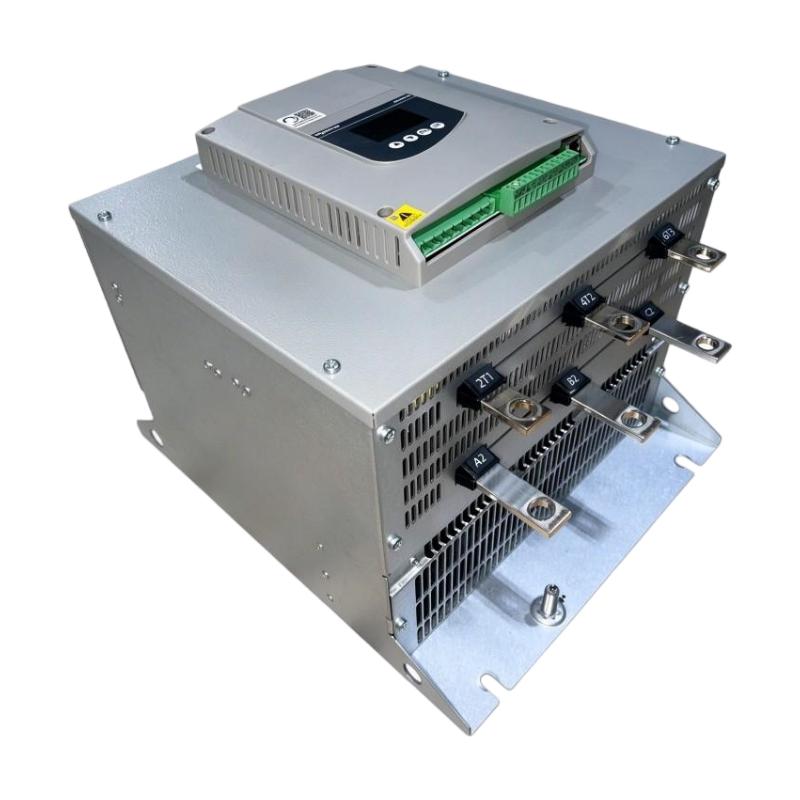

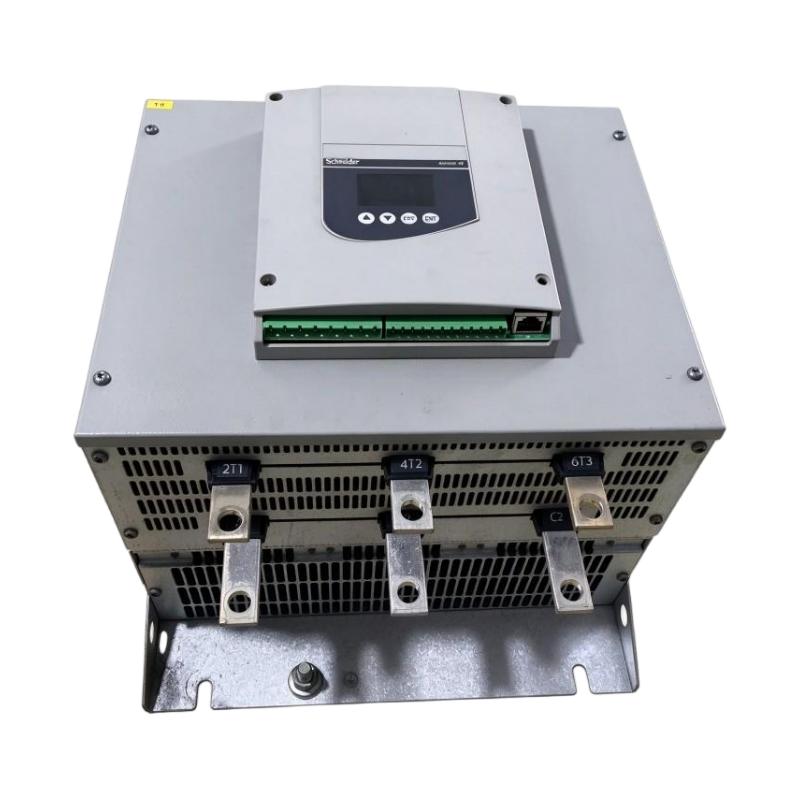

The Schneider Electric ATS48C21Y Soft Starter is part of the Altistart 48 product family, designed for controlled starting and stopping of compatible three-phase asynchronous motors. It helps manage motor acceleration and can reduce the mechanical shock and electrical stress associated with direct-on-line starting.

Typical applications include:

• Industrial Pumping Systems: Supports controlled motor starting and stopping in water treatment, circulation, and process pumping equipment.

• Ventilation and Blower Systems: Helps reduce sudden mechanical loading during startup.

• Industrial Compressors: Provides controlled acceleration for compatible motor-driven compressor systems.

• Conveyor Equipment: Helps minimize abrupt starting forces on belts, couplings, and transmission components.

• Material Processing Machinery: Supports motor control in industrial equipment that benefits from managed acceleration and deceleration.

Correct application selection depends on the motor's rated current, supply conditions, load characteristics, and starting frequency.

Advantages

• Controlled Motor Acceleration: Helps reduce the abrupt torque changes associated with conventional motor starting.

• Reduced Mechanical Stress: Can help protect connected equipment from excessive startup shock.

• Managed Stopping: Supports controlled deceleration when suitable for the application and configuration.

• Motor Monitoring Functions: The Altistart 48 family offers motor monitoring and protection features that must be configured for the installation.

• Industrial Integration: Can be incorporated into compatible motor control panels and industrial automation systems.

• Maintenance and Replacement Support: Accurate model identification helps simplify spare-parts sourcing and equipment maintenance.

Technical FAQs

Q1: What is the Schneider ATS48C21Y used for?

The ATS48C21Y is an Altistart 48 soft starter designed to control the starting and stopping of compatible industrial motors.

Q2: Which motor types are suitable for this soft starter?

The Altistart 48 family is intended for three-phase asynchronous motors. Confirm the motor's rated current, voltage, and starting requirements against the exact product documentation.

Q3: How does the ATS48C21Y help reduce starting stress?

It controls the motor-starting process instead of applying full supply voltage abruptly, helping reduce starting current and mechanical shock under suitable operating conditions.

Q4: Can the ATS48C21Y be used in pumping applications?

It may be suitable for compatible pump motors. The motor rating, pump load, required acceleration, and stopping behavior should be checked before selection.

Q5: Can this soft starter regulate motor speed during normal operation?

A conventional soft starter is designed primarily for starting and stopping, not continuous variable-speed operation. A variable frequency drive is generally more suitable when ongoing speed adjustment is required.

Q6: Does the ATS48C21Y have motor protection functions?

The Altistart 48 range includes motor monitoring and protection features. Correct parameter settings and appropriate upstream electrical protection remain essential.

Q7: What should be checked before replacing another Altistart 48 model?

Verify the complete model number, rated current, supply voltage, motor compatibility, wiring arrangement, control connections, and application duty.

Q8: What can cause a soft starter fault or trip?

Potential causes include overload, excessive starting time, phase-related faults, supply problems, overheating, or incorrect configuration. Consult the fault indication and applicable troubleshooting documentation.

Q9: What installation conditions are important?

Follow the manufacturer's requirements for mounting, ventilation, ambient temperature, clearances, grounding, and electrical protection.

Q10: Is the ATS48C21Y interchangeable with the ATS48C17Y?

Not automatically. Related models may have different electrical ratings. Confirm the exact specifications and motor requirements before using one as a substitute for the other.
