Brand:Schneider PLC Item No.:ATS48C25Y Product Origin:France Product Dimensions:380 x 320 x 265 mm Product Weight:18.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

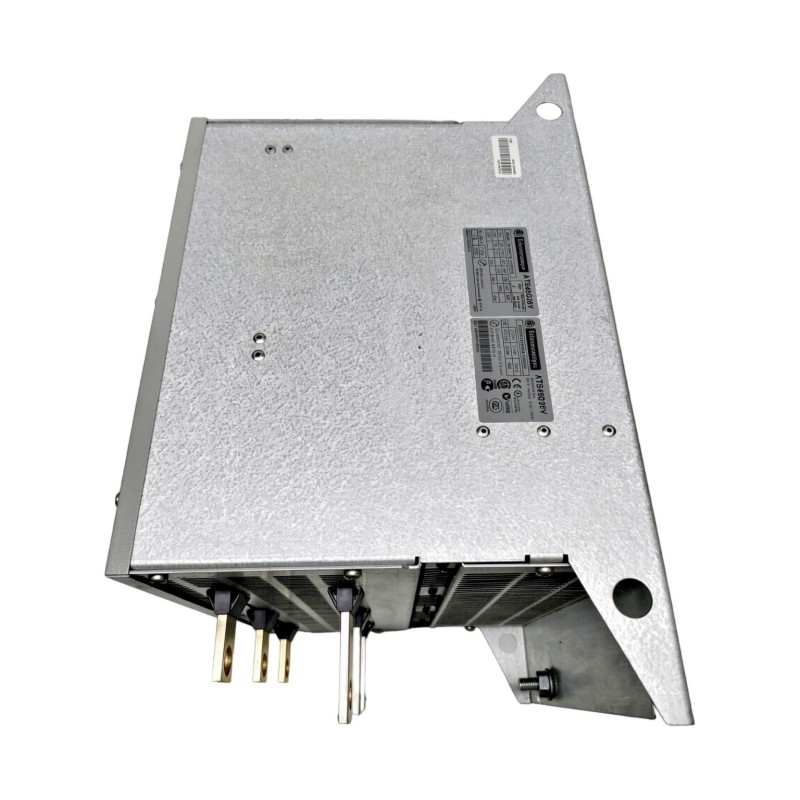

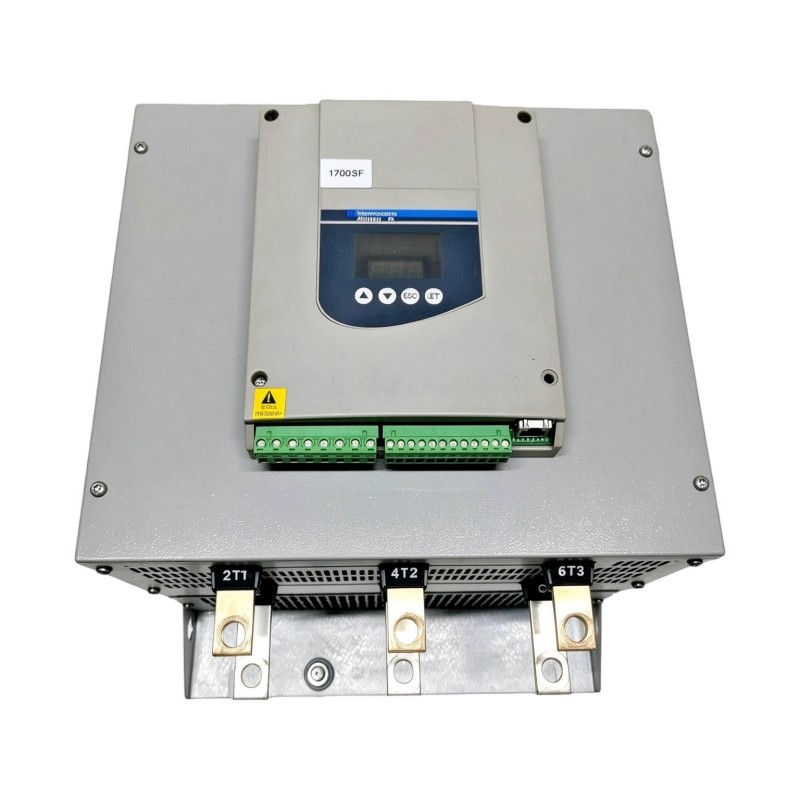

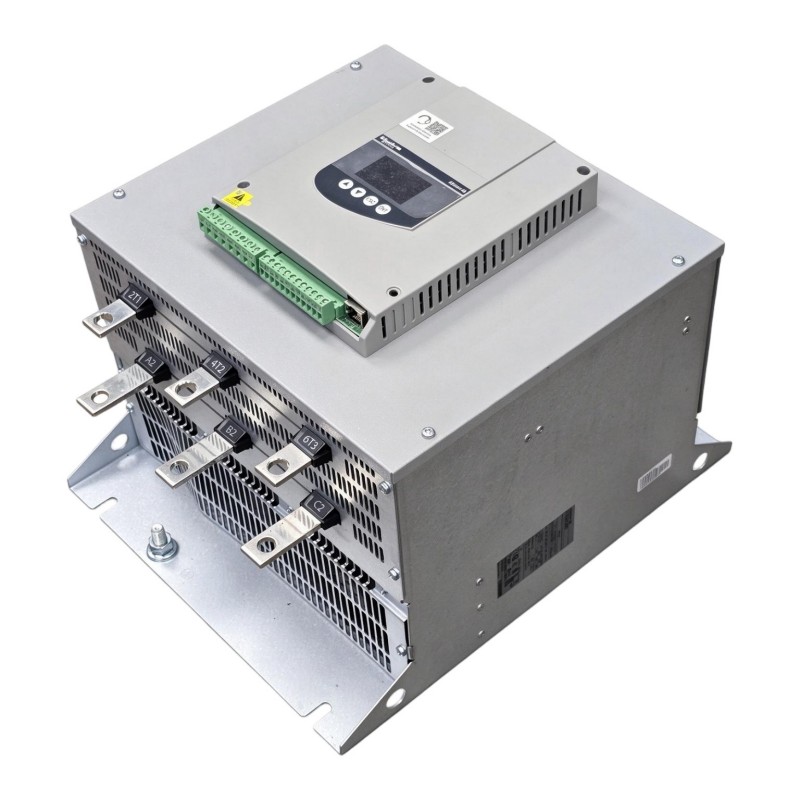

The Schneider Electric ATS48C25Y Soft Starter is part of the Altistart 48 range of industrial motor control products. It is designed to manage motor starting and stopping in applications where controlled acceleration and reduced mechanical stress are important.
In pump systems, ventilation equipment, conveyors, compressors, and other industrial machinery, a correctly selected soft starter can help reduce abrupt startup forces on motors and connected equipment. Its effectiveness depends on proper sizing, configuration, and installation according to the manufacturer's requirements.
For maintenance departments, system integrators, and industrial spare-parts suppliers, the ATS48C25Y may be considered for suitable motor control applications and replacement projects. Before ordering, verify the full model designation, electrical ratings, motor requirements, and application duty against the applicable Schneider Electric documentation.
Confirm against the exact model's technical documentation
Electrical Ratings
Refer to the manufacturer's datasheet
Installation
Industrial motor control panel, following manufacturer requirements
Recommended Related Models
The following Schneider Electric Altistart 48 models are related options for comparing motor control requirements. They should not be assumed to be direct replacements without checking their electrical specifications.
Model
Product Type
ATS48C17Y
Altistart 48 Soft Starter
ATS48C21Y
Altistart 48 Soft Starter
ATS48C25Y
Altistart 48 Soft Starter
ATS48C32Y
Altistart 48 Soft Starter
Popular Related Models
Model
Product Type
ATS48D17Q
Altistart 48 Soft Starter
ATS48D22Q
Altistart 48 Soft Starter
ATS48D32Q
Altistart 48 Soft Starter
ATS48D38Q
Altistart 48 Soft Starter
These related Altistart 48 models can be used for catalog comparison and sourcing research. Confirm voltage, rated current, motor compatibility, and application requirements before selecting a unit for installation or replacement.
Applications
The Schneider Electric ATS48C25Y Soft Starter belongs to the Altistart 48 product family, designed for controlled starting and stopping of compatible three-phase asynchronous motors. It helps manage motor acceleration and can reduce mechanical shock and starting stress in industrial motor-driven equipment.
Typical application areas include:
Pumping Systems: Supports controlled motor starting and stopping in industrial water circulation and process applications.
Fans and Blowers: Helps reduce abrupt mechanical loading during startup.
Compressors: Supports controlled starting for compatible motor-driven compressor equipment.
Conveyor Systems: Helps reduce sudden forces on belts, couplings, and transmission components.
Industrial Processing Equipment: Suitable for machinery requiring managed motor acceleration and deceleration.
The correct selection depends on motor current, supply voltage, load characteristics, starting frequency, and the operating environment.
Advantages
Controlled Starting: Manages the motor-starting process to help reduce sudden torque changes.
Reduced Mechanical Stress: Can help limit startup shock on motors and connected mechanical components.
Controlled Deceleration: Supports stopping functions appropriate to the application and configuration.
Motor Monitoring and Protection: The Altistart 48 family provides motor monitoring and protection features that must be configured correctly.
Industrial Integration: Can be incorporated into compatible motor control panels and automation systems.
Simplified Replacement Planning: Accurate model identification helps maintenance teams source the appropriate component for existing equipment.
Technical FAQs
Q1: What is the Schneider ATS48C25Y used for?
The ATS48C25Y is an Altistart 48 soft starter designed to control the starting and stopping of compatible industrial motors.
Q2: What type of motor is compatible with this soft starter?
The Altistart 48 family is intended for three-phase asynchronous motors. Confirm the motor's rated current, voltage, and starting requirements against the manufacturer's documentation for the exact model.
Q3: How does the ATS48C25Y reduce starting current?
It controls the motor-starting process by regulating the applied voltage during acceleration. The actual starting current depends on the motor, load, and configured parameters.
Q4: Can the ATS48C25Y be used for industrial pumps?
It may be suitable for compatible pump motors. Motor ratings, pump characteristics, starting duty, and stopping requirements should be evaluated before installation.
Q5: Is this soft starter suitable for variable-speed operation?
A conventional soft starter is designed primarily for motor starting and stopping, not continuous speed regulation. Applications requiring adjustable running speed generally need a suitable variable frequency drive.
Q6: Does the ATS48C25Y provide motor protection?
The Altistart 48 family includes motor monitoring and protection functions. These must be configured appropriately, and suitable external short-circuit protection is still required.
Q7: What should be checked before replacing an existing soft starter?
Check the complete model number, rated motor current, supply voltage, wiring arrangement, control connections, starting frequency, and protection settings.
Q8: What can cause a soft starter to trip?
Potential causes include overload, excessive starting time, phase-related faults, supply problems, overheating, or incorrect parameter settings. Consult the fault indication and the relevant troubleshooting documentation.
Q9: What installation requirements should be considered?
Follow the manufacturer's requirements for mounting clearances, ventilation, ambient temperature, grounding, wiring, and electrical protection.
Q10: Can the ATS48C25Y replace the ATS48C21Y directly?
Not without verification. Related models may have different electrical ratings or application limits. Confirm motor compatibility, rated current, supply conditions, and starting duty before substitution.
