Brand:Schneider PLC Item No.:ATS48C32Y Product Origin:France Product Dimensions:380 x 320 x 265 mm Product Weight:18.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

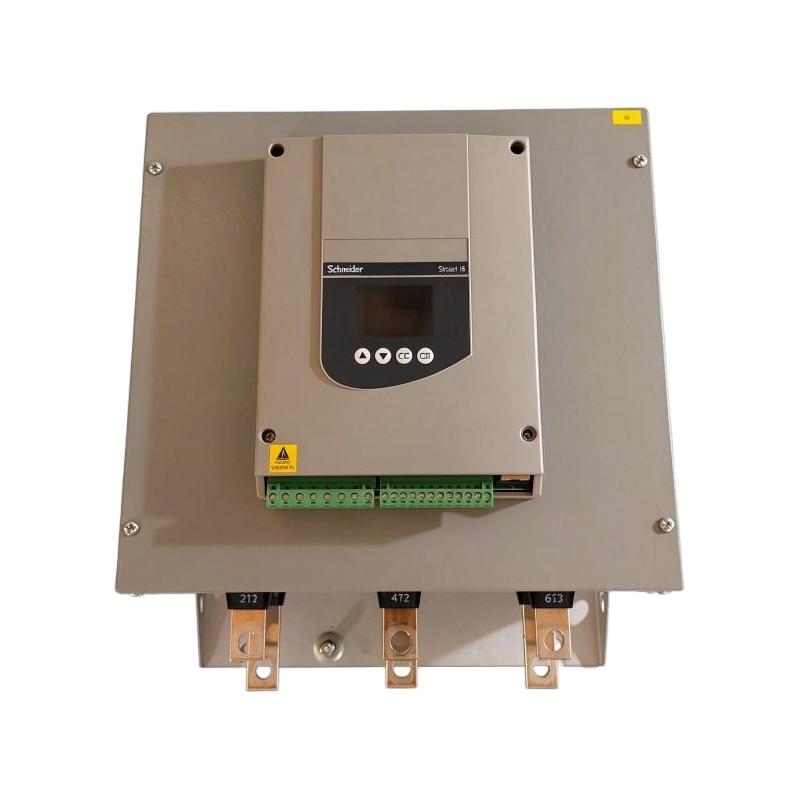

The Schneider Electric ATS48C32Y Soft Starter is an industrial motor control device from the Altistart 48 product family. It is designed for applications that require managed motor acceleration and stopping rather than the abrupt operation associated with conventional direct-on-line starting.
In industrial pumping, ventilation, conveying, and processing systems, a correctly selected soft starter can help reduce startup stress on motors and connected mechanical components. Proper selection and configuration are essential to achieve reliable operation and maintain equipment protection.
For maintenance engineers, panel builders, and industrial spare-parts buyers, the ATS48C32Y may be considered for compatible motor control installations and replacement projects. Before ordering, confirm the complete model designation, electrical specifications, motor requirements, and application duty against the manufacturer's documentation.
Industrial motor control panel, following manufacturer requirements
Recommended Related Models
The following Schneider Electric Altistart 48 models are related products to consider when comparing motor control requirements. They should not be treated as direct substitutes without confirming their technical ratings.
Model
Product Type
ATS48C21Y
Altistart 48 Soft Starter
ATS48C25Y
Altistart 48 Soft Starter
ATS48C32Y
Altistart 48 Soft Starter
ATS48C41Y
Altistart 48 Soft Starter
Popular Related Models
Model
Product Type
ATS48D17Q
Altistart 48 Soft Starter
ATS48D22Q
Altistart 48 Soft Starter
ATS48D32Q
Altistart 48 Soft Starter
ATS48D38Q
Altistart 48 Soft Starter
These models are related Altistart 48 products for catalog comparison and sourcing research. Confirm supply voltage, rated current, motor compatibility, and application requirements before purchasing or installing a replacement.
Applications
The Schneider Electric ATS48C32Y Soft Starter belongs to the Altistart 48 family of industrial motor control equipment. It is designed to manage the starting and stopping of compatible three-phase asynchronous motors, helping reduce abrupt electrical and mechanical stresses during startup.
Typical applications include:
Industrial Pumping: Supports controlled motor starting and stopping in water treatment, circulation, and process pumping systems.
Ventilation and Air Handling: Helps reduce mechanical shock when starting fans and blowers.
Compressor Systems: Provides controlled acceleration for compatible industrial compressor motors.
Conveyor Equipment: Helps minimize sudden torque changes that can stress belts, gearboxes, and couplings.
Process Machinery: Supports motor-driven equipment requiring managed acceleration and deceleration.
Final selection should be based on motor current, supply voltage, starting duty, load characteristics, and operating environment.
Advantages
Controlled Motor Starting: Helps manage the initial acceleration of compatible motors.
Reduced Mechanical Shock: Can reduce abrupt torque changes and stress on connected equipment.
Managed Stopping: Supports controlled stopping functions when appropriate for the application.
Motor Monitoring Features: The Altistart 48 range provides monitoring and protection functions that require suitable configuration.
Industrial Integration: Can be incorporated into compatible motor control cabinets and automation systems.
Maintenance Flexibility: Full model identification helps maintenance teams source appropriate components for servicing and replacement.
Technical FAQs
Q1: What is the Schneider ATS48C32Y used for?
The ATS48C32Y is an Altistart 48 soft starter intended to control the starting and stopping of compatible industrial motors.
Q2: What type of motor does this soft starter support?
The Altistart 48 family is designed for three-phase asynchronous motors. Confirm the exact model's electrical ratings and motor compatibility before installation.
Q3: How does a soft starter reduce starting stress?
It controls the motor-starting process by regulating the applied voltage during acceleration, which can help reduce starting current and mechanical shock compared with direct-on-line starting.
Q4: Is the ATS48C32Y suitable for pump applications?
It may be suitable for compatible pump motors. Selection should account for motor ratings, pump characteristics, starting frequency, and required stopping behavior.
Q5: Can the ATS48C32Y control motor speed continuously?
A conventional soft starter is primarily intended for starting and stopping rather than continuous speed regulation. A variable frequency drive is generally more suitable when adjustable operating speed is required.
Q6: Does this model include motor protection functions?
The Altistart 48 family includes motor monitoring and protection features. Appropriate parameter settings and suitable external electrical protection are still necessary.
Q7: What should be checked before replacing an existing soft starter?
Verify the full model number, motor rated current, supply voltage, wiring arrangement, control connections, starting duty, and protection settings.
Q8: What are common reasons for soft starter faults?
Potential causes include overload, excessive starting time, phase-related faults, supply abnormalities, overheating, or incorrect parameter settings. Refer to the displayed fault information and the applicable manual.
Q9: What installation conditions are important?
Follow the manufacturer's requirements for ventilation, mounting clearances, ambient temperature, grounding, wiring, and electrical protection.
Q10: Can the ATS48C32Y replace another Altistart 48 model directly?
Not automatically. Different models may have different electrical ratings and application limits. Confirm motor compatibility, rated current, supply conditions, and starting requirements before substitution.
