Introduction

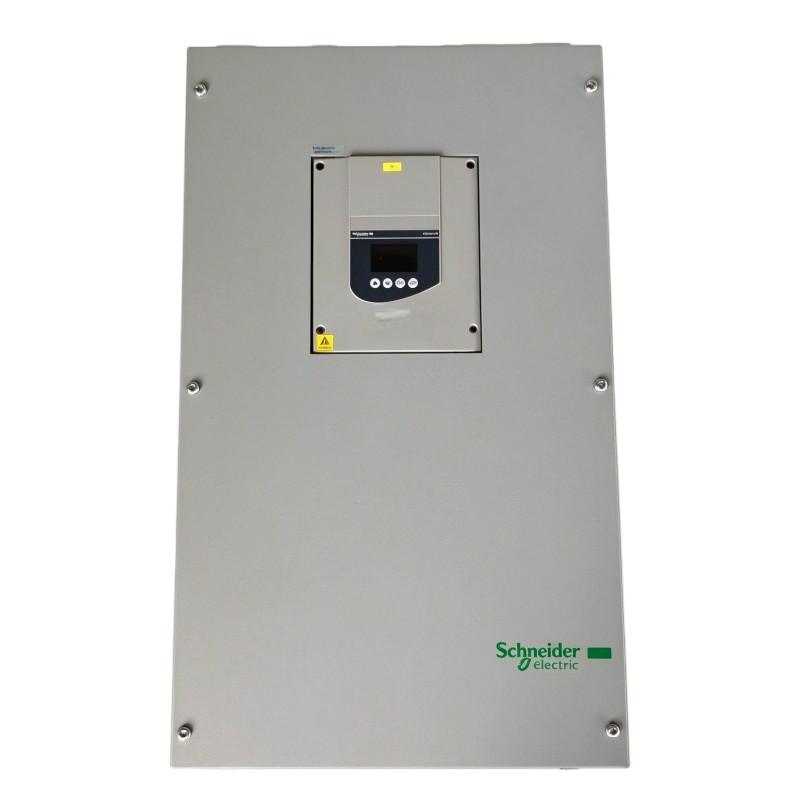

The Schneider Electric ATS48C41Y Soft Starter is an industrial motor control device in the Altistart 48 product range. It is intended for applications where controlled motor acceleration and stopping are important to equipment performance and mechanical reliability.

Soft starters are commonly used in industrial pumping, ventilation, conveying, compression, and processing systems. By managing the motor-starting process, they can help reduce sudden mechanical forces and startup-related electrical stress. Appropriate sizing and parameter configuration are essential for dependable operation.

For maintenance engineers, system integrators, and industrial spare-parts suppliers, the ATS48C41Y may be considered for compatible motor control installations and replacement projects. Before purchasing, verify the complete model designation and electrical specifications against the manufacturer's documentation, particularly the motor current, supply voltage, starting duty, and installation requirements.

Technical Specifications

Parameter	Specification
Brand	Schneider Electric
Model	ATS48C41Y
Product Type	Soft Starter
Product Family	Altistart 48
Dimensions (W × H × D)	670 × 400 × 300 mm
Dimensions (W × H × D)	26.38 × 15.75 × 11.81 in
Weight	51.4 kg (113.32 lb)
Main Function	Controlled motor starting and stopping
Typical Applications	Pumps, fans, compressors, conveyors, industrial machinery
Motor Compatibility	Confirm against the manufacturer's technical documentation
Electrical Ratings	Refer to the datasheet for the exact model
Installation	Industrial motor control panel, following manufacturer requirements

Recommended Related Models

The following Schneider Electric Altistart 48 models are related options for comparing motor control requirements. Confirm their ratings and application suitability before choosing a replacement.

Model	Product Type
ATS48C25Y	Altistart 48 Soft Starter
ATS48C32Y	Altistart 48 Soft Starter
ATS48C41Y	Altistart 48 Soft Starter
ATS48C48Y	Altistart 48 Soft Starter

Popular Related Models

Model	Product Type
ATS48D32Q	Altistart 48 Soft Starter
ATS48D38Q	Altistart 48 Soft Starter
ATS48D47Q	Altistart 48 Soft Starter
ATS48D62Q	Altistart 48 Soft Starter

These related models can help with catalog comparison and sourcing research. They should not be assumed to be direct replacements without confirming supply voltage, rated current, motor compatibility, and application requirements.

Applications

The Schneider Electric ATS48C41Y Soft Starter is part of the Altistart 48 product family, designed to manage the starting and stopping of compatible three-phase asynchronous motors. By controlling the motor-starting process, a soft starter can help reduce starting current and mechanical stress compared with direct-on-line starting.

Typical industrial applications include:

Water and Process Pumping: Supports controlled motor starting and stopping in industrial pumping systems.
Industrial Fans and Blowers: Helps reduce abrupt mechanical loading during acceleration.
Compressors: Provides controlled startup for compatible motor-driven compressor equipment.
Conveyor Systems: Helps minimize sudden torque changes affecting belts, couplings, and gearboxes.
Heavy-Duty Industrial Machinery: Can be used in suitable motor-driven applications requiring managed acceleration and stopping.

The appropriate selection depends on motor ratings, load characteristics, starting frequency, ambient conditions, and the requirements of the specific machine.

Advantages

Controlled Motor Acceleration: Helps manage the transition from standstill to normal operation.
Reduced Mechanical Stress: Can limit sudden torque changes that place stress on connected machinery.
Controlled Stopping: Supports suitable deceleration functions when configured for the application.
Motor Monitoring and Protection: The Altistart 48 family provides monitoring and protection features that require correct setup.
Industrial Control Integration: Can be incorporated into compatible motor control panels and automation systems.
Maintenance Support: The full model designation helps buyers and maintenance teams identify the intended component for service and replacement.

Technical FAQs

Q1: What is the Schneider ATS48C41Y used for?

The ATS48C41Y is an Altistart 48 soft starter intended to control the starting and stopping of compatible industrial motors.

Q2: What type of motor is suitable for the ATS48C41Y?

The Altistart 48 family is designed for three-phase asynchronous motors. Confirm the exact model's electrical ratings and compatibility with the motor before installation.

Q3: How does this soft starter help reduce starting current?

It controls the motor-starting process by regulating the applied voltage during acceleration. The actual starting current depends on the motor, driven load, and configured settings.

Q4: Can the ATS48C41Y be used with industrial pumps?

It may be suitable for compatible pump motors. Verify the motor rating, pump characteristics, starting duty, and required stopping behavior before selecting the unit.

Q5: Can a soft starter provide continuous speed control?

A conventional soft starter is primarily intended for starting and stopping, rather than continuous variable-speed operation. A suitable variable frequency drive is generally preferred when ongoing speed adjustment is required.

Q6: Does the Altistart 48 family include motor protection functions?

Yes, the family includes motor monitoring and protection features. Correct configuration and suitable external electrical protection remain necessary.

Q7: What should be checked before replacing an existing ATS48 unit?

Check the complete model number, motor rated current, supply voltage, wiring arrangement, control connections, starting frequency, and protection settings.

Q8: What can cause a soft starter to trip?

Possible causes include overload, excessive starting time, phase-related faults, supply abnormalities, overheating, or incorrect parameter settings. Consult the fault indication and the applicable troubleshooting manual.

Q9: What installation requirements should be considered?

Follow the manufacturer's instructions for mounting, ventilation, ambient temperature, clearances, grounding, wiring, and electrical protection.

Q10: Is the ATS48C41Y a direct replacement for the ATS48C32Y?

Not automatically. Confirm the rated current, supply conditions, motor compatibility, control requirements, and application duty before substituting one model for another.
