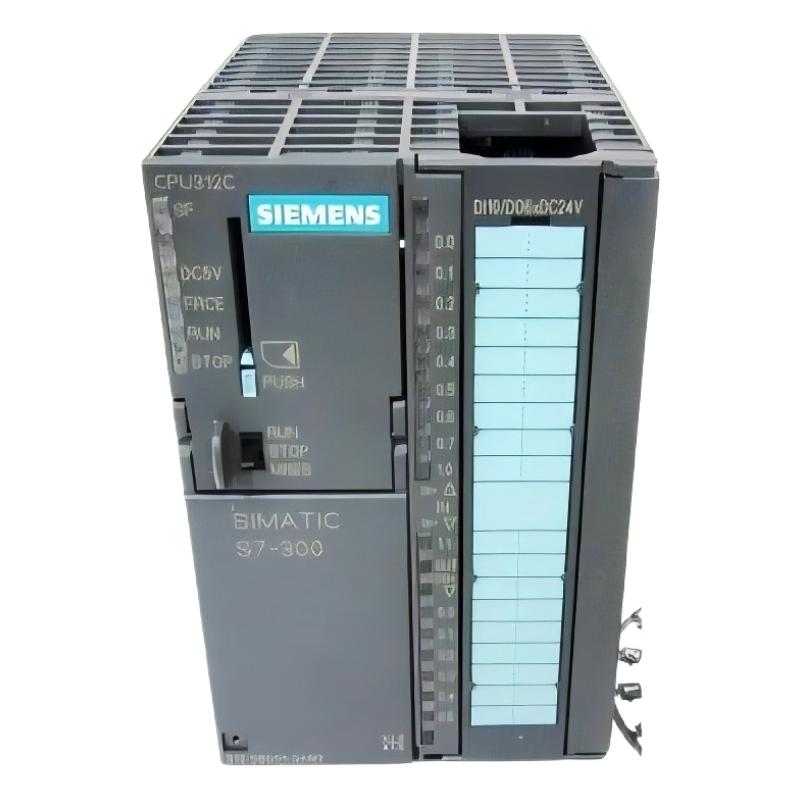

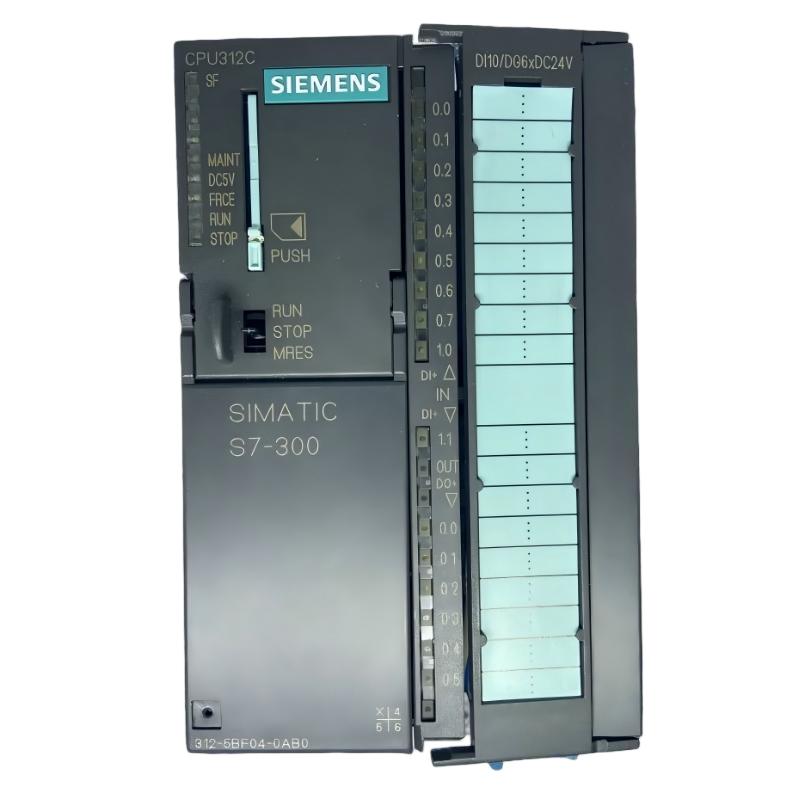

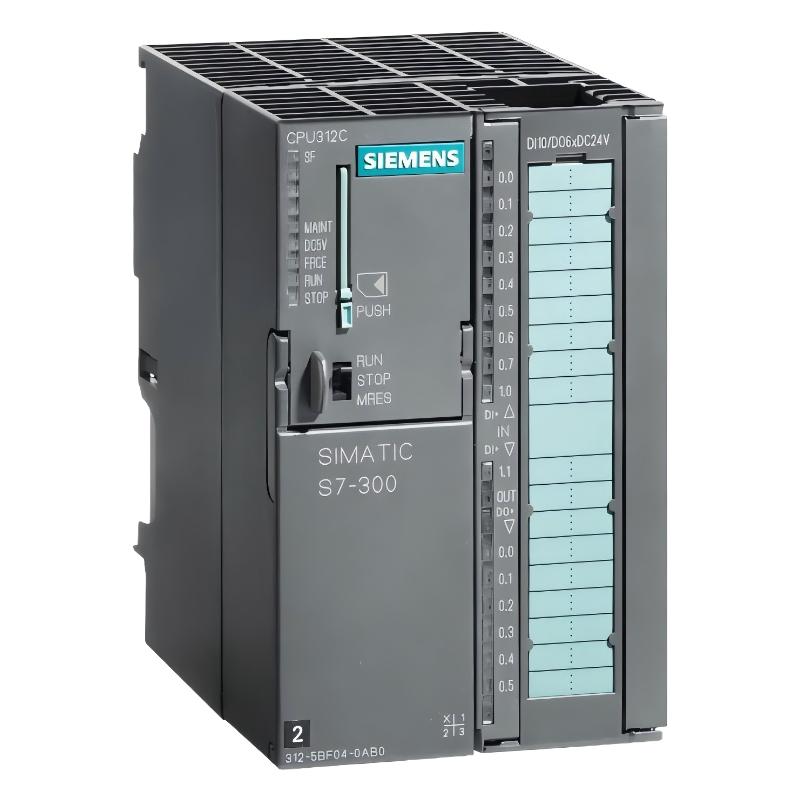

Siemens 6AG1312-5BF04-2AY0 CPU

Applications

The Siemens 6AG1312-5BF04-2AY0 CPU is an industrial automation controller from the SIMATIC SIPLUS product range. Designed for demanding automation environments, SIPLUS components are intended for applications where environmental conditions require additional consideration compared with standard automation equipment.

Typical application areas for compatible SIMATIC controllers include:

• Machine Automation: Executes control logic for automated production machinery and equipment.

• Manufacturing Systems: Supports sequencing and control tasks in industrial production processes.

• Process Monitoring: Works within compatible automation architectures to coordinate control tasks and equipment status.

• Industrial Equipment Integration: Supports communication and control within appropriately configured SIMATIC systems.

• Maintenance and System Upgrades: Can be considered for replacement projects where the exact CPU variant and system compatibility have been confirmed.

The precise capabilities, interfaces, and supported applications depend on the CPU's full technical specification and the associated automation configuration.

Advantages

• Industrial Automation Control: Designed for use in SIMATIC-based control systems.

• SIPLUS Product Design: Intended for applications that require additional environmental robustness, subject to the specified operating conditions.

• Compact Installation: The supplied dimensions support planning for equipment layout and cabinet integration.

• System Integration: Can be incorporated into compatible automation architectures after verifying communication and hardware requirements.

• Maintenance Planning: The complete order number helps technicians identify the specific product variant when sourcing spare parts.

• Configuration-Based Operation: Control performance depends on the supported programming environment, installed hardware, and application design.

Technical FAQs

Q1: What is the Siemens 6AG1312-5BF04-2AY0 CPU used for?

It is a compact SIMATIC S7-300 CPU 312C designed to execute PLC control programs for industrial automation applications.

Q2: What is the difference between the SIPLUS CPU and a standard S7-300 CPU?

The SIPLUS version features conformal coating and is designed for specified extended environmental conditions. This model is based on the standard CPU 312C, part number 6ES7312-5BF04-0AB0.

Q3: What is the CPU's work memory capacity?

The CPU has 64 KB of integrated work memory.

Q4: What digital I/O is integrated into the CPU?

It has 10 digital inputs and 6 digital outputs, along with two integrated high-speed counters rated up to 10 kHz.

Q5: What power supply does the CPU require?

The rated supply is 24 V DC, with a specified permissible range of 19.2–28.8 V DC. For this EN 50155 version, the power supply must comply with the applicable railway equipment requirements.

Q6: Which programming software is used?

The CPU is programmed using STEP 7, with the supported software version and hardware support package requirements observed.

Q7: Does the CPU have an integrated PROFINET interface?

No. This CPU provides an MPI interface and does not have an integrated PROFINET interface. Communication requirements should be assessed before system design or replacement.

Q8: Does the CPU require a Micro Memory Card?

Yes. A compatible SIMATIC Micro Memory Card is required for program storage and operation as specified for this CPU.

Q9: Can this CPU replace another SIMATIC S7-300 CPU?

Not automatically. Check the exact CPU model, I/O configuration, communication interfaces, program compatibility, memory requirements, and environmental ratings before replacement.

Q10: What should be checked before installing the 6AG1312-5BF04-2AY0?

Verify the power supply, mounting arrangement, front connector, Micro Memory Card, I/O wiring, programming software, and environmental conditions. Follow the applicable installation and safety documentation.
