Brand:Siemens Item No.:6AG1313-5BG04-2AY0 Product Origin:Germany Product Dimensions:130 × 125 × 120 mm Product Weight:0.719 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

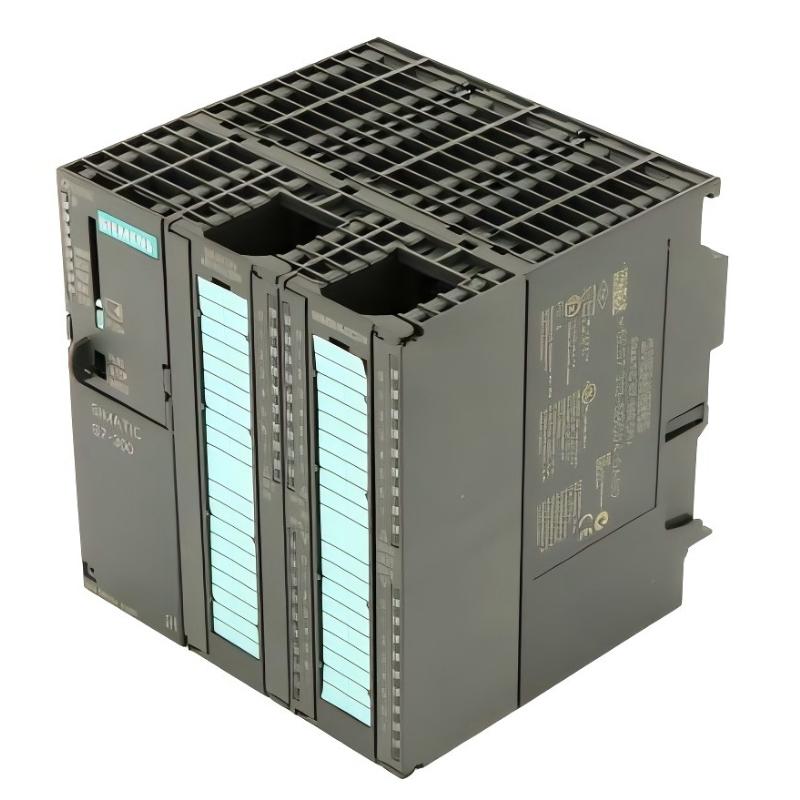

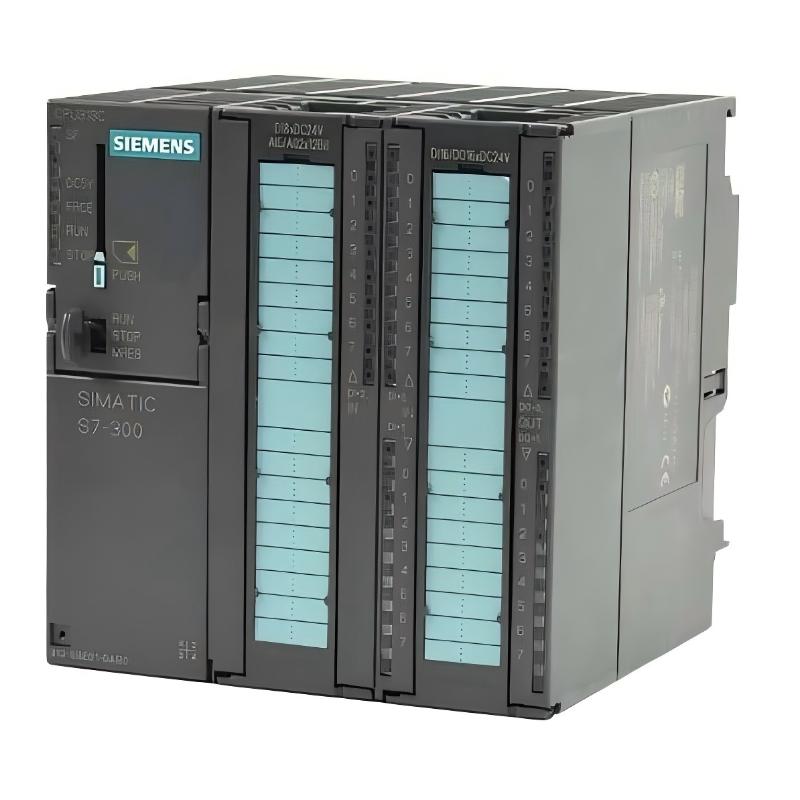

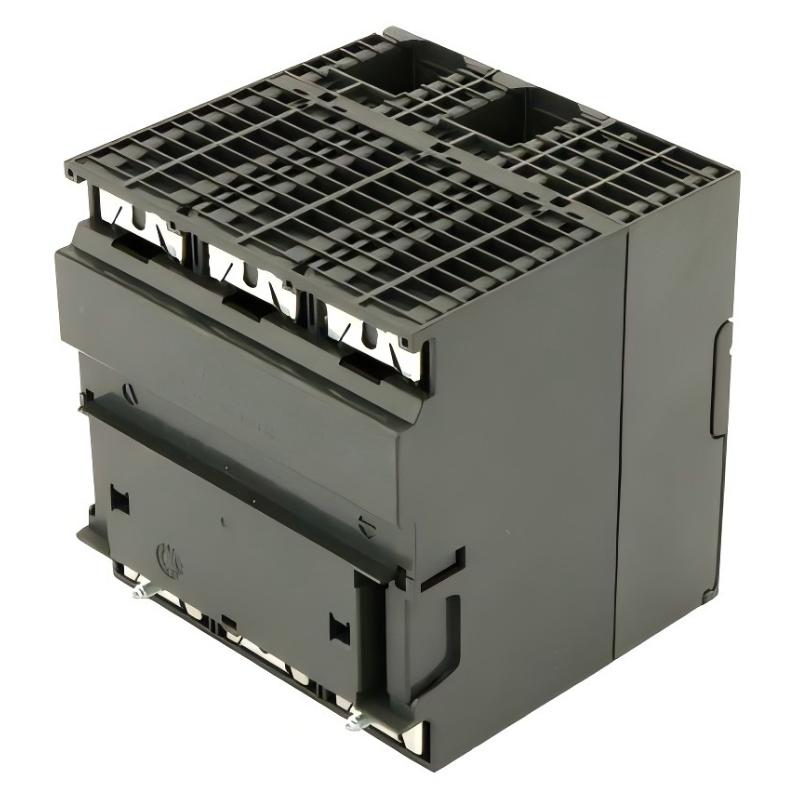

The Siemens 6AG1313-5BG04-2AY0 SIPLUS S7-300 CPU 313C is a compact programmable controller for applications requiring integrated digital and analog processing. With 24 digital inputs, 16 digital outputs, four analog inputs, two analog outputs, one Pt100 measurement channel, and three high-speed counters, it combines multiple control functions in a single PLC module.
The SIPLUS version is based on the standard SIMATIC S7-300 CPU 313C and incorporates conformal coating for additional environmental protection. Its EN 50155-related designation makes it relevant to qualifying railway applications, subject to the applicable installation and system requirements.
For industrial maintenance, equipment refurbishment, and control-system upgrades, the CPU offers an option for retaining an existing S7-300 architecture. Before ordering, verify the complete part number and confirm compatibility with the installed program, memory card, connected equipment, and environmental conditions.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6AG1313-5BG04-2AY0
Product Type
SIPLUS S7-300 CPU 313C
Product Series
SIMATIC S7-300
Base Model
6ES7313-5BG04-0AB0
CPU Type
Compact PLC CPU
Work Memory
128 KB
Digital Inputs
24
Digital Outputs
16
Analog Inputs
4
Analog Outputs
2
Temperature Measurement
1 Pt100 channel
High-Speed Counters
3
Maximum Counting Frequency
Up to 30 kHz
Communication Interface
MPI
Rated Supply Voltage
24 V DC
Permissible Supply Voltage
19.2–28.8 V DC
Environmental Protection
Conformal coating
Railway Standard
EN 50155-related version
Memory Card
SIMATIC Micro Memory Card required
Programming Software
Compatible STEP 7
Front Connector
Two 40-pin connectors
Dimensions
130 × 125 × 120 mm (5.12 × 4.92 × 4.72 in)
Weight
0.719 kg (1.58 lb)
Recommended Related Models
The following models belong to the Siemens SIMATIC S7-300 or SIPLUS S7-300 family. Their I/O configurations, communication interfaces, and environmental specifications differ, so verify the complete technical requirements before selecting an alternative.
Model
Product Type
Description
6AG1313-5BG04-7AB0
SIPLUS CPU 313C
Related CPU 313C version for standard industrial applications
6ES7313-5BG04-0AB0
CPU 313C
Standard SIMATIC S7-300 base model
6AG1313-6CG04-2AY0
SIPLUS CPU 313C-2 DP
Related CPU with PROFIBUS DP functionality and railway-related specifications
6AG1314-6CH04-2AY0
SIPLUS CPU 314C-2 DP
Compact CPU with integrated I/O and PROFIBUS DP
6AG1315-2AH14-2AY0
SIPLUS CPU 315-2 DP
S7-300 CPU with PROFIBUS DP communication
Popular Related Models
Model
Product Type
Description
6AG1312-5BF04-7AB0
SIPLUS CPU 312C
Compact CPU for smaller automation applications
6AG1313-6CG04-7AB0
SIPLUS CPU 313C-2 DP
Compact CPU with integrated I/O and PROFIBUS DP
6AG1314-1AG14-7AB0
SIPLUS CPU 314
S7-300 CPU for broader control requirements
6AG1315-2EH14-2AY0
SIPLUS CPU 315-2 PN/DP
CPU with PROFINET and PROFIBUS DP connectivity
6AG1317-2EK14-2AY0
SIPLUS CPU 317-2 PN/DP
Higher-performance S7-300 CPU with PN/DP communication
Applications
The Siemens 6AG1313-5BG04-2AY0 is a SIPLUS SIMATIC S7-300 CPU 313C compact programmable logic controller (PLC) designed for industrial automation systems requiring integrated digital and analog signal processing. Based on the standard 6ES7313-5BG04-0AB0, this CPU features conformal coating and is designed for demanding environmental conditions, including railway applications under EN 50155.
With integrated digital inputs and outputs, analog I/O, an MPI communication interface, and high-speed counting functions, the CPU provides a compact control solution for machinery, production equipment, and distributed industrial processes.
Typical applications include:
Industrial machine automation and sequence control
Digital and analog signal acquisition
Temperature measurement using a compatible Pt100 sensor
High-speed counting and pulse processing
Production equipment monitoring and control
Railway-related automation systems designed for applicable environmental requirements
Upgrades and maintenance of existing SIMATIC S7-300 installations
Advantages
Integrated digital I/O: Provides 24 digital inputs and 16 digital outputs for field signal control.
Analog signal processing: Includes 4 analog inputs and 2 analog outputs for compatible sensors and actuators.
Temperature measurement: Supports one integrated Pt100 measurement channel.
High-speed counting: Features three high-speed counters with counting frequencies up to 30 kHz, depending on configuration.
128 KB work memory: Supports more complex control programs than entry-level compact CPUs in the same family.
MPI communication: Supports programming and communication with compatible SIMATIC devices.
Conformal coating: Provides additional protection for electronic components in challenging environments.
24 V DC power supply: Uses a standard industrial DC supply architecture, with railway-specific power supply requirements to be considered for EN 50155 applications.
Compact PLC architecture: Combines CPU processing, digital I/O, analog I/O, and technological functions in one module.
Technical FAQs
Q1: What is the Siemens 6AG1313-5BG04-2AY0 CPU?
It is a SIPLUS SIMATIC S7-300 CPU 313C compact PLC designed for industrial automation. It includes integrated digital and analog I/O, high-speed counting functions, MPI communication, and conformal coating.
Q2: How many digital inputs and outputs does this CPU provide?
The CPU provides 24 digital inputs and 16 digital outputs, allowing it to process multiple field signals without requiring separate digital I/O modules for every point.
Q3: Does the 6AG1313-5BG04-2AY0 support analog signals?
Yes. It includes four analog inputs and two analog outputs. The supported signal types and ranges should be checked against the hardware configuration and application requirements.
Q4: Can this CPU measure temperature?
It supports one integrated Pt100 temperature measurement channel. Confirm the supported sensor wiring and configuration before connecting a temperature sensor.
Q5: How much work memory does the CPU have?
The CPU has 128 KB of work memory. A compatible SIMATIC Micro Memory Card is required for operation and provides load memory for the user program.
Q6: What high-speed counting functions are available?
The CPU supports three high-speed counters with frequencies up to 30 kHz. Actual performance depends on signal characteristics, wiring, and configuration.
Q7: Which communication interface is integrated?
The CPU includes an MPI interface for programming and communication with compatible SIMATIC equipment. This model should not be treated as having integrated PROFINET or PROFIBUS DP connectivity unless additional compatible hardware provides those functions.
Q8: What power supply does this CPU require?
It uses a rated 24 V DC supply, with a specified permissible range of 19.2–28.8 V DC. For railway applications, the power supply must also satisfy the applicable EN 50155 requirements.
Q9: Which programming software is used?
The CPU is programmed with compatible Siemens STEP 7 software. The engineering software version, hardware support package, and project configuration should be checked before commissioning or replacement.
Q10: What should be checked before replacing this CPU?
Verify the complete order number, firmware and hardware configuration, I/O wiring, Micro Memory Card, MPI settings, analog signal requirements, and environmental specifications. Confirm that the replacement supports the existing application before installation.
