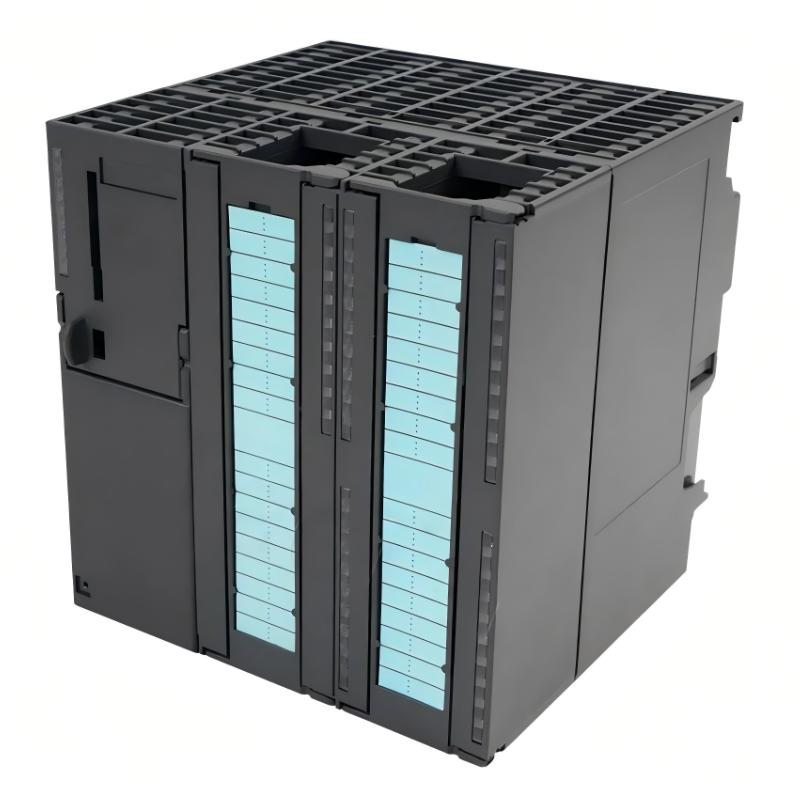

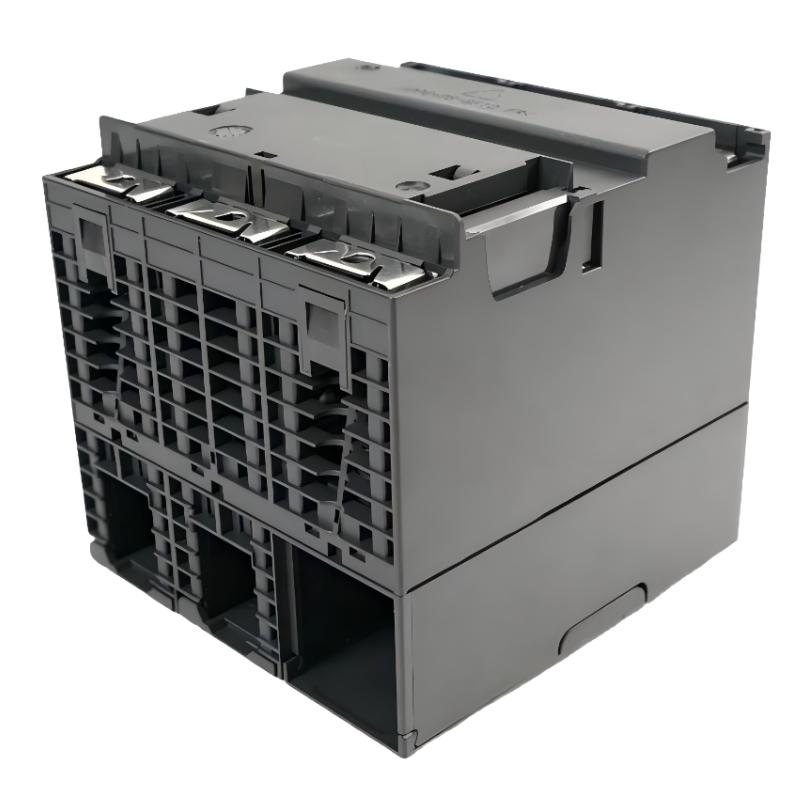

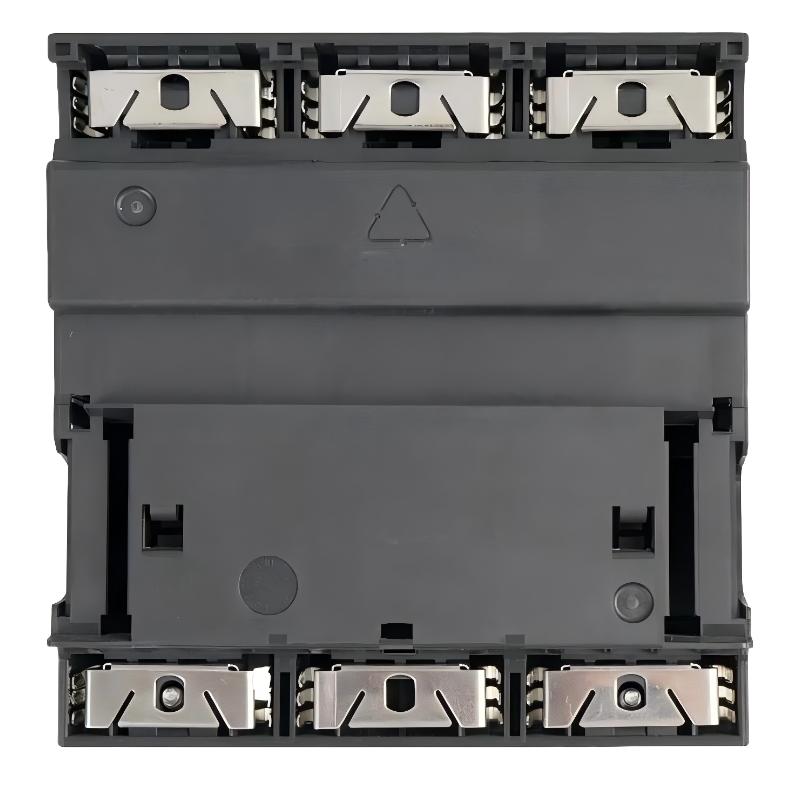

Siemens 6AG1313-5BG04-7AB0 CPU

Applications

The Siemens 6AG1313-5BG04-7AB0 is a SIPLUS SIMATIC S7-300 CPU 313C compact programmable logic controller (PLC) designed for industrial automation systems requiring integrated digital and analog signal processing. Based on the standard 6ES7313-5BG04-0AB0, this CPU features conformal coating and an extended operating temperature range of -25°C to +70°C.

With integrated digital inputs and outputs, analog I/O, an MPI communication interface, and high-speed counting functions, the CPU supports a range of machine-control and equipment-monitoring applications.

Typical applications include:

• Industrial machine automation and sequence control

• Digital and analog signal acquisition

• Sensor monitoring and actuator control

• Temperature measurement using a compatible Pt100 sensor

• High-speed counting and pulse processing

• Production equipment and compact process-control systems

• Maintenance and upgrades of existing SIMATIC S7-300 installations

Advantages

• Integrated digital I/O: Provides 24 digital inputs and 16 digital outputs for controlling field devices.

• Analog signal processing: Includes 4 analog inputs and 2 analog outputs for compatible sensors and actuators.

• Temperature measurement: Supports one integrated Pt100 measurement channel.

• High-speed counting: Features three high-speed counters with frequencies up to 30 kHz.

• 128 KB work memory: Supports PLC programs and associated runtime data.

• MPI communication: Enables programming and communication with compatible SIMATIC equipment.

• Conformal coating: Adds protection for electronic components in challenging environments.

• Extended temperature range: Designed for operation from -25°C to +70°C.

• Compact control architecture: Integrates CPU processing, digital I/O, analog I/O, and counting functions in one module.

Technical FAQs

Q1: What is the Siemens 6AG1313-5BG04-7AB0 CPU?

It is a SIPLUS SIMATIC S7-300 CPU 313C compact PLC with integrated digital and analog I/O, MPI communication, high-speed counters, and conformal coating.

Q2: How many digital inputs and outputs does this CPU provide?

The CPU provides 24 digital inputs and 16 digital outputs for connecting compatible field devices and control signals.

Q3: Does the 6AG1313-5BG04-7AB0 support analog signals?

Yes. It includes four analog inputs and two analog outputs. Check the required signal ranges and wiring configuration against the application specifications.

Q4: Can this CPU measure temperature?

Yes. It includes one Pt100 temperature measurement channel. Confirm the supported sensor configuration before connecting the temperature sensor.

Q5: How much work memory is available?

The CPU provides 128 KB of work memory. A compatible SIMATIC Micro Memory Card is required for operation and provides load memory for the user program.

Q6: What high-speed counting functions does it support?

It supports three high-speed counters with a specified maximum frequency of 30 kHz. Actual performance depends on signal characteristics and configuration.

Q7: Which communication interface is integrated?

The CPU has an MPI interface for programming and communication with compatible SIMATIC devices. It does not have integrated PROFINET or PROFIBUS DP functionality as part of this CPU model.

Q8: What is the operating temperature range?

The specified operating temperature range is -25°C to +70°C. The installation must also meet applicable requirements for humidity, vibration, electrical protection, and other environmental conditions.

Q9: Which software is used to program this CPU?

The CPU is configured and programmed using compatible Siemens STEP 7 engineering software. Check the software version and hardware configuration before commissioning.

Q10: What should be checked before replacing this CPU?

Verify the complete order number, program backup, firmware and hardware configuration, Micro Memory Card, MPI settings, digital and analog I/O wiring, and environmental requirements. Confirm system compatibility before installing a replacement.
