Brand:Siemens Item No.:6AV2123-2JB03-0AX0 Product Origin:Germany Product Dimensions:267 × 182 × 39.4 mm Product Weight:1.383 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

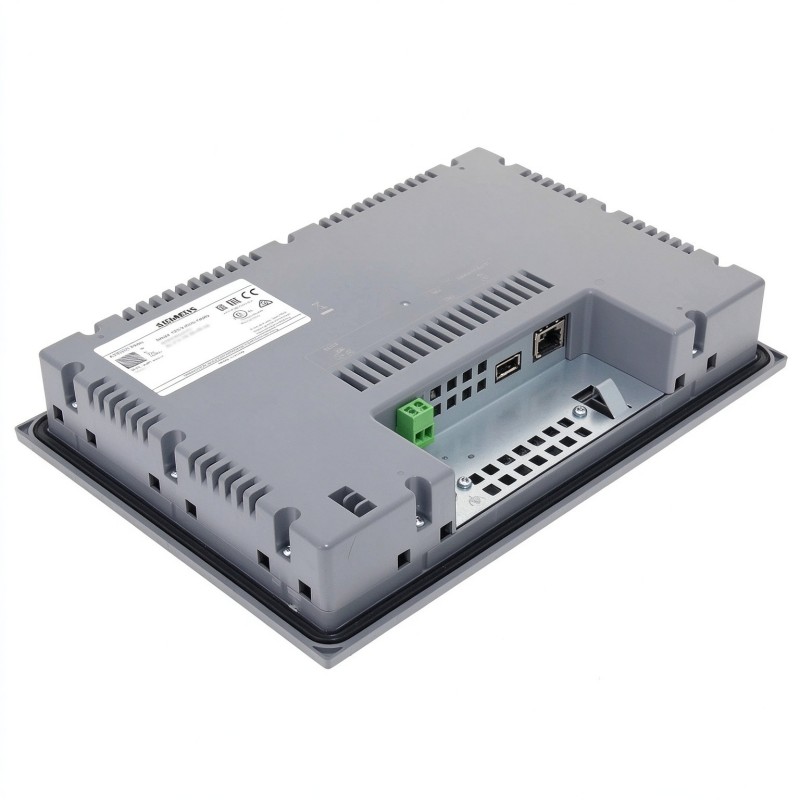

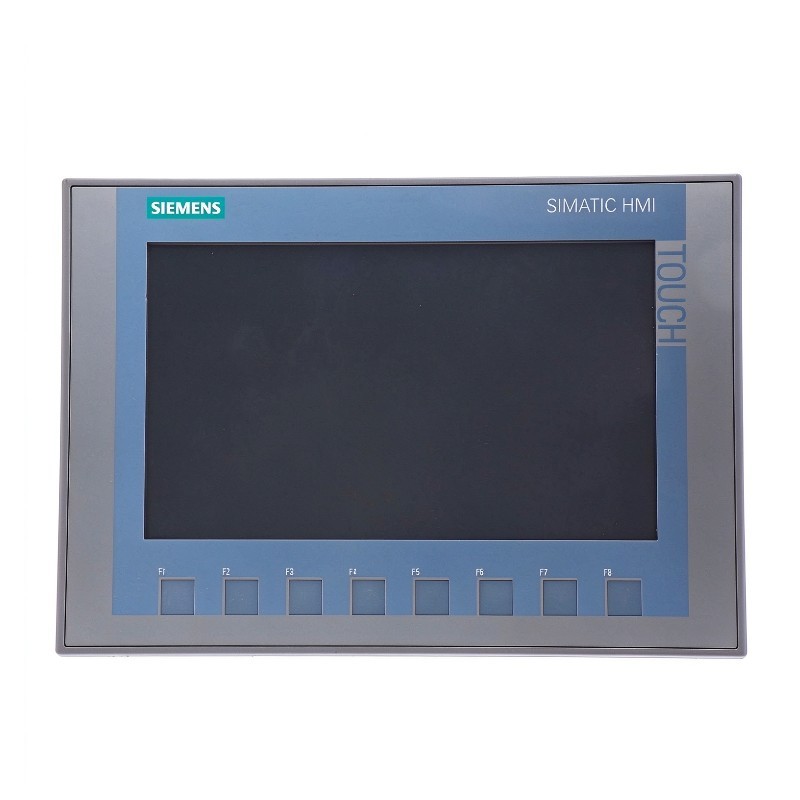

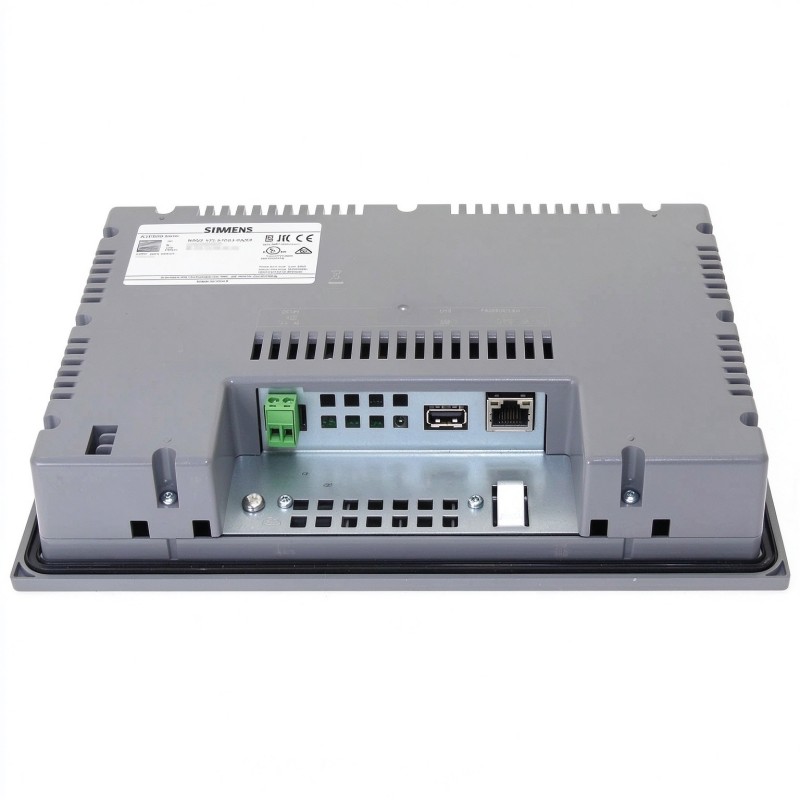

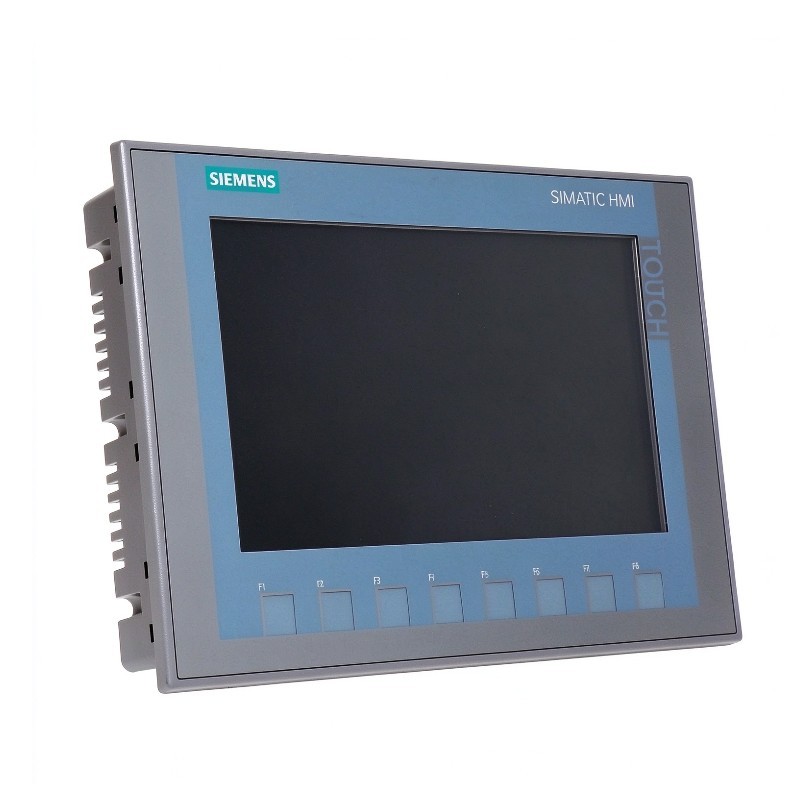

The Siemens 6AV2123-2JB03-0AX0 Basic Panel, also known as the SIMATIC HMI KTP900 Basic, is an operator interface for industrial automation applications. Its 9-inch color display provides space for machine graphics, process values, alarm information, and operator controls.
The combination of touchscreen operation, physical function keys, and PROFINET communication makes this HMI suitable for a range of machine-control and production-monitoring applications. Engineers can configure screens, PLC tags, alarms, and navigation functions using compatible Siemens engineering software.
For equipment manufacturers, system integrators, and maintenance teams, the KTP900 Basic can provide a dedicated interface between operators and PLC-controlled equipment. Before installation or replacement, confirm the communication configuration, software version, mounting dimensions, and application requirements.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6AV2123-2JB03-0AX0
Product Family
SIMATIC HMI Basic Panels, 2nd Generation
Product Name
KTP900 Basic
Display Type
TFT widescreen display with LED backlighting
Display Size
9 inches
Resolution
800 × 480 pixels
Number of Colors
65,536
Operating Method
Touchscreen and function keys
Number of Function Keys
8
Touch Technology
Analog resistive
Communication Interface
PROFINET / Industrial Ethernet
USB Interface
1
Rated Supply Voltage
24 V DC
User Data Memory
10 MB
Engineering Software
WinCC Basic V13 / STEP 7 Basic V13 or compatible version
Dimensions (W × H × D)
267 × 182 × 39.4 mm (10.51 × 7.17 × 1.55 in)
Weight
1.383 kg (3.05 lb)
Recommended Related Models
Model
Product Name
Description
6AV2123-2DB03-0AX0
KTP400 Basic
Compact 4-inch HMI panel
6AV2123-2GB03-0AX0
KTP700 Basic
7-inch HMI panel with PROFINET
6AV2123-2GA03-0AX0
KTP700 Basic DP
7-inch HMI panel with PROFIBUS
6AV2123-2JB03-0AX0
KTP900 Basic
9-inch HMI panel with PROFINET
6AV2123-2MB03-0AX0
KTP1200 Basic
12-inch HMI panel with PROFINET
Check the communication interface, display requirements, engineering software, and mounting dimensions before choosing a replacement or alternative model.
Popular Related Models
Model
Product Type
Application
6AV2123-2GB03-0AX0
SIMATIC KTP700 Basic
Machine operation and visualization
6AV2123-2MB03-0AX0
SIMATIC KTP1200 Basic
Larger-format operator interface
6ES7315-2AG10-0AB0
SIMATIC S7-300 CPU
PLC control applications
6ES7972-0BA12-0XA0
PROFIBUS Bus Connector
PROFIBUS network connections
6ES7392-1AJ00-0AA0
SIMATIC Front Connector
Signal-module wiring
These products are associated with Siemens automation and HMI installations. Verify the exact device versions and system requirements to ensure suitability for your application.
Applications
The Siemens 6AV2123-2JB03-0AX0 Basic Panel is a SIMATIC HMI operator interface designed for industrial machine operation, process visualization, and PLC-based automation systems. Featuring a 9-inch widescreen display, touch operation, physical function keys, and PROFINET connectivity, it provides operators with a practical interface for monitoring equipment and interacting with configured machine functions.
Typical applications include:
Machine operation and monitoring: Display operating parameters, equipment status, and process values.
Production line visualization: Present machine conditions, alarm messages, and production information.
Packaging and assembly machinery: Support routine operator commands and process supervision.
PLC-based control systems: Provide an HMI interface for compatible automation equipment.
Industrial equipment management: Display configured operating screens and machine diagnostics.
Process monitoring: Help operators review selected process data and respond to alarms.
Advantages
9-inch widescreen display: Provides additional screen space for process graphics, status indicators, and operating information.
Touchscreen and function keys: Combines touch interaction with physical keys for configured operator functions.
PROFINET connectivity: Supports communication with compatible PLCs and industrial automation devices.
Clear process visualization: Supports configured displays of machine states, process values, and alarm messages.
Panel-mounted installation: Designed for integration into suitable industrial control cabinets and operator stations.
Flexible HMI design: Allows screen layouts and operating functions to be tailored to the application.
Technical FAQs
Q1: What is the Siemens 6AV2123-2JB03-0AX0 Basic Panel?
It is a Siemens SIMATIC HMI KTP900 Basic operator panel designed for industrial machine operation, process visualization, and interaction with compatible automation systems.
Q2: What is the display size and resolution?
The panel features a 9-inch TFT widescreen display with a resolution of 800 × 480 pixels and 65,536 colors.
Q3: Does the 6AV2123-2JB03-0AX0 support PROFINET?
Yes. It has a PROFINET interface for communication with compatible PLCs and supported industrial automation devices.
Q4: Does this HMI support both touch and physical keys?
Yes. The KTP900 Basic supports analog-resistive touchscreen operation and includes eight physical function keys.
Q5: What power supply does the panel require?
The panel uses a nominal 24 V DC power supply. Confirm the permissible voltage range and electrical installation requirements in the device documentation before commissioning.
Q6: Which software is used to configure the KTP900 Basic?
The device is configurable using SIMATIC WinCC Basic V13 or STEP 7 Basic V13, subject to the relevant software and project compatibility requirements.
Q7: Can the panel display PLC values and alarms?
Yes. The configured HMI project can display PLC tags, process values, operating states, and alarm messages supported by the application.
Q8: Is this panel suitable for replacing an older HMI?
It may be suitable if the replacement system supports the required communication protocol, display layout, mounting arrangement, and HMI project. Check the existing system before ordering.
Q9: Can the panel be used in a machine control cabinet?
Yes. It is designed for panel-mounted industrial operator stations. Ensure the cabinet cutout, installation conditions, and environmental requirements comply with the device specifications.
Q10: What should be checked before purchasing this model?
Verify the complete order number, device condition, communication interface, engineering software compatibility, mounting requirements, and any accessories needed for installation.
