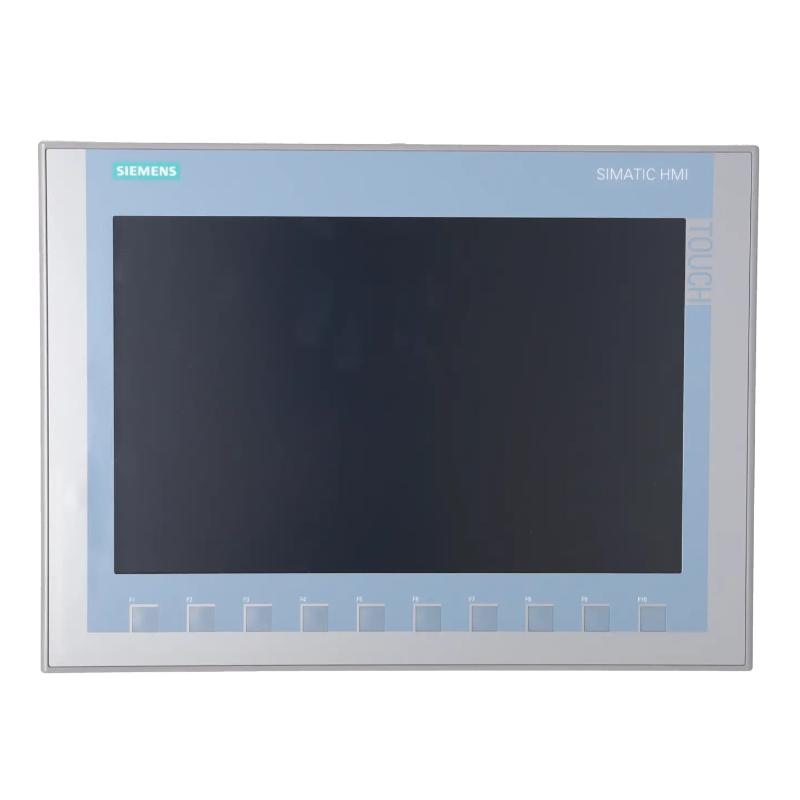

Siemens 6AV2123-2MA03-0AX0 Basic Panel

Applications

The Siemens 6AV2123-2MA03-0AX0 Basic Panel is a SIMATIC HMI operator interface designed for industrial machine operation, process visualization, and PLC-based automation systems. The KTP1200 Basic DP features a 12-inch TFT color display, combined touch and key operation, and a PROFIBUS communication interface.

Typical applications include:

• Machine operation and monitoring: Display operating conditions, process values, and equipment status.

• Production line visualization: Present machine states, alarms, and production information on a larger screen.

• Packaging and assembly equipment: Support operator interaction with PLC-controlled machinery.

• PROFIBUS automation networks: Provide an HMI interface for compatible control systems using PROFIBUS communication.

• Industrial process supervision: Display configured process parameters and operating messages.

• Control cabinet operator stations: Provide a dedicated interface for monitoring and operating industrial equipment.

Advantages

• 12-inch TFT display: Offers a spacious viewing area for machine graphics, process values, and operator screens.

• Touch and key operation: Combines touchscreen interaction with physical function keys.

• PROFIBUS connectivity: Supports integration into compatible PROFIBUS-based automation systems.

• Clear process visualization: Helps operators access configured machine status, alarms, and process information.

• SIMATIC engineering integration: Configurable using compatible Siemens WinCC Basic engineering software.

• Panel-mounted design: Suitable for control cabinets and industrial operator stations designed for the panel's mounting requirements.

• Flexible operator interface: Supports application-specific screen layouts, navigation, and configured operating functions.

Technical FAQs

Q1: What is the Siemens 6AV2123-2MA03-0AX0 Basic Panel?

It is the Siemens SIMATIC HMI KTP1200 Basic DP, a 12-inch operator panel designed for machine operation and process visualization in industrial automation systems.

Q2: What is the display size of the KTP1200 Basic DP?

The panel features a 12-inch TFT widescreen color display with LED backlighting and 65,536 colors.

Q3: Which communication interface does this model use?

This model uses a PROFIBUS interface. Confirm that the PLC or automation network supports the required PROFIBUS communication configuration.

Q4: Does the panel support touch and physical key operation?

Yes. The KTP1200 Basic DP combines touchscreen operation with physical function keys, providing multiple ways to interact with configured HMI screens.

Q5: Which power supply is required?

The panel uses a nominal 24 V DC power supply, with a permissible range of 19.2–28.8 V DC.

Q6: Which engineering software is compatible with this HMI?

The panel is configurable with SIMATIC WinCC Basic V13 or STEP 7 Basic V13. Verify the project and software version requirements before commissioning.

Q7: Can the KTP1200 Basic DP display alarms and PLC process values?

Yes. When configured in the HMI project, it can display PLC tags, process values, equipment status, and alarm messages supported by the application.

Q8: Is this panel suitable for existing PROFIBUS systems?

It may be suitable for existing systems that support the panel's communication requirements. Check PLC compatibility, network configuration, and the available engineering project before installation.

Q9: What should be checked when replacing an older HMI?

Verify the complete order number, communication interface, display layout, mounting cutout, power supply, engineering software compatibility, and availability of the original project.

Q10: What applications commonly use the KTP1200 Basic DP?

Typical applications include machine control stations, packaging lines, assembly equipment, and industrial processes that need a larger operator display and PROFIBUS connectivity.
