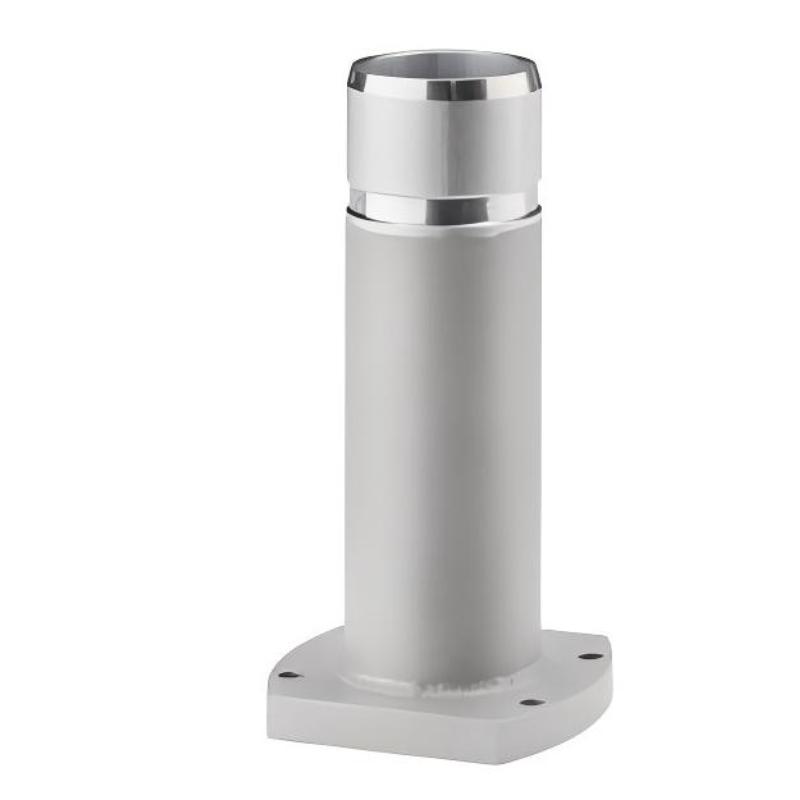

Siemens 6AV7674-1KF00-0AA0 Round Tube Adapter

Applications

The Siemens 6AV7674-1KF00-0AA0 Round Tube Adapter is a mechanical mounting accessory designed for Siemens SIMATIC HMI PRO devices prepared for support-arm and extension-component installation with a round-tube connection. It provides a transition between a nominal 48 mm round tube and a flange plate compatible with the device's basic adapter interface.

Typical applications include:

• HMI support-arm mounting: Connect compatible SIMATIC HMI PRO devices to a suitable industrial support-arm system.

• Industrial operator stations: Provide a mechanical mounting interface for operator panels in production environments.

• Machine control stations: Support positioning of HMI equipment near machinery and process areas.

• Assembly and packaging lines: Help integrate compatible operator panels into workstation layouts.

• Industrial equipment installation: Enable the use of suitable round-tube support systems with compatible PRO devices.

• HMI mounting-system integration: Provide a mechanical transition between the round-tube connection and the flange interface.

Advantages

• Dedicated mounting interface: Designed for compatible Siemens PRO devices with round-tube support-arm connections.

• Round-tube to flange transition: Connects a nominal 48 mm round tube to a flange plate.

• Durable construction: Made from steel with a powder-coated RAL 9006 finish.

• Industrial mounting design: Supports installation in suitable industrial operator-station environments.

• Compatible adapter interface: Designed to work with the basic adapter interface of applicable PRO devices.

• Protection when installed correctly: Supports an all-round IP65 protection rating when installed as specified.

• Single-piece supply: The specified scope of supply includes one adapter.

Technical FAQs

Q1: What is the Siemens 6AV7674-1KF00-0AA0 Round Tube Adapter?

It is a Siemens mounting accessory for compatible SIMATIC HMI PRO devices designed for support-arm installation with a round-tube connection.

Q2: What is the primary function of this adapter?

It provides a mechanical transition between a nominal 48 mm round tube and a flange plate compatible with the basic adapter interface of supported HMI PRO devices.

Q3: Which devices are compatible with this adapter?

It is intended for SIMATIC HMI PRO devices prepared for support-arm and extension-component installation with a round-tube connection. Confirm the exact device configuration before purchasing.

Q4: What material is the adapter made from?

The adapter is made of steel with a powder-coated finish in RAL 9006.

Q5: What protection rating does it provide?

The specified all-round protection rating is IP65 when the adapter is correctly installed as part of a compatible system.

Q6: What is the diameter of the round-tube interface?

The round-tube interface has a diameter of 48.3 mm, corresponding to a nominal 48 mm round-tube connection.

Q7: Can this adapter be used with any industrial support arm?

Not automatically. Compatibility depends on the support arm's mechanical interface, dimensions, load capacity, and mounting arrangement. Verify these requirements before installation.

Q8: Does the adapter require a separate basic adapter?

The adapter is designed to interface with the basic adapter interface of compatible PRO devices. Confirm the required components for the specific HMI configuration and mounting arrangement.

Q9: What should be checked before installing the adapter?

Check the HMI model, support-arm connection, flange dimensions, fixing points, fasteners, load requirements, and installation instructions. Correct installation is necessary to maintain the specified protection rating.

Q10: What is included in the package?

The specified scope of supply is one round tube adapter. Confirm whether additional mounting hardware or support-arm components are required for the installation.
