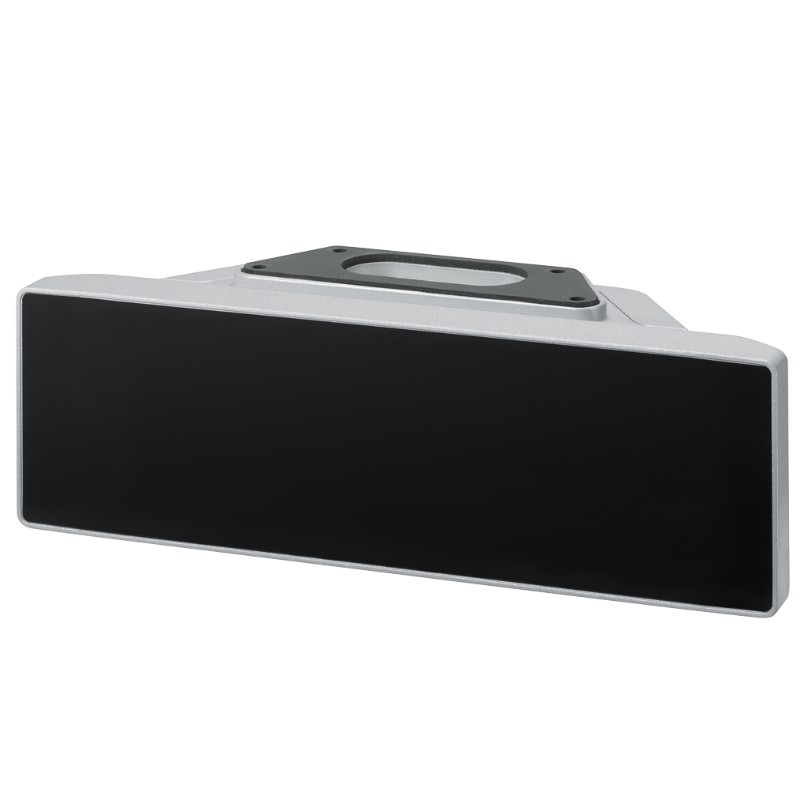

Siemens 6AV7674-1LA31-0AA0 Expansion Unit

Applications

The Siemens 6AV7674-1LA31-0AA0 Extension Unit 12" Hardwired is an operator-control expansion unit designed for compatible SIMATIC HMI and industrial PC (IPC) PRO devices. It provides additional space and functionality for physical operator controls, allowing machine builders to create integrated industrial operator stations.

Typical applications include:

• Machine operator stations: Add physical controls alongside compatible HMI or IPC PRO devices.

• Industrial machinery: Integrate operator commands and signaling devices into machine-control workstations.

• Production and packaging lines: Provide additional local controls for equipment operation.

• Assembly equipment: Support customized operator interfaces for manufacturing processes.

• Industrial control systems: Connect supported operator-control signals directly to the plant control system.

• HMI workstation expansion: Extend the physical operating functions of compatible PRO installations.

Advantages

• 12-inch system format: Designed for compatible 16:9 SIMATIC HMI and IPC PRO installations.

• Hardwired signal connections: Connects I/O signals directly to the plant control system.

• Physical operator controls: Supports additional command and signaling functions.

• Aluminum construction: Provides a robust enclosure and front structure for industrial applications.

• Modular integration: Helps consolidate operator controls and visualization equipment in one workstation.

• Customer-interface connectors: Supports integration with the required external wiring.

• Flexible system configuration: Suitable for compatible PRO installations where additional local controls are needed.

Technical FAQs

Q1: What is the Siemens 6AV7674-1LA31-0AA0 Expansion Unit?

It is the SIMATIC Extension Unit 12" Hardwired, an operator-control expansion unit designed for compatible Siemens HMI and IPC PRO devices.

Q2: What is the primary function of this Extension Unit?

It adds physical operator-control and signaling functions beneath a compatible PRO device, extending the capabilities of an industrial operator station.

Q3: What does “Hardwired” mean for this model?

It means the unit's I/O signals are connected directly to the plant control system through electrical wiring rather than relying on PROFINET for those signals.

Q4: Which devices can this Extension Unit be used with?

It is intended for compatible SIMATIC HMI and IPC PRO devices with the appropriate 16:9 format and mounting configuration. Confirm compatibility with the exact main device before installation.

Q5: What types of controls can be integrated?

Suitable operator command and signaling components can be integrated according to the unit's design. Check component dimensions, mounting requirements, and electrical ratings before selecting the controls.

Q6: Does this model use PROFINET for its I/O signals?

This is the hardwired variant, designed for direct plant wiring. Other Extension Unit variants use different communication architectures, so the correct model should be selected according to the control-system design.

Q7: What material is used for the enclosure?

The enclosure and front construction use aluminum, providing a mechanical housing for the operator-control components.

Q8: Can this unit be installed in an existing machine?

It may be suitable if the machine has a compatible PRO device and adequate installation space. Verify the mounting interface, wiring arrangements, and system requirements.

Q9: What should be checked before purchasing this unit?

Confirm the complete order number, main-device compatibility, mounting dimensions, required operator controls, connector arrangement, and electrical wiring requirements.

Q10: What is the difference between the 6AV7674-1LA31-0AA0 and 6AV7674-1LA32-0AA0?

The 6AV7674-1LA31-0AA0 is the hardwired version, while the 6AV7674-1LA32-0AA0 is the PROFINET version. The connection architecture differs, so choose the model that matches the machine's control system.
