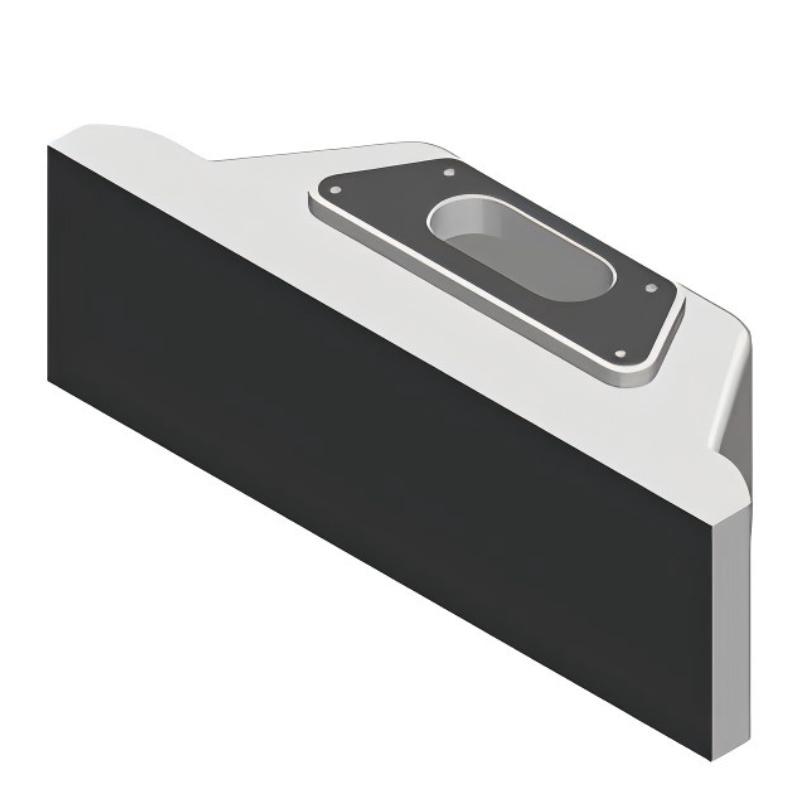

Siemens 6AV7674-1LA32-0AA0 Expansion Unit

Applications

The Siemens 6AV7674-1LA32-0AA0 Extension Unit 12" PROFINET is an operator-control expansion unit designed for compatible SIMATIC HMI and industrial PC (IPC) PRO devices. It extends an operator station with additional physical controls and signaling functions, using PROFINET communication to integrate supported signals into the automation system.

Typical applications include:

• Industrial machine operation: Add physical operator controls to compatible HMI-based workstations.

• Production and packaging lines: Provide additional control and signaling functions for machine operators.

• Assembly systems: Integrate operator commands into manufacturing workstations.

• PLC-based automation: Connect supported expansion-unit signals through a compatible PROFINET architecture.

• Industrial operator stations: Consolidate visualization and physical controls in one installation.

• Machine status indication: Support configured signaling functions for machine states and operating conditions.

Advantages

• PROFINET communication: Integrates supported operator-control signals into compatible industrial Ethernet networks.

• 12-inch system format: Designed for compatible 16:9 SIMATIC HMI and IPC PRO devices.

• Additional operator controls: Expands the physical control functions available at an operator station.

• Industrial enclosure: Aluminum construction provides a housing for the control components.

• Modular integration: Supports expansion of compatible PRO installations.

• Centralized operation: Helps combine an HMI interface with additional physical controls.

• System flexibility: Suitable for applications that require network-connected operator-control signals.

Technical FAQs

Q1: What is the Siemens 6AV7674-1LA32-0AA0 Expansion Unit?

It is the SIMATIC Extension Unit 12" PROFINET, designed to expand the operator-control functions of compatible Siemens HMI and IPC PRO devices.

Q2: What is the main function of this Extension Unit?

It provides mounting positions for additional operator controls and signaling devices, allowing users to expand the physical operating functions of an industrial workstation.

Q3: How many operator controls can be installed?

The unit provides six mounting positions and can accommodate up to six compatible operator controls, depending on the selected components and configuration.

Q4: Does the 6AV7674-1LA32-0AA0 support PROFINET?

Yes. It communicates through PROFINET and has two PROFINET interfaces with an integrated switch.

Q5: How are safety-related signals connected?

Safety-related signals, such as those associated with an emergency-stop device, are connected directly to the system. Other supported operator-control signals are transmitted via PROFINET.

Q6: What power supply does this unit require?

It uses a nominal 24 V DC supply, with a permissible voltage range of 19.2–28.8 V DC.

Q7: Which devices are compatible with this Extension Unit?

It is designed for compatible fully enclosed IP65-protected 16:9 SIMATIC HMI and IPC PRO devices. Confirm the mounting arrangement and device compatibility before installation.

Q8: What protection rating does the unit provide?

The unit has an all-round IP65 protection rating when installed correctly and used according to the applicable installation requirements.

Q9: Can this unit replace the hardwired version?

Not as a direct like-for-like replacement in every system. The 6AV7674-1LA32-0AA0 uses PROFINET for non-safety-related operator-control signals, while the 6AV7674-1LA31-0AA0 is the hardwired version. Check the wiring and control-system architecture before changing models.

Q10: What should be checked before purchasing this unit?

Verify the complete order number, compatible HMI or IPC PRO device, required operator controls, network configuration, power supply, mounting dimensions, and safety-related wiring requirements.
