Brand:Siemens Item No.:6AV7674-1LA33-0AA0 Product Origin:Germany Product Dimensions:313 × 99 × 100.65 mm Product Weight:2.206 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

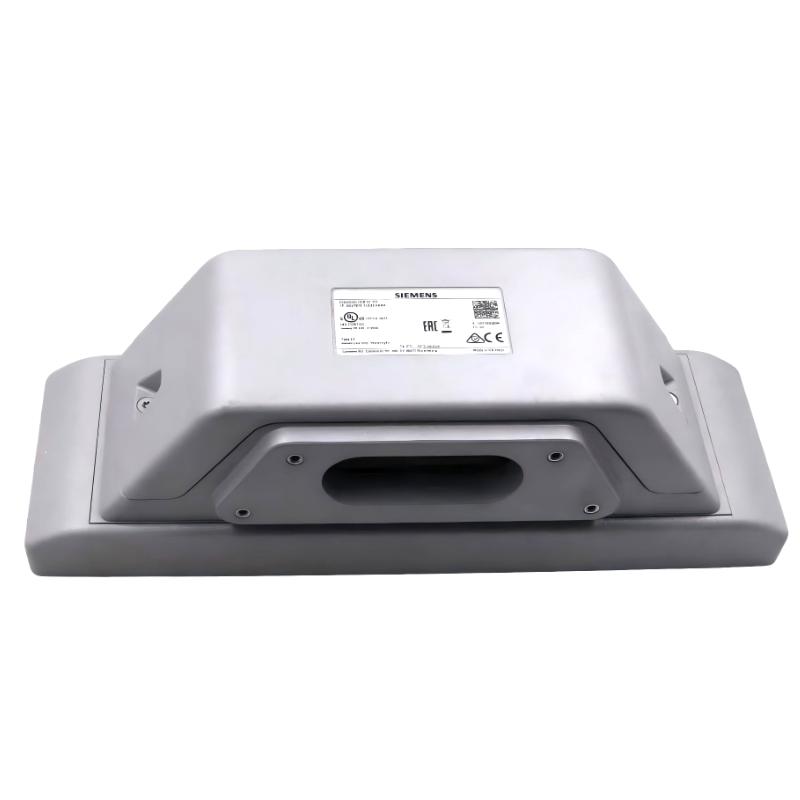

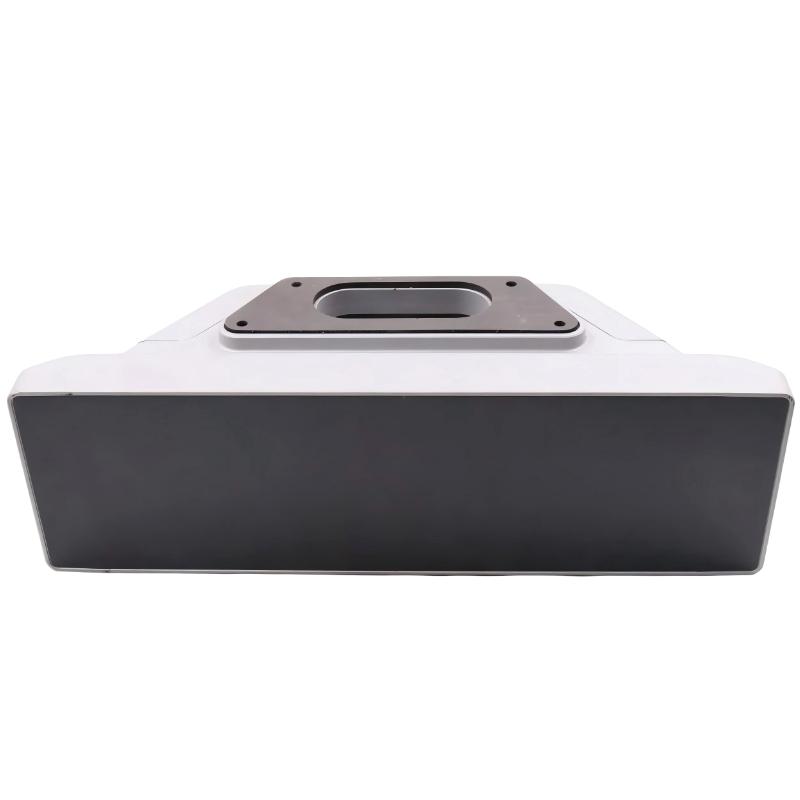

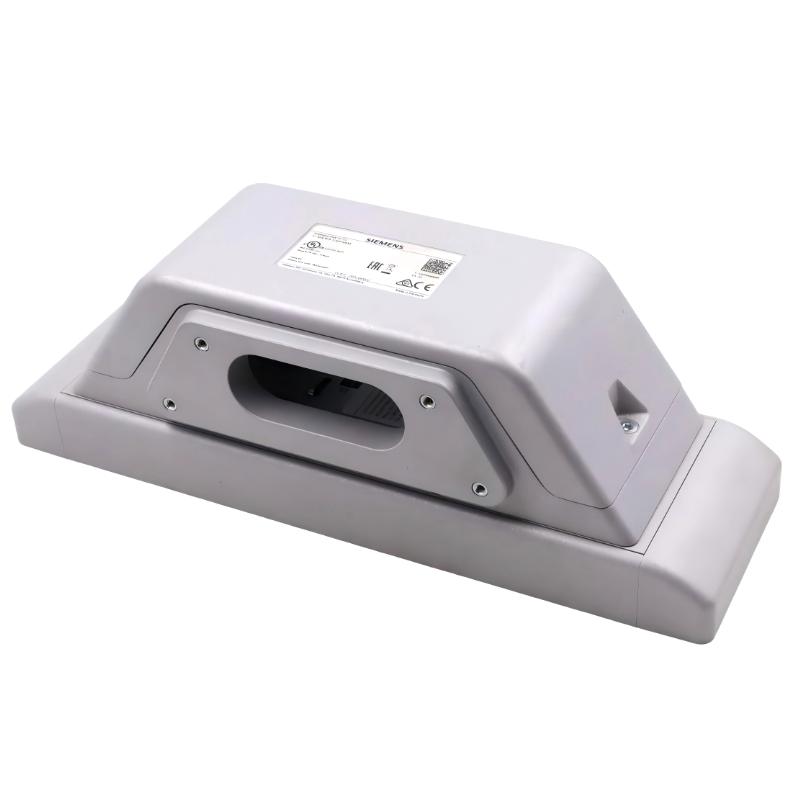

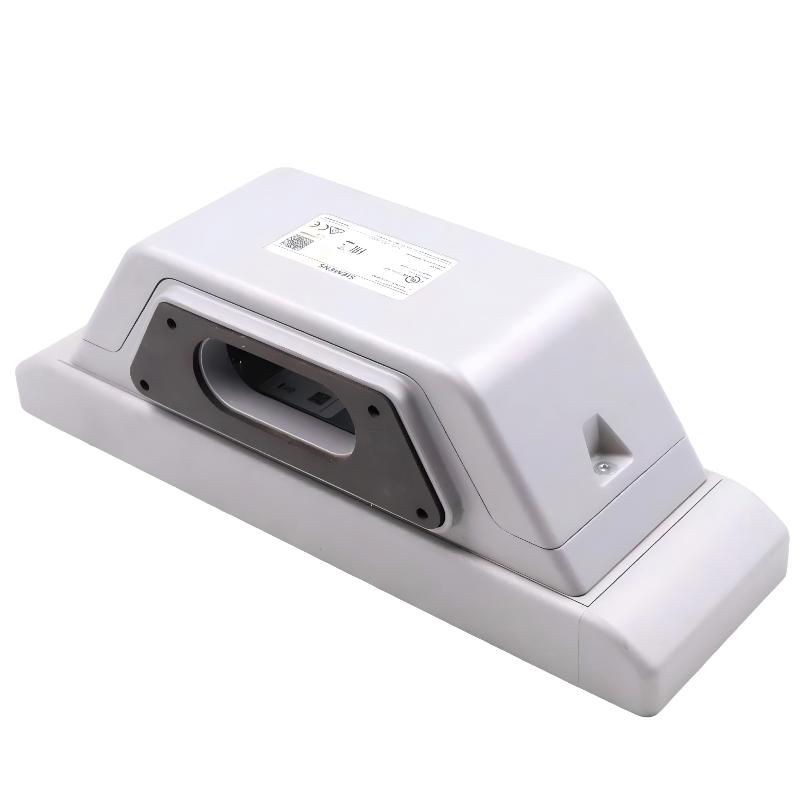

The Siemens 6AV7674-1LA33-0AA0 SIMATIC Extension Unit 12" PROFIsafe is designed to expand operator-control functionality in compatible industrial HMI and IPC PRO installations. It mounts beneath a suitable 16:9 PRO device and provides six positions for configuring additional physical controls.
Unlike the hardwired and standard PROFINET variants, this model is designed for PROFIsafe communication, allowing supported I/O signals to be transmitted through a compatible PROFINET/PROFIsafe architecture. This makes it relevant to applications where operator-control expansion must be integrated into an appropriately designed safety-related automation system.
The control elements are ordered separately, allowing machine builders and system integrators to select suitable components for their operator stations. Before installation, verify device compatibility, safety-system requirements, network configuration, and the required control-element arrangement.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6AV7674-1LA33-0AA0
Product Name
SIMATIC Extension Unit 12" PROFIsafe
Product Type
HMI Operator-Control Expansion Unit
Product Family
SIMATIC Extension Units and Operator Controls
Compatible Equipment
Fully enclosed IP65-protected 16:9 HMI/IPC PRO devices
Communication Architecture
PROFINET / PROFIsafe
Number of Mounting Positions
6
Maximum Control Elements
6
Parameterizable Keys
Supported
Control Elements
Ordered separately
RFID Reader Compatibility
SIMATIC RF200 Access Control Reader RF1060R
Rated Supply Voltage
24 V DC
Permissible Supply Voltage
19.2–28.8 V DC
Enclosure Material
Aluminum
Front Material
Aluminum
Mounting Method
Screw-mounted beneath a compatible HMI/IPC PRO device
Dimensions (W × H × D)
313 × 99 × 100.65 mm (12.32 × 3.90 × 3.96 in)
Weight
2.206 kg (4.86 lb)
Recommended Related Models
Model
Product Name
Description
6AV7674-1LA30-0AA0
Extension Unit Box 12"
Empty enclosure for customized operator controls
6AV7674-1LA31-0AA0
Extension Unit 12" Hardwired
Expansion unit with directly wired I/O signals
6AV7674-1LA32-0AA0
Extension Unit 12" PROFINET
Expansion unit with PROFINET communication
6AV7674-1LA33-0AA0
Extension Unit 12" PROFIsafe
Expansion unit with PROFIsafe communication
6AV7674-1LA43-0AA0
Extension Unit 15" PROFIsafe
PROFIsafe expansion unit for compatible 15-inch systems
These models have different communication architectures or device-size formats. Confirm the required interface and system compatibility before selecting an alternative.
Popular Related Models
Model
Product Type
Application
6AV7674-1LA30-0AA0
Extension Unit Box 12"
Enclosure for customized operator controls
6AV7674-1LA31-0AA0
Extension Unit 12" Hardwired
Direct-wired operator controls
6AV7674-1LA32-0AA0
Extension Unit 12" PROFINET
Network-connected operator-control expansion
6AV7674-1LA33-0AA0
Extension Unit 12" PROFIsafe
Safety-related operator-control integration
6AV7674-1LA53-0AA0
Extension Unit 19" PROFIsafe
PROFIsafe expansion for compatible 19-inch systems
The Siemens 6AV7674-1LA33-0AA0 is intended for industrial operator stations requiring configurable physical controls and PROFIsafe communication. Correct selection depends on the main HMI or IPC PRO device, the required control elements, and the safety architecture of the automation system.
Applications
The Siemens 6AV7674-1LA33-0AA0 Extension Unit 12" PROFIsafe is an operator-control expansion unit designed for compatible fully enclosed SIMATIC HMI and industrial PC (IPC) PRO devices with a 16:9 format. It adds physical operator-control functions to an industrial workstation and supports the integration of compatible controls through PROFINET and PROFIsafe communication.
Typical applications include:
Industrial machine operation: Add operator-control devices to compatible HMI and IPC PRO installations.
Safety-related machine control: Integrate supported safety-related operator controls into a suitable PROFIsafe automation architecture.
Production and packaging lines: Expand operator stations with additional command and signaling functions.
Assembly systems: Provide additional physical controls for industrial workstations.
PLC-based automation: Connect supported control elements through compatible PROFINET/PROFIsafe systems.
Industrial operator stations: Combine visualization and physical control functions in a single installation.
Advantages
PROFIsafe communication: Supports the transmission of compatible I/O signals through PROFINET/PROFIsafe.
Six mounting positions: Allows flexible configuration with up to six compatible control elements.
12-inch system format: Designed for compatible fully enclosed 16:9 HMI/IPC PRO devices.
Safety-system integration: Supports appropriate safety-related control configurations when used with a compatible safety system.
Aluminum construction: Provides a robust enclosure and front structure.
Flexible operator interface: Allows the control arrangement to be adapted to machine requirements.
Modular installation: Extends compatible PRO operator stations without requiring a separate standalone control enclosure.
Technical FAQs
Q1: What is the Siemens 6AV7674-1LA33-0AA0 Expansion Unit?
It is the SIMATIC Extension Unit 12" PROFIsafe, an operator-control expansion unit designed for compatible Siemens HMI and IPC PRO devices.
Q2: What is the main function of this Extension Unit?
It expands an industrial operator station by providing mounting positions for physical control and signaling devices, with supported I/O signals transmitted through PROFINET/PROFIsafe.
Q3: How many control elements can be installed?
The unit provides six mounting positions and supports installation of up to six compatible control elements. The control elements must be ordered separately.
Q4: What is the difference between PROFIsafe and standard PROFINET?
PROFINET provides industrial Ethernet communication, while PROFIsafe adds a safety communication layer for supported safety-related applications. A compatible safety controller and properly configured system are required.
Q5: What power supply does the Extension Unit require?
The unit uses a nominal 24 V DC supply, with a permissible range of 19.2–28.8 V DC.
Q6: Can the unit accommodate an RFID reader?
Yes. The design supports installation of the Siemens SIMATIC RF200 Access Control Reader RF1060R, subject to the applicable configuration requirements.
Q7: Which HMI or IPC devices are compatible with this model?
It is designed for compatible fully enclosed IP65-protected 16:9 SIMATIC HMI and IPC PRO devices. Confirm the specific device and mounting configuration before installation.
Q8: Are control buttons and signaling devices included?
No. The control elements are ordered separately, allowing the operator station to be configured for the application's requirements.
Q9: Can this unit replace the hardwired or PROFINET versions?
Not necessarily. The 6AV7674-1LA31-0AA0 is the hardwired version, the 6AV7674-1LA32-0AA0 is the PROFINET version, and the 6AV7674-1LA33-0AA0 is the PROFIsafe version. Select according to the required control and safety architecture.
Q10: What should be checked before purchasing this Expansion Unit?
Verify the complete order number, HMI/IPC compatibility, control-element requirements, 24 V DC supply, network configuration, safety-controller compatibility, and mounting dimensions.
