Introduction

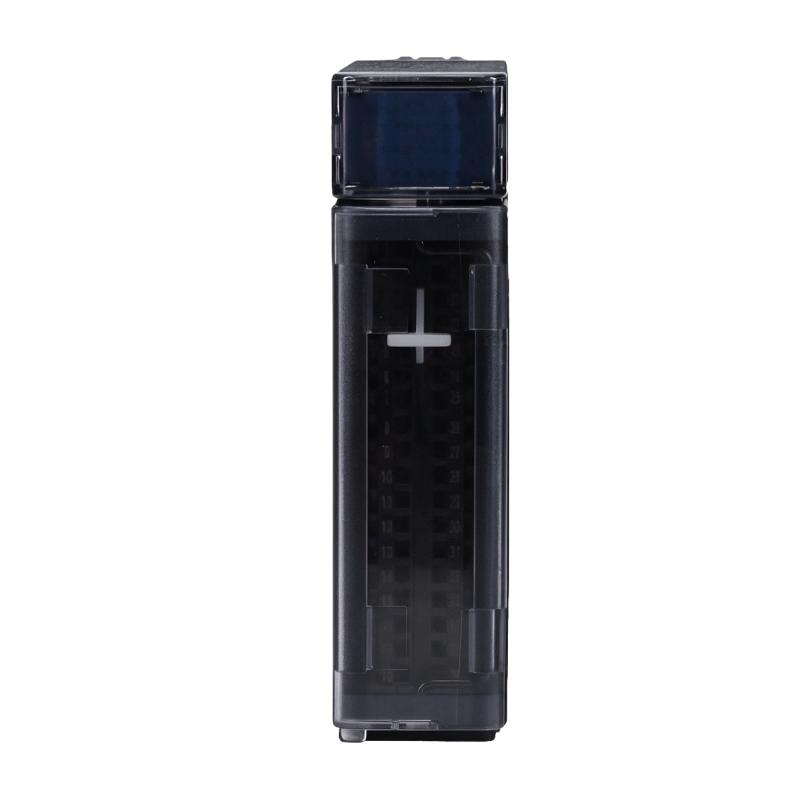

The GE IC695MDL754 DC Voltage Discrete Output Module is intended for PLC-based control applications that require discrete switching of external DC circuits. Output modules form an important interface between controller logic and field equipment, allowing programmed commands to operate devices and coordinate automated processes.

In manufacturing, equipment control, and process automation, discrete outputs support functions such as machine sequencing, device activation, status indication, and control-system interlocking. Selecting a module that matches the controller architecture and field electrical requirements is essential for dependable operation.

When sourcing the IC695MDL754, verify the complete catalog number, hardware revision, condition, and supplied accessories. For replacement projects, confirm the output voltage and current ratings, wiring arrangement, and controller compatibility before installation.

Technical Specifications

Parameter	Specification
Brand	GE
Model	IC695MDL754
Product Type	DC Voltage Discrete Output Module
Product Category	PLC Digital Output Module
Output Signal	Discrete DC
Output Points	Verify against the exact catalog number and product documentation
Dimensions	145 × 34 × 140 mm
Weight	0.25 kg / 0.55 lb
Application	Industrial automation and discrete load control
System Compatibility	Verify controller platform and hardware configuration
Output Voltage Range	Confirm against the product nameplate and technical documentation
Output Current Rating	Confirm against the exact module specifications
Terminal Accessories	Verify the required terminal block and wiring accessories

The dimensions and weight are based on the supplied product information. Confirm the electrical specifications and exact model designation before procurement or commissioning.

Recommended Related Models

The following GE automation modules may be relevant when evaluating discrete output requirements or planning maintenance for compatible control systems. They are not confirmed direct replacements for the IC695MDL754.

Model	Product Type	Selection Consideration
GE IC695MDL765	Smart Discrete Output Module	Compare output voltage, current capacity, and controller support
GE IC694MDL754	DC Voltage Discrete Output Module	Verify platform compatibility and hardware requirements
GE IC694MDL930	AC/DC Relay Output Module	Consider for applications requiring relay-type outputs
GE IC694MDL916	AC/DC Relay Output Module	Check output configuration and electrical ratings

Always verify the complete catalog number and the supported PLC platform before selecting an alternative.

Popular Related Models

Other GE control-system components may be useful when maintaining or expanding a PLC installation.

Model	Product Type	Typical Role
GE IC695CPU310	CPU Module	Controller logic execution
GE IC695PSD040	Power Supply Module	Powering compatible control hardware
GE IC695ETM001	Ethernet Interface Module	Industrial network communication
GE IC695ALG600	Analog Input Module	Acquiring analog field signals

These products perform different functions and are not interchangeable with the IC695MDL754. Confirm system compatibility, hardware revision, and application requirements before ordering.

Applications

The GE IC695MDL754 DC Voltage Discrete Output Module is designed to provide discrete DC output control in compatible industrial automation systems. It enables a programmable logic controller (PLC) to switch external devices according to programmed control sequences, supporting coordinated machine operation and automated process management.

Typical applications include:

Industrial Machine Control: Switching compatible DC-operated devices in production machinery and automated equipment.
Manufacturing Automation: Controlling status indicators, interface relays, and other discrete-output loads.
Process Control: Executing PLC output commands for equipment sequencing and operational control.
Material Handling Systems: Supporting discrete control functions for conveyors and automated handling equipment.
Control Cabinet Maintenance: Providing a replacement or spare module for compatible installations after hardware and electrical requirements have been verified.

The module is associated with GE's PACSystems RX3i automation platform. Confirm the precise catalog number and supported hardware configuration before integrating it into an existing control system.

Advantages

Multiple Output Channels: The IC695MDL754 model family is associated with a 32-point output configuration, supporting multiple discrete control signals in one module.
DC Load Control: Designed for discrete switching applications involving compatible DC-powered field devices.
Organized Control Architecture: Helps connect PLC logic with external equipment and control circuits.
Industrial Automation Integration: Supports output control in compatible PLC-based manufacturing and process systems.
Maintenance Convenience: A verified spare module can help reduce equipment downtime during troubleshooting and replacement.
Compact Installation Footprint: The supplied dimensions of 145 × 34 × 140 mm support straightforward evaluation of cabinet space requirements.

Actual output ratings, protection features, terminal accessories, and compatibility should be checked against the exact product documentation and hardware revision.

Technical FAQs

Q1: What is the primary function of the GE IC695MDL754?

It is identified as a DC voltage discrete output module. Its role is to translate PLC output commands into switching signals for compatible external DC loads.

Q2: What types of devices can a discrete output module control?

Depending on the module's electrical ratings, supported loads may include interface relays, indicator lamps, solenoid-operated devices, and other compatible DC equipment. Verify the load's voltage and current requirements before connection.

Q3: How does the module receive output commands?

The PLC executes its control program and updates the output states through the supported system interface. The module then switches the corresponding output circuits according to those commands.

Q4: What is the difference between a digital output and an analog output?

A digital output provides discrete states, typically ON and OFF. An analog output provides a continuously variable signal, such as a voltage or current proportional to a commanded value.

Q5: Why must the field power supply be checked before installation?

The external supply must match the module's specified voltage range and load requirements. An unsuitable supply or incorrect wiring can cause malfunction or damage.

Q6: What should be checked if a connected load does not operate?

Check the PLC command state, field power supply, wiring, terminal connections, load condition, module diagnostics, and system configuration. Follow the manufacturer's troubleshooting procedure before replacing hardware.

Q7: Does the module require configuration in the PLC software?

The supported controller and engineering software must recognize the installed module and use the appropriate hardware configuration. Confirm configuration requirements for the specific controller and software version.

Q8: Can this module directly control a motor?

Do not assume that it can directly switch a motor. Motor loads often require a suitably rated contactor, motor starter, drive, or interface device selected according to the electrical design.

Q9: What precautions are required when replacing the module?

Follow the equipment's electrical isolation procedures, verify the exact part number and revision, document wiring, and check configuration settings. Only use live insertion or removal if the installed system and module explicitly support that procedure.

Q10: How can reliable operation be maintained?

Maintain secure wiring, suitable cabinet conditions, correct field power, and accurate PLC configuration records. Investigate diagnostic faults promptly and verify system operation after maintenance.
