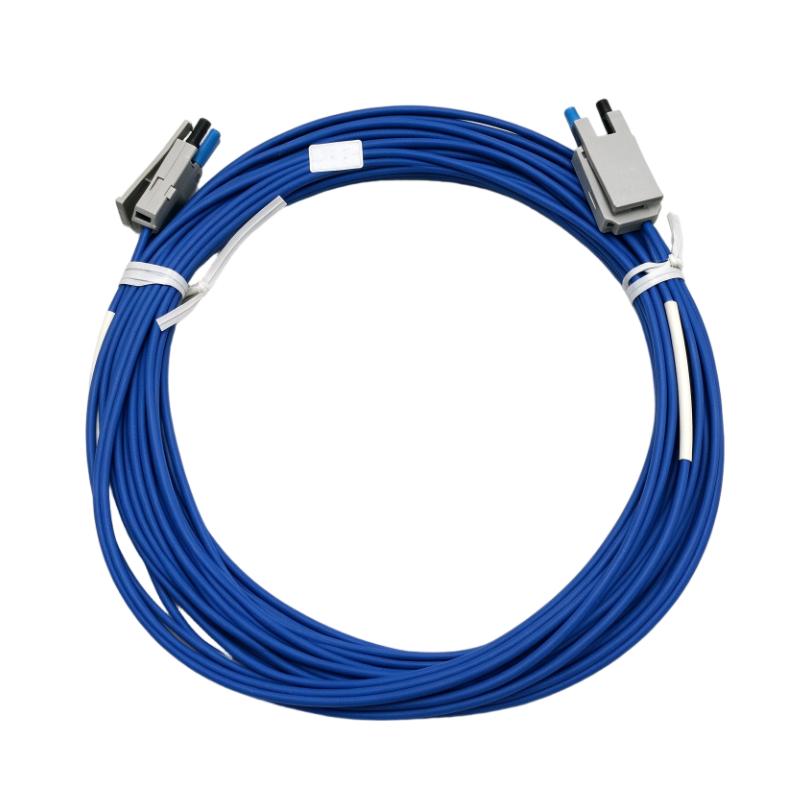

Allen Bradley 1786-FS60 ControlNet Fiber Optic Cable Assemblies

Applications

The Allen Bradley 1786-FS60 ControlNet Fiber Optic Cable Assembly is designed for fiber-optic communication links in compatible industrial ControlNet networks. Fiber-optic cabling provides a communication medium for transferring network data while offering advantages in electrical isolation and resistance to electromagnetic interference.

With a specified cable length of 60 meters, the 1786-FS60 can be considered for industrial installations where equipment, network nodes, or control cabinets require a fiber-optic connection across a defined distance.

Typical applications include:

• Industrial Control Networks: Connecting compatible ControlNet network equipment through fiber-optic communication links.

• Distributed Automation Systems: Supporting communications between separated control-system locations.

• Electrically Noisy Environments: Helping reduce susceptibility to electromagnetic interference along the fiber-optic communication path.

• Control Cabinet Interconnections: Providing a dedicated cable assembly for fiber-optic network connections between compatible devices.

• Industrial System Maintenance: Serving as a replacement cable assembly when the connector type, fiber specification, and network requirements match the existing installation.

Before installation, verify the required optical interface, connector configuration, and compatibility with the intended ControlNet equipment.

Advantages

• 60-Meter Cable Length: Provides a defined cable length for network planning and equipment interconnection.

• Fiber-Optic Communication: Uses an optical transmission medium rather than conventional electrical signal conductors.

• Resistance to Electromagnetic Interference: Fiber-optic links are not affected by electromagnetic interference in the same way as copper communication cables.

• Electrical Isolation: The optical path helps isolate connected equipment electrically across the fiber link.

• Industrial Network Integration: Designed for applications involving compatible ControlNet fiber-optic equipment.

• Simplified Replacement Planning: The model designation and cable length help maintenance teams identify the required assembly.

Connector details, fiber type, optical performance, and supported network hardware should be confirmed against the exact assembly specifications before purchase.

Technical FAQs

Q1: What is the primary function of the Allen Bradley 1786-FS60?

The 1786-FS60 is a ControlNet fiber-optic cable assembly intended to provide an optical communication path between compatible network devices.

Q2: What does the 60-meter designation indicate?

It indicates the specified cable length of 60 meters. Actual routing should account for cabinet entry points, cable management, connector access, and the installation path.

Q3: What are the advantages of fiber-optic communication in industrial environments?

Fiber-optic communication provides immunity to electromagnetic interference along the optical path and electrical isolation between connected equipment, making it useful in electrically noisy industrial settings.

Q4: Can the 1786-FS60 connect directly to any ControlNet device?

No. Compatibility depends on the optical interface, connector type, network hardware, and supported fiber specification. Confirm the connection requirements for both ends before installation.

Q5: Does fiber-optic cabling require special handling?

Yes. Avoid excessive bending, crushing, pulling force, or other mechanical stress. Follow the manufacturer's minimum bend-radius and installation-tension requirements.

Q6: What should be checked if the network link fails?

Inspect the connectors, cable routing, optical interfaces, and device status indicators. Check for contamination, physical damage, incorrect connections, and configuration issues using the equipment manufacturer's troubleshooting procedures.

Q7: How should fiber-optic connectors be maintained?

Use appropriate fiber-optic inspection and cleaning procedures before connecting or reconnecting the assembly. Keep connector end faces protected from dust and physical contact.

Q8: Can the cable be installed near power cables?

Fiber-optic cable is not susceptible to electromagnetic interference in the same manner as copper cable. However, the installation must still comply with mechanical protection, routing, and environmental requirements.

Q9: What should be considered when replacing an existing assembly?

Verify the full catalog number, cable length, connector configuration, fiber type, and compatibility with the installed ControlNet equipment. A similar-looking cable may not provide the required optical interface.

Q10: How can the service life of a fiber-optic cable assembly be extended?

Use proper cable supports, observe bend-radius limits, protect connectors with suitable caps when disconnected, prevent crushing or abrasion, and inspect the assembly during scheduled maintenance.
