Brand:Allen Bradley PLC Item No.:1786-RG6 Product Origin:USA Product Dimensions:Cable Length: 1000 feet Product Weight:Shipping Weight: 3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

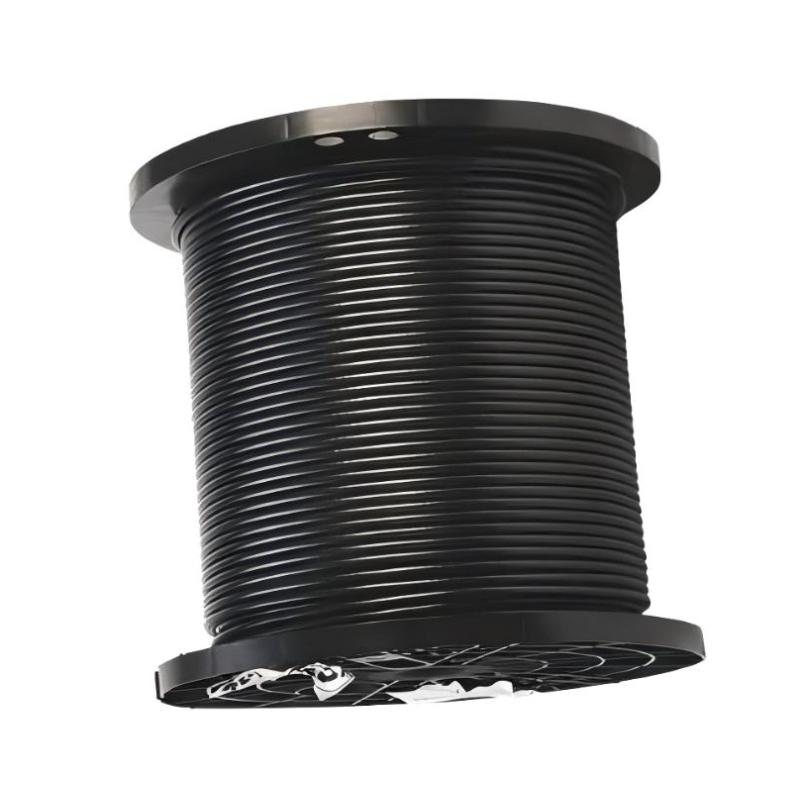

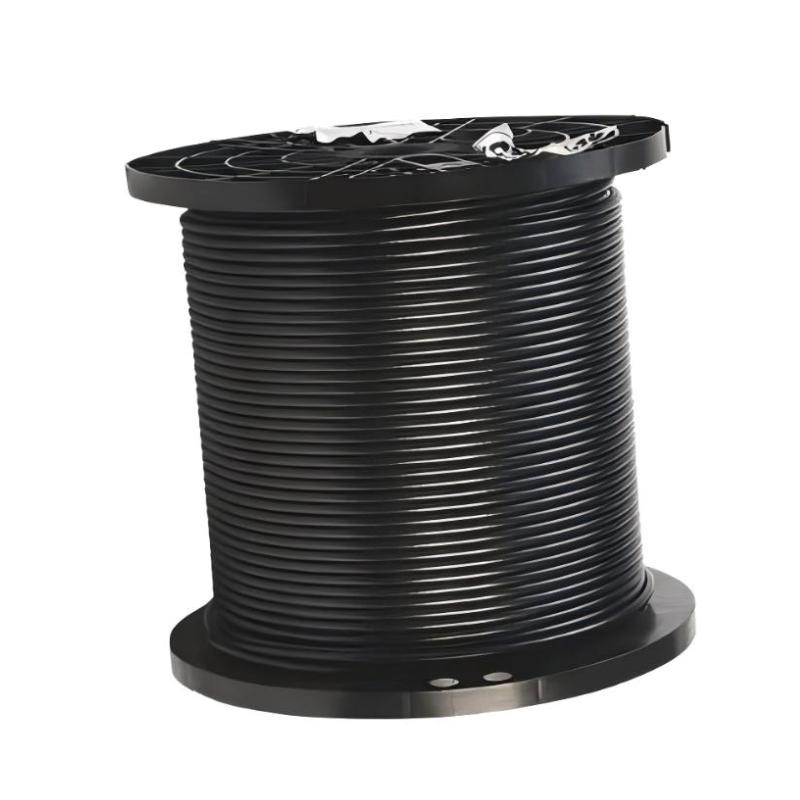

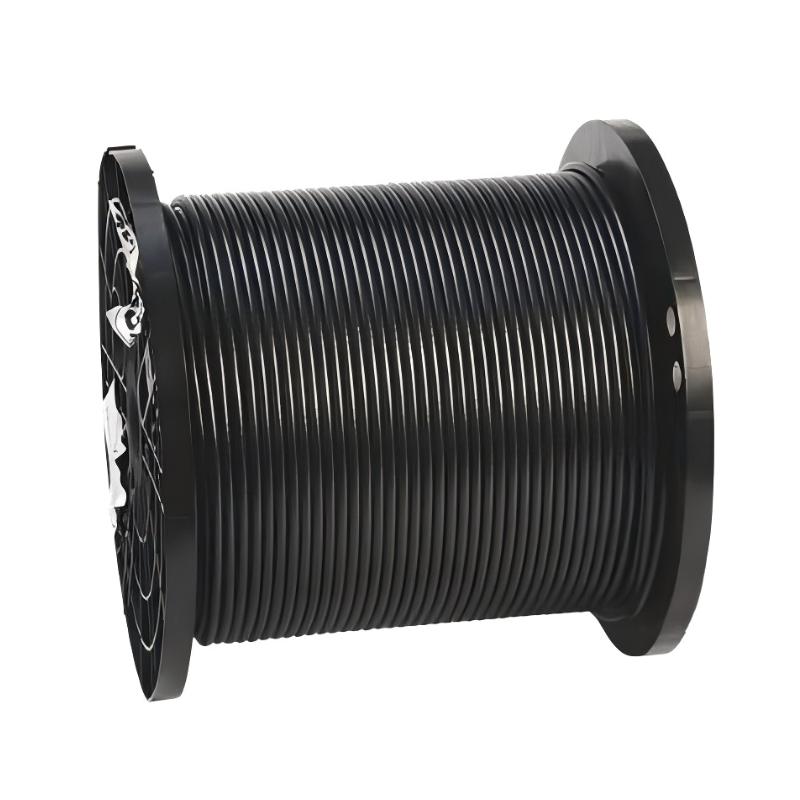

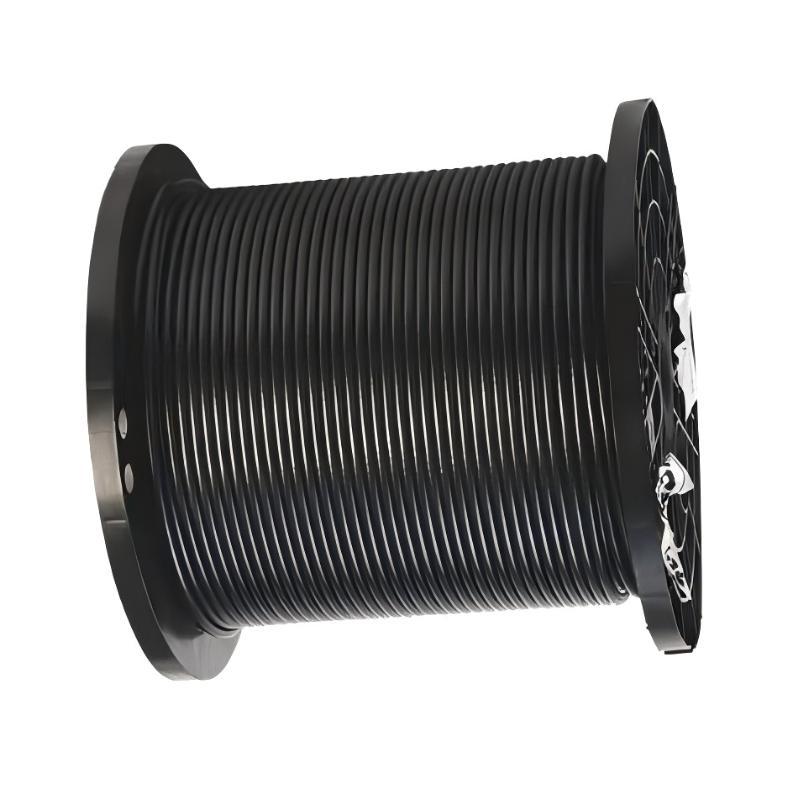

The Allen Bradley 1786-RG6 ControlNet Coaxial Cable is intended for industrial automation environments that use compatible ControlNet coaxial communication infrastructure. As a physical network component, the cable carries communication signals between supported devices and network connection points.
Reliable network cabling is important in PLC-based control systems because damaged cables, unsuitable electrical characteristics, or incorrect termination can lead to communication faults and unplanned downtime. Selecting the correct cable and following the network's installation requirements helps maintain stable communication.
The specified cable length is 1,000 feet, making it important to plan the routing path, connection locations, and network segment requirements before installation. Buyers should confirm the exact product specifications and connector compatibility before using this cable as a replacement or in a network expansion.
The cable length and shipping weight are based on the supplied product information. Verify the electrical characteristics, connector requirements, and network compatibility before procurement.
Recommended Related Models
The following Allen Bradley ControlNet products may be relevant when sourcing network cabling and connection components. They serve different functions, so confirm suitability for the intended installation.
Model
Product Type
Selection Consideration
Allen Bradley 1786-RG6
ControlNet Coaxial Cable
Verify the exact catalog designation and cable specifications
Allen Bradley 1786-TPR
ControlNet T-Tap
Check compatibility with the installed coaxial topology
Allen Bradley 1786-TPYR
ControlNet Y-Tap
Verify the required network connection arrangement
Allen Bradley 1786-XT
ControlNet Terminator
Confirm termination requirements for the applicable network segment
Before ordering, check the required cable type, connector configuration, network topology, and termination components.
Popular Related Models
These Allen Bradley components may also be relevant to ControlNet network installation and maintenance.
Model
Product Type
Typical Role
Allen Bradley 1786-RPA
ControlNet Repeater Adapter
Supports compatible repeater configurations
Allen Bradley 1786-RPFM
ControlNet Fiber Repeater Module
Provides fiber-optic network connectivity in supported configurations
Allen Bradley 1786-RPFS
ControlNet Fiber Repeater Module
Supports fiber-optic links in compatible installations
Allen Bradley 1786-CP
ControlNet Coaxial Cable
Coaxial cable for compatible ControlNet connections; verify length and application
These products are not interchangeable. Confirm their specifications and compatibility with the installed ControlNet architecture before purchasing.
Applications
The Allen Bradley 1786-RG6 ControlNet Coaxial Cable is intended for industrial communication installations using compatible ControlNet coaxial network infrastructure. Coaxial cable provides the physical transmission medium for network signals, supporting communication between compatible automation devices and network components.
With a specified cable length of 1,000 feet, this cable can be considered for installations requiring extended cable runs, subject to the network's topology, segment-length limits, and installation requirements.
Typical applications include:
ControlNet Network Installation: Providing a coaxial communication path for compatible ControlNet network segments.
Industrial Automation Systems: Supporting network connectivity between PLCs, communication interfaces, and other compatible ControlNet devices.
Manufacturing Facilities: Connecting control equipment distributed across production areas.
Control Cabinet Interconnections: Routing communication cabling between cabinets and network connection points.
Maintenance and Network Expansion: Supplying replacement cable or additional cable for compatible existing installations.
Before installation, verify the cable's electrical characteristics, impedance, connector requirements, and suitability for the intended ControlNet network.
Advantages
Extended Cable Supply: The specified 1,000-foot length supports planning for larger industrial cable installations.
Coaxial Signal Transmission: Provides a dedicated transmission medium for compatible ControlNet coaxial networks.
Industrial Network Integration: Suitable for evaluation in automation systems designed around ControlNet coaxial infrastructure.
Flexible Installation Planning: Can be routed through suitable industrial cable pathways when applicable installation and bending requirements are followed.
Maintenance Support: Helps maintenance teams source cable for network repairs, extensions, and infrastructure replacement.
Clear Product Identification: The model designation and cable length help distinguish the required cable from other communication cabling.
The exact electrical characteristics and compatibility should be confirmed against the cable manufacturer's specifications. The 1786-RG6 designation alone should not be used to assume compatibility with every coaxial network.
