Introduction

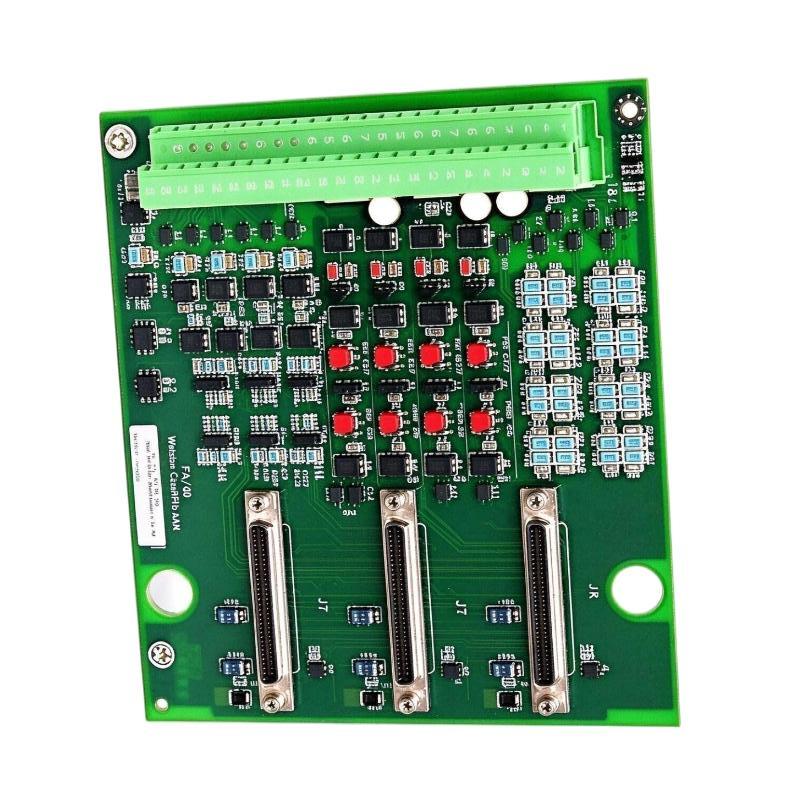

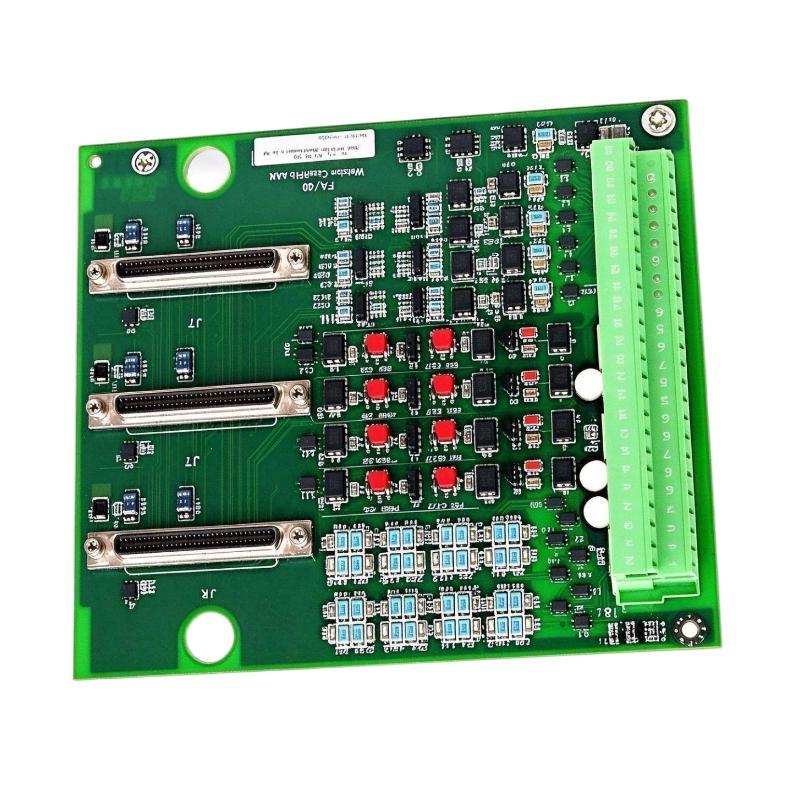

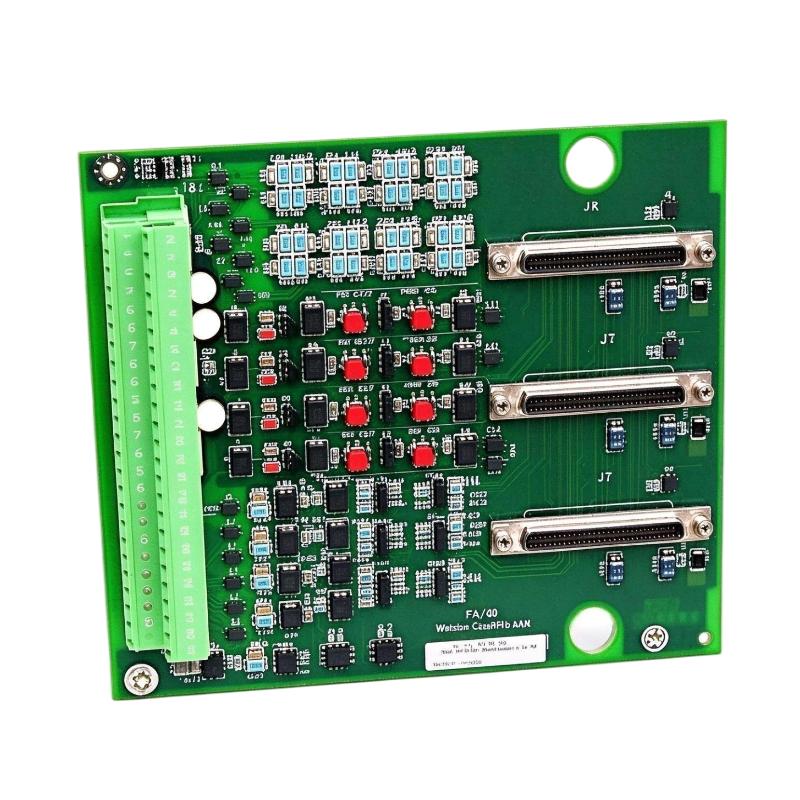

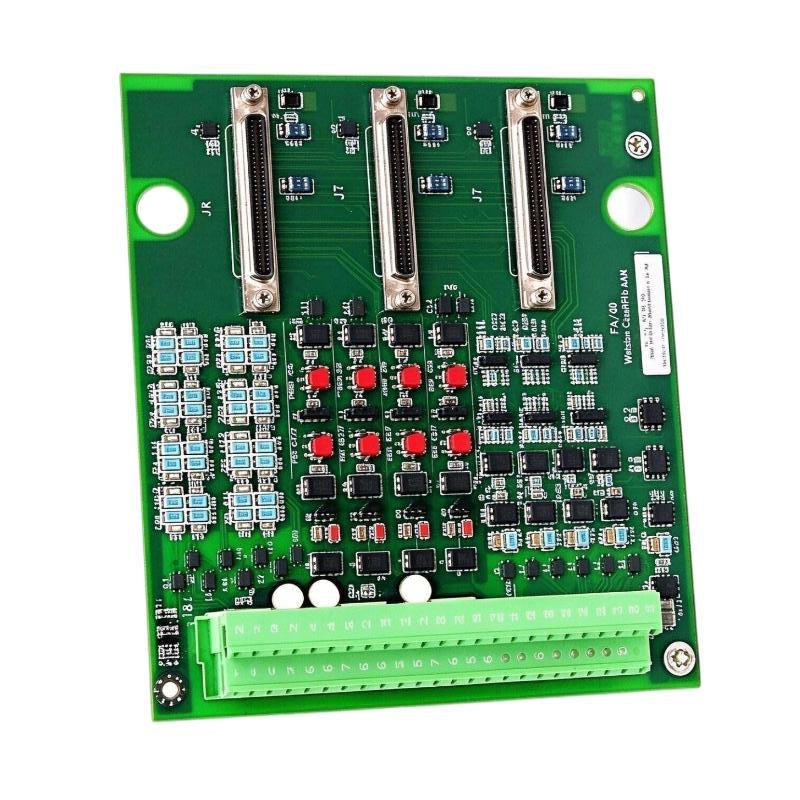

The GE IS200SCLTH1A Core Analog Terminal Board is an industrial control component associated with the Mark VIe platform, which is used in demanding applications such as turbine control and power generation. Its primary role is to provide an organized interface for selected analog and thermocouple signals within a compatible PCLA-based control configuration.

In an operating plant, accurate field signal handling is essential for monitoring process conditions and supporting dependable control decisions. The IS200SCLTH1A accommodates supported analog input signals, thermocouple connections, and analog outputs according to the configured control architecture. It also provides pluggable terminal connections that can assist technicians with wiring and maintenance tasks.

For maintenance teams, selecting the correct terminal board is especially important when an installed control system must remain operational over an extended service life. An incorrect substitute may introduce wiring incompatibilities or prevent the existing configuration from functioning as intended.

When purchasing a GE IS200SCLTH1A, buyers should verify the complete model number, board condition, revision information, and compatibility with the associated PCLA module. For replacement projects, accurate identification helps reduce installation delays and supports a more efficient maintenance process.

Technical Specifications

Parameter	Specification
Brand	GE (General Electric)
Model Number	IS200SCLTH1A
Product Type	Core Analog Terminal Board
Product Series	Mark VIe
Associated Core Analog Module	IS220PCLAH1A / IS220PCLAH1B
Fanned Thermocouple Inputs	8
Supported Thermocouple Types	E, J, K, S, T
Fanned Analog Inputs	4
Supported Analog Input Types	4–20 mA, ±10 V, ±5 V, subject to configuration
TMR Analog Output Channels	6
Control Configurations	Simplex or TMR, subject to system design
Terminal Connection Type	Pluggable Euro-style terminals
Dimensions (L × W × H)	185 × 36 × 150 mm
Weight	0.48 kg / 1.06 lb
Installation Environment	Compatible industrial control cabinet
Application	Analog signal interfacing and turbine control systems

Note: Physical dimensions and weight are based on the supplied product data. Electrical configuration and system compatibility should be verified for the specific installation.

Recommended Related Models

The following GE models are relevant when evaluating replacement components or maintaining a compatible Mark VIe core analog configuration.

Model	Product Type	Relationship
IS220PCLAH1A	PCLA Core Analog Module	Associated core analog module
IS220PCLAH1B	PCLA Core Analog Module	Alternative PCLA hardware version
IS210SCLSH1A	Core Analog Terminal Board	Alternative terminal board used in supported PCLA configurations

These components are not automatically interchangeable. Confirm the required system configuration, hardware revision, and approved terminal-board combination before ordering.

Popular Related Models

For industrial control maintenance and spare-parts planning, the following models are worth considering alongside the GE IS200SCLTH1A.

Model	Product Description
IS200SCLTH1A	Core Analog Terminal Board
IS220PCLAH1A	PCLA Core Analog Module
IS220PCLAH1B	PCLA Core Analog Module
IS210SCLSH1A	Core Analog Terminal Board

The GE IS200SCLTH1A Core Analog Terminal Board is a model-specific replacement option for supported Mark VIe control systems. When requesting a quotation, provide the full part number and any available nameplate or revision information. Confirming the required configuration before purchase can help minimize sourcing errors and simplify integration into existing industrial control equipment.

Applications

The GE IS200SCLTH1A Core Analog Terminal Board is intended for use in industrial control environments where reliable analog signal interfacing and organized field wiring are important to system operation. As part of a compatible GE control system configuration, a terminal board of this type can support the connection and routing of analog field signals between external devices and the associated control hardware.

Typical application environments may include:

Industrial process control: Supporting analog signal connections in process automation systems.
Power generation facilities: Used within compatible control architectures for monitoring and control applications.
Turbine control systems: Potentially suitable for signal interfacing in supported turbine control configurations.
Plant instrumentation: Helping organize connections between field instrumentation and control equipment.
Control system maintenance: Providing a replacement option when an existing board requires inspection, repair, or substitution.

Before installation, verify that the IS200SCLTH1A matches the existing system configuration, hardware revision, and required terminal connections. Compatibility should be confirmed against the equipment documentation for the specific application.

Advantages

Designed for Industrial Control Integration

The IS200SCLTH1A is identified as a core analog terminal board. Its role within a compatible control architecture is centered on analog terminal interfacing, making correct identification and system matching essential when selecting a replacement component.

Organized Field Connections

Terminal-board assemblies help provide a structured interface for field wiring. Properly configured connections can simplify maintenance activities and make it easier for technicians to trace signal paths during troubleshooting.

Suitable for Replacement and Maintenance Projects

For facilities maintaining installed GE control equipment, sourcing the correct board can help support planned maintenance, repair work, and restoration of existing systems without requiring an unnecessary redesign of the wider control architecture.

Practical for Industrial Lifecycle Support

Industrial control equipment often remains in service for many years. Identifying the exact model number before ordering helps reduce the risk of receiving an incompatible component and supports more efficient spare-parts management.

Model-Specific Procurement

The complete part number, IS200SCLTH1A, provides a clear identification reference for quotation requests, inventory records, and technical verification. Buyers should also confirm the board's condition, revision, and included accessories before purchase.

Technical FAQs

Q1. What is the primary function of the GE IS200SCLTH1A?

The IS200SCLTH1A serves as a core analog terminal board in compatible GE Mark VIe control configurations. It provides field termination and signal routing for supported analog and thermocouple connections associated with the PCLA core analog module.

Q2. Which control system is the IS200SCLTH1A designed for?

It is associated with the GE Mark VIe control system family. Confirm the controller architecture and hardware compatibility before installing the board in an existing system.

Q3. Which analog input signals can the IS200SCLTH1A accommodate?

The board supports four fanned analog input channels configurable for supported current or voltage signals, including 4–20 mA, ±10 V, and ±5 V configurations. The appropriate input configuration must match the field signal and system wiring requirements.

Q4. Does the IS200SCLTH1A support thermocouple connections?

Yes. The SCLT terminal board supports eight fanned thermocouple inputs. Supported thermocouple types include E, J, K, S, and T. The configured input type must correspond to the installed sensor and control-system settings.

Q5. How many analog output channels does the board support?

The board provides six analog output channels associated with simplex or triple modular redundant (TMR) configurations. The control architecture determines how the signals are processed and used.

Q6. Can the IS200SCLTH1A be used in a TMR control architecture?

Yes. The board supports simplex and TMR configurations when used with the appropriate compatible hardware. The complete system arrangement, signal distribution, and controller configuration must follow the applicable installation documentation.

Q7. Which core analog module is compatible with the IS200SCLTH1A?

The IS200SCLTH1A is an accessory terminal board for the GE IS220PCLAH1A and IS220PCLAH1B PCLA core analog modules in supported Mark VIe configurations. Confirm the exact hardware revision and approved combination before replacement.

Q8. What should be checked if an analog input reading is incorrect?

Check the field transmitter, signal polarity, terminal assignments, wiring continuity, grounding, and input configuration. For voltage or current inputs, also verify that the relevant jumpers and signal type settings match the application.

Q9. What should be inspected if thermocouple readings are unstable?

Inspect thermocouple wiring polarity, terminal tightness, sensor condition, cable shielding, and possible electrical interference. Confirm that the selected thermocouple type matches the connected sensor and that the associated control module is operating correctly.

Q10. What precautions should be taken before replacing the IS200SCLTH1A?

Follow the site's approved shutdown and isolation procedures. Verify the full part number, inspect connector and terminal conditions, document existing wiring, and confirm system compatibility. Installation and commissioning should be performed by qualified personnel following the applicable GE instructions.
