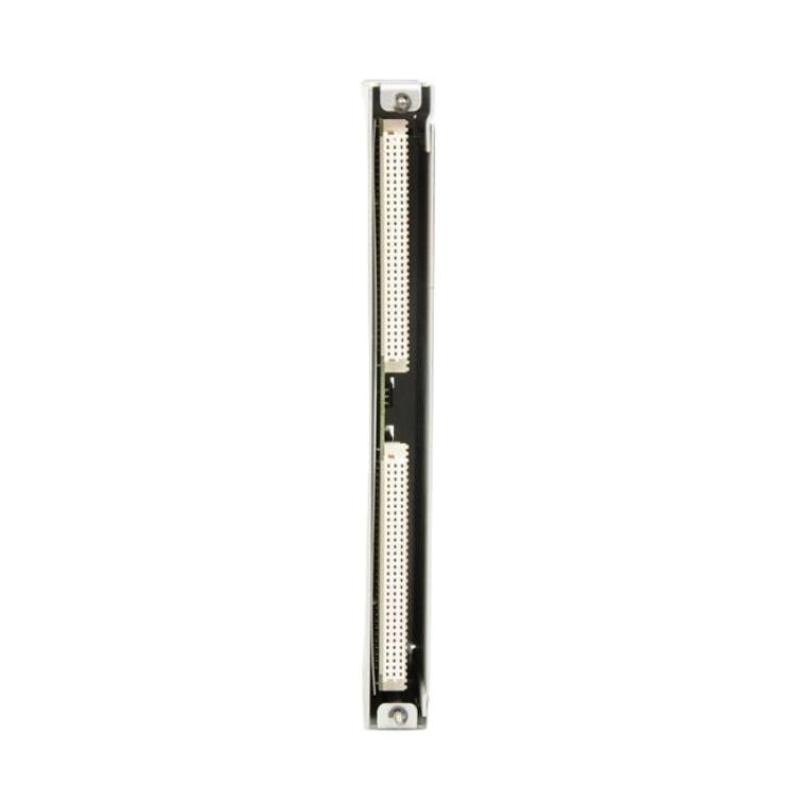

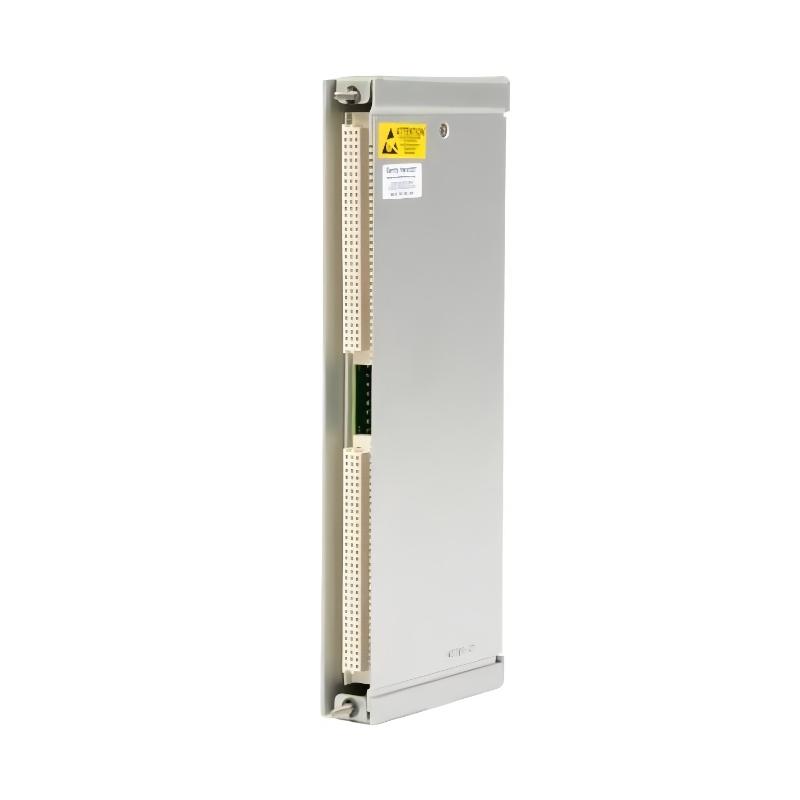

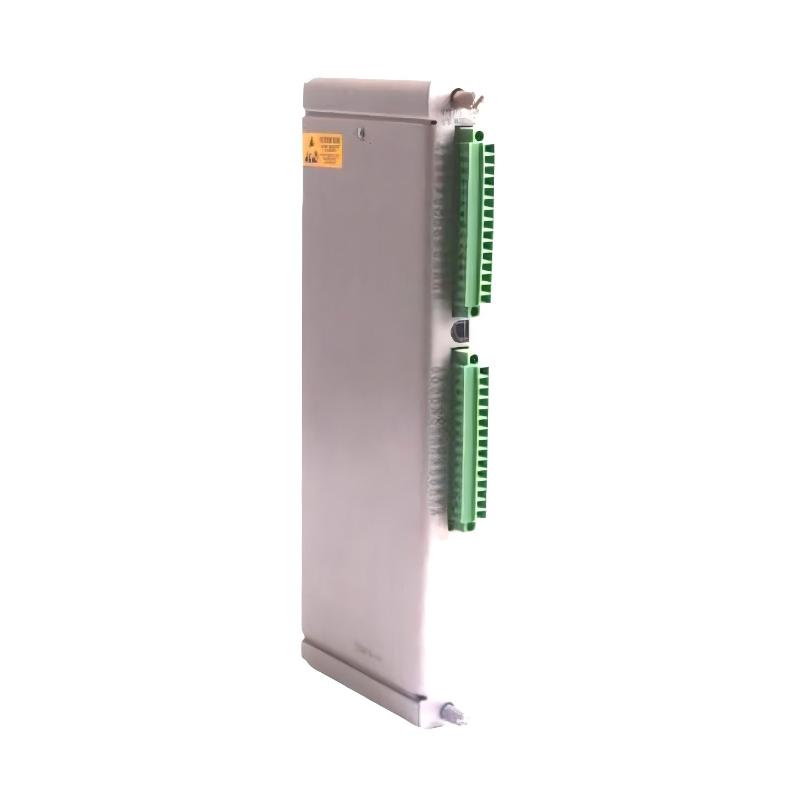

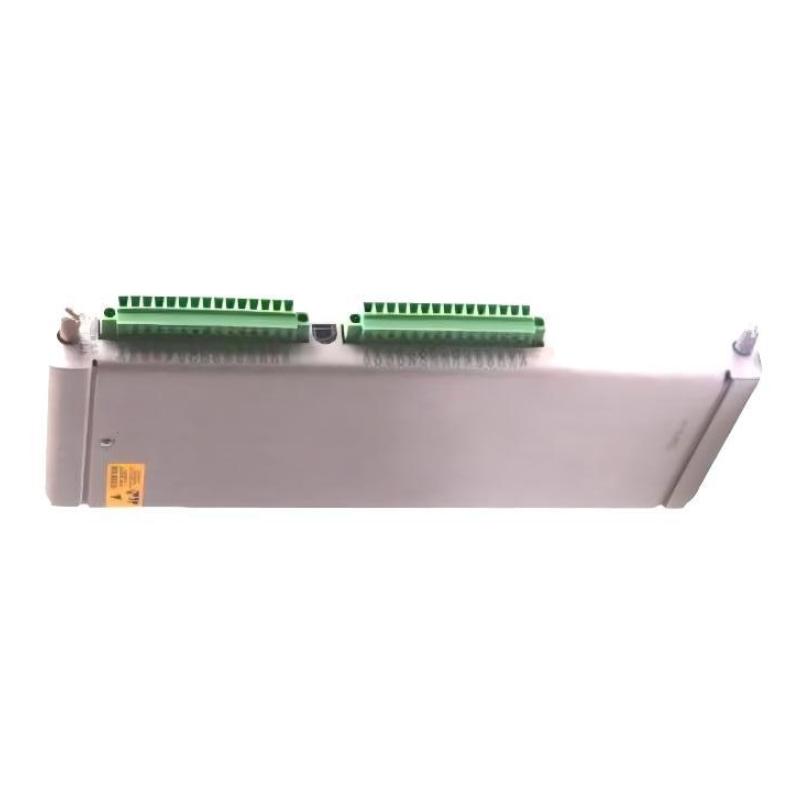

Bently Nevada 3500/60 133819-01 RTD/TC Temperature I/O Module

Industrial Temperature Monitoring & Protection Applications
The Bently Nevada 3500/60 133819‑01 RTD/TC Temperature I/O Module is designed to accurately acquire and process temperature signals from Resistance Temperature Detectors (RTDs) and Thermocouples (TCs) in rotating machinery protection systems. It is commonly deployed in power generation stations, oil & gas facilities, petrochemical plants, and heavy industrial environments. By delivering reliable temperature data to the 3500 series vibration monitoring and protection system, this module helps safeguard bearings, lubrication systems, and other critical components against overheating and thermal stress.

Key Advantages

• Dual sensor support: Accepts both RTD and thermocouple inputs for flexible temperature monitoring.

• Integrated I/O capability: Combines multiple temperature channels into a single compact module.

• Industrial‑grade design: Engineered for reliable 24/7 performance under vibration, electrical noise, and wide temperature ranges.

• Compact and lightweight: Slim form factor fits standard 3500 series system racks and simplifies installation.

• Status diagnostics: Provides operational indicators for monitoring channel health and fault conditions.

Technical FAQs

1. What is the primary function of the 3500/60 133819‑01 module?
   It captures and conditions temperature signals from RTDs and thermocouples, providing processed data to the 3500 system.

2. Does the module support both RTD and thermocouple sensors?
   Yes — it accepts inputs from both RTDs and TCs, offering flexible field instrumentation options.

3. Can it operate continuously in industrial environments?
   Yes — it is designed for reliable 24/7 industrial use.

4. What are the physical dimensions of the module?
   The module measures 241.3 × 24.4 × 99.1 mm.

5. What is the weight of the module?
   It weighs approximately 0.45 kg.

6. How is it installed?
   It installs into a compatible 3500 series system rack using the standard backplane.

7. Does it support diagnostics?
   Yes — the module includes status indicators to show operational and fault conditions.

8. Is it resistant to industrial interference?
   Yes — it is engineered to operate reliably in electrically noisy environments with vibration.

9. Which systems is it compatible with?
   It integrates with the Bently Nevada 3500 series vibration and machinery protection architecture.

10. Is it suitable for hazardous area installations?
    This standard industrial variant is intended for general plant environments; certified variants are required for hazardous locations.
