Introduction

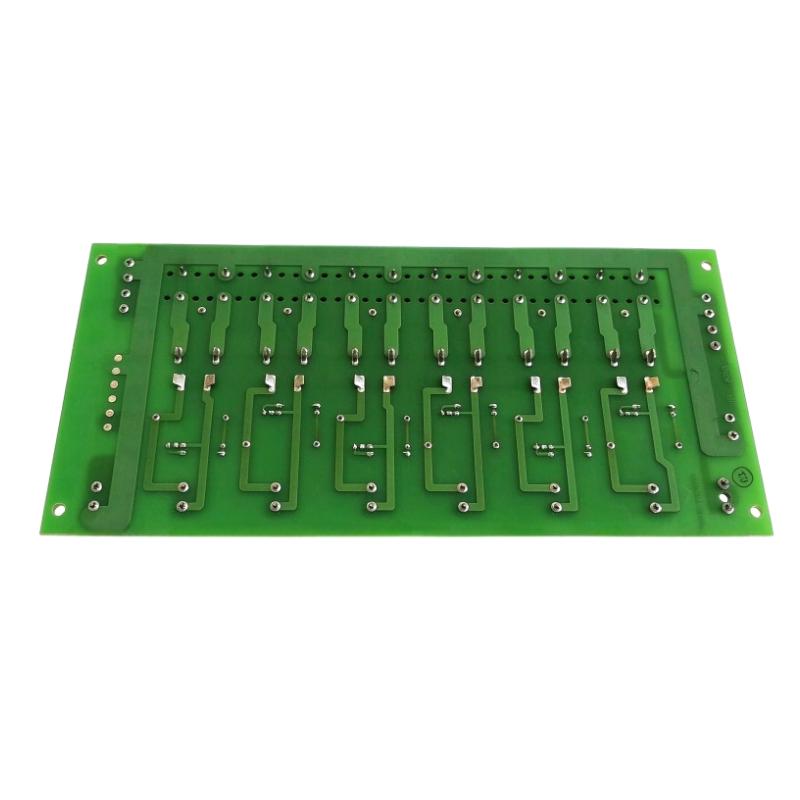

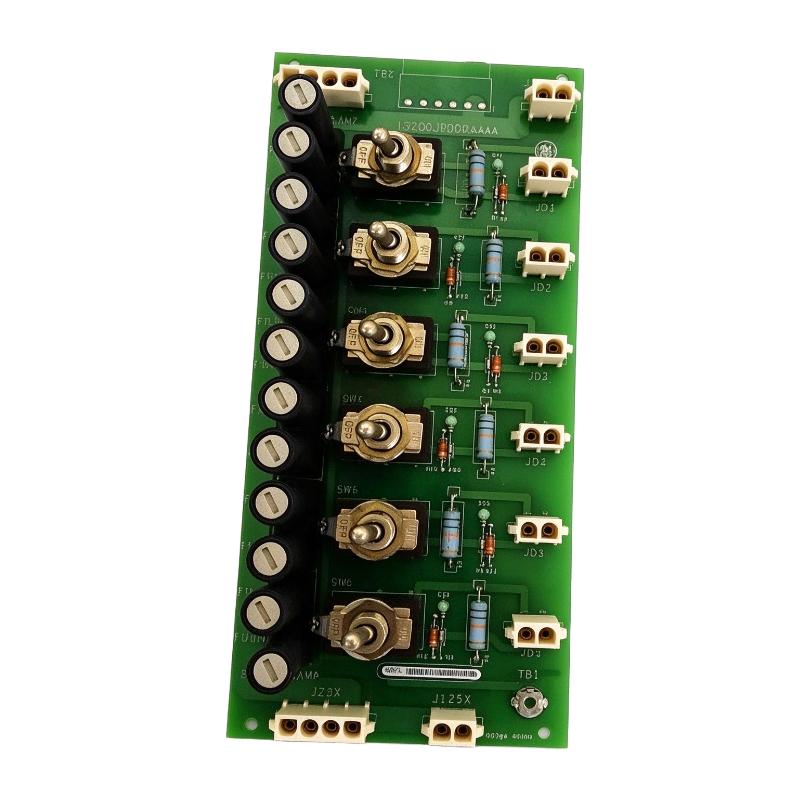

The GE IS210JPDDG3A DC Distribution Board is a power distribution component associated with GE's Mark VIe control platform. It is designed to distribute a DC supply across multiple branch circuits while providing local switching and fuse-holder provisions for supported control-related loads.

In turbine control and other industrial automation environments, auxiliary DC power often serves relays, solenoids, and contact-wetting circuits. These loads may require individual isolation and appropriate overcurrent protection to simplify maintenance and help limit the impact of an electrical fault. The JPDD board addresses these needs through its branch-oriented distribution arrangement.

The G3A designation is particularly important when selecting replacement parts because it identifies a version with empty fuse holders intended for application-specific fuse selection. A suitable fuse must be chosen based on the circuit's operating current, wiring capacity, connector ratings, and fault conditions. Installing an arbitrary fuse simply because it fits the holder is not an acceptable substitute for engineering verification.

For maintenance engineers, spare-parts buyers, and industrial equipment suppliers, the complete part number is the starting point for accurate identification. Before ordering a GE IS210JPDDG3A, confirm the existing board label, required fuse format, DC supply configuration, and mechanical mounting arrangement.

Whether supporting scheduled maintenance or restoring an existing control cabinet, selecting the correct distribution board can help reduce unnecessary modification work and support a more orderly maintenance process.

Technical Specifications

Parameter	Specification
Brand	GE (General Electric)
Model Number	IS210JPDDG3A
Product Type	DC Distribution Board
Functional Description	DC Power Distribution Module
Product Family	Mark VIe / Speedtronic
Board Family	JPDD
Input Voltage Options	Nominal 24 V DC, 48 V DC, or 125 V DC, configuration dependent
Input Configuration	One DC voltage level at a time
Output Arrangement	Multiple switched DC branch circuits
Branch Protection	Fuse holders; application-specific fuses required
Local Indication	Output-voltage indicator lamps
Mounting	Vertical DIN-rail mounting assembly
Grounding Requirement	TB1 to system ground, as specified in installation documentation
Dimensions (L × W × H)	234 × 30 × 108 mm
Weight	0.55 kg / 1.21 lb
Typical Applications	Auxiliary DC power distribution, relay and solenoid control circuits
Installation Environment	Compatible industrial control cabinet

Note: Dimensions and weight are based on the supplied product data. Confirm the physical orientation and overall mounting envelope against the actual assembly. Electrical ratings and fuse requirements must be verified for the specific application.

Recommended Related Models

The following models are relevant when maintaining or evaluating GE control-system power distribution equipment. Their functions differ, so compatibility should be confirmed before substitution.

Model	Product Type	Application / Relationship
IS210JPDDG1A	DC Distribution Board	JPDD family version supplied with specified fuses
IS210JPDDG2A	DC Distribution Board	JPDD family version with a different fuse-holder arrangement
IS200JPDA	AC Power Distribution Board	Related power distribution equipment for AC loads
IS200JPDL	Control Power Distribution Board	Used in compatible control power distribution arrangements
IS200JGND	Grounding Board	Supports grounding arrangements in compatible terminal-board systems

Popular Related Models

For spare-parts planning and industrial control maintenance, these GE models are useful references when reviewing DC distribution and related cabinet power components.

Model	Product Description
IS210JPDDG3A	DC Distribution Board
IS210JPDDG1A	DC Distribution Board
IS210JPDDG2A	DC Distribution Board
IS200JPDA	AC Power Distribution Board
IS200JPDL	Control Power Distribution Board
IS200JGND	Grounding Board

When requesting a quotation for the GE IS210JPDDG3A DC Distribution Board, provide the complete model number and, if available, the board revision and photographs of the identification label. Also confirm the required fuse specification and input voltage configuration. These checks help buyers identify the appropriate replacement and avoid delays caused by electrical or mechanical incompatibility.

Applications

The GE IS210JPDDG3A DC Distribution Board is designed for DC power distribution, branch circuit isolation, and fuse-based protection in compatible GE Mark VIe industrial control systems. It is particularly relevant to gas turbine control installations and other industrial environments where dependable auxiliary DC power is essential for control-related loads.

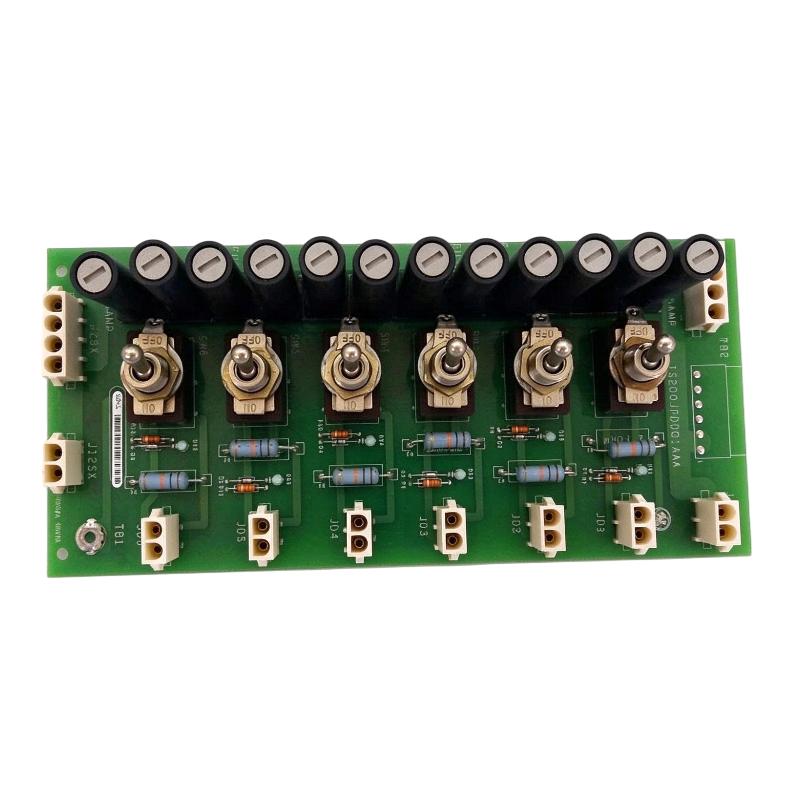

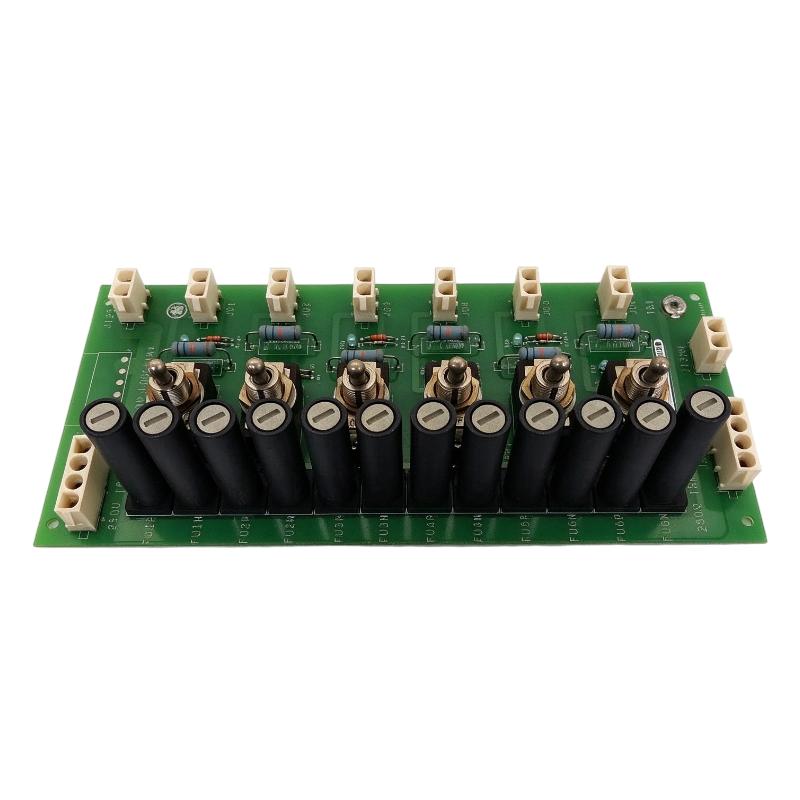

The board distributes a DC supply to multiple branch circuits, allowing individual loads to be isolated for maintenance. Each output incorporates a switch, a fuse holder, and a local indicator lamp to help technicians identify the presence of output voltage.

Typical application areas include:

Gas turbine control systems: Supporting auxiliary DC power distribution for selected control-related loads.
Relay and solenoid circuits: Supplying compatible DC relay coils, solenoid valves, and associated control devices.
Industrial automation cabinets: Organizing DC power branches for auxiliary equipment and control functions.
Power plant maintenance: Providing a replacement option for an existing JPDD distribution assembly.
Control circuit servicing: Allowing individual branches to be isolated during approved inspection and maintenance procedures.

The IS210JPDDG3A should not be treated as a general-purpose power supply or as a dedicated I/O Pack power distribution board. Confirm the intended load, supply voltage, branch protection requirements, and system wiring before installation.

Advantages

1. Centralized DC Power Distribution

The IS210JPDDG3A distributes a single DC input supply among multiple loads. This arrangement helps keep auxiliary power connections organized and supports more manageable cabinet wiring in industrial control installations.

2. Individual Branch Isolation

Each output incorporates a local switch, allowing a supported load to be isolated for maintenance without necessarily interrupting every other branch. The actual isolation procedure must follow the plant's electrical safety requirements.

3. Fuse-Based Circuit Protection

The JPDDG3A version uses empty fuse holders intended for application-specific fuse selection. This allows the protection arrangement to be matched to the required circuit, provided that the selected fuse meets the applicable voltage, current, interrupting-capacity, and wiring requirements.

4. Local Output Status Indication

Indicator lamps provide a convenient visual reference for output-voltage presence. They can assist maintenance personnel during initial checks, although an illuminated indicator should not replace electrical testing or formal isolation verification.

5. Flexible DC Input Options

The JPDD board family supports nominal 24 V DC, 48 V DC, or 125 V DC input configurations. Only one input voltage level may be applied at a time, and the exact electrical arrangement must be verified before connecting the IS210JPDDG3A.

6. Practical Replacement Support

For facilities maintaining installed GE Speedtronic control equipment, purchasing the exact part number helps reduce the risk of selecting an incompatible distribution board. Confirm the revision, mounting arrangement, terminal configuration, and fuse-holder requirements when requesting a quotation.

Technical FAQs

Q1. What is the main function of the GE IS210JPDDG3A?

The IS210JPDDG3A distributes DC power to multiple control-related loads while providing individual branch switching, fuse-based protection, and local output-voltage indication.

Q2. Which industrial control system family is associated with this board?

The IS210JPDDG3A is associated with GE Mark VIe control equipment used in industrial applications, including distributed gas turbine control systems.

Q3. What DC input voltages does the JPDD board family support?

The JPDD family supports nominal 24 V DC, 48 V DC, and 125 V DC inputs, depending on the installation configuration. Only one voltage level should be applied at a time. Verify the specific board's wiring and electrical ratings before energizing it.

Q4. What is the difference between IS210JPDDG1A and IS210JPDDG3A?

The principal distinction is the fuse arrangement. The JPDDG1A version is supplied with specified fuses, whereas the JPDDG3A version uses empty fuse holders intended for application-specific fuses. The required fuse dimensions and electrical ratings must be confirmed before installation.

Q5. Does the IS210JPDDG3A include branch circuit protection?

Yes. The JPDD design provides fuse holders for individual branch circuits. For the G3A version, suitable fuses must be selected and installed according to the application requirements and the manufacturer's guidance.

Q6. Can the IS210JPDDG3A supply power directly to GE I/O Packs?

The JPDD board is not intended to provide power directly to I/O Packs. Use the appropriate power distribution equipment designed for the specific I/O Pack and control-system architecture.

Q7. Can multiple JPDD boards share a DC power source?

Multiple JPDD boards can be supplied from a common upstream power distribution branch when the source, wiring, connectors, and protective devices are correctly rated. The design must account for total load current and applicable electrical installation requirements.

Q8. How can technicians check whether a DC output is energized?

The local indicator lamp provides a visual indication of output-voltage presence. Technicians should also use an appropriately rated meter and follow approved electrical safety procedures to verify the actual circuit condition.

Q9. What should be checked if a connected load does not receive DC power?

Check the upstream DC source, input connector, branch switch, installed fuse, output wiring, and connected load. Verify that the supply voltage is correct and investigate any short circuit or overload before replacing a fuse.

Q10. What precautions are necessary when installing the IS210JPDDG3A?

Isolate the supply according to the site's approved procedures, verify that the circuit is de-energized, confirm the correct input voltage, and connect the required ground lead between TB1 and system ground as specified by the installation documentation. Check fuse ratings, polarity, connector compatibility, and wiring before commissioning.
