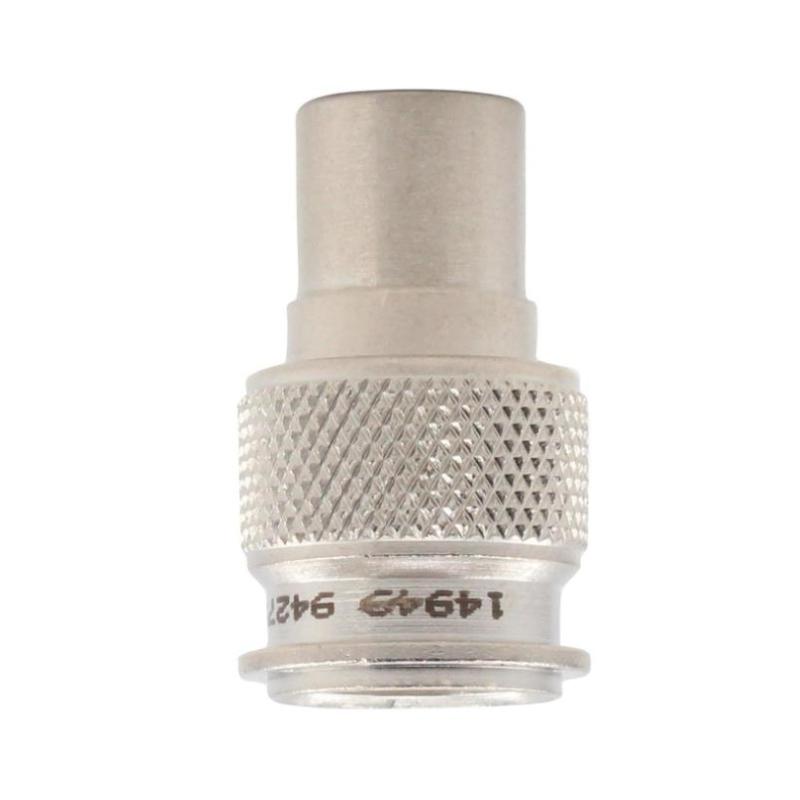

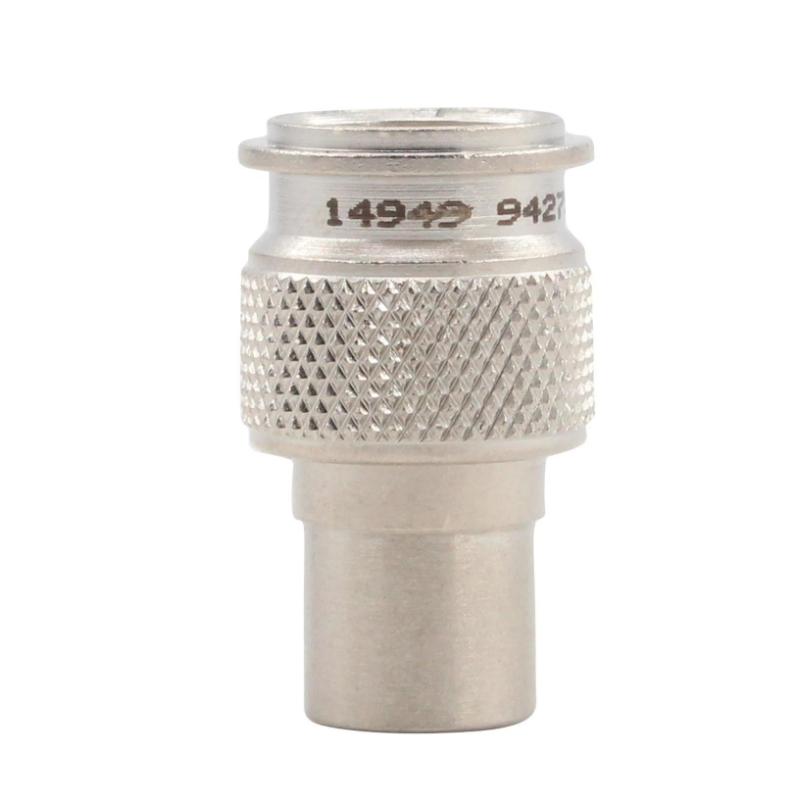

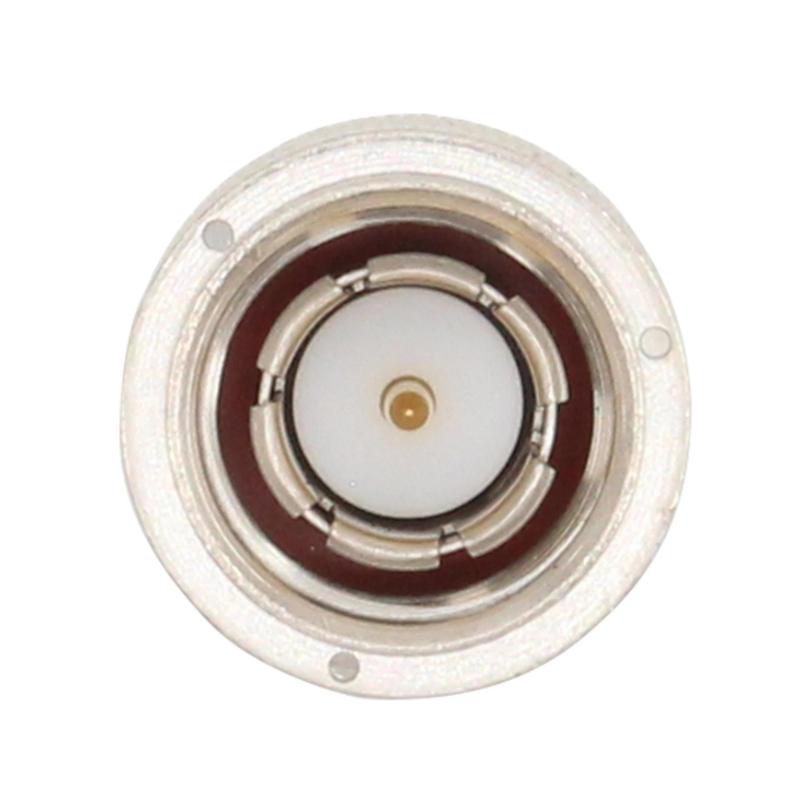

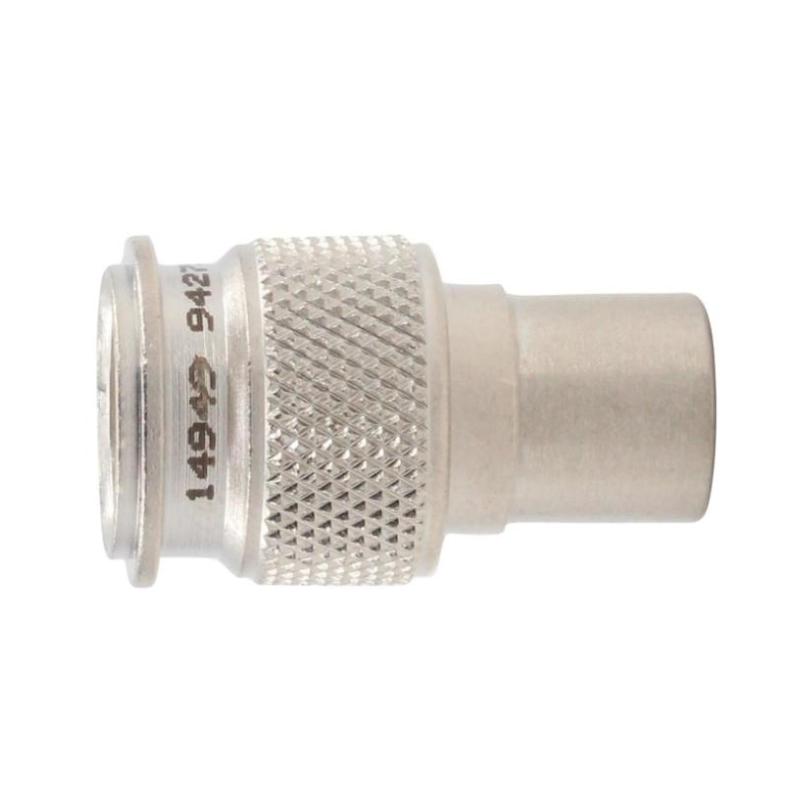

Allen Bradley 1786-TNCLXT4 ControlNet TNC Terminal Plug

Applications

The Allen Bradley 1786-TNCLXT4 ControlNet TNC Terminal Plug is a network accessory associated with ControlNet coaxial communication systems. In industrial automation installations, compatible TNC connectors and termination accessories help maintain the electrical characteristics required for reliable communication over coaxial cable.

ControlNet networks are used to exchange control and diagnostic data between programmable logic controllers (PLCs), I/O devices, drives, and other compatible automation equipment. Selecting the correct connector and termination hardware is important for maintaining network signal integrity and reducing communication-related faults.

Typical application scenarios include:

• PLC communication networks: Supporting the physical coaxial connection infrastructure used by compatible ControlNet systems.

• Industrial control cabinets: Helping organize coaxial cable connections within automation enclosures.

• Manufacturing automation: Supporting network maintenance in production lines using ControlNet communication.

• Process control installations: Providing a model-specific accessory option for existing Allen-Bradley network infrastructure.

• Network maintenance and replacement: Helping maintenance teams identify the appropriate connector accessory when servicing installed ControlNet equipment.

Before purchasing the 1786-TNCLXT4, confirm whether the existing application requires a TNC terminal plug, a cable connector, or a dedicated network terminator. These components can have different functions even when they use similar connector interfaces.

Advantages

Designed for ControlNet Infrastructure

The 1786-TNCLXT4 model designation identifies an accessory associated with Allen-Bradley ControlNet networking. Correct accessory selection helps maintain compatibility with the existing network cabling and connection arrangement.

Supports Organized Coaxial Connections

Suitable coaxial connection hardware helps provide a consistent physical interface between compatible network components and cabling, supporting orderly installation and maintenance.

Useful for Industrial Network Servicing

A model-specific replacement part can help technicians maintain existing ControlNet installations without making unnecessary changes to the wider communication architecture.

Helps Reduce Procurement Errors

Using the complete catalog number when requesting a quotation helps distinguish the required component from other ControlNet connectors, coaxial accessories, and termination products.

Suitable for Spare-Parts Inventory

Keeping correctly identified network accessories available can help maintenance teams respond more efficiently to connector damage, planned network servicing, or equipment refurbishment.

Practical for Legacy Automation Support

For facilities operating established Allen-Bradley PLC systems, accurate identification of ControlNet accessories is an important part of preserving existing communication infrastructure.

Technical FAQs

Q1. What is the purpose of the Allen Bradley 1786-TNCLXT4?

The supplied product description identifies it as a ControlNet TNC terminal plug. Its precise function should be confirmed against the catalog number and product label before it is selected for a network installation.

Q2. What is ControlNet?

ControlNet is an industrial communication network developed for deterministic data exchange between compatible automation controllers, I/O devices, and other control equipment. It uses a defined network architecture and physical-layer requirements.

Q3. What is a TNC connector?

A TNC connector is a threaded RF coaxial connector designed to provide a secure mechanical connection. In industrial networking, the connector must match the cable, impedance, and equipment interface specified for the application.

Q4. Is a TNC terminal plug the same as a ControlNet terminator?

Not necessarily. A connector plug provides a physical connection, while a network terminator supplies the required electrical termination impedance at the appropriate point in a network. Verify the exact part function before installation.

Q5. Why is correct termination important in a ControlNet network?

Correct termination helps prevent signal reflections on the coaxial network. Incorrect or missing termination can degrade communication quality and cause intermittent network errors or loss of communication.

Q6. Can the 1786-TNCLXT4 be used with any coaxial cable?

No. Compatibility depends on the connector interface, cable type, impedance, and the requirements of the ControlNet installation. Use only cable and accessories specified for the intended network.

Q7. What symptoms may indicate a faulty coaxial connector?

Possible symptoms include intermittent communication, network status errors, unstable connections, and visible connector damage. These symptoms can also result from cabling faults, incorrect termination, or problems elsewhere in the network.

Q8. How should a ControlNet coaxial connection be inspected?

Inspect the connector body, threaded coupling, center contact, cable condition, and mating interface. Check for looseness, corrosion, contamination, or mechanical damage while following the site's approved maintenance procedures.

Q9. Can a connector be replaced while the ControlNet network is running?

Do not assume that replacement is safe during operation. Disconnecting network components may interrupt communication or affect system availability. Follow the site's maintenance plan and the equipment manufacturer's instructions before servicing the connection.

Q10. What should buyers verify before ordering the 1786-TNCLXT4?

Confirm the complete catalog number, product description, connector type, intended function, cable compatibility, and required quantity. If the component is being used as a terminator, verify its specified impedance and suitability for the network topology.
