Introduction

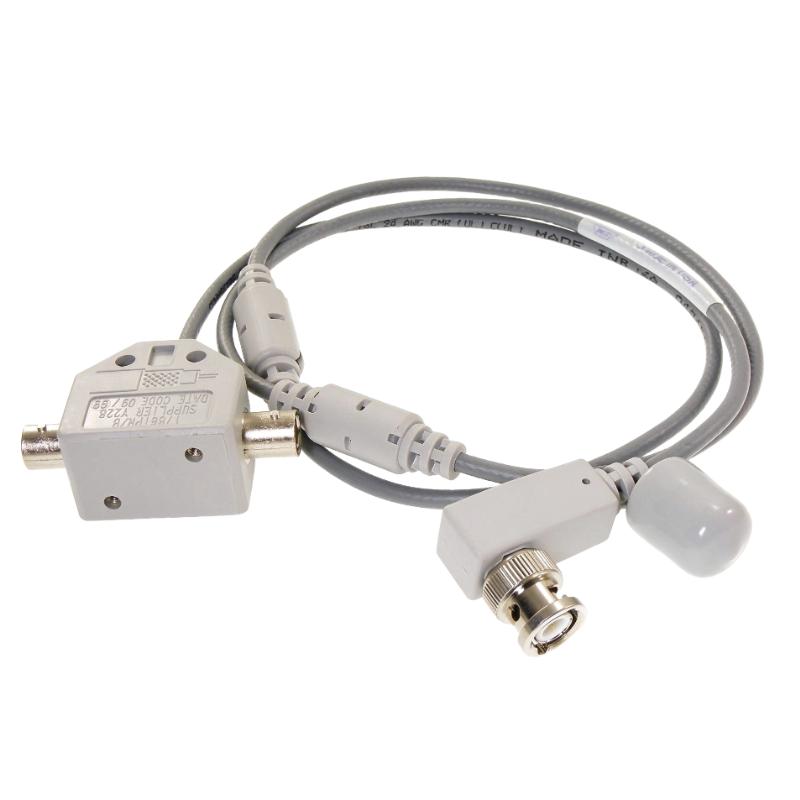

The Allen Bradley 1786-TPR ControlNet Coaxial Cable Tap is presented as a network connection accessory for industrial automation applications. ControlNet coaxial networks rely on properly matched cables, taps, connectors, and terminators to maintain communication between controllers and distributed field devices.

In a production facility, the physical communication network is an essential part of the automation infrastructure. A correctly configured coaxial network helps controllers exchange information with compatible devices while maintaining the timing and signal characteristics required by the application. Network accessories therefore need to be selected according to their precise electrical function rather than their appearance alone.

For maintenance engineers, the distinction between a coaxial tap and a repeater is particularly important. A tap establishes a connection to the network trunk, while a repeater performs signal regeneration. Using the wrong component can lead to an incompatible installation or prevent the intended network arrangement from operating correctly.

The supplied product information lists a cable length of 1 meter and a shipping weight of 3 kg. These values should be treated as supplied logistics information rather than confirmed electrical specifications of the tap itself. Before listing or ordering the product, verify whether the cable length refers to an included cable assembly and whether the shipping weight includes packaging or additional accessories.

For industrial automation suppliers, confirming these details before dispatch helps improve quotation accuracy, customer communication, and replacement-part compatibility.

Technical Specifications

Parameter	Specification
Brand	Allen-Bradley
Manufacturer	Rockwell Automation
Model Number	1786-TPR
Product Type	ControlNet Coaxial Cable Tap — supplied description, requires catalog verification
Network Family	ControlNet
Component Category	Coaxial Network Accessory
Cable Length	1 meter, as supplied
Shipping Weight	3 kg / 6.61 lb
Connector Configuration	Verify against the actual product
Network Compatibility	Confirm using the exact catalog number and installation documentation
Typical Applications	Industrial PLC and ControlNet communication infrastructure

Note: The supplied cable length and shipping weight are retained as provided. The 1786-TPR catalog number and the description “Coaxial Cable Tap” should be verified against the original nameplate or manufacturer documentation before the product page is published.

Recommended Related Models

The following Allen-Bradley products are associated with ControlNet communication infrastructure. They serve different purposes, so verify their functions before selecting them for a particular installation.

Model	Product Type	Application
1786-RG6	ControlNet Coaxial Cable	Coaxial network trunk cabling
1786-TPS	ControlNet Coaxial Tap	Network connection accessory
1786-BNC	ControlNet BNC Connector Accessory	Coaxial connection hardware
1786-RPFS	ControlNet Fiber-Optic Repeater Module	Fiber-optic network extension in compatible configurations

Popular Related Models

The following models are relevant to ControlNet network installation, maintenance, and spare-parts planning.

Model	Product Description
1786-TPR	ControlNet Coaxial Cable Tap — verify exact catalog designation
1786-TPS	ControlNet Coaxial Tap
1786-RG6	ControlNet Coaxial Cable
1786-BNC	ControlNet BNC Connector Accessory
1786-RPFS	ControlNet Fiber-Optic Repeater Module

When purchasing the Allen Bradley 1786-TPR ControlNet Coaxial Cable Tap, confirm the catalog number, product function, cable arrangement, and connector configuration before placing an order. Accurate identification helps prevent incompatible substitutions and supports dependable maintenance of existing industrial communication networks.

Applications

The Allen Bradley 1786-TPR ControlNet Coaxial Cable Tap is specified for use in industrial ControlNet communication infrastructure. ControlNet is an industrial network technology used to exchange control and monitoring data between programmable logic controllers (PLCs), remote I/O systems, drives, and other compatible automation devices.

Coaxial taps provide connection points between network devices and the main coaxial trunk. Selecting the correct tap is important for maintaining the electrical characteristics and physical topology required by a ControlNet installation.

Typical application scenarios include:

PLC communication networks: Providing a connection point for compatible ControlNet coaxial network devices.
Manufacturing automation: Supporting network infrastructure in production lines and automated machinery.
Process control systems: Connecting compatible control equipment to established industrial communication networks.
Distributed I/O installations: Supporting the physical network connections used by compatible remote I/O equipment.
ControlNet maintenance: Providing a replacement option when an existing network tap requires inspection or replacement.

Model verification is essential: The catalog number 1786-TPR should be checked against the original product label before publication or purchase. Allen-Bradley uses specific catalog numbers for different ControlNet taps, repeaters, and other coaxial accessories, and these components are not interchangeable simply because they belong to the same product family.

Advantages

Designed for Industrial Network Infrastructure

The 1786-TPR is identified in the supplied product description as a ControlNet coaxial cable tap. Correctly specified network taps help establish the required physical connection between compatible devices and coaxial network cabling.

Supports Organized Network Connections

A dedicated tap provides a defined connection point within the network architecture, helping technicians maintain an orderly cable layout and simplify inspection of network connections.

Suitable for Maintenance and Replacement Projects

For facilities operating established Allen-Bradley automation systems, identifying the correct tap can help reduce unnecessary changes to the existing network cabling and topology.

Helps Simplify Spare-Parts Procurement

Using the complete catalog number in purchase orders and quotation requests helps distinguish the requested accessory from other ControlNet products with similar descriptions.

Supports Network Reliability

Correctly matched taps, cables, connectors, and termination components help preserve the electrical characteristics required for dependable coaxial communication. Overall network reliability also depends on proper installation, cable condition, and correct termination.

Practical for Industrial Equipment Suppliers

For automation distributors and maintenance teams, clear model identification and accurate product specifications help streamline purchasing decisions and reduce the risk of incompatible replacements.

Technical FAQs

Q1. What is the purpose of a ControlNet coaxial cable tap?

A coaxial cable tap provides a connection point between compatible network devices and the ControlNet coaxial trunk. Its electrical characteristics must match the network design.

Q2. What type of communication network uses ControlNet coaxial taps?

ControlNet is an industrial communication network used for data exchange between compatible controllers, I/O devices, and other automation equipment.

Q3. Is a ControlNet tap the same as a coaxial repeater?

No. A tap provides a physical network connection, whereas a repeater regenerates communication signals to support an appropriate network configuration. The two components perform different functions.

Q4. Why is the correct impedance important for ControlNet cabling?

Impedance matching helps reduce signal reflections and maintain signal integrity. Incompatible connectors, taps, or cables can introduce communication problems.

Q5. Does a coaxial tap replace the need for network terminators?

No. Taps and terminators have different purposes. A correctly designed coaxial network requires the specified termination arrangement at the appropriate ends of the trunk.

Q6. Can any RG-6 coaxial cable be used with ControlNet?

Not necessarily. The cable must meet the electrical and mechanical requirements of the specific ControlNet installation. Verify the approved cable type and connector compatibility before installation.

Q7. What can cause intermittent communication in a ControlNet network?

Possible causes include damaged coaxial cable, loose connectors, incorrect termination, incompatible network accessories, electromagnetic interference, or faults in connected devices.

Q8. How should a coaxial tap be inspected during maintenance?

Inspect the housing, connector interfaces, coupling mechanisms, and attached cables for physical damage, contamination, looseness, or corrosion. Follow the site's maintenance procedures before disconnecting any network component.

Q9. Can a ControlNet tap be replaced while the network is operating?

Do not assume that live replacement is permissible. Disconnecting a network connection can interrupt communication and affect connected equipment. Follow approved maintenance and isolation procedures.

Q10. How can buyers confirm that the 1786-TPR is the correct replacement?

Check the complete catalog number, original product label, connector arrangement, electrical specifications, and the existing network documentation. Confirm the exact product function before ordering.

Look forward to your comments!Comment
